Amana AAC202SRA (BOM: PAAC202SRA0)

Model: AAC202SRA (BOM: PAAC202SRA0)

Save Part Not Listed?
product name

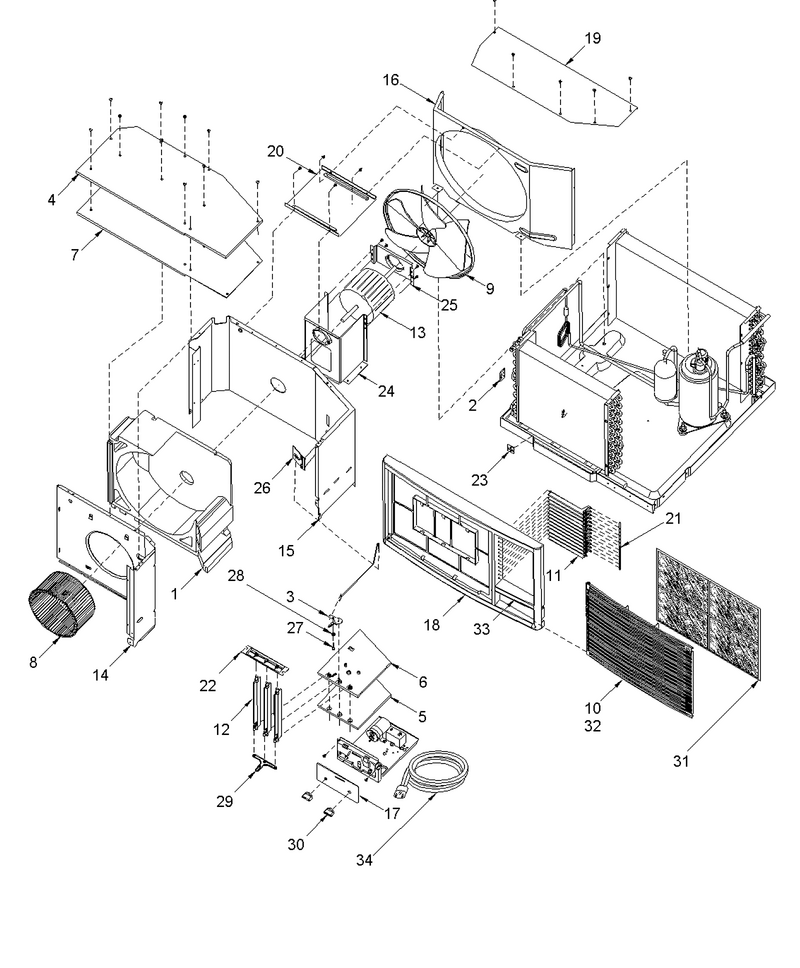

01 - Chassis Assembly

...
...
NI
Cord, Power WPL-R0130766
...
1
Scroll, Inlet WPL-R0130243
...
2
Clip, Therm Sensor WPL-R0130239
...
3
Actuator, Vent WPL-R0130244
...
4
Cover, Evaporator WPL-R0130248
...
5
Barrier, Control WPL-R0130249
...
8
Wheel, Blower WPL-R0130256
...
9
Fan, Condenser WPL-R0130257
...
10
Insert, Grille Front WPL-R0130194
...
13
Motor, Condenser WPL-R0130552
...
14
Panel, Inlet WPL-R0130554
...
15
Panel, Partition WPL-R0130555
...
16
Shroud, Condenser WPL-R0130556
...
17
Escutcheon, Control WPL-R0130201
...
18
Front WPL-R0130195
...
19
Cover, Condenser WPL-R0130582
...
20
Brace, Tie WPL-R0130557
...
21
Rod,horiz Louver Connecting WPL-R0130564
...
22
Rod, Vert Louver Connecting WPL-R0130238
...
23
Clip, Basepan WPL-R0131576
...
24
Support,motor(front) WPL-R0130567
...
25
Support,motor(rear) WPL-R0130568
...
26
Door,vent WPL-R0130569
...
27
Vent Pivot Pin WPL-97001018
...
28
Drive Nut,pivot Pin WPL-R0130571
...
29
Gang Bar,vert Louver WPL-R0130236
...
30
Knob, Control WPL-R0130157
...
31
Filter WPL-R0131450
...
33
Front Label WPL-R0131668

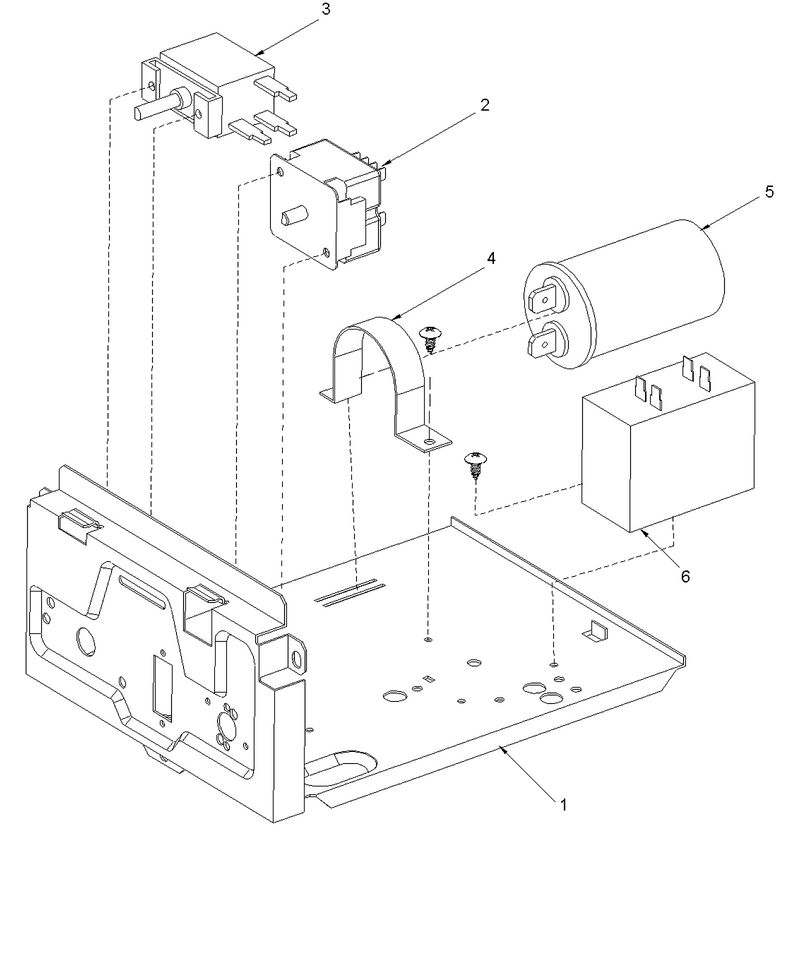

03 - Control Assembly

...
...
1
Panel, Control WPL-R0130241
...
2
Switch, Selector WPL-R0130203
...
3
Thermostat WPL-R0130204
...
4
Strap, Capacitor WPL-R0130205
...
5
Capacitor, Compressor WPL-R0130548
...
6
Capacitor, Fan Motor WPL-R0130145

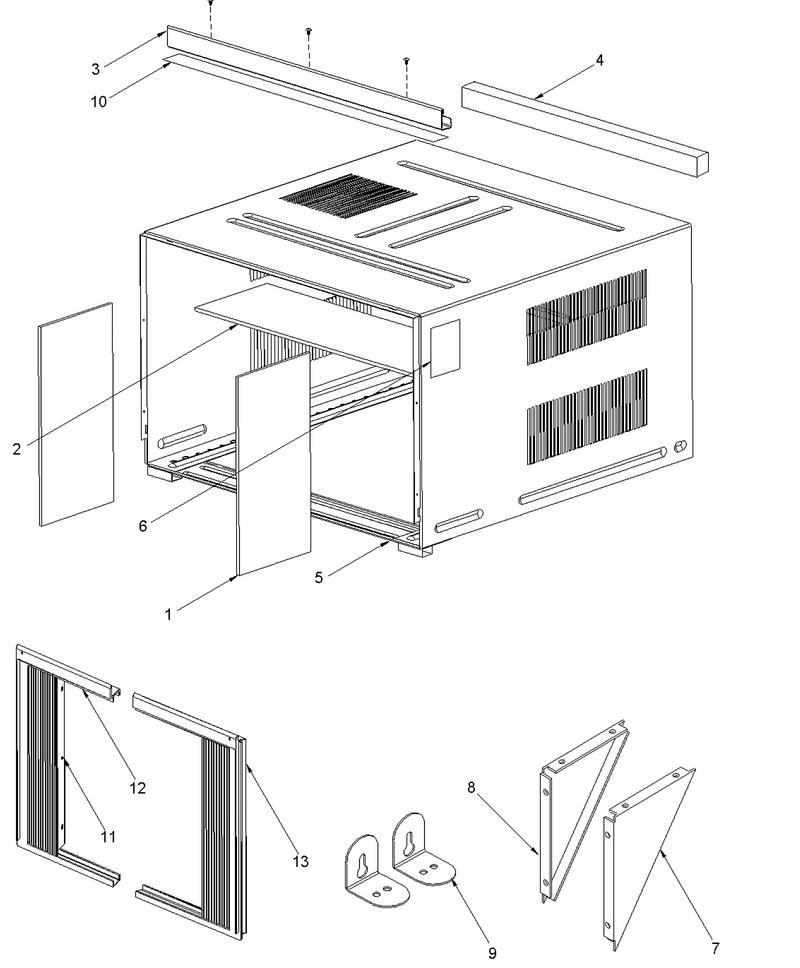

05 - Outer Case Assembly

...
...
NI
Window Mounting Kit-Aac WPL-R0131519
...
3
Rail, Top WPL-R0130259
...
5
Outercase WPL-97001045
...
7
Brace, External-Rt WPL-R0131402
...
8
Brace, External-Lt WPL-R0131401
...
11
Curtain Wall WPL-R0131550
...
12
Track, Curtain-Lt Side WPL-R0131538
...
13
Track, Curtain-Rt Side WPL-R0131539

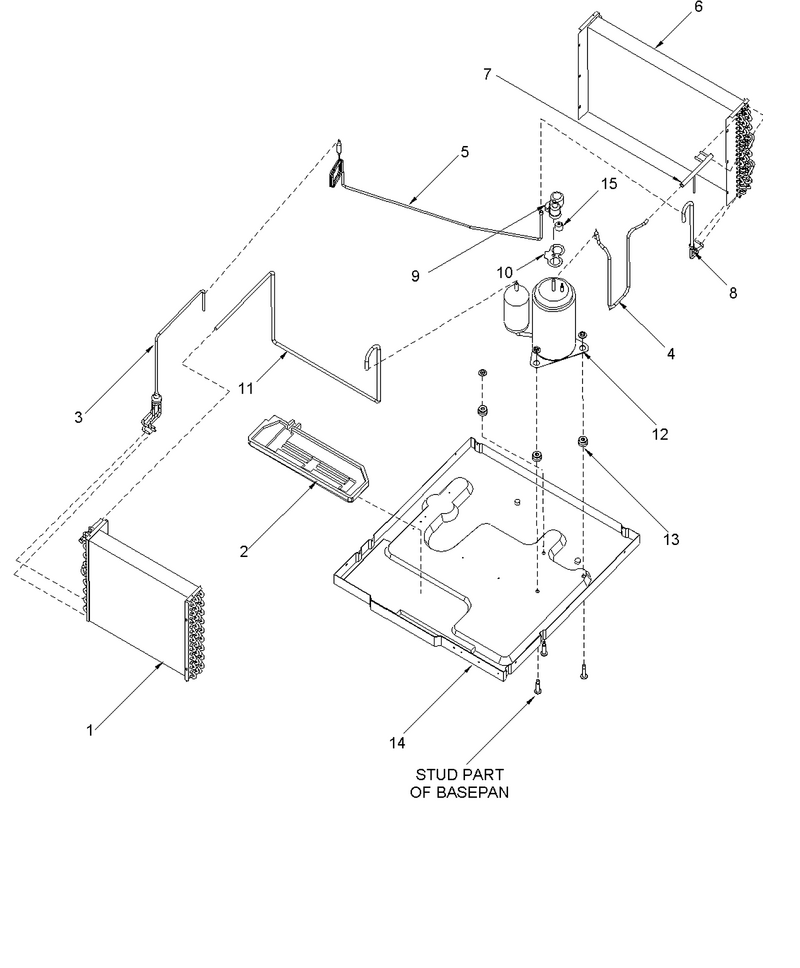

02 - Chassis Assembly

...
...
1
Assy, Evaporator WPL-R0130255
...
2
Drain Block WPL-R0130553
...
3
Weld, Evap Dist WPL-R0130558
...
4
Tube, Discharge WPL-R0130562
...
5
Assy,capillary WPL-R0130563
...
6
Assy, Condenser WPL-R0130246
...
7
Manifold,condenser WPL-R0130559
...
8
Assy,cond Elbow WPL-R0130560
...
9
Cover, Terminal WPL-R0130210
...
10
Terminal Cover Gasket WPL-R0131688
...
11
Tube,suction WPL-R0130561
...
12
Compressor WPL-R0130549
...
13
Grommet. Comp WPL-A3448601
...
14
Drain Pan W/compressor Bolts WPL-R0130199
...
15
Overload WPL-R0131590

...
...
0
Filter, Electrostatic WPL-R0131426
