Amana AAC182STA (BOM: PAAC182STA0)

Model: AAC182STA (BOM: PAAC182STA0)

Save Part Not Listed?
product name

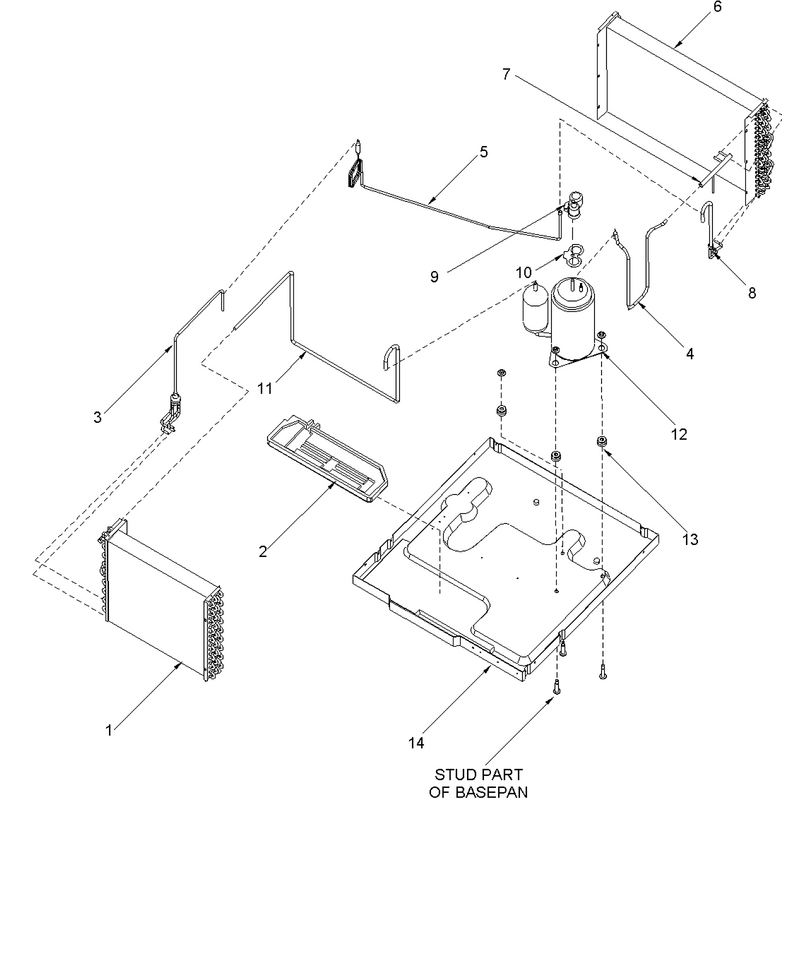

02 - Chassis Assembly

...
...
1
Assy, Evaporator WPL-R0130584
...
2
Drain Block WPL-R0130553
...
3
Weld, Evap Dist WPL-R0130585
...
4
Tube, Discharge WPL-R0130562
...
5
Assy, Capillary WPL-R0130566
...
6
Assy, Condenser WPL-R0130583
...
7
Manifold, Condenser WPL-R0130586
...
8
Assy, Condenser Elbow WPL-R0130710
...
9
Cover, Terminal WPL-R0130247
...
10
See Note See Note Terminal Cover Gasket Part No. Not Available At Time Of Printing WPL-Y00000000
...
11
Tube,suction WPL-R0130561
...
12
Compressor WPL-R0130245
...
13
Grommet-Compressor WPL-R0130252
...
14
Drain Pan W/compressor Bolts WPL-R0130199

...
...
0
See Note See Note Remote Control Part No. Not Available At Time Of Printing WPL-Y00000000
...
1
Mnl,owners(rac) WPL-12592401

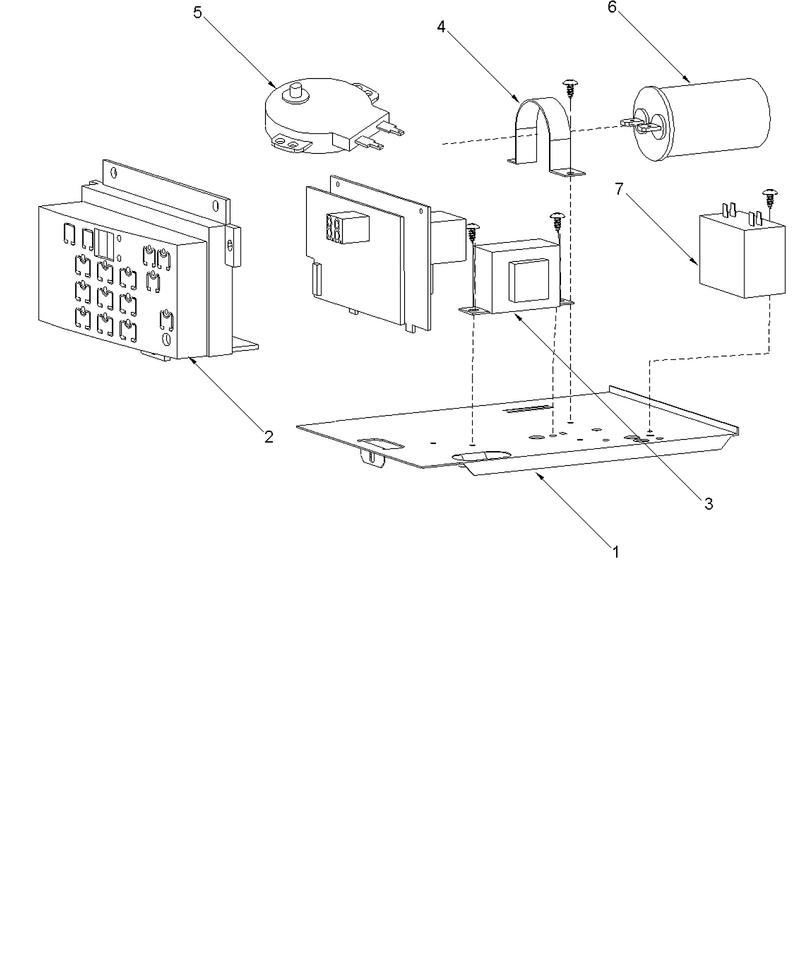

03 - Control Assembly

...
...
1
Control Module Assy W/pc Board WPL-R0130185
...
2
Control Module Assy W/pc Board WPL-R0130185
...
3
Transformer WPL-R0130764
...
4
Strap, Capacitor WPL-R0130205
...
5
Motor, Auto Sweep WPL-R0130714
...
6
Capacitor, Running WPL-8215164
...
7
Capacitor, Fan Motor WPL-R0130145
...
9
Thermistor WPL-R0131689
...
10
Fuse Pc Board WPL-R0131690

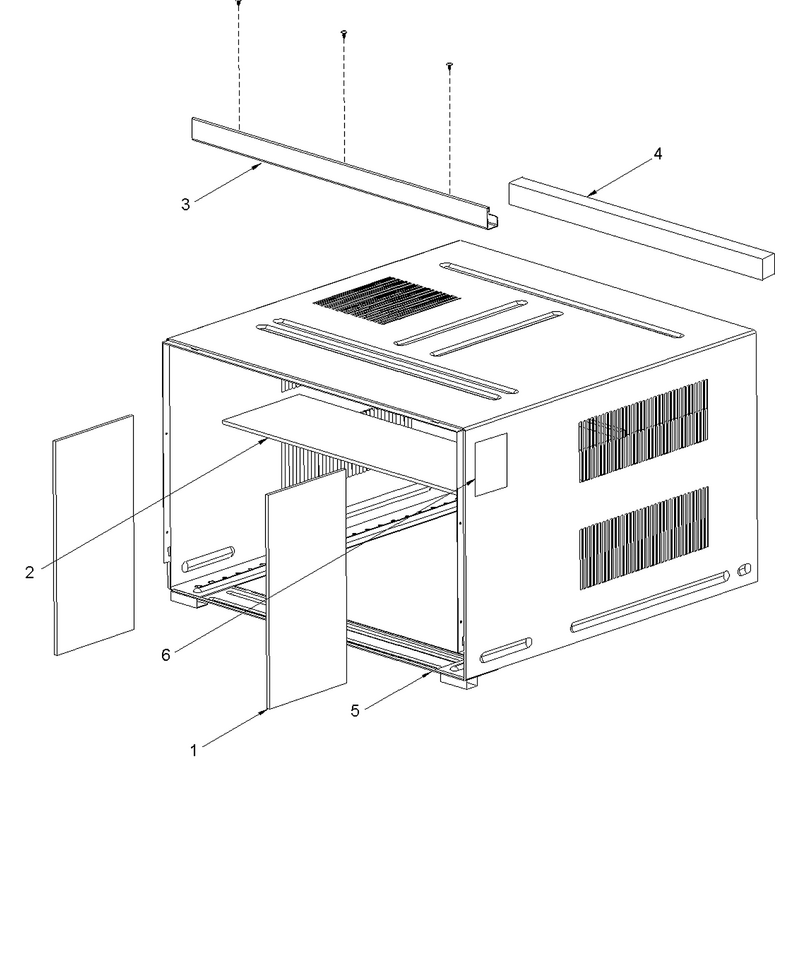

05 - Outer Case Assembly

...
...
1
Gasket, Oc Side WPL-R0130251
...
3
Rail, Top WPL-R0130259
...
5
Outercase WPL-97001045
...
7
Brace, External-Rt WPL-R0131402
...
8
Brace, External-Lt WPL-R0131401
...
9
Angle, Basepan WPL-R0131396
...
10
Gasket, Top Rail WPL-R0131549
...
11
Curtain Wall WPL-R0131550
...
12
Track, Curtain-Lt Side WPL-R0131538
...
13
Track, Curtain-Rt Side WPL-R0131539
...
14
Bolts, External Brace WPL-R0131412
...
15
Nut, External Brace WPL-R0131414
...
16
Window Mounting Kit-Aac WPL-R0131519
...
17
Gasket Wadhesive-Window Sash WPL-R0131397
...
18
Gasket, Window Sill WPL-R0131399

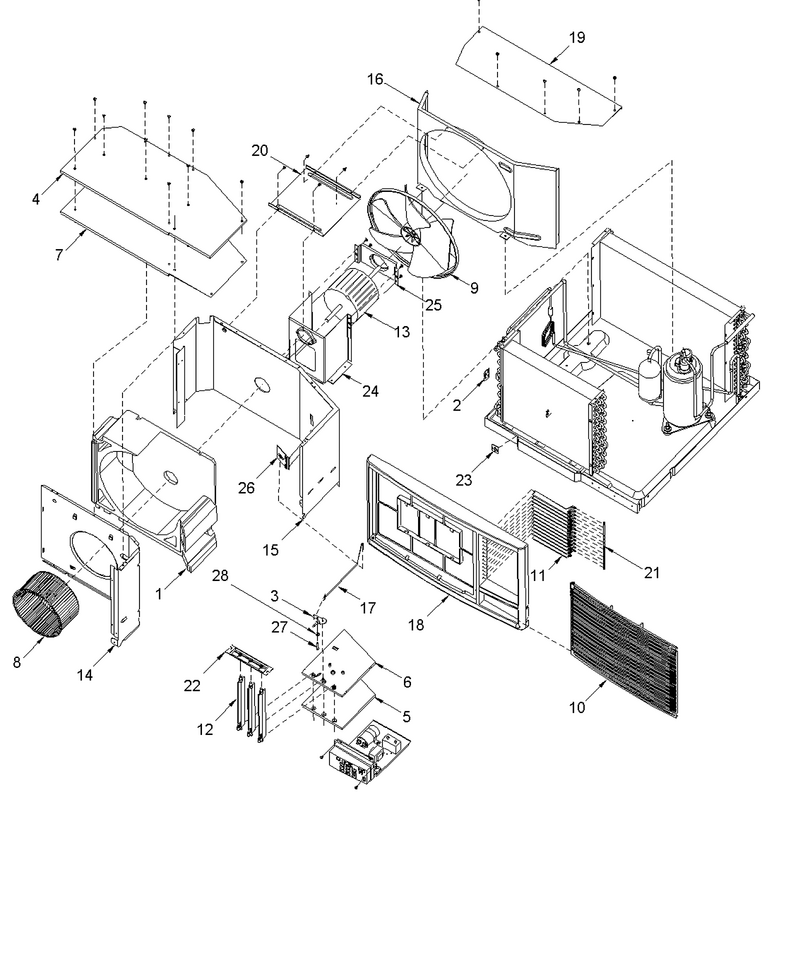

01 - Chassis Assembly

...
...
1
Scroll, Inlet WPL-R0130243
...
2
Clip, Therm Sensor WPL-R0130239
...
3
Actuator, Vent WPL-R0130712
...
4
Cover, Evaporator WPL-R0130248
...
5
Barrier, Control WPL-R0130249
...
8
Wheel, Blower WPL-R0130256
...
9
Fan, Condenser WPL-R0130257
...
10
Insert, Grille Front WPL-R0130194
...
13
Motor, Condenser WPL-R0130713
...
14
Panel, Inlet WPL-R0130554
...
15
Panel, Partition WPL-R0130555
...
16
Shroud, Condenser WPL-R0130556
...
17
Linkage, Vent WPL-R0130711
...
18
Front WPL-R0130715
...
19
Cover, Condenser WPL-R0130582
...
20
Brace, Tie WPL-R0130557
...
21
Rod,horiz Louver Connecting WPL-R0130564
...
22
Rod, Vert Louver Connecting WPL-R0130238
...
23
Clip, Basepan WPL-R0130565
...
24
Support,motor(front) WPL-R0130567
...
25
Support,motor(rear) WPL-R0130568
...
26
Door,vent WPL-R0130569
...
27
Vent Pivot Pin WPL-97001018
...
28
Drive Nut,pivot Pin WPL-R0130571
