Amana AAC182SRA (BOM: PAAC182SRA0)

Model: AAC182SRA (BOM: PAAC182SRA0)

Save Part Not Listed?
product name

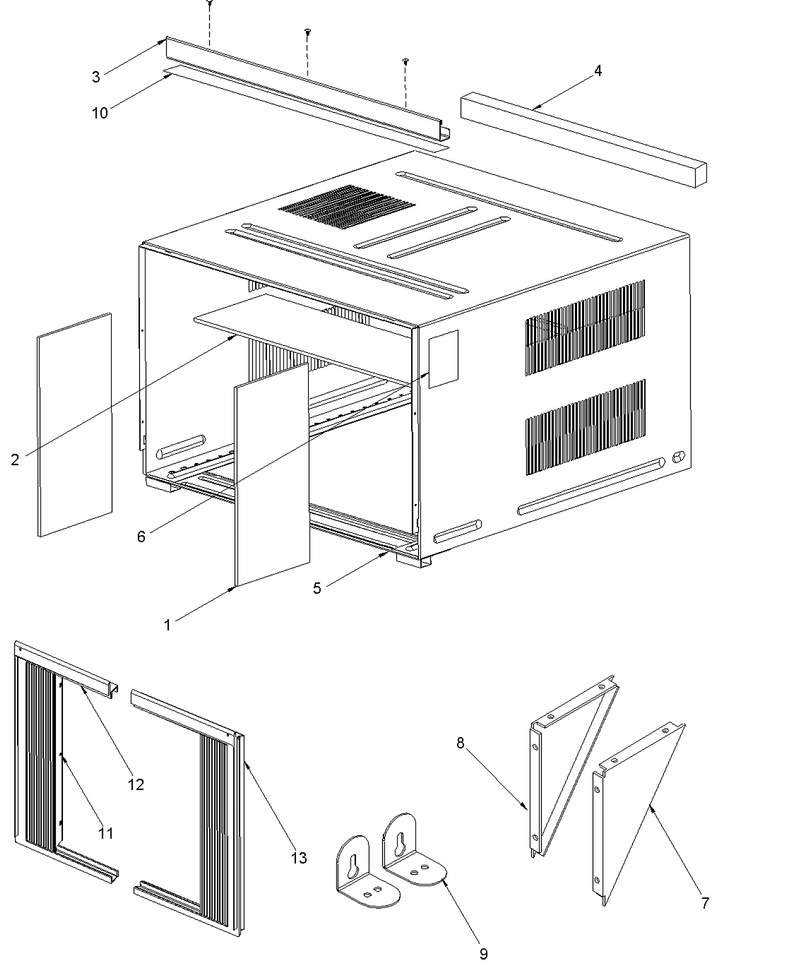

05 - Outer Case Assembly

...
...
1
Gasket, Oc Side WPL-R0130251
...
2
Gasket, Oc Top WPL-R0130250
...
3
Rail, Top WPL-R0130259
...
4
See Note See Note Gasket Oc Back Part No. Not Available At Time Of Printing WPL-Y00000000
...
5
Outercase WPL-97001044
...
6
Tape Per Roll WPL-M0275163
...
7
Brace, External-Rt WPL-R0131402
...
8
Brace, External-Lt WPL-R0131401
...
9
Angle, Basepan WPL-R0131396
...
10
Gasket, Top Rail WPL-R0131549
...
11
Curtain Wall WPL-R0131550
...
12
Track, Curtain-Lt Side WPL-R0131538
...
13
Track, Curtain-Rt Side WPL-R0131539
...
14
Gasket Wadhesive-Window Sash WPL-R0131397
...
15
Gasket, Window Sill WPL-R0131399
...
16
Bolts, External Brace WPL-R0131412
...
17
Nut, External Brace WPL-R0131414
...
18
Window Mounting Kit-Aac WPL-R0131518

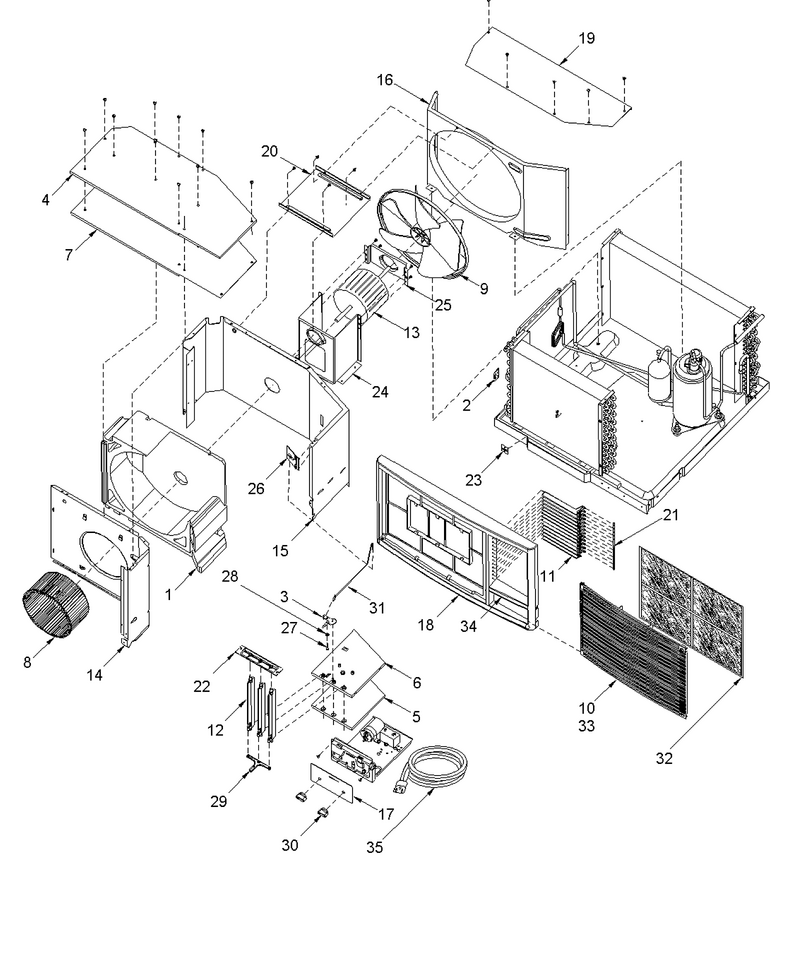

01 - Chassis Assembly

...
...
1
Scroll, Inlet WPL-R0130243
...
2
Clip, Therm Sensor WPL-R0130239
...
3
Actuator, Vent WPL-R0130244
...
4
Cover, Evaporator WPL-R0130248
...
5
Barrier, Control WPL-R0130249
...
6
Gasket, Control Panel WPL-R0130253
...
7
Insulation, Evaporator Cover WPL-R0130254
...
8
Wheel, Blower WPL-R0130256
...
9
Fan, Condenser WPL-R0130257
...
10
Insert, Grille Front WPL-R0130194
...
11
Louvers, Horizontal WPL-R0130550
...
12
Louver, Vertical WPL-R0130551
...
13
Motor, Condenser WPL-R0130552
...
14
Panel, Inlet WPL-R0130554
...
15
Panel, Partition WPL-R0130555
...
16
Shroud, Condenser WPL-R0130556
...
17
Escutcheon, Control WPL-R0130201
...
18
Front WPL-R0130195
...
19
Cover, Condenser WPL-R0130582
...
20
Brace, Tie WPL-R0130557
...
21
Rod,horiz Louver Connecting WPL-R0130564
...
22
Rod, Vert Louver Connecting WPL-R0130238
...
23
Clip, Basepan WPL-R0131576
...
24
Support,motor(front) WPL-R0130567
...
25
Support,motor(rear) WPL-R0130568
...
26
Door,vent WPL-R0130569
...
27
Vent Pivot Pin WPL-97001018
...
28
Drive Nut,pivot Pin WPL-R0130571
...
29
Gang Bar,vert Louver WPL-R0130236
...
30
Knob, Control WPL-R0130157
...
31
Linkage, Vent WPL-R0130711
...
32
Filter WPL-R0131450
...
33
Catch Front Grille WPL-R0131150
...
34
Front Label WPL-R0131668
...
35
Cord, Power WPL-R0131537

...
...
1
Mnl,pts(rac-18,000 Btu High Ef WPL-RP4110034
...
2
Net-Cdc Algacide/anti-Clog Str WPL-R0130270
...
3
Filter, Electrostatic WPL-R0131426
...
4
Carton WPL-R0131540
...
5
Mnl,owners(rac) WPL-12592301

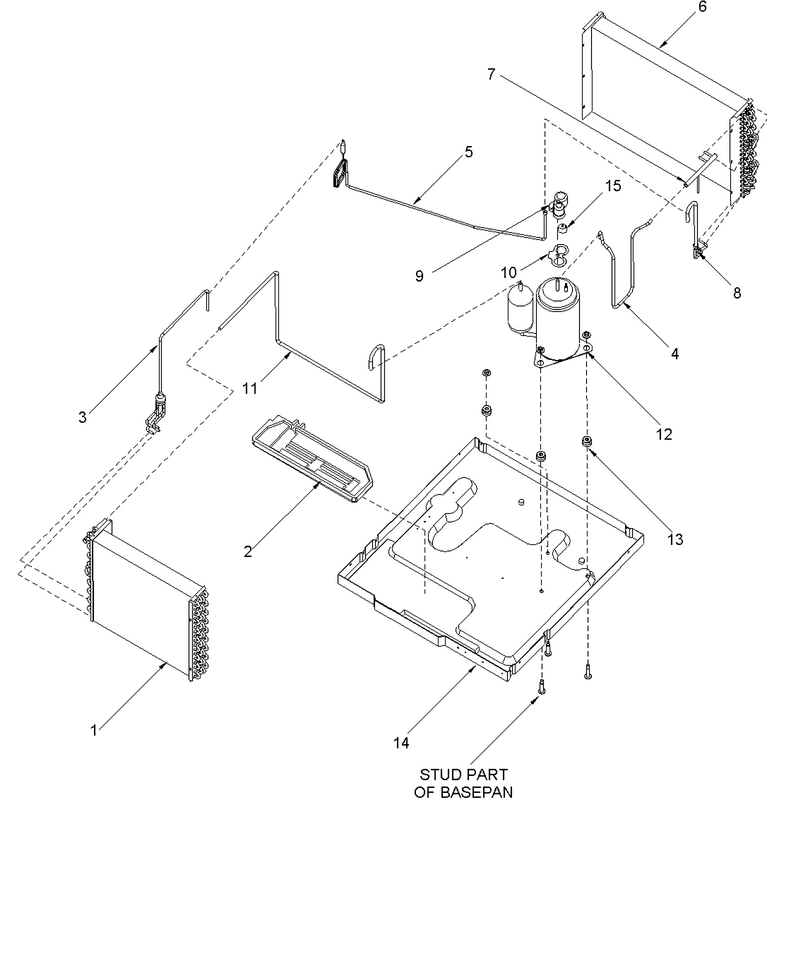

02 - Chassis Assembly

...
...
1
Assy, Evaporator WPL-R0130255
...
2
Drain Block WPL-R0130553
...
3
Weld, Evap Dist WPL-R0130558
...
4
Tube, Discharge WPL-R0130562
...
5
Assy, Capillary WPL-R0130566
...
6
Assy, Condenser WPL-R0130246
...
7
Manifold,condenser WPL-R0130559
...
8
Assy,cond Elbow WPL-R0130560
...
9
Cover, Terminal WPL-R0130247
...
10
Gasket, Terminal Cover WPL-R0131423
...
11
Tube,suction WPL-R0130561
...
12
Compressor WPL-R0130245
...
13
Grommet-Compressor WPL-R0130252
...
14
Drain Pan W/compressor Bolts WPL-R0130199
...
15
Overload WPL-R0131589
...
16
Plug, Basepan WPL-R0131531
...
17
Plug, Basepan WPL-R0131532

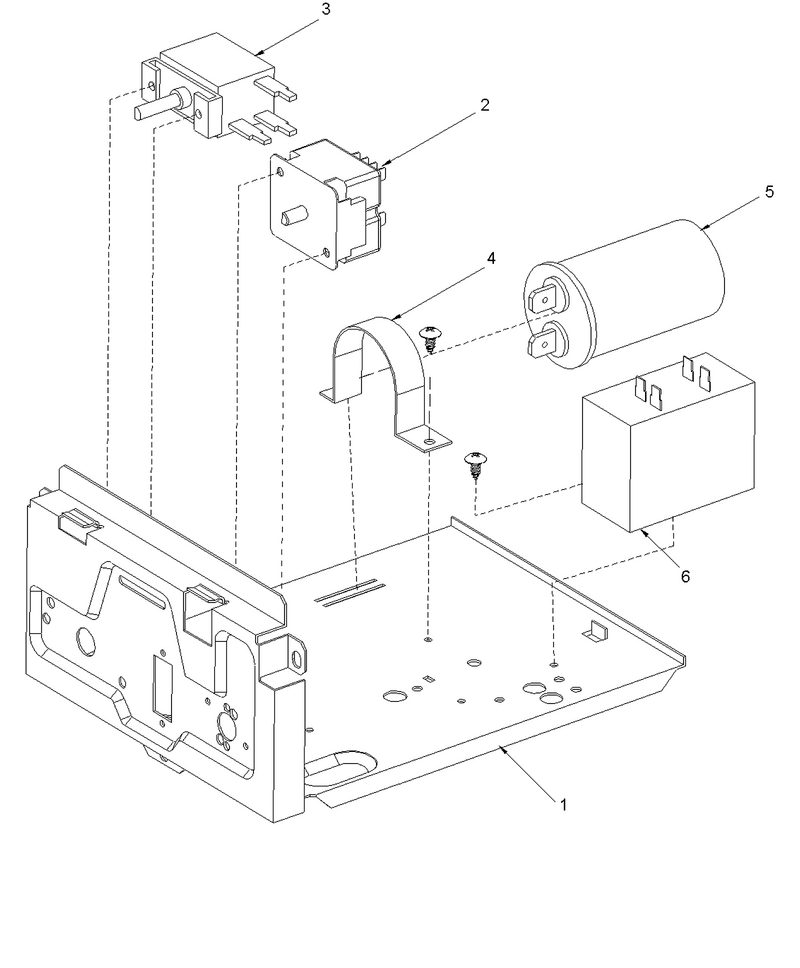

03 - Control Assembly

...
...
1
Panel, Control WPL-R0130241
...
2
Switch, Selector WPL-R0130203
...
3
Thermostat WPL-R0130204
...
4
Strap, Capacitor WPL-R0130205
...
5
Capacitor, Running WPL-8215164
...
6
Capacitor, Fan Motor WPL-R0130145
