Amana AAC141SRA (BOM: PAAC141SRA0)

Model: AAC141SRA (BOM: PAAC141SRA0)

Save Part Not Listed?
product name

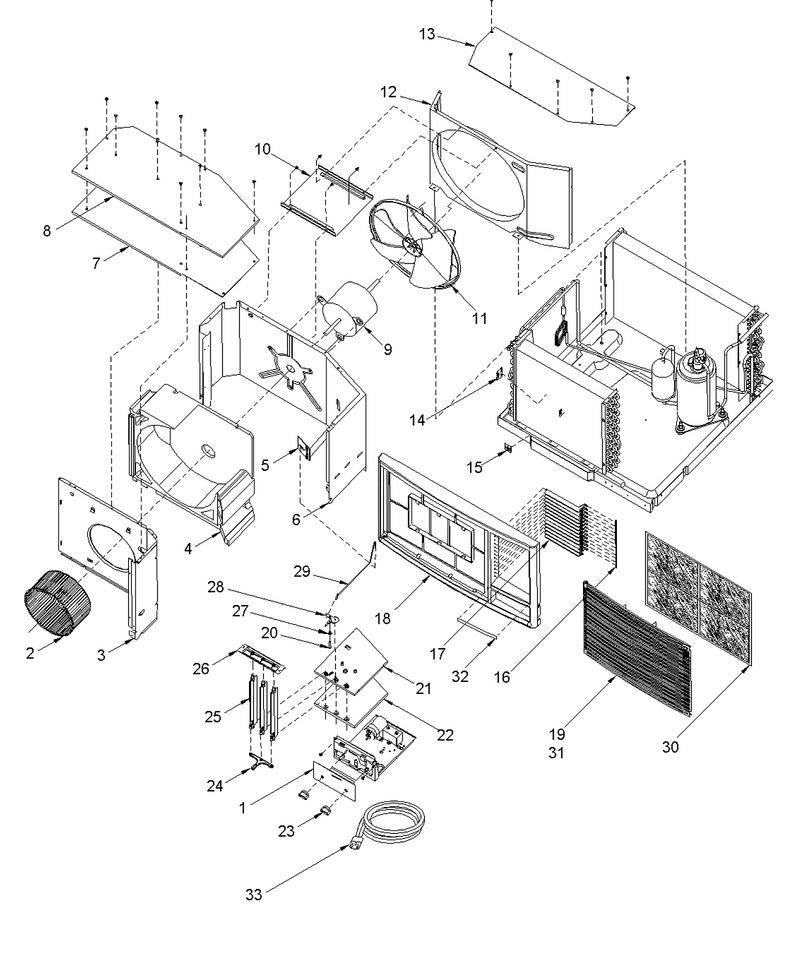

01 - Chassis Assembly

...
...
1
Escutcheon, Control WPL-R0130201
...
2
Wheel, Blower WPL-R0130215
...
3
Panel, Inlet WPL-R0130216
...
4
Scroll, Inlet WPL-R0130217
...
5
Door,vent WPL-R0130569
...
6
Panel, Partition WPL-R0130218
...
8
Cover, Evaporator WPL-R0130220
...
9
Motor, Condenser WPL-R0130221
...
10
Brace,tie WPL-R0130575
...
11
Fan, Condenser 15 5/8``d 1/2 H WPL-R0130222
...
12
Shroud, Condenser WPL-R0130223
...
13
Cover, Condenser WPL-R0130224
...
14
Clip, Therm Sensor WPL-R0130239
...
15
Clip, Basepan WPL-R0131576
...
16
Rod, Horiz Louver Connecting WPL-R0130240
...
18
Front WPL-R0130193
...
19
Insert, Grille Front WPL-R0130192
...
20
Vent Pivot Pin WPL-97001018
...
21
Gasket,air Discharge WPL-R0130228
...
22
Barrier,control WPL-R0130235
...
23
Knob, Control WPL-R0130157
...
24
Gang Bar,vert Louver WPL-R0130236
...
25
Louver,vert WPL-R0130237
...
26
Rod, Vert Louver Connecting WPL-R0130238
...
27
Drive Nut,pivot Pin WPL-R0130571
...
28
Actuator,vent WPL-R0130574
...
29
Linkage, Vent WPL-R0130765
...
30
Filter WPL-R0131451
...
31
Catch Front Grille WPL-R0131150
...
32
Front Label WPL-R0131668
...
33
Cord, Power WPL-R0130767

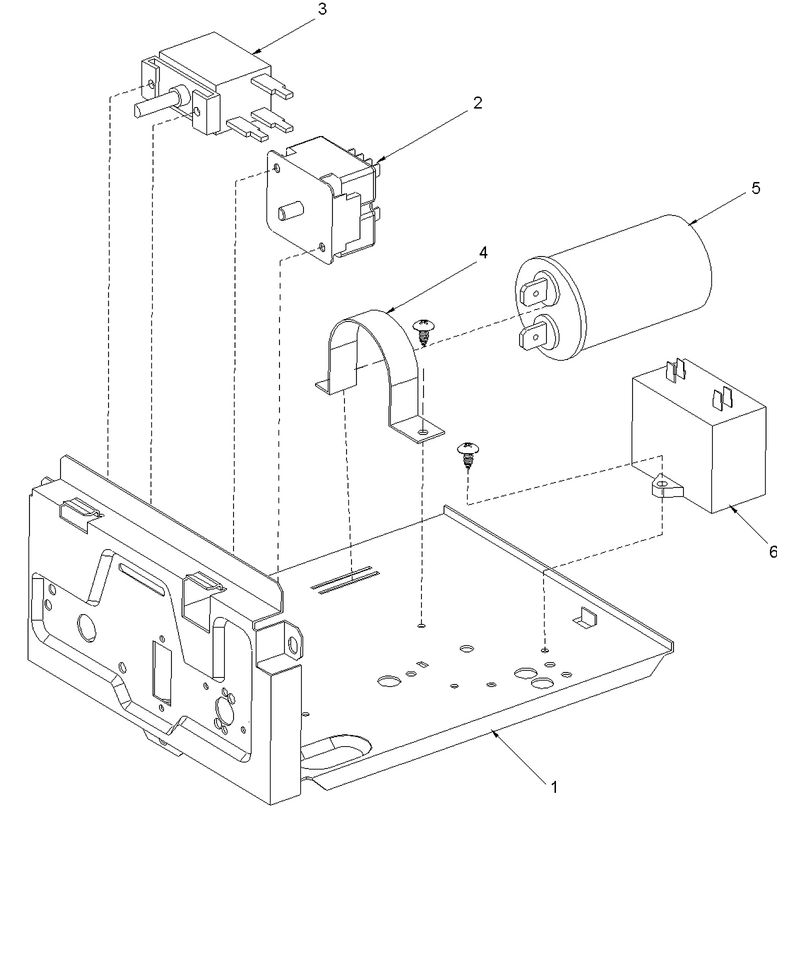

03 - Control Assembly

...
...
1
Panel, Control WPL-R0130202
...
2
Switch, Selector WPL-R0130203
...
3
Thermostat WPL-R0130204
...
4
Strap, Capacitor WPL-R0130205
...
5
Capacitor, Compressor WPL-R0130206
...
6
Capacitor, Fan Motor WPL-R0130207

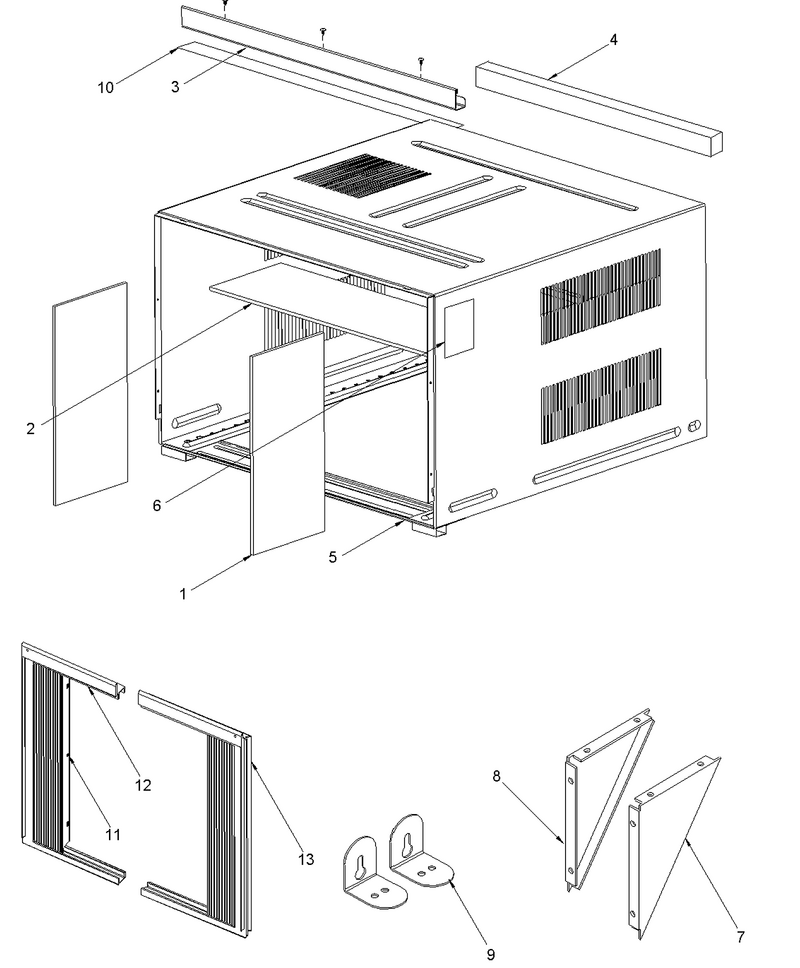

05 - Outer Case Assembly

...
...
NI
Window Mounting Kit-Aac WPL-R0131517
...
1
Gasket, Oc Side WPL-R0130258
...
2
Gasket,oc Top WPL-R0130581
...
3
Rail, Top WPL-R0130200
...
5
Outercase WPL-97001044
...
7
Brace, External-Rt WPL-R0131402
...
8
Brace, External-Lt WPL-R0131401
...
11
Curtain WPL-R0131548
...
12
Track, Curtain-Lt Side WPL-R0131534
...
13
Track, Curtain-Rt Side WPL-R0131535

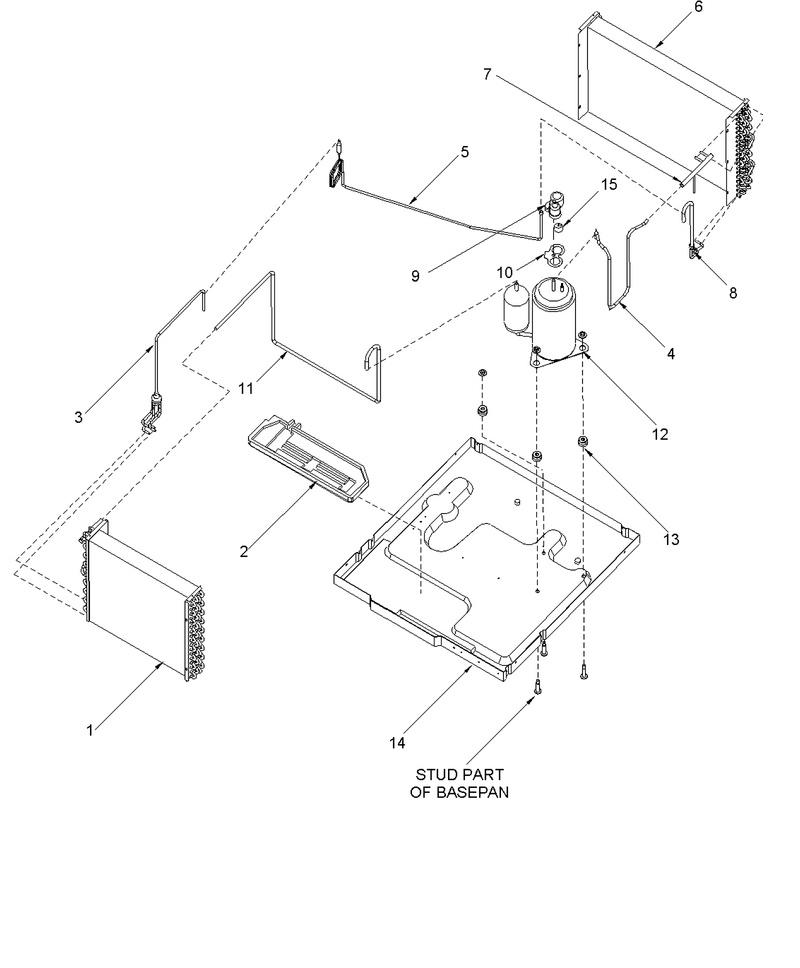

02 - Chassis Assembly

...
...
1
Assy, Evaporator WPL-R0130208
...
2
Drain Block WPL-R0130209
...
3
Weld,evap Dist WPL-R0130580
...
4
Tube,suction WPL-R0130579
...
5
Assy,capillary WPL-R0130578
...
6
Assy, Condenser WPL-R0130175
...
7
Manifold,condenser WPL-R0130577
...
8
Assy,cond Elbow WPL-R0130576
...
9
Cover, Terminal WPL-R0130210
...
10
Gasket,terminal Cover WPL-R0131593
...
11
Tube, Discharge WPL-R0130211
...
12
Compressor WPL-D6985812H
...
13
Grommet. Comp WPL-A3448601
...
14
Drain Pan W/compressor Bolts WPL-R0130198
...
15
Overload WPL-R0131588

...
...
0
Filter, Electrostatic WPL-R0131426
