Amana AAC101SRA (BOM: PAAC101SRA0)

Model: AAC101SRA (BOM: PAAC101SRA0)

Save Part Not Listed?
product name

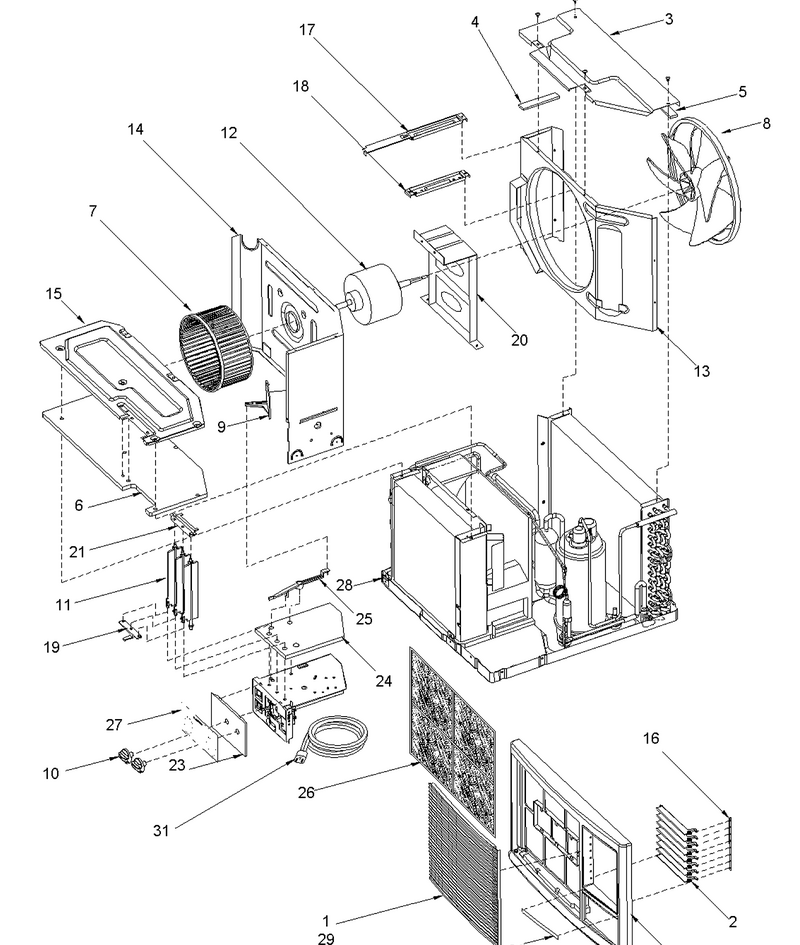

01 - Chassis Assembly

...
...
1
Insert, Grille Front WPL-R0130160
...
2
Louvers WPL-R0130150
...
3
Cover, Condenser WPL-R0130167
...
4
Gasket, Lt Cond Cover WPL-R0130152
...
5
Gasket, Back Cond Cover WPL-R0130155
...
6
Insul, Evap Cover WPL-R0130151
...
7
Wheel, Blower WPL-R0130154
...
8
Fan, Condenser 14``d 5/16 Hole WPL-R0130149
...
9
Door, Vent WPL-R0130153
...
10
Knob, Control WPL-R0130157
...
11
Louvers, Vertical WPL-R0130159
...
12
Motor, Condenser WPL-R0130161
...
13
Shroud, Condenser WPL-R0130165
...
14
Panel, Partition WPL-R0130164
...
15
Cover, Evaporator WPL-R0130166
...
16
Rod, Horiz Louver Connecting WPL-R0130168
...
17
Brace, Lt Tie WPL-R0130171
...
18
Brace, Rt Tie WPL-R0130170
...
19
Gang Bar, Vertical Louver WPL-R0130136
...
20
Support, Motor WPL-R0130169
...
21
Rod, Vert Louver Connecting WPL-R0130138
...
22
Front WPL-R0130163
...
23
Plate, Control WPL-R0130148
...
24
Gasket, Control Panel WPL-R0130147
...
25
Knob, Vent WPL-R0130158
...
26
Filter WPL-R0130770
...
27
Escutcheon, Control WPL-R0131449
...
28
Clip, Basepan WPL-R0131575
...
29
Catch Front Grille WPL-R0131150
...
30
Label Front WPL-R0131667
...
31
Cord, Power WPL-R0130767

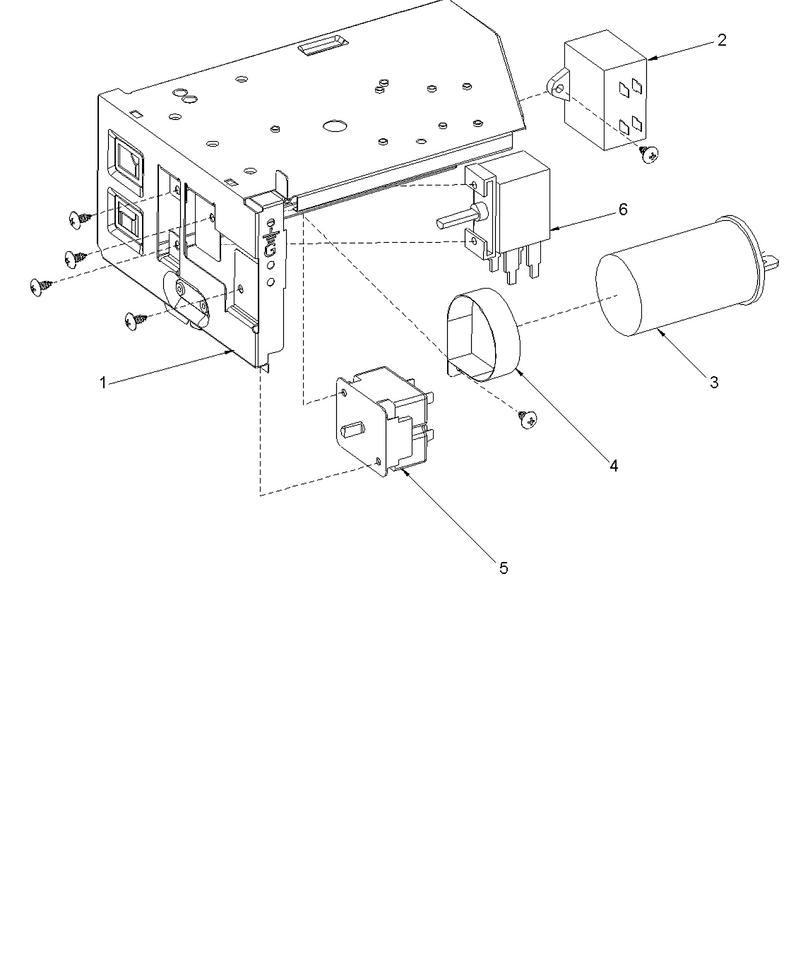

03 - Control Assembly

...
...
1
Panel, Control WPL-R0130144
...
2
Capacitor, Fan Motor WPL-R0130145
...
3
Capacitor-Compressor WPL-R0130146
...
4
Strap, Capacitor WPL-R0130029
...
5
Switch, Selector WPL-R0130033
...
6
Thermostat WPL-R0130090

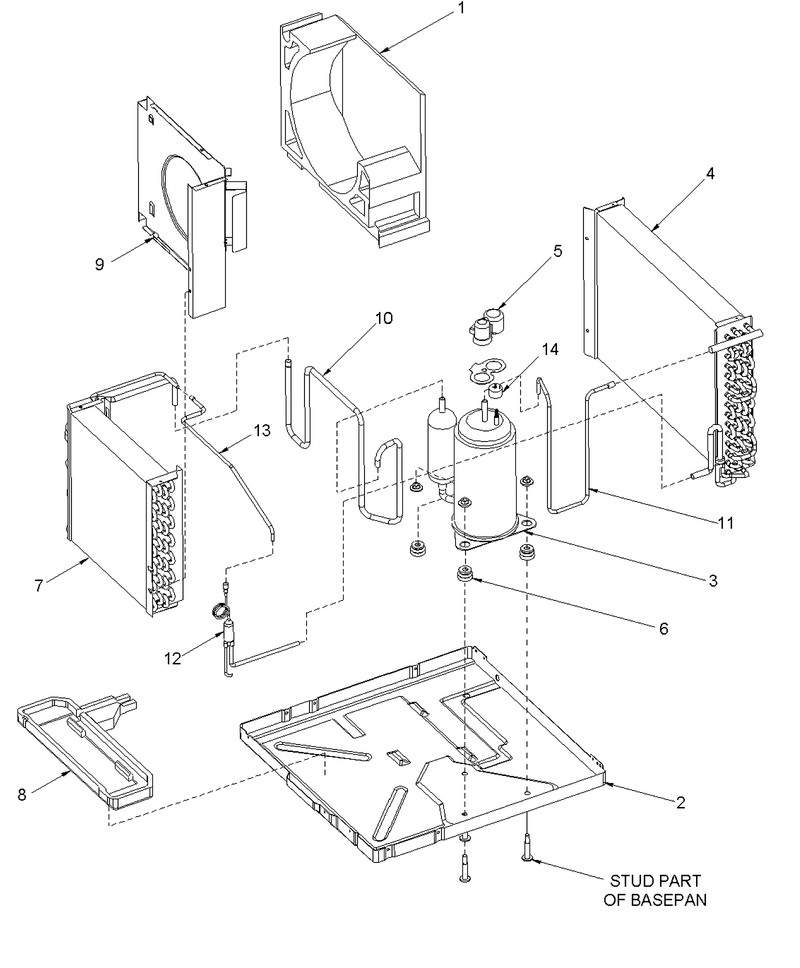

02 - Chassis Assembly

...
...
NI
Plug, Basepan WPL-R0131544
...
1
Scroll, Blower WPL-R0130172
...
2
Chassis Assy WPL-R0130173
...
3
Compressor WPL-D6985813
...
4
Assy, Condenser WPL-R0130175
...
5
Cap,comp Term Cover WPL-R0130176
...
6
Grommet, Compressor WPL-R0131436
...
7
Assy, Evaporator WPL-R0130178
...
8
Drain Block WPL-R0130180
...
9
Panel, Inlet WPL-R0130105
...
10
Tube, Suction WPL-R0130182
...
11
Tube, Discharge WPL-R0130183
...
12
Assy, Capillary WPL-R0130181
...
13
Liquid Line WPL-R0130184
...
14
Overload WPL-R0131587

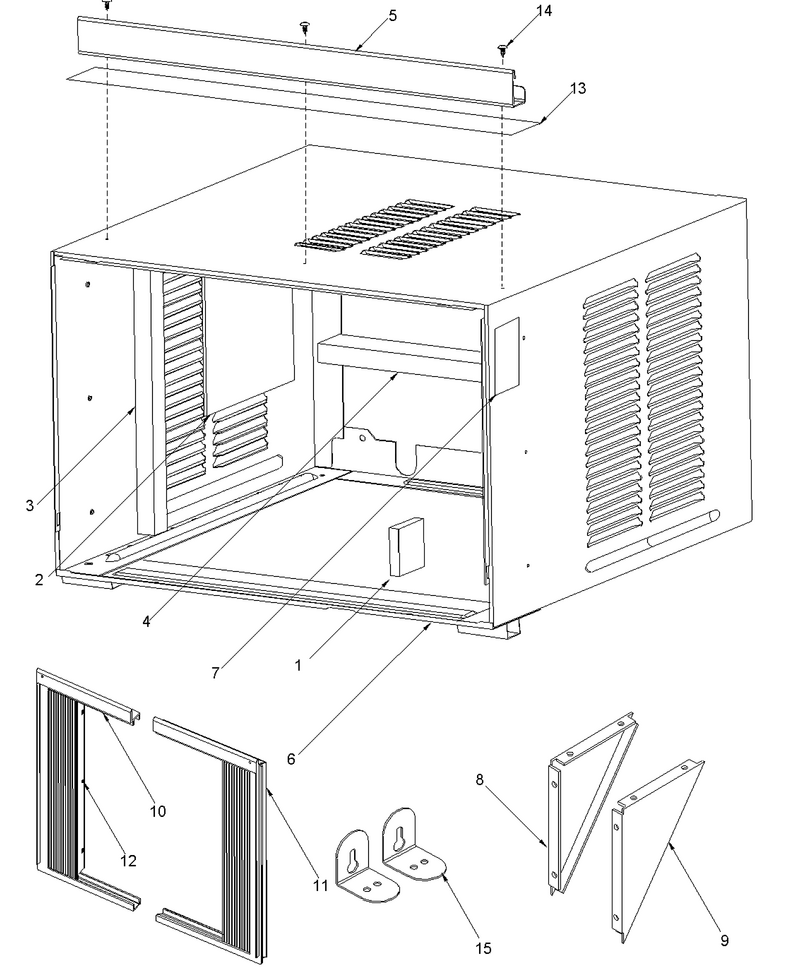

04 - Outer Case Assembly

...
...
NI
Drain Tube (elbow Tube) WPL-R0131419
...
1
Gasket, Oc Rt WPL-R0130141
...
2
Gasket, Oc Lt WPL-R0130140
...
3
Gasket, Oc Lt Pillar WPL-R0130143
...
4
Gasket, Oc Back WPL-R0130142
...
5
Rail,top WPL-R0130073
...
6
Outercase WPL-97001043
...
7
Tape Per Roll WPL-M0275163
...
8
Brace, External-Lt WPL-R0131401
...
9
Brace, External-Rt WPL-R0131402
...
10
Track, Curtain-Lt Side WPL-R0131416
...
11
Track, Curtain-Rt Side WPL-R0131417
...
12
Curtain, Window WPL-R0131418
...
13
Gasket, Top Rail WPL-R0131420
...
14
Screw-10mm Curtain/top Rail WPL-R0131411
...
15
Angle, Basepan WPL-R0131448
