Amana AAC081STA (BOM: PAAC081STA0)

Model: AAC081STA (BOM: PAAC081STA0)

Save Part Not Listed?
product name

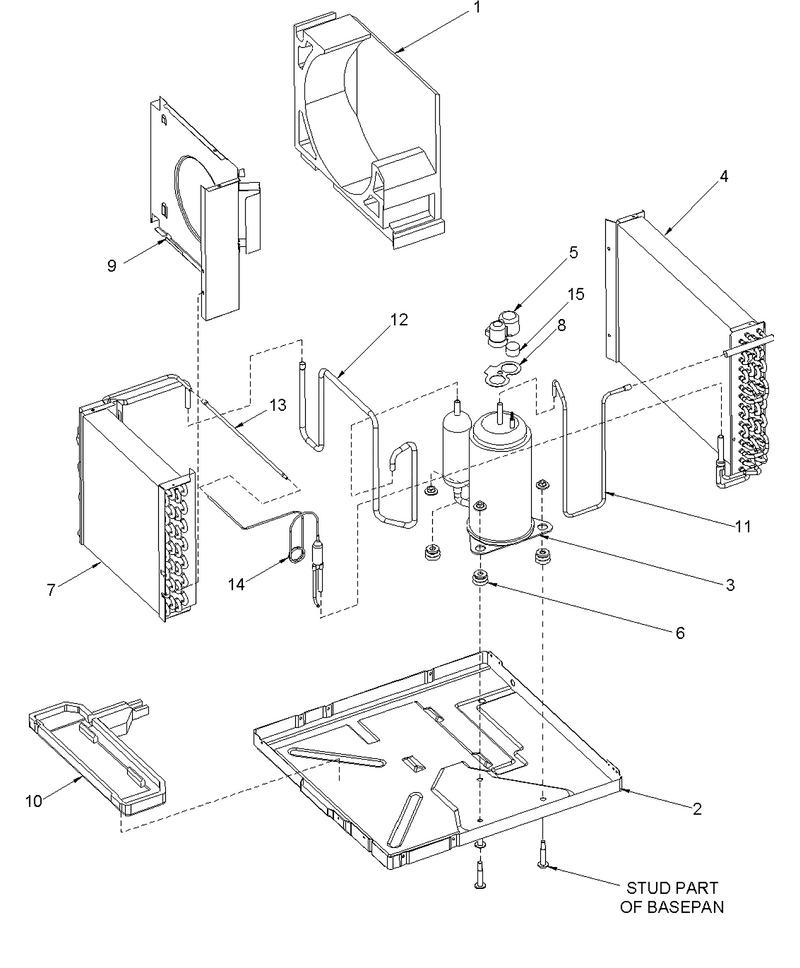

02 - Chassis Assembly

...
...
NI
Plug, Basepan WPL-R0131528
...
1
Scroll,blower WPL-R0130753
...
2
Outercase WPL-R0130066
...
3
Compressor WPL-R0130093
...
4
Assy,condenser WPL-R0130094
...
5
Cover,terminal WPL-R0130095
...
6
Grommet,compressor WPL-R0130096
...
7
Assy,evaporator WPL-R0130097
...
8
Gasket, Terminal Cover WPL-R0130100
...
9
Panel, Inlet WPL-R0130105
...
10
Drain Block WPL-R0130758
...
11
Tube,discharge WPL-R0130115
...
12
Tube,suction WPL-R0130114
...
13
Liquid,line WPL-R0130117
...
14
Assy,capillary WPL-R0130116
...
15
Overload WPL-R0131586

...
...
0
Filter, Electrostatic WPL-R0131426

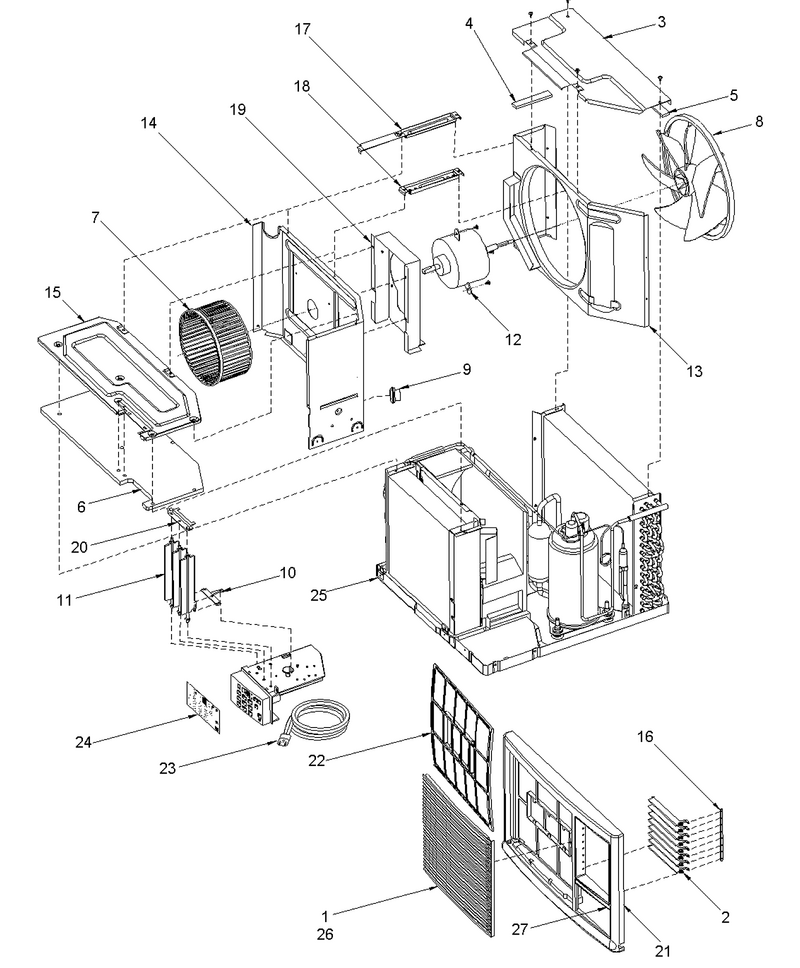

01 - Chassis Assembly

...
...
1
Insert, Grille Front WPL-R0130188
...
2
Front WPL-R0130759
...
3
Cover,condenser WPL-R0130119
...
4
Gasket,lft Cond Cover WPL-R0130120
...
5
Gasket,back Cond Cover WPL-R0130121
...
6
Insul, Evap Cover WPL-R0130755
...
7
Wheel,blower WPL-R0130123
...
8
Fan, Condenser WPL-R0130124
...
9
Grommet,wiring WPL-R0130125
...
10
Gang Bar, Vertical Louver WPL-R0130136
...
11
Louvers,vertical WPL-R0130128
...
12
Motor, Fan WPL-R0130756
...
13
Shroud,condenser WPL-R0130130
...
14
Panel,partition WPL-R0130131
...
15
Cover,evaporator WPL-R0130132
...
16
Rod,louver Connecting WPL-R0130133
...
17
Brace,left Tie WPL-R0130134
...
18
Brace,right Tie WPL-R0130135
...
19
Support, Motor WPL-R0130137
...
20
Rod, Vert Louver Connecting WPL-R0130138
...
21
Front WPL-R0130759
...
22
Filter WPL-R0130587
...
23
Cord, Power WPL-R0130767
...
24
Escutcheon, Control Decal WPL-R0131432
...
25
Clip, Basepan WPL-R0131574
...
26
Catch Front Grille WPL-R0131150
...
27
Label Front WPL-R0131669

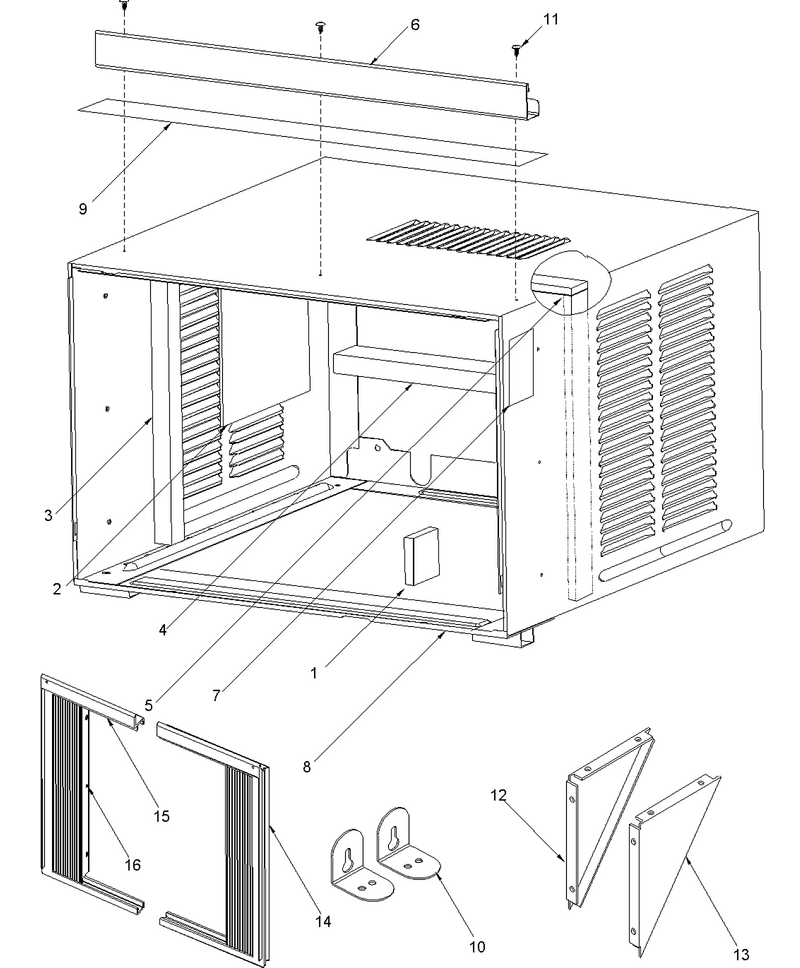

05 - Outer Case Assembly

...
...
NI
Gasket, Elbow WPL-R0131409
...
1
Gasket, Oc Rt WPL-R0130067
...
6
Rail, Top WPL-R0130761
...
8
Outercase WPL-R0130066
...
10
Angle, Basepan WPL-R0131396
...
12
Brace, External-Lt WPL-R0131401
...
13
Brace, External-Rt WPL-R0131402
...
14
Track, Curtain-Rt Side WPL-R0131403
...
15
Track, Curtain-Lt Side WPL-R0131404
...
16
Curtain, Window WPL-R0131405

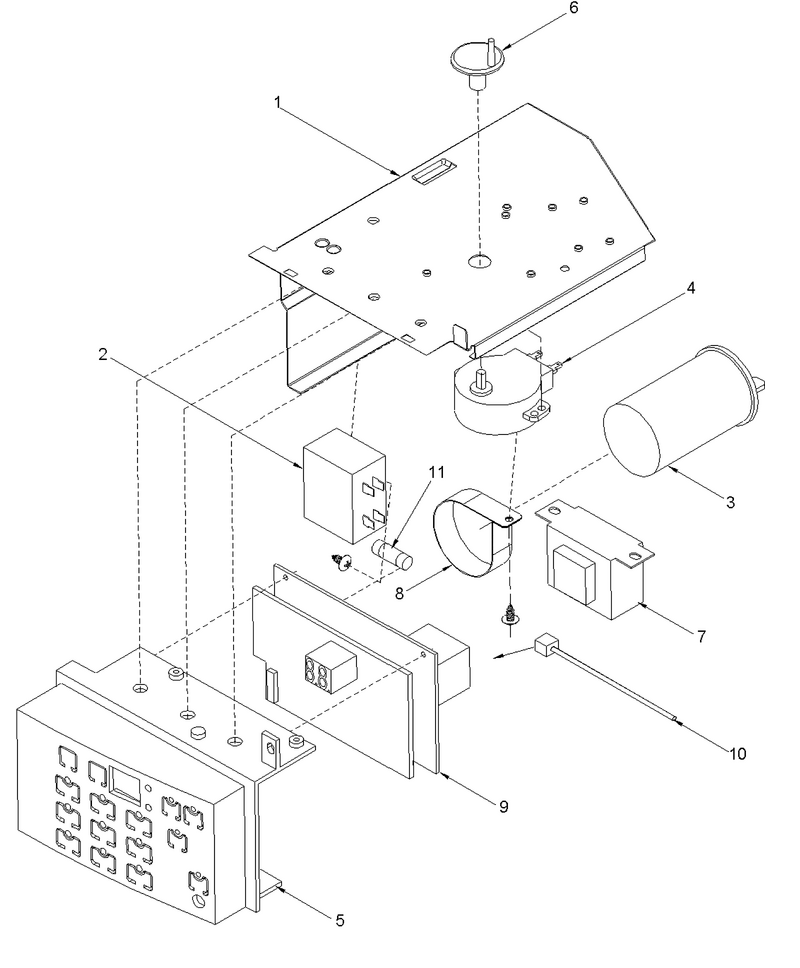

03 - Control Assembly

...
...
1
Panel, Control WPL-R0130734
...
2
Capacitor,fan Motor WPL-R0130752
...
3
Capacitor,compressor WPL-R0130076
...
4
Motor, Auto Sweep WPL-R0130757
...
5
Control Module Assy W/pc Board WPL-R0130760
...
6
Cam, Auto Sweep WPL-R0130762
...
7
Transformer WPL-R0130763
...
8
Strap, Capacitor WPL-R0130029
...
10
Thermistor WPL-R0131689
...
11
Fuse Pc Board WPL-R0131690
