Amana AAC081SRB (BOM: PAAC081SRB0)

Model: AAC081SRB (BOM: PAAC081SRB0)

Save Part Not Listed?
product name

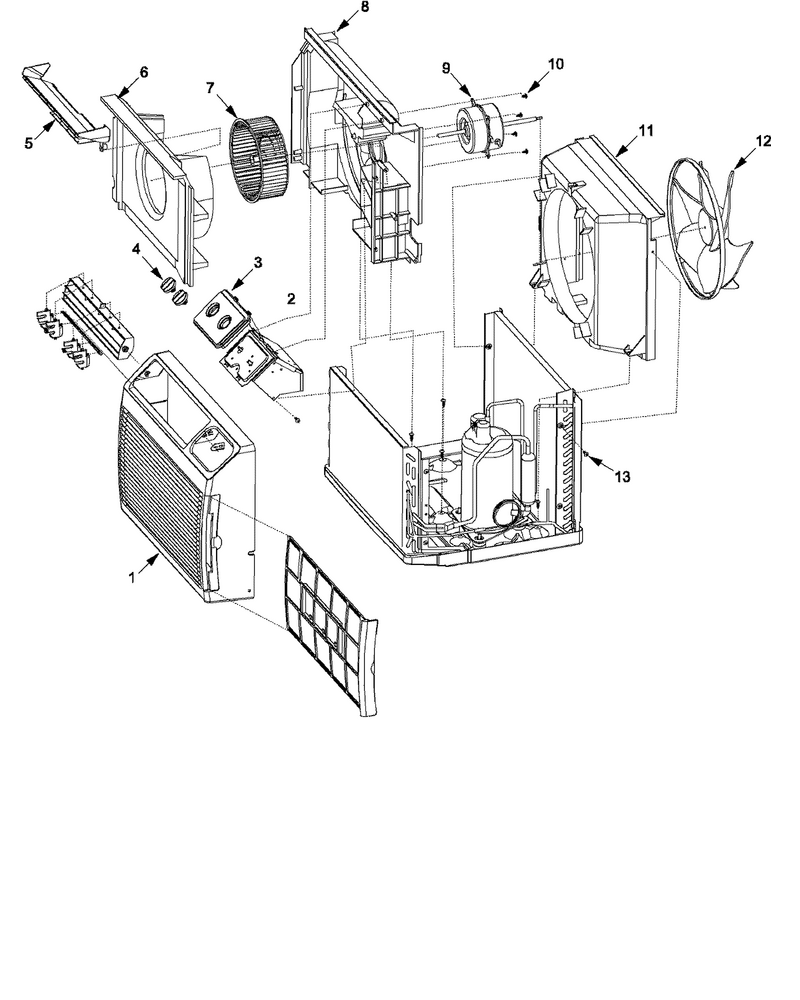

01 - Chassis

...
...
1
Partition Panel Assy WPL-97001091
...
2
Control Panel Assy WPL-97001092
...
3
Control Escutcheon WPL-97001094
...
4
Knob-Control WPL-97001093
...
5
Chute, Discharge WPL-R0130061
...
6
Scroll, Inlet WPL-R0130051
...
7
Wheel, Blower WPL-R0130053
...
8
Panel, Front Partition WPL-R0130059
...
9
Motor WPL-R0130099
...
10
Screw-Motor WPL-97001095
...
11
Shroud, Condenser WPL-R0130102
...
12
Fan, Condenser WPL-97001010
...
13
Screw-Condenser WPL-97001096

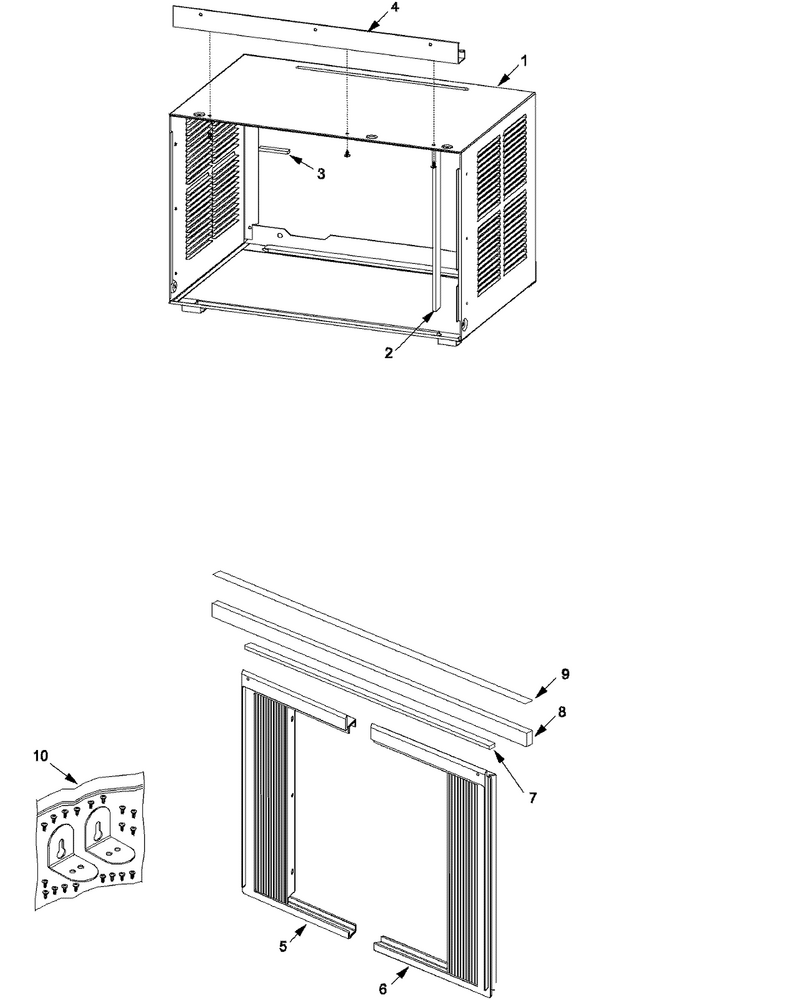

03 - Outercase Assy

...
...
NI
Plastic Bag-Window Mtg Kit WPL-97001080
...
1
Outercase WPL-97001040
...
2
Gasket-Oc Side WPL-R0130724
...
3
Gasket-Oc Back WPL-R0130024
...
4
Screw-Condenser WPL-97001096
...
5
Track, Curtain Assy-Lt Side WPL-97001077
...
6
Track, Curtain Assy-Rt Side WPL-97001100
...
7
Gasket-Top Railwindow Sash WPL-97001074
...
8
Gasket, Window Seal WPL-97001078
...
9
Gasket, Window Sill WPL-97001079
...
10
Hardware Bag-Window Mtg Kit WPL-97001081

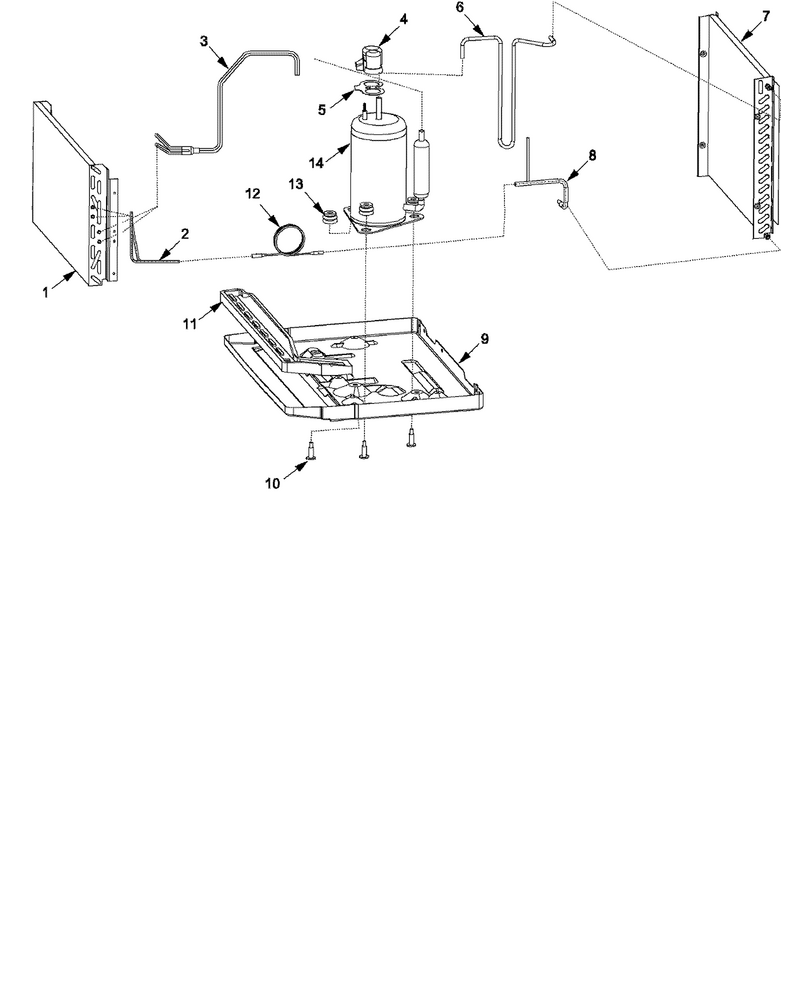

04 - Sealed System

...
...
1
Evaporator Assy WPL-97001083
...
2
Tube-Evaporator Liquid WPL-R0130046
...
3
Tube-Suction WPL-97001084
...
4
Cover-Evaporator WPL-97001085
...
5
Gasket-Terminal Cover WPL-97001086
...
6
Tube-Discharge WPL-R0130045
...
7
Assy, Condenser WPL-R0130037
...
8
Process Elbow WPL-R0130043
...
9
Drain Pan W/compressor Bolts WPL-R0130716
...
10
Drain Block WPL-R0130042
...
11
Capillary WPL-97001088
...
12
Grommet-Compressor WPL-97001089
...
13
Compressor WPL-97001090

...
...
1
Svc Man, Room Air Conditioner WPL-16022380
...
2
Use & Care WPL-97001101
...
3
Tech Sht,room Air Conditioner WPL-16022378
...
4
Net-Cdc Algacide/anti-Clog Str WPL-R0130270
...
5
Filter, Electrostatic WPL-R0131426
...
6
Carton WPL-97001102

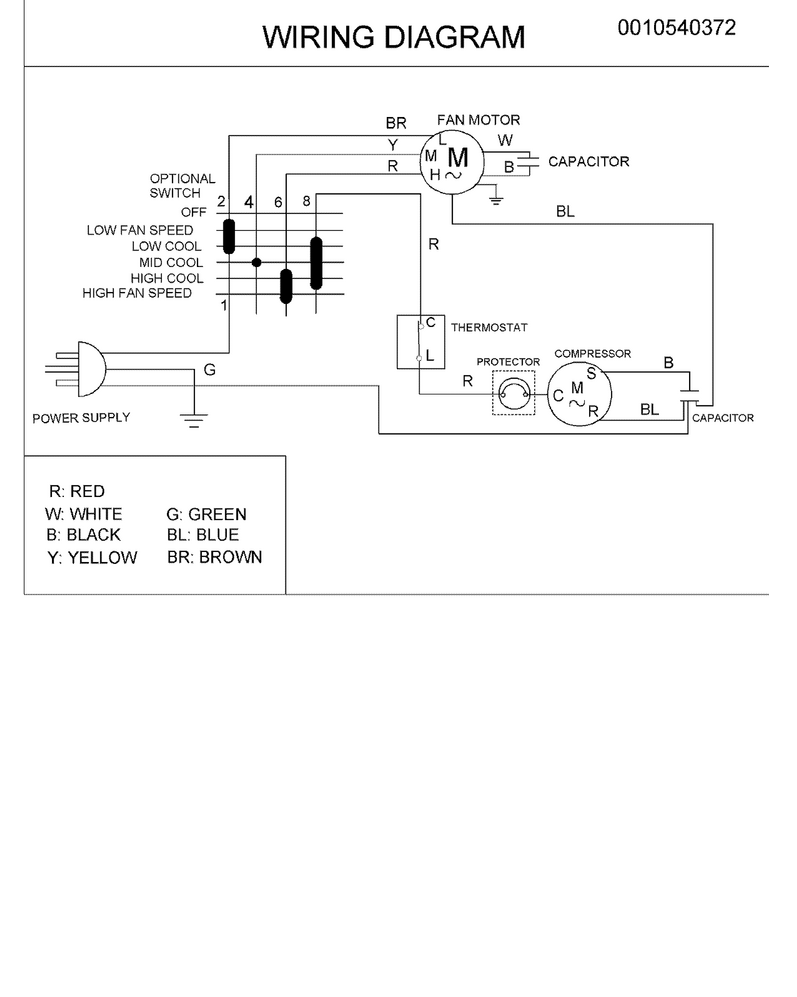

06 - Wiring Information

...
...
NI
Wiring Information WPL-15003270

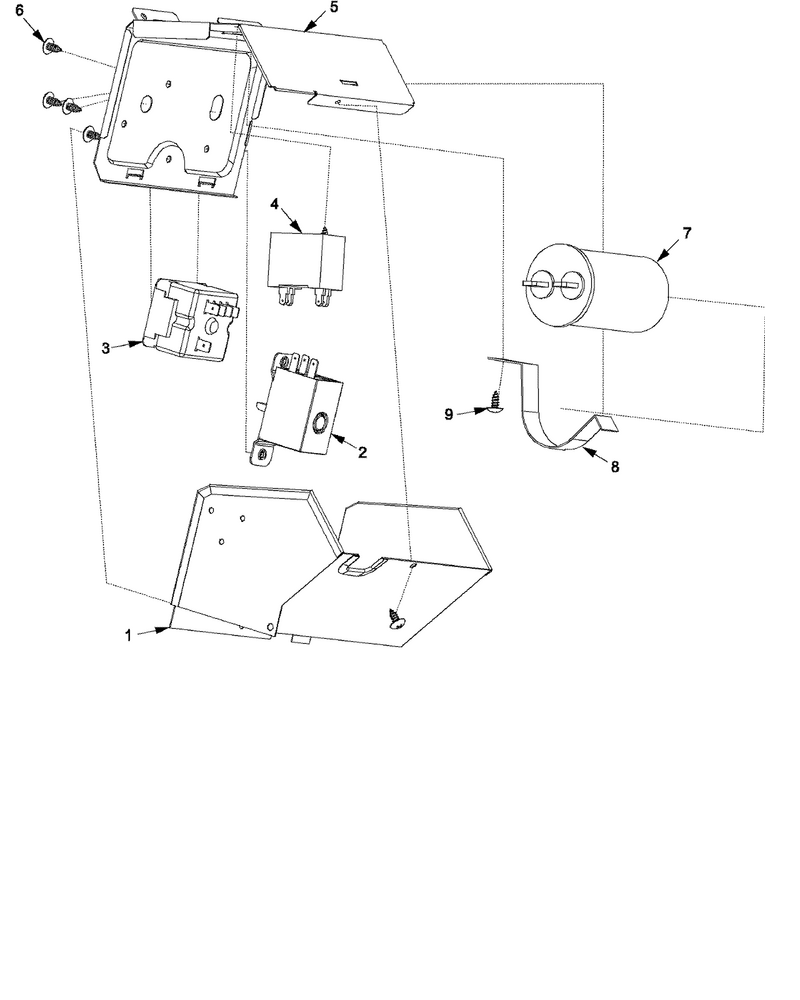

02 - Control Assy

...
...
1
Cover-Control Panel WPL-97001097
...
2
Thermostat WPL-R0130034
...
3
Switch, Selector WPL-R0130033
...
4
Capacitor, Fan Motor WPL-R0130027
...
5
Control Panel WPL-97001098
...
6
Screw-Condenser WPL-97001096
...
7
Capacitor-Compressor WPL-R0130146
...
8
Strap-Capacitor WPL-97001099
...
9
Screw-Condenser WPL-97001096
