Amana AAC081SRA (BOM: PAAC081SRA0)

Model: AAC081SRA (BOM: PAAC081SRA0)

Save Part Not Listed?
product name

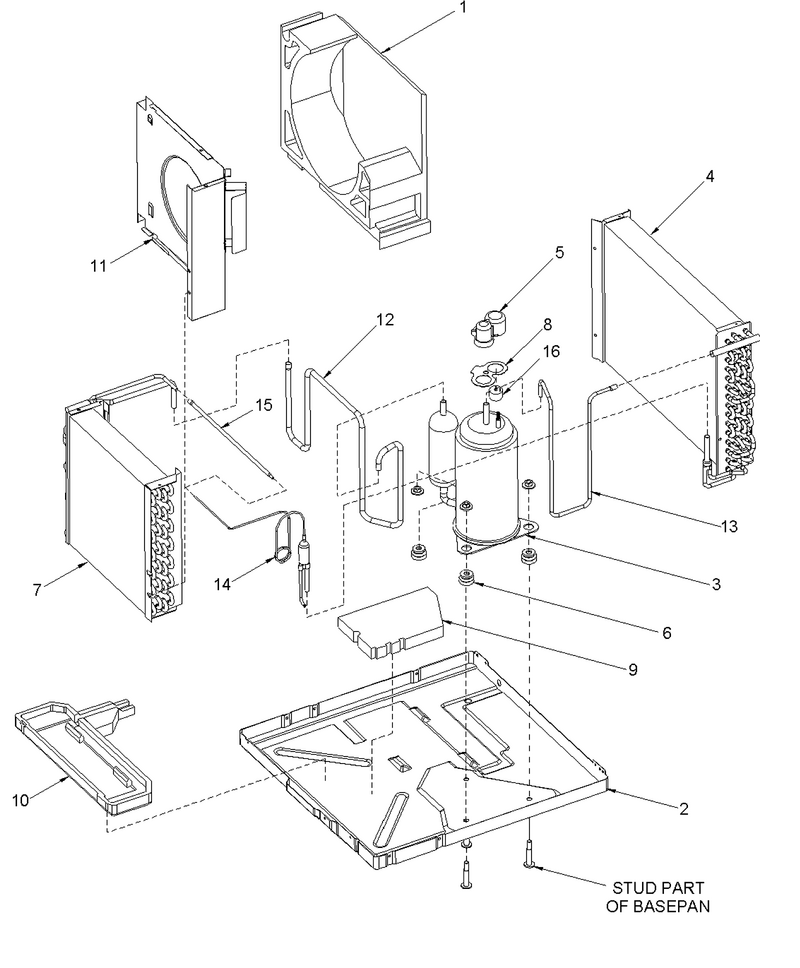

02 - Chassis Assembly

...
...
NI
Plug, Basepan WPL-R0131528
...
1
Scroll,blower WPL-R0130091
...
2
Outercase WPL-R0130066
...
3
Compressor WPL-R0130093
...
4
Assy,condenser WPL-R0130094
...
5
Cover,terminal WPL-R0130095
...
6
Grommet,compressor WPL-R0130096
...
7
Assy,evaporator WPL-R0130097
...
8
Gasket, Terminal Cover WPL-R0130100
...
9
Bottom, Control Box WPL-R0130103
...
10
Drain Block WPL-R0130104
...
11
Panel, Inlet WPL-R0130105
...
12
Tube,suction WPL-R0130114
...
13
Tube,discharge WPL-R0130115
...
14
Assy,capillary WPL-R0130116
...
15
Liquid,line WPL-R0130117
...
16
Overload WPL-R0131586

...
...
1
Mnl,parts(rac-8000 Btu High Ef WPL-RP4110030
...
2
Label, Energy Guide WPL-R0130190
...
3
Net-Cdc Algacide/anti-Clog Str WPL-R0130270
...
4
Filter, Electrostatic WPL-R0131426
...
5
Carton WPL-R0131529
...
6
Mnl,owners(rac) WPL-12592301

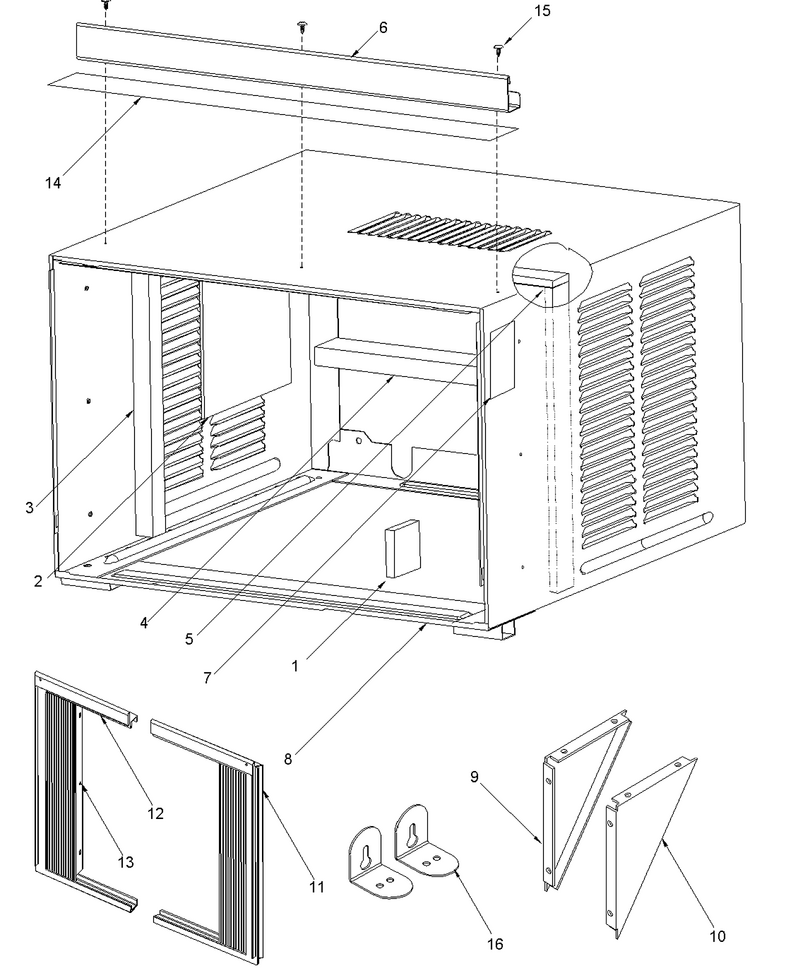

05 - Outer Case Assembly

...
...
X Also Available In Installati WPL-NOTE:
...
NI
Gasket Wadhesive-Window Sash WPL-R0131397
...
1
Gasket, Oc Rt WPL-R0130067
...
2
Gasket, Oc Lt WPL-R0130069
...
3
Gasket, Oc Lt Pillar WPL-R0130070
...
4
Gasket, Oc Horiz Back WPL-R0130071
...
5
Gasket, Oc Top WPL-R0130072
...
6
Rail, Top WPL-R0130761
...
7
Tape Per Roll WPL-M0275163
...
8
Outercase WPL-R0130066
...
9
Brace, External-Lt WPL-R0131401
...
10
Brace, External-Rt WPL-R0131402
...
11
Track, Curtain-Rt Side WPL-R0131403
...
12
Track, Curtain-Lt Side WPL-R0131404
...
13
Curtain, Window WPL-R0131405
...
14
Gasket, Top Rail WPL-R0131410
...
15
Screw-10mm Curtain/top Rail WPL-R0131411
...
16
Angle, Basepan WPL-R0131396

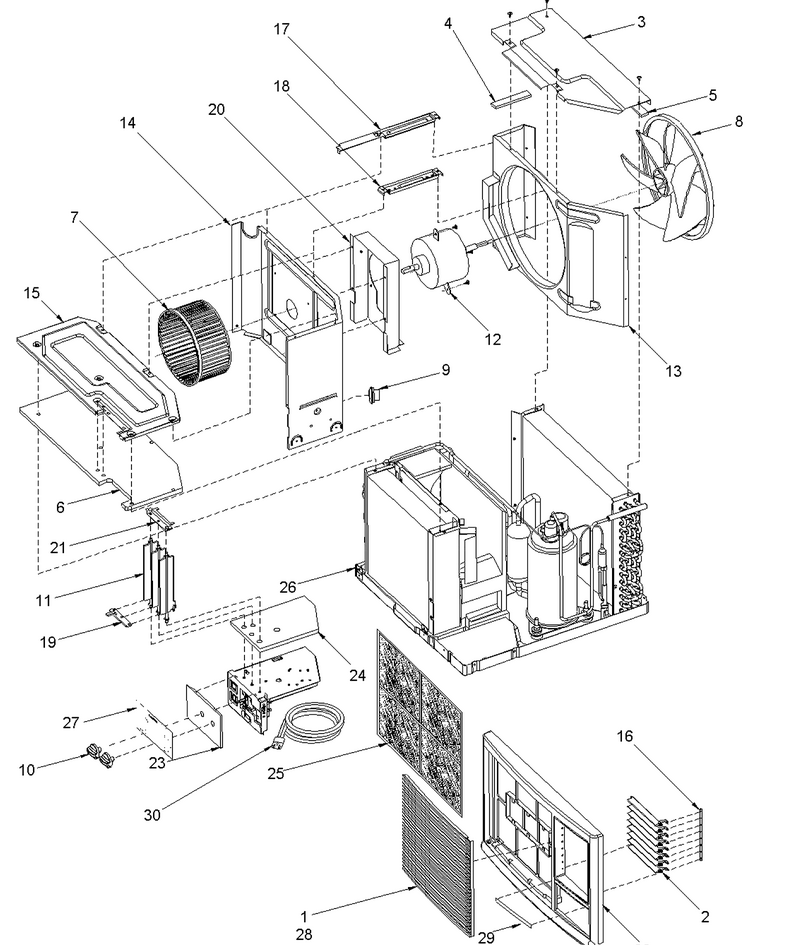

01 - Chassis Assembly

...
...
1
Insert, Grille Front WPL-R0130188
...
2
Front WPL-R0130759
...
3
Cover,condenser WPL-R0130119
...
4
Gasket,lft Cond Cover WPL-R0130120
...
5
Gasket,back Cond Cover WPL-R0130121
...
6
Insul,evap Cover WPL-R0130122
...
7
Wheel,blower WPL-R0130123
...
8
Fan, Condenser WPL-R0130124
...
9
Grommet,wiring WPL-R0130125
...
10
Knob,control WPL-R0130127
...
11
Louvers,vertical WPL-R0130128
...
12
Motor,condenser Fan WPL-R0130129
...
13
Shroud,condenser WPL-R0130130
...
14
Panel,partition WPL-R0130131
...
15
Cover,evaporator WPL-R0130132
...
16
Rod,louver Connecting WPL-R0130133
...
17
Brace,left Tie WPL-R0130134
...
18
Brace,right Tie WPL-R0130135
...
19
Gang Bar, Vertical Louver WPL-R0130136
...
20
Support, Motor WPL-R0130137
...
21
Rod, Vert Louver Connecting WPL-R0130138
...
22
Front WPL-R0130187
...
23
Plate,control WPL-R0130089
...
24
Gasket,control Panel WPL-R0130083
...
25
Filter WPL-R0130587
...
26
Clip, Basepan WPL-R0131574
...
27
Escutcheon, Control WPL-R0131415
...
28
Catch Front Grille WPL-R0131150
...
29
Label Front WPL-R0131669
...
30
Cord, Power WPL-R0130767

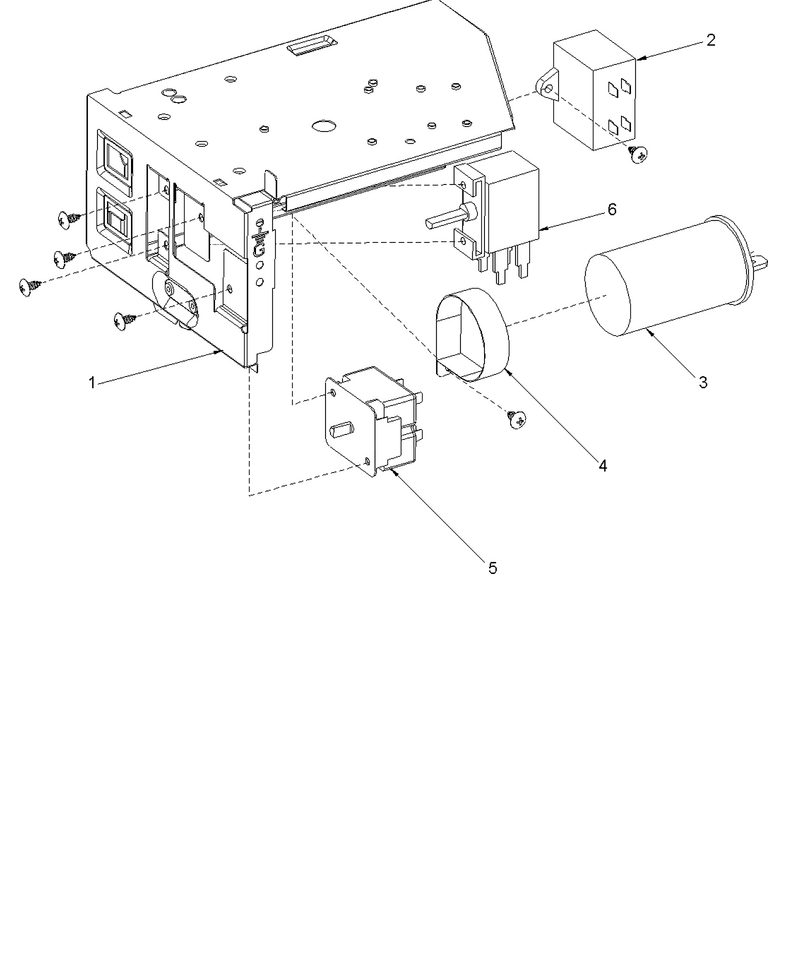

03 - Control Assembly

...
...
1
Panel,control WPL-R0130074
...
2
Capacitor,fan Motor WPL-R0130075
...
3
Capacitor,compressor WPL-R0130076
...
4
Strap, Capacitor WPL-R0130029
...
5
Switch, Selector WPL-R0130033
...
6
Thermostat WPL-R0130090
