Amana AAC071FRA (BOM: PAAC071FRA0)

Model: AAC071FRA (BOM: PAAC071FRA0)

Save Part Not Listed?
product name

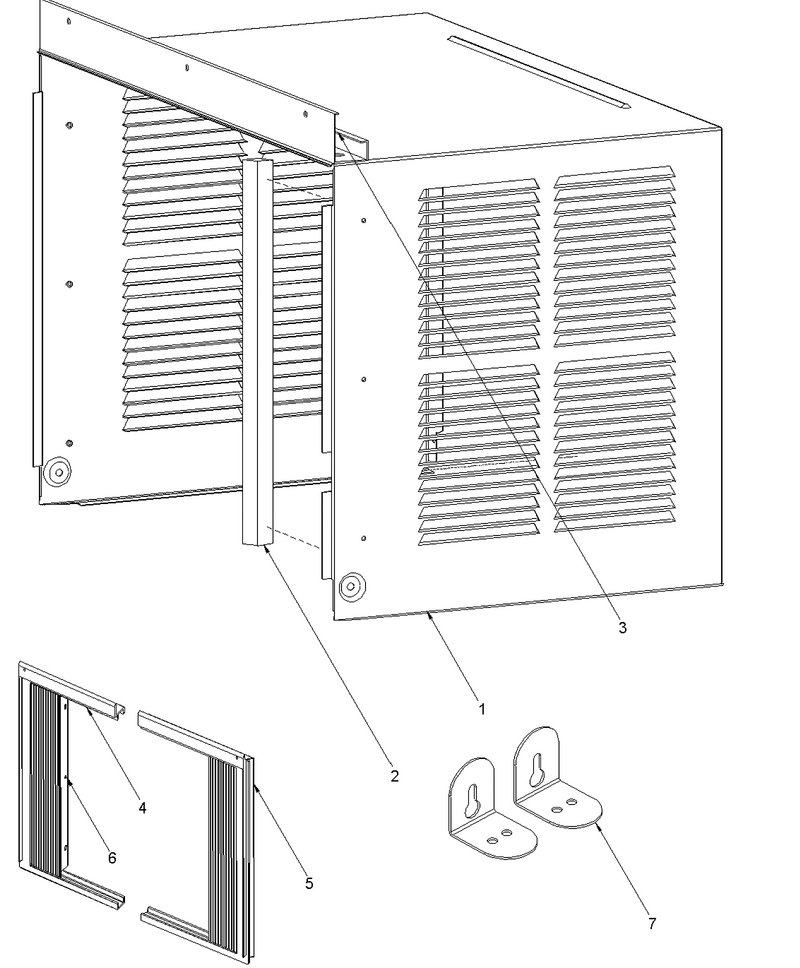

04 - Outer Case Assembly

...
...
NI
Gasket-Oc Back WPL-R0130024
...
1
Outercase WPL-R0130065
...
2
Gasket-Outercase WPL-R0130025
...
3
Rail, Top WPL-R0130068
...
4
Track, Curtain-Lt Side WPL-R0131392
...
5
Track, Curtain-Rt Side WPL-R0131393
...
6
Curtain WPL-R0131394
...
7
Angle, Basepan WPL-R0131396

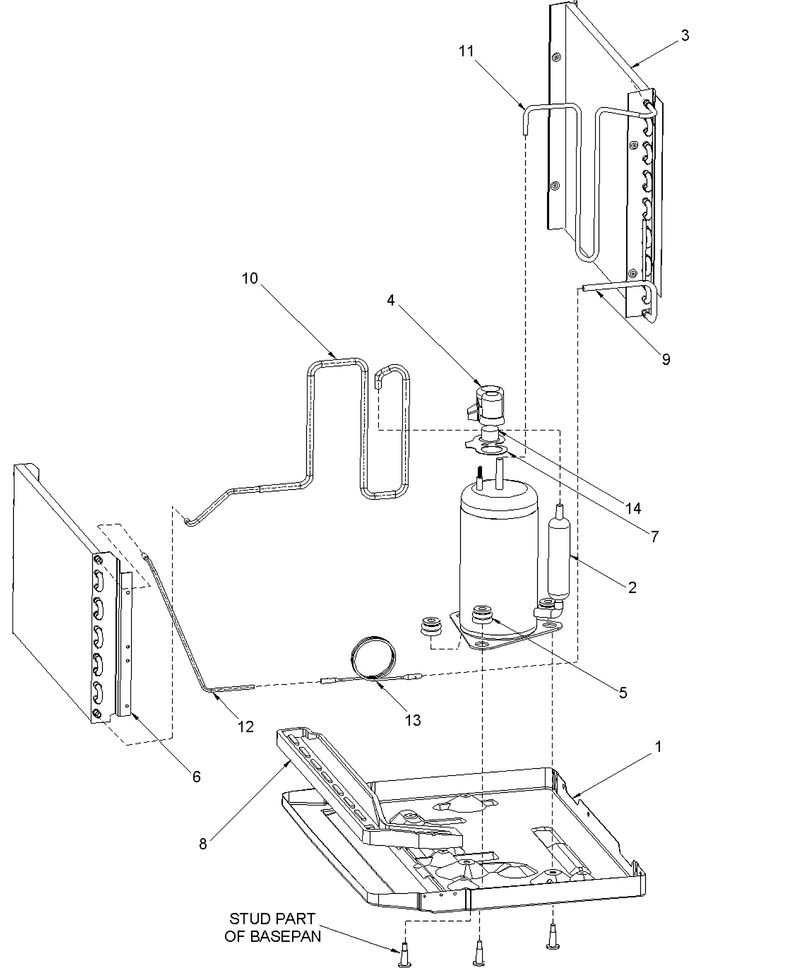

02 - Chassis Assembly

...
...
1
Drain Pan W/compressor Bolts WPL-R0130035
...
2
Compressor WPL-R0130077
...
3
Assy,condenser WPL-R0130078
...
4
Cover,terminal WPL-R0130095
...
5
Grommet,compressor WPL-R0130080
...
6
Assy,evaporator WPL-R0130081
...
7
Gasket, Terminal WPL-R0130082
...
8
Drain Block WPL-R0130042
...
9
Elbow,cond Process WPL-R0130085
...
10
Tube,suction WPL-R0130087
...
11
Tube,discharge WPL-R0130086
...
12
Elbow,evap Process WPL-R0130084
...
13
Assy,capillary WPL-R0130088
...
14
Overload WPL-R0131585

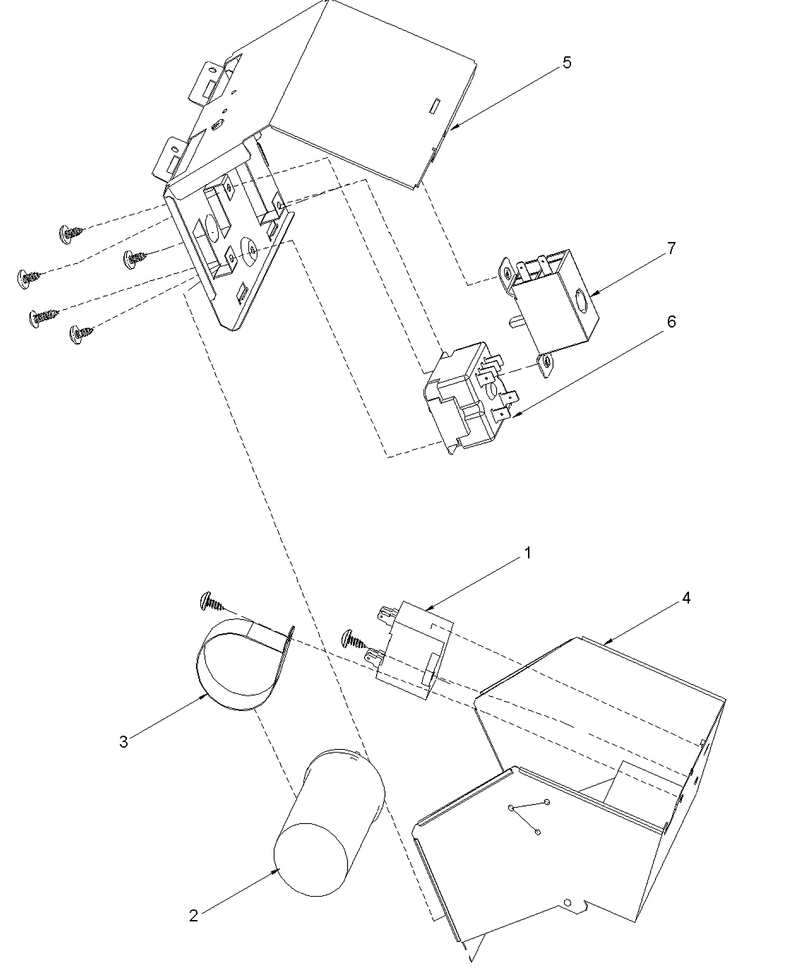

03 - Control Assembly

...
...
1
Capacitor, Fan Motor WPL-R0130027
...
2
Capacitor, Compressor WPL-R0130186
...
3
Strap, Capacitor WPL-R0130029
...
4
Box, Control WPL-R0130030
...
5
Cover, Control Box WPL-R0130031
...
6
Switch, Selector WPL-R0130033
...
7
Thermostat WPL-R0130034

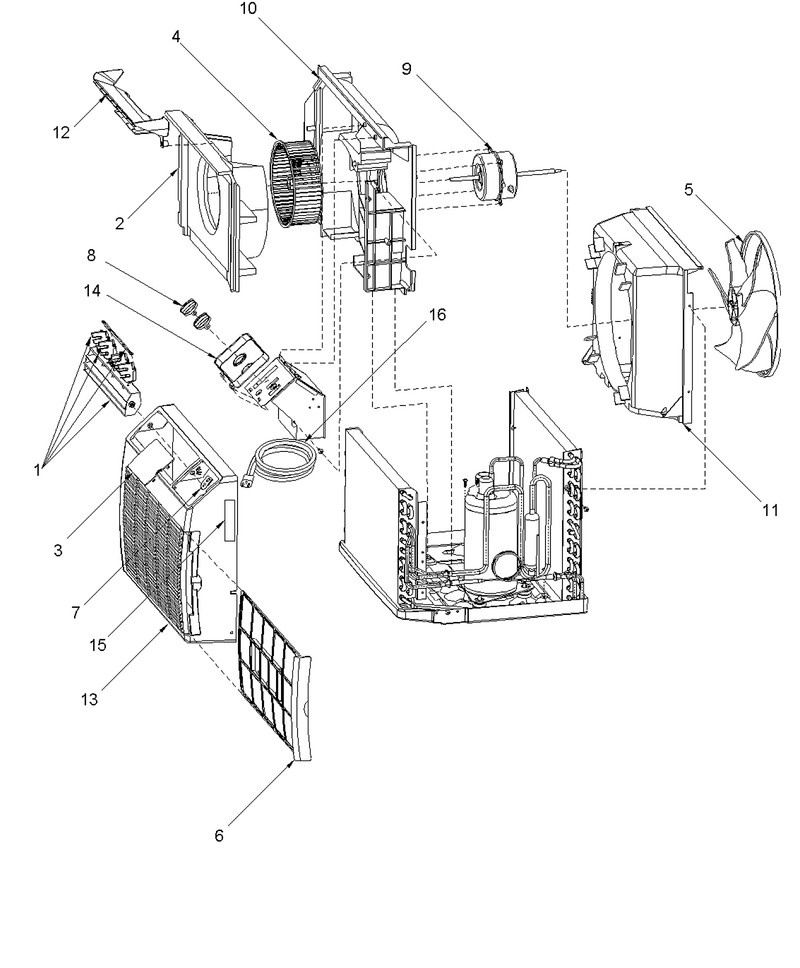

01 - Chassis Assembly

...
...
1
Assy, Louver WPL-YR0130771
...
2
Scroll, Inlet WPL-R0130051
...
3
Door, Control WPL-R0130052
...
4
Wheel, Blower WPL-R0130053
...
5
Fan, Condenser 12``d 1/4 Hole WPL-R0130054
...
6
Filter WPL-R0130055
...
7
Box, Bushing Louver WPL-R0130056
...
8
Knob-Control WPL-97001093
...
9
Motor WPL-R0130099
...
10
Panel, Front Partition WPL-R0130059
...
11
Shroud, Condenser WPL-R0130102
...
12
Chute, Discharge WPL-R0130061
...
13
Front WPL-R0130062
...
14
Escutcheon WPL-R0130063
...
15
Tape Per Roll WPL-M0275163
...
16
Cord, Power WPL-R0130767
