Amana AAC051STA (BOM: PAAC051STA0)

Model: AAC051STA (BOM: PAAC051STA0)

Save Part Not Listed?
product name

...
...
1
Amana Room Air Conditioner WPL-16021783
...
2
Mnl,owners(rac) WPL-12592401
...
3
Service Manual Rac WPL-16022028
...
4
Control, Remote (2 Button) WPL-R0131430

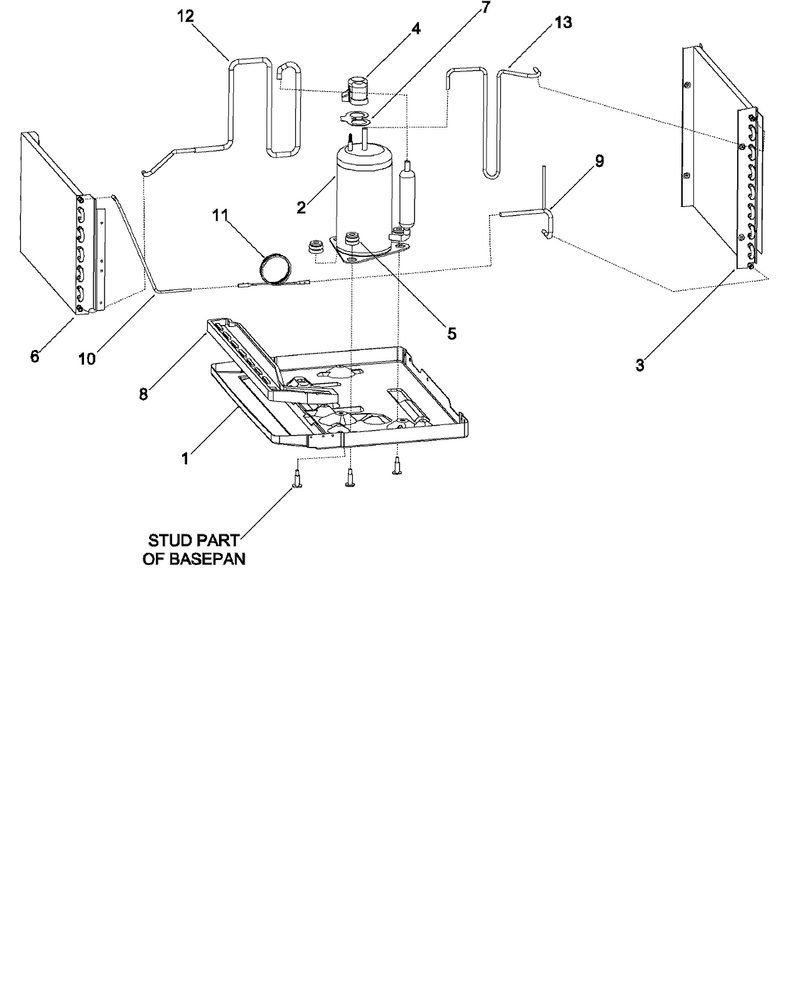

01 - Chassis Assembly

...
...
1
Drain Pan W/compressor Bolts WPL-R0130716
...
2
Compressor WPL-R0130036
...
3
Assy, Condenser WPL-R0130037
...
4
Terminal Cover WPL-97001034
...
5
Grommet, Compressor WPL-R0130039
...
6
Assy, Evaporator WPL-R0130040
...
7
Gasket, Terminal Cover WPL-R0130041
...
8
Drain Block WPL-R0130042
...
9
Process Elbow WPL-R0130043
...
10
Tube-Evaporator Liquid WPL-R0130046
...
11
Assy, Capillary WPL-R0130047
...
12
Suction Tube WPL-97001035
...
13
Tube-Discharge WPL-R0130045

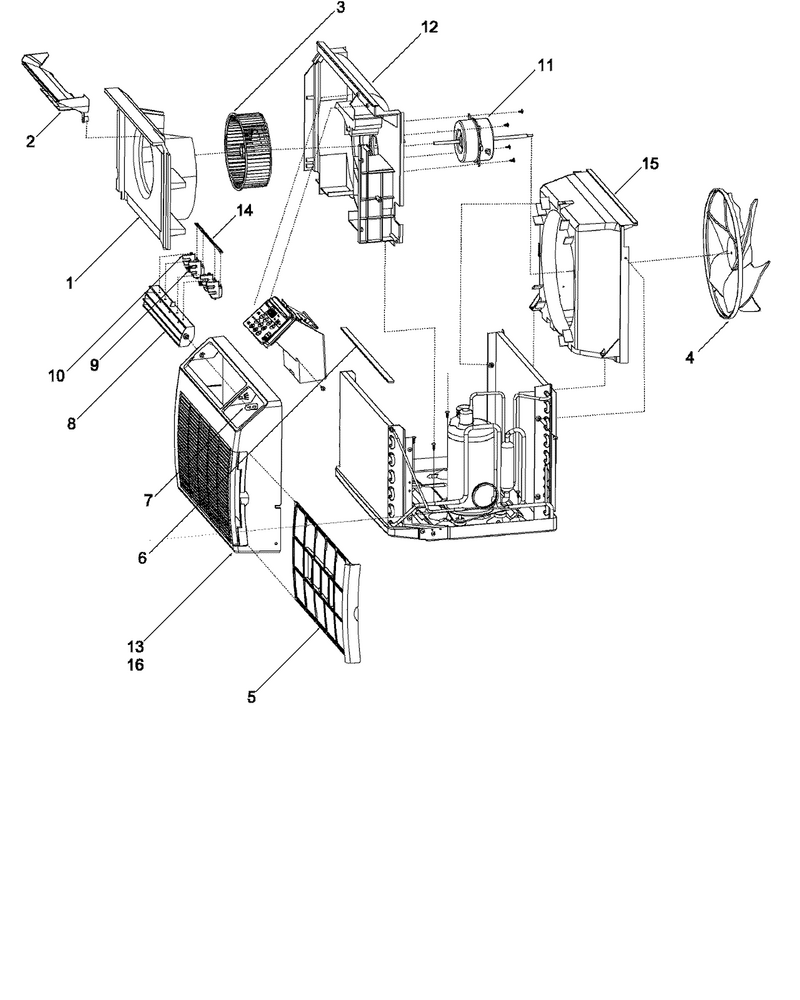

02 - Chassis Assy

...
...
NI
Cord, Power WPL-R0130767
...
1
Scroll, Inlet WPL-R0130051
...
2
Chute, Discharge WPL-R0130061
...
3
Wheel, Blower WPL-R0130053
...
4
Fan, Condenser 12``d 1/4 Hole WPL-R0130054
...
5
Filter WPL-R0130055
...
6
Gasket, Vaporator WPL-R0130727
...
7
Box, Bushing Louver WPL-R0130056
...
8
Assy, Louver WPL-YR0130771
...
9
Main Vertical Louver WPL-R0130049
...
10
Assy, Louver WPL-YR0130771
...
11
Motor WPL-R0130058
...
12
Panel, Front Partition WPL-R0130059
...
13
Front WPL-R0130728
...
14
Assy, Louver WPL-YR0130771
...
15
Shroud, Condenser WPL-R0130060
...
16
Tape Per Roll WPL-M0275163

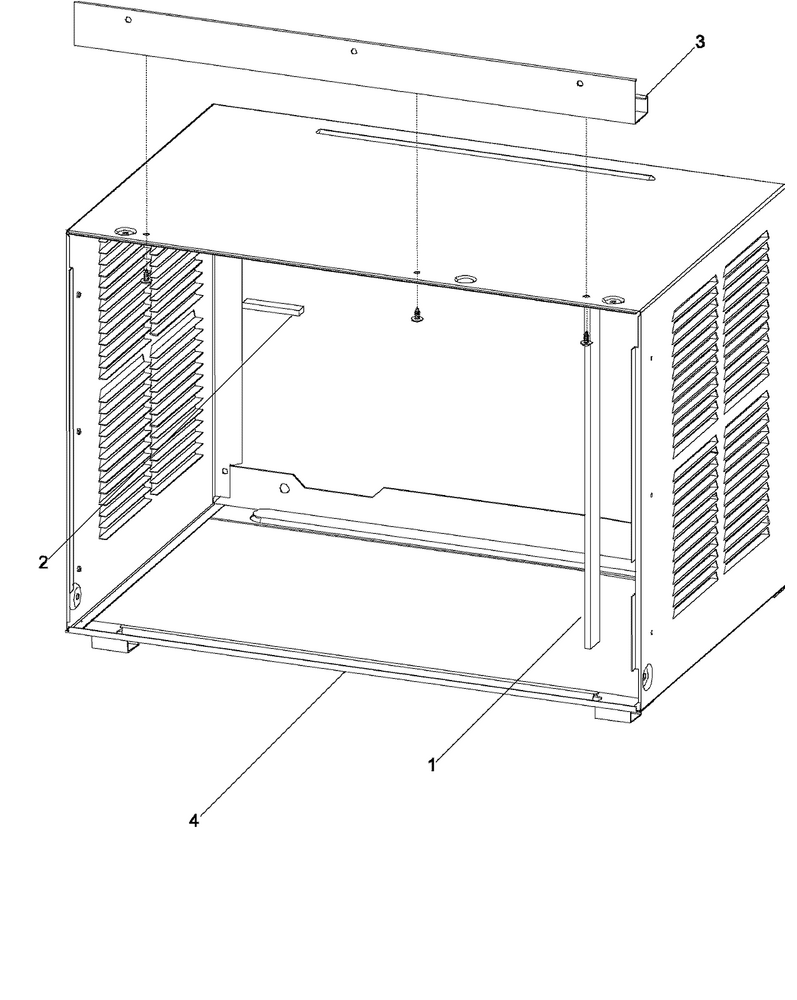

04 - Outer Case Assembly

...
...
1
Gasket-Oc Side WPL-R0130724
...
2
Gasket-Oc Back WPL-R0130024
...
3
Rail, Top WPL-R0130731
...
4
Outercase WPL-97001040
...
5
Track, Curtain-Lt Side WPL-R0131427
...
6
Track, Curtain-Rt Side WPL-R0131428
...
7
Curtain Wall WPL-R0131429
...
8
Angle, Basepan WPL-R0131396
...
9
Window Mounting Kit-Aac WPL-R0131513

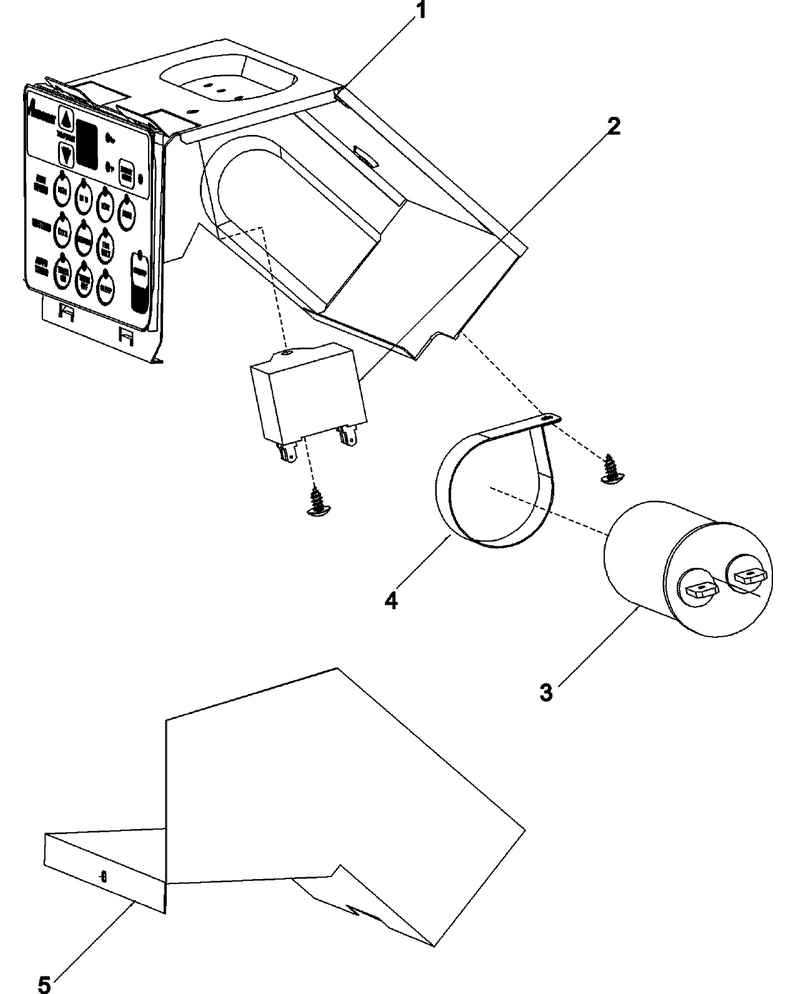

03 - Control Assembly

...
...
1
Bottom, Control Panel WPL-R0130721
...
2
Pc Board WPL-97001036
...
3
Control Module WPL-97001037
...
4
Panel, Control WPL-R0130717
...
5
Capacitor, Fan Motor WPL-R0130027
...
6
Strap Capacitor WPL-97001038
...
7
Compressor Capacitor WPL-97001039
...
8
Ptc Start WPL-R0130032
