Amana AAC051FRB (BOM: PAAC051FRB0)

Model: AAC051FRB (BOM: PAAC051FRB0)

Save Part Not Listed?
product name

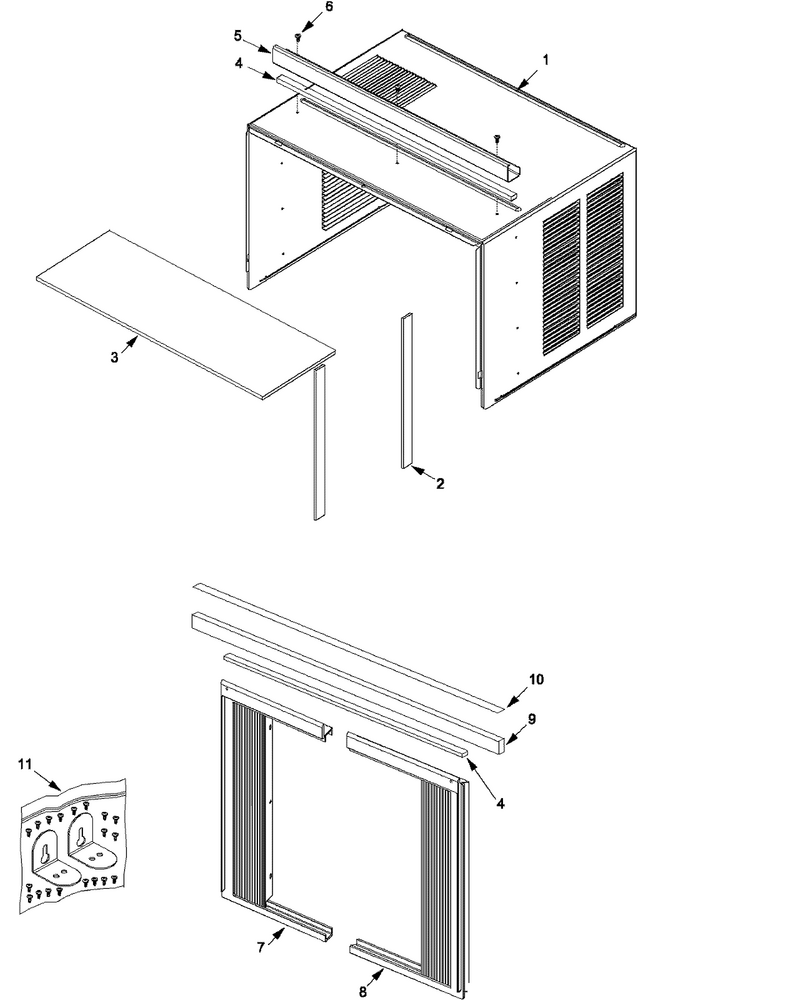

03 - Outercase Assy

...
...
NI
Plastic Bag-Window Mtg Kit WPL-97001080
...
1
Outercase WPL-97001048
...
2
Gasket-Oc-Side WPL-97001049
...
3
Gasket-Oc-Upper WPL-97001073
...
4
Gasket-Top Railwindow Sash WPL-97001074
...
5
Top Rail WPL-97001075
...
6
Screw-Condenser WPL-97001096
...
7
Track, Curtain Assy-Lt Side WPL-97001077
...
8
Track, Curtain Assy-Rt Side WPL-97001100
...
9
Gasket, Window Seal WPL-97001078
...
10
Gasket, Window Sill WPL-97001079
...
11
Hardware Bag-Window Mtg Kit WPL-97001081

...
...
1
Svc Man, Room Air Conditioner WPL-16022379
...
2
Use & Care WPL-97001101
...
3
Tech Sht,room Air Conditioner WPL-16022377
...
4
Net-Cdc Algacide/anti-Clog Str WPL-R0130270
...
5
Filter, Electrostatic WPL-R0131426

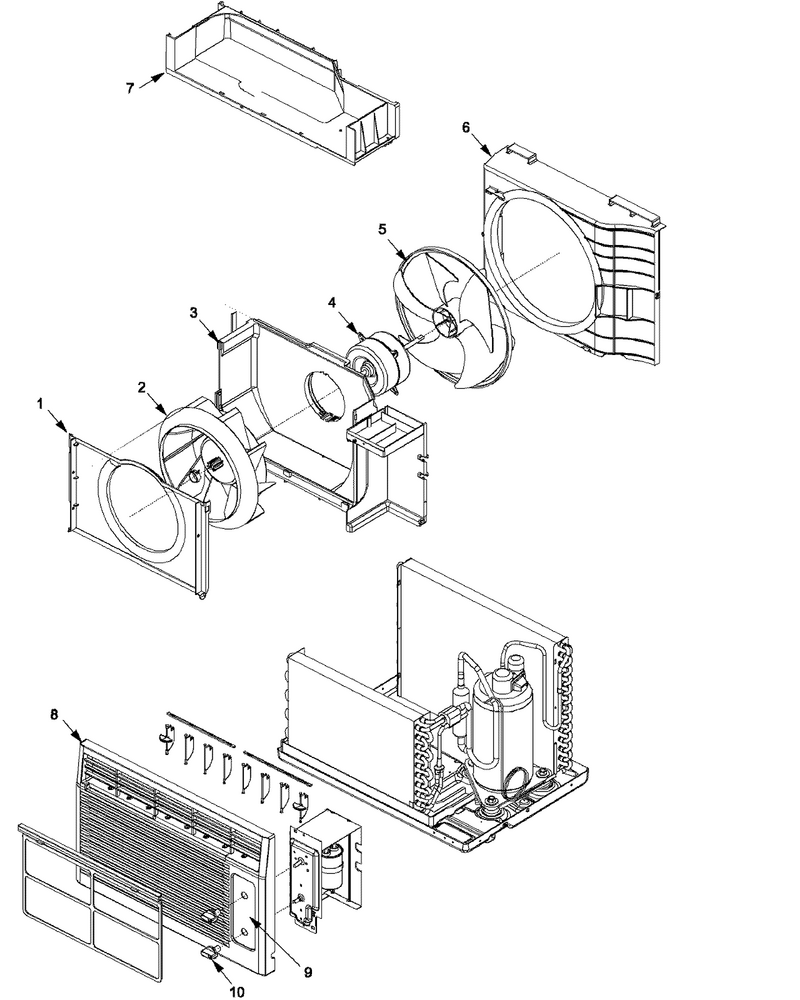

01 - Chassis

...
...
NI
Filter WPL-97001070
...
1
Plate-Conduit WPL-97001060
...
2
Fan-Blower Wheel WPL-97001061
...
3
Case-Blower Scroll WPL-97001062
...
4
Motor-Fan WPL-97001064
...
5
Fan, Condenser WPL-97001047
...
6
Cover-Evaporator WPL-97001065
...
7
Shroud-Condenser WPL-97001066
...
8
Front Panel Assy WPL-97001067
...
9
Eschusion WPL-97001068
...
10
Knob WPL-97001069

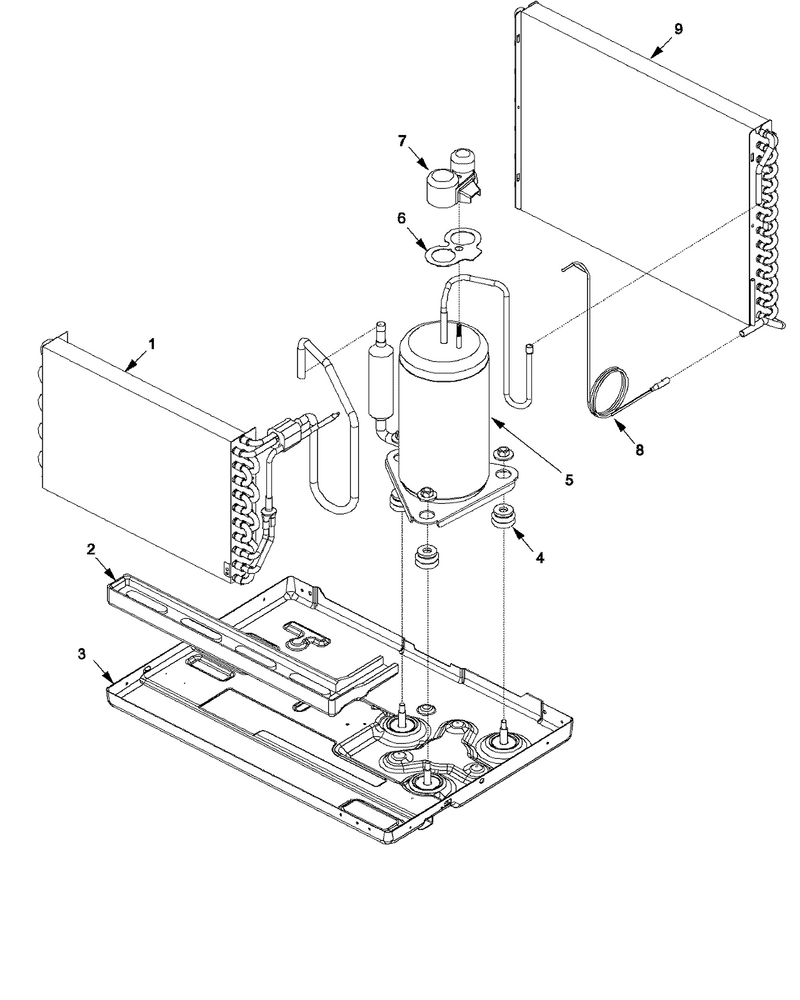

04 - Sealed System

...
...
1
Assy, Evaporator WPL-97001050
...
2
Drain Block WPL-97001072
...
3
Drain Pan W/compressor Bolts WPL-97001071
...
4
Compressor Assy WPL-97001053
...
5
Suction Assy WPL-97001054
...
6
Gasket, Terminal Cover WPL-R0130041
...
7
Overload WPL-R0131584
...
8
Capillary WPL-97001052
...
9
Assy, Condenser WPL-97001051

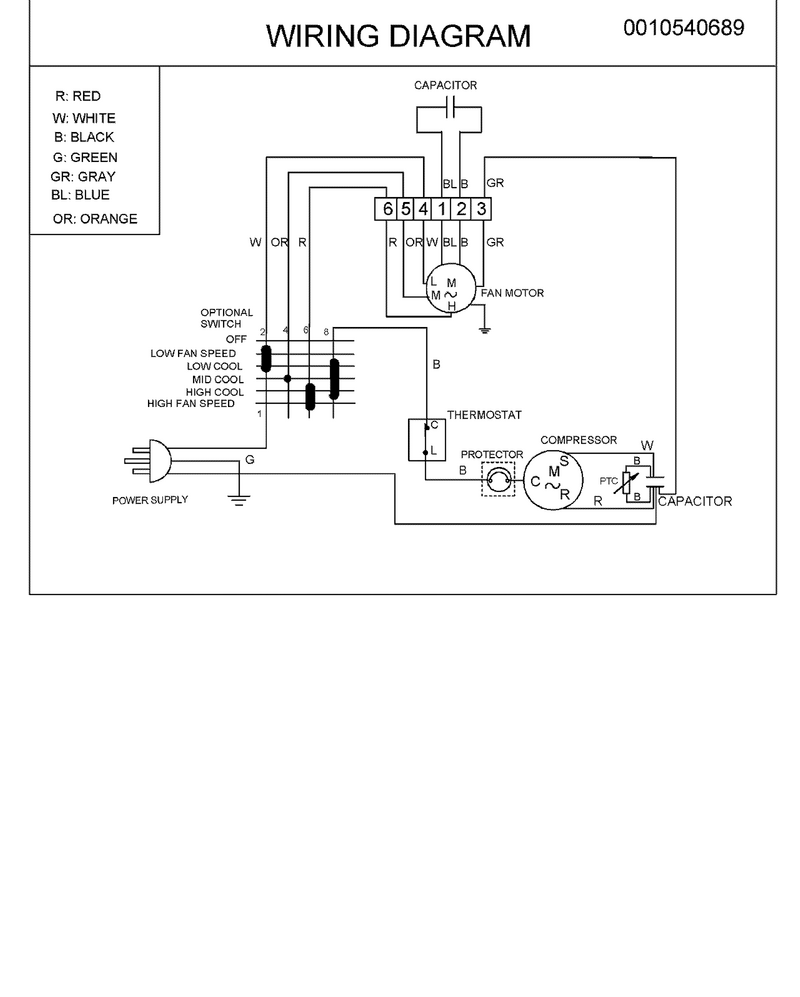

06 - Wiring Information

...
...
NI
Wiring Information WPL-15003271

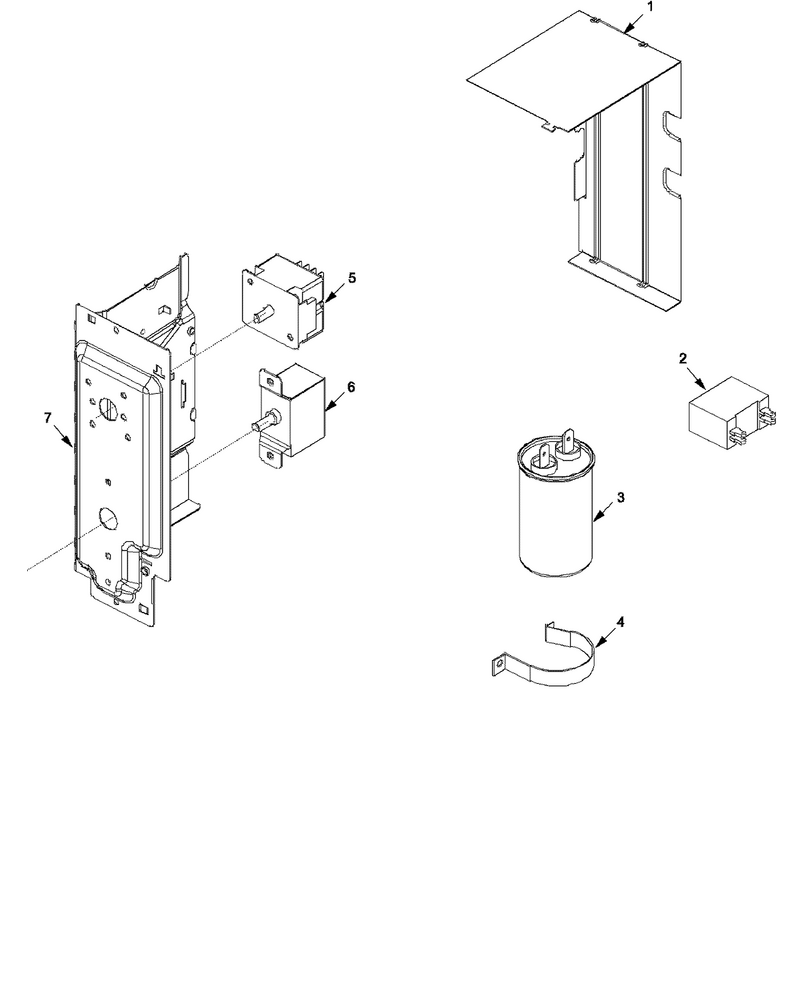

02 - Control Assy

...
...
1
Cover-Control Panel WPL-97001055
...
2
Capacitor-Fan Motor WPL-97001056
...
3
Switch, Selector WPL-R0130033
...
4
Thermostat WPL-R0130034
...
5
Capacitor-Compressor WPL-97001057
...
6
Strap-Capacitor WPL-97001058
...
7
Control Panel WPL-97001059
