Amana AAC051FRA (BOM: PAAC051FRA0)

Model: AAC051FRA (BOM: PAAC051FRA0)

Save Part Not Listed?
product name

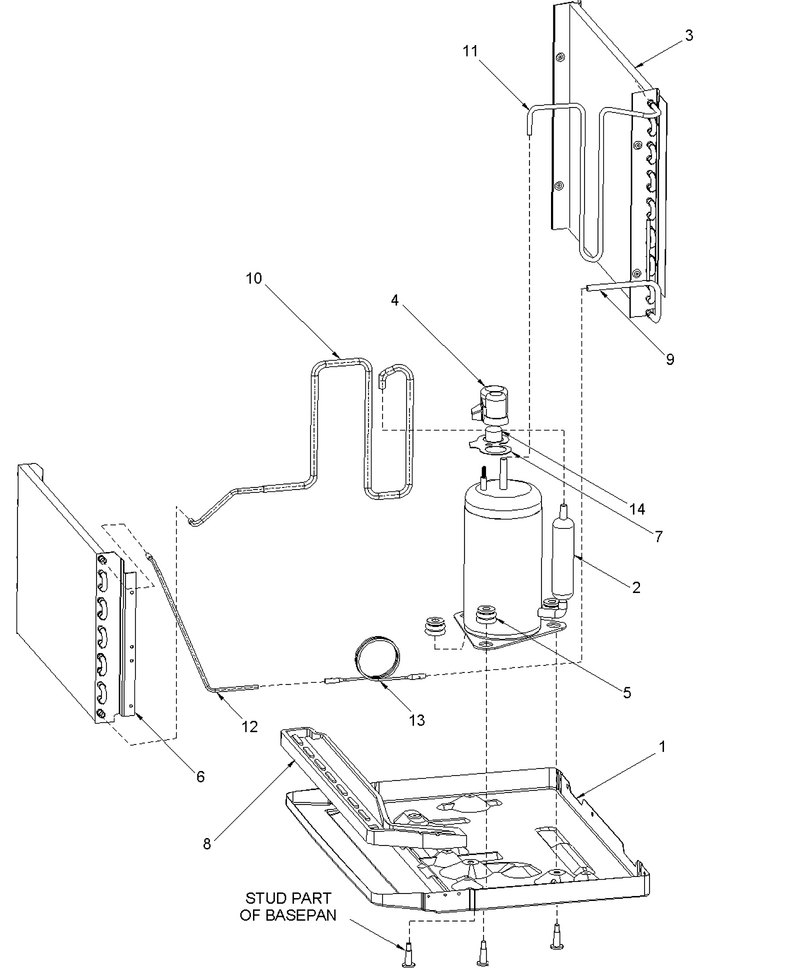

01 - Chassis Assembly

...
...
1
Drain Pan W/compressor Bolts WPL-R0130035
...
2
Compressor WPL-R0130036
...
3
Assy, Condenser WPL-R0130037
...
4
Cover, Terminal WPL-R0130038
...
5
Grommet, Compressor WPL-R0130039
...
6
Assy, Evaporator WPL-R0130040
...
7
Gasket, Terminal Cover WPL-R0130041
...
8
Drain Block WPL-R0130042
...
9
Process Elbow WPL-R0130043
...
10
Tube-Suction WPL-R0130044
...
11
Tube-Discharge WPL-R0130045
...
12
Tube-Evaporator Liquid WPL-R0130046
...
13
Assy, Capillary WPL-R0130047
...
14
Overload WPL-R0131584

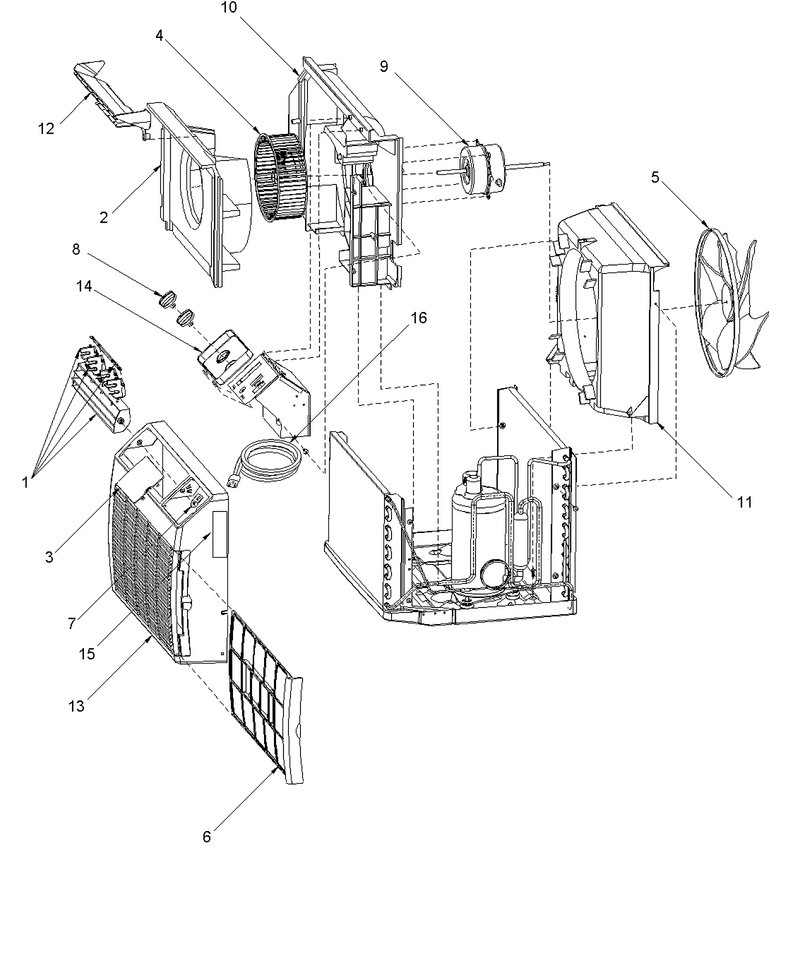

02 - Chassis Assy

...
...
1
Assy, Louver WPL-YR0130771
...
2
Scroll, Inlet WPL-R0130051
...
3
Door, Control WPL-R0130052
...
4
Wheel, Blower WPL-R0130053
...
5
Fan, Condenser 12``d 1/4 Hole WPL-R0130054
...
6
Filter WPL-R0130055
...
7
Box, Bushing Louver WPL-R0130056
...
8
Knob-Control WPL-97001093
...
9
Motor WPL-R0130058
...
10
Panel, Front Partition WPL-R0130059
...
11
Shroud, Condenser WPL-R0130060
...
12
Chute, Discharge WPL-R0130061
...
13
Front WPL-R0130062
...
14
Escutcheon WPL-R0130063
...
15
Tape Per Roll WPL-M0275163
...
16
Cord, Power WPL-R0130767

...
...
1
Mnl,parts(rac-5000 Btu High Ef WPL-RP4110028
...
2
Room Air Svc Man Haier WPL-16021872
...
3
Mnl,owners(rac) WPL-12592301
...
4
Label, Energy Guide WPL-R0130189
...
5
Filter, Electrostatic WPL-R0131426
...
6
Net-Cdc Algacide/anti-Clog Str WPL-R0130270
...
7
Carton WPL-R0131527

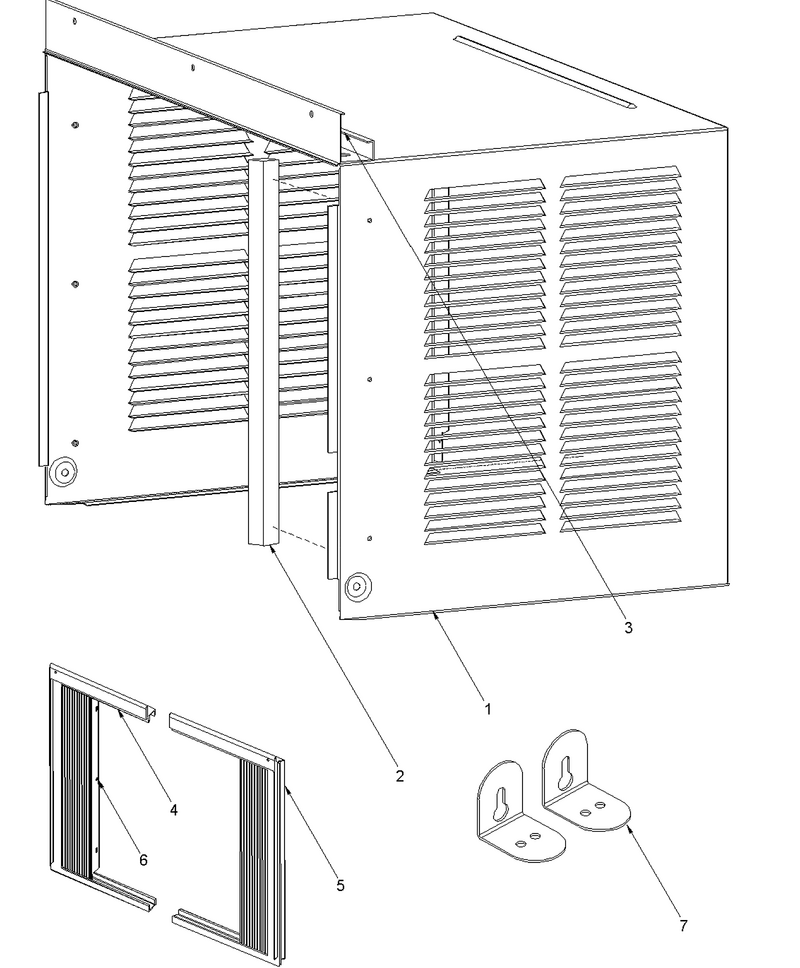

05 - Outer Case Assembly

...
...
NI
Assy, Screw WPL-R0131395
...
1
Outercase WPL-R0130023
...
2
Gasket-Outercase WPL-R0130025
...
3
Top Rail-Outercase WPL-R0130026
...
4
Track, Curtain-Lt Side WPL-R0131392
...
5
Track, Curtain-Rt Side WPL-R0131393
...
6
Curtain WPL-R0131394
...
7
Angle, Basepan WPL-R0131396

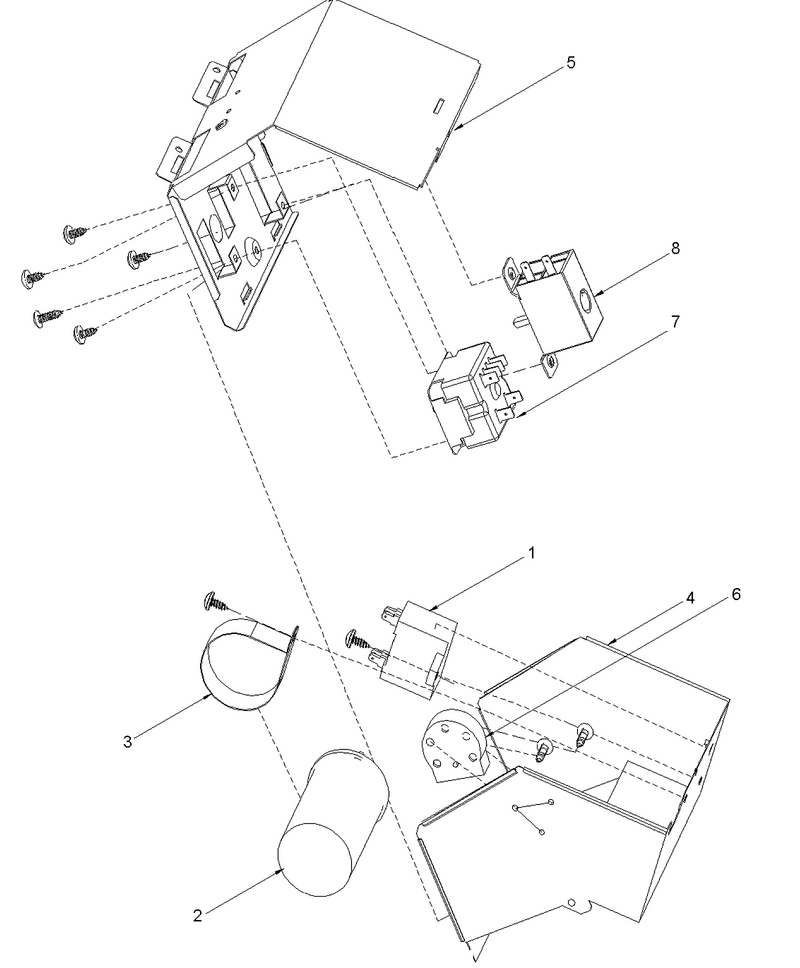

03 - Control Assembly

...
...
1
Capacitor, Fan Motor WPL-R0130027
...
2
Capacitor, Compressor WPL-R0130028
...
3
Strap, Capacitor WPL-R0130029
...
4
Box, Control WPL-R0130030
...
5
Cover, Control Box WPL-R0130031
...
6
Ptc Start WPL-R0130032
...
7
Switch, Selector WPL-R0130033
...
8
Thermostat WPL-R0130034
