Amana A1200S (BOM: P4020008302)

Model: A1200S (BOM: P4020008302)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

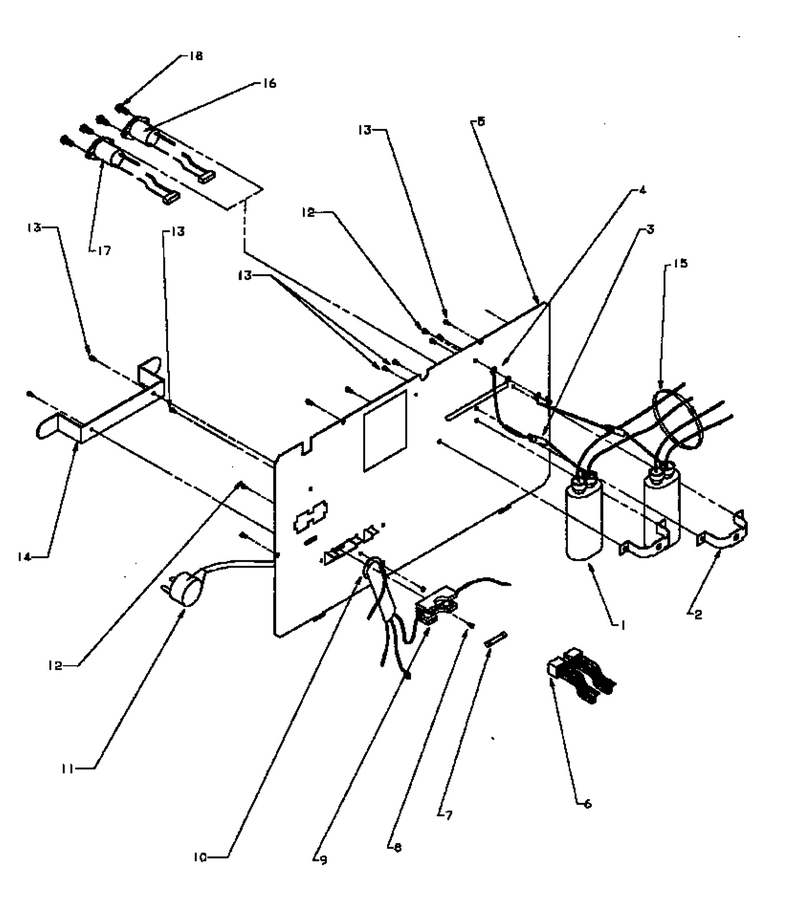

01 - Back Panel And Components

...
...
1
Hvcap1.05mfd 2500v80deg C WPL-1241524333
...
2
Bracket WPL-10825501
...
3
Rectifier WPL-WP13091701
...
4
See Note Nut-Keps WPL-Y00000000
...
5
Panel, Back Access WPL-3000010010
...
6
Harness, Oven WPL-10798901
...
7
Fuse WPL-36107P01
...
8
.156 Pop Rivet WPL-5067-S
...
9
Fuse Holder WPL-10091101
...
10
Strain Relief WPL-M0370007
...
11
Cord, Power (300v) WPL-1732500101
...
12
Screw K WPL-5072-V
...
13
Screw WPL-5027-ZZ
...
14
Brkt, Cord Wrap WPL-45531P01
...
15
Tie-Elect. WPL-5140-FF
...
16
Ass`y, Connector WPL-4520900701
...
17
Ass`y, Connector WPL-4520900801
...
18
See Note Pop Rivet WPL-Y00000000

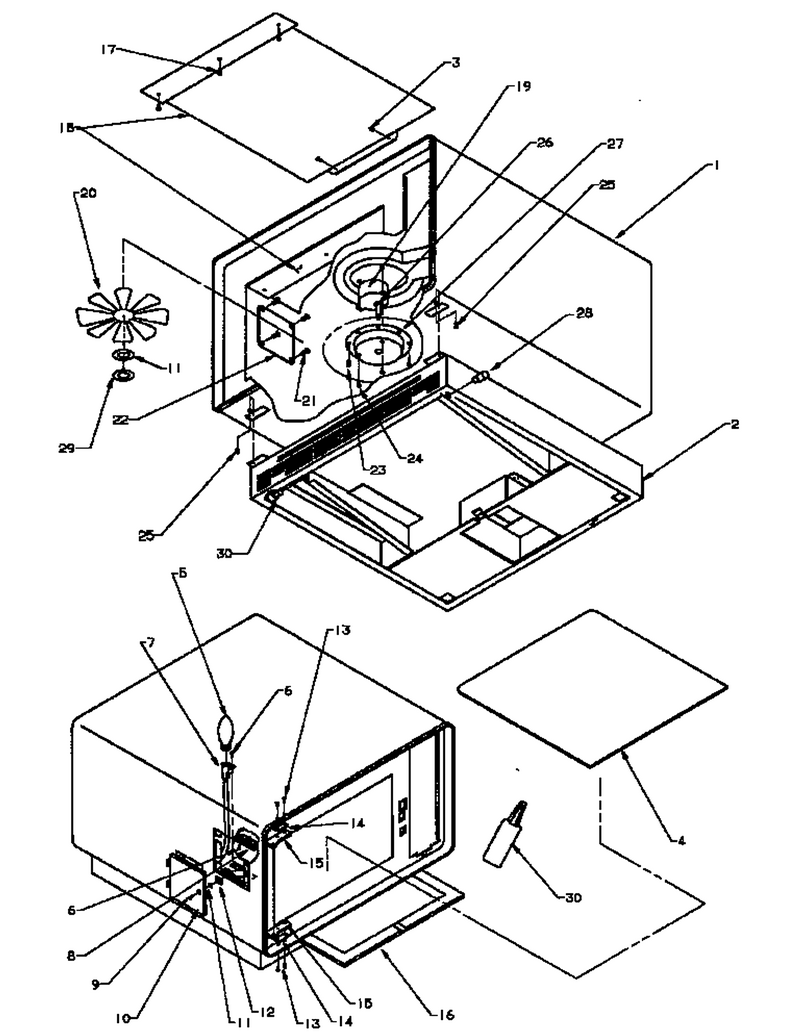

02 - Cavity Assy

...
...
1
Ass`y, Cavity WPL-94342P01
...
2
Kit, Base WPL-R0163258
...
3
.187 Dia Push Rivet WPL-5039-T
...
4
Kit, Shelf WPL-R0156904
...
5
Light Bulb WPL-44865P01
...
6
Screw WPL-5027-ZZ
...
7
Socket Lamp WPL-2040100701
...
8
Sensor, Cavity WPL-R0163326
...
9
Screw, Sm WPL-5042-B
...
10
Cover Light (Ss) WPL-10785601
...
11
Wshr-Rubber WPL-32383P01
...
12
No.8-32 Captive Nut(25) WPL-5072-D
...
13
No.8-32 Pan Hd Mach Scr (25) WPL-5149-C
...
14
Shim-Hinge WPL-45540P01
...
15
Assy, Hinge WPL-4180032601Q
...
16
Filter Air WPL-45412P01
...
17
See Note Rivet-Cover Mounting WPL-Y00000000
...
18
Stirrer Cover WPL-45422P01
...
19
Kit, Stirrer Motor WPL-R0163259
...
20
Kit, Stirrer Blade WPL-M35D53
...
21
Rivet-Plastcx WPL-42192P01
...
22
Lamp Lens WPL-2570000202
...
23
Screw WPL-5078-CC
...
24
No.4-40 Pan Hd Mach Scr WPL-5001-ZZ
...
25
.187 Dia Pop Rivet Steel WPL-5067-A
...
26
Gasket WPL-M2D252
...
27
Support Mtr WPL-45437P01
...
28
Standoff, Filter Guide WPL-5571173001
...
29
Nut WPL-WP3195558
...
30
Adhesive WPL-W10841140

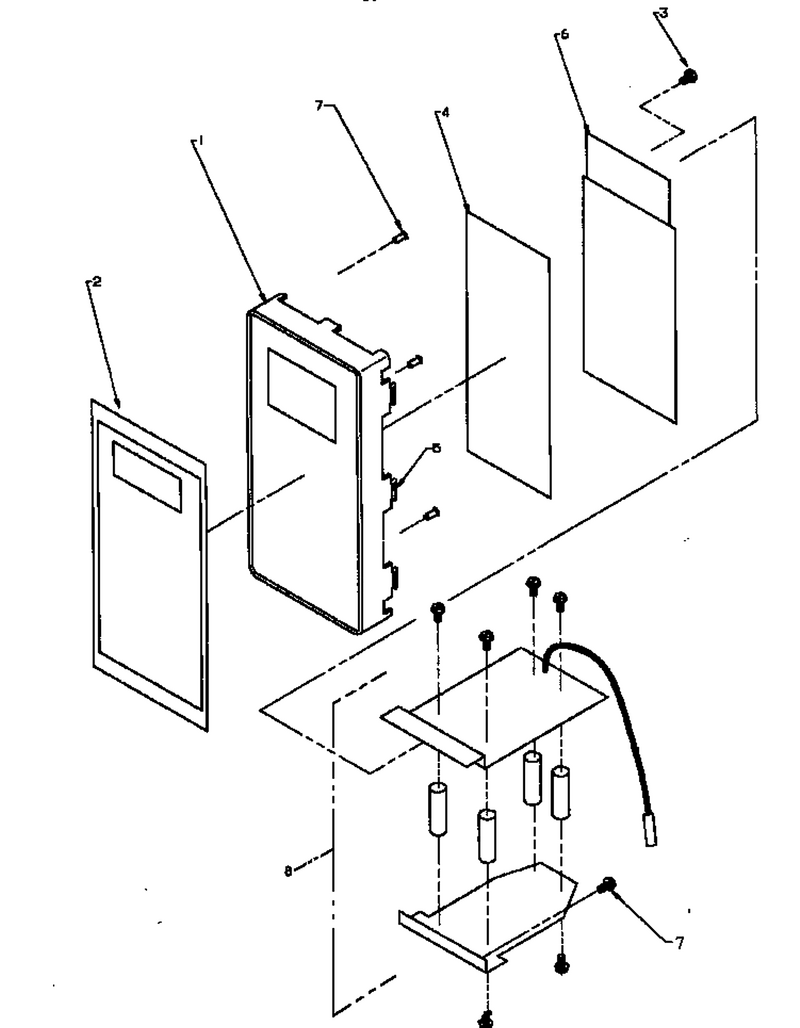

03 - Control Panel Assy

...
...
1
Frame, Cont Pnl WPL-45398P04
...
2
Touch Panel WPL-4100011201
...
3
Screw,no.8-32 X 1-1/4 Fl Hd Scre WPL-5149-P
...
4
Back Plate WPL-4180031801
...
5
Clip WPL-5522546002
...
6
Controller WPL-R0163268
...
7
No.6 Pan Hd Machine Screw WPL-5057-N
...
8
Net-Scanner,circuit Board WPL-1840000101

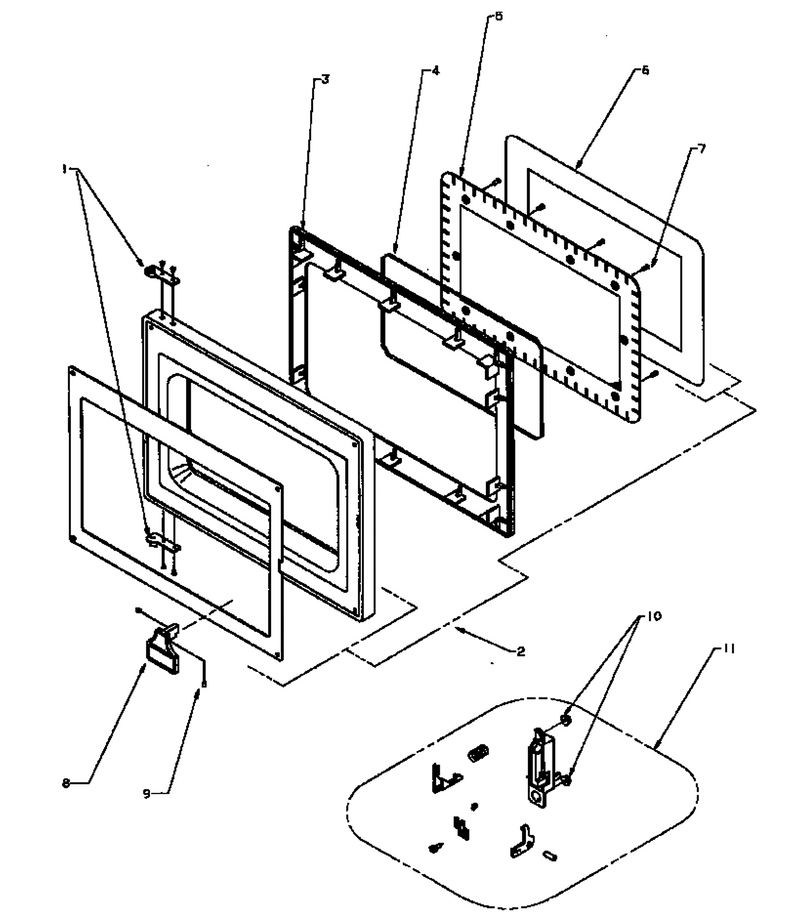

04 - Door Assy

...
...
1
Hinge Asy Kit WPL-R0163252
...
2
Outer Door Assy. WPL-R0163257
...
3
Door Filler Kit WPL-M55D18
...
4
Door-Glass WPL-R0163254
...
5
Inner Door Kit WPL-R0163255
...
6
Window, Inner Door WPL-10785001
...
7
No.8 Ab X 3/8`` Screw WPL-5146-DD
...
8
Door Handle-E Ct WPL-3000029501
...
9
Screw WPL-WP8533976
...
10
No.10-24 Flange Whiz-Lk Nut WPL-5015-T
...
11
Door Latch Kit WPL-R0163256

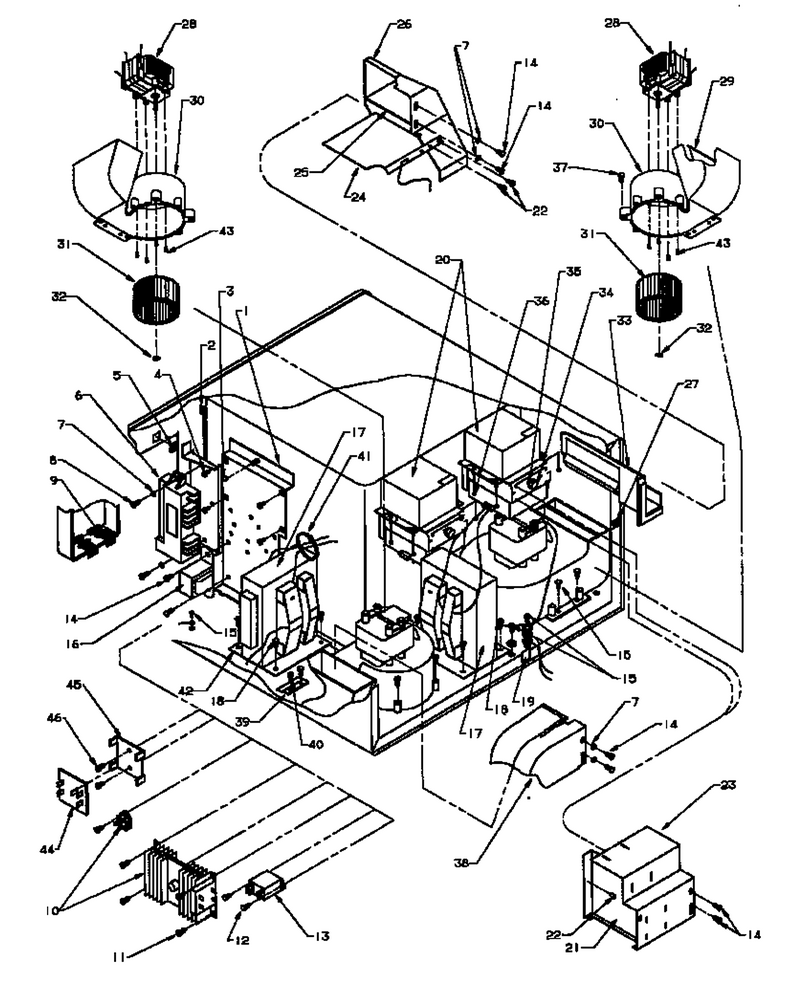

05 - Interior Elec Components & Mtg Parts

...
...
1
Panel, Component WPL-10791901
...
2
U-Clip WPL-42365P01
...
3
See Note Nut-Keps WPL-Y00000000
...
4
See Note Tinn Nut WPL-Y00000000
...
5
No.8-32 Captive Nut(25) WPL-5072-D
...
6
Svc Interlock Switch Asy WPL-4002006801
...
7
See Note Washer-Flat WPL-Y00000000
...
8
Screw, Sm WPL-5015-X
...
9
Assy, Connector WPL-Y4520400704
...
10
Triac - Comm/jetwave Lst Iv WPL-4070001301
...
11
Screw, Sm WPL-5042-B
...
12
Screw K WPL-5074-DD
...
13
Relay WPL-38806P04
...
14
Screw WPL-5027-ZZ
...
15
Screw WPL-5078-CC
...
16
Transformer, L.v. WPL-10729301
...
17
Hv Xfmr 1000w 120v60hzx WPL-1615120011
...
18
Screw WPL-5021032501
...
19
Cable Clip WPL-39126P01
...
20
Magnetron 2m137 No Studs WPL-39143P02
...
21
Divider Duct Hsg Fs-10 WPL-45752P01
...
22
.187 Dia Push Rivet WPL-5039-T
...
23
Duct Hsg-Cav Intake Fs-10 WPL-45751P01
...
24
Deflector-Air M65d344 WPL-46762P01
...
25
M65d346 Divider Air WPL-45402P01
...
26
M65d345 Duct, Air WPL-45407P01
...
27
U-Clip WPL-5147-ZZ
...
28
Kit, Blower Motor WPL-R0163291
...
29
Divider, Duct WPL-10825601
...
30
Housing, Blower WPL-45559P01
...
31
Wheel, Blower M35d39 WPL-36300P01
...
32
See Note E-Ring WPL-Y00000000
...
33
Transition-Cav Exh Fs-10 WPL-45753P01
...
34
Protector,thermal 180c 25 Amp WPL-1751802501
...
35
Screw WPL-M0251717
...
36
Ia 5mm Flange Whiz-Lk Nut (25) WPL-35691P01
...
37
Screw 1`` WPL-5042-P
...
40
.187 Dia Pop Rivet Steel WPL-5067-A
...
41
Tie-Elect. WPL-5140-FF
...
43
Screw K WPL-5072-V
