Amana 969.003

Model: 969.003

Save Part Not Listed?
product name

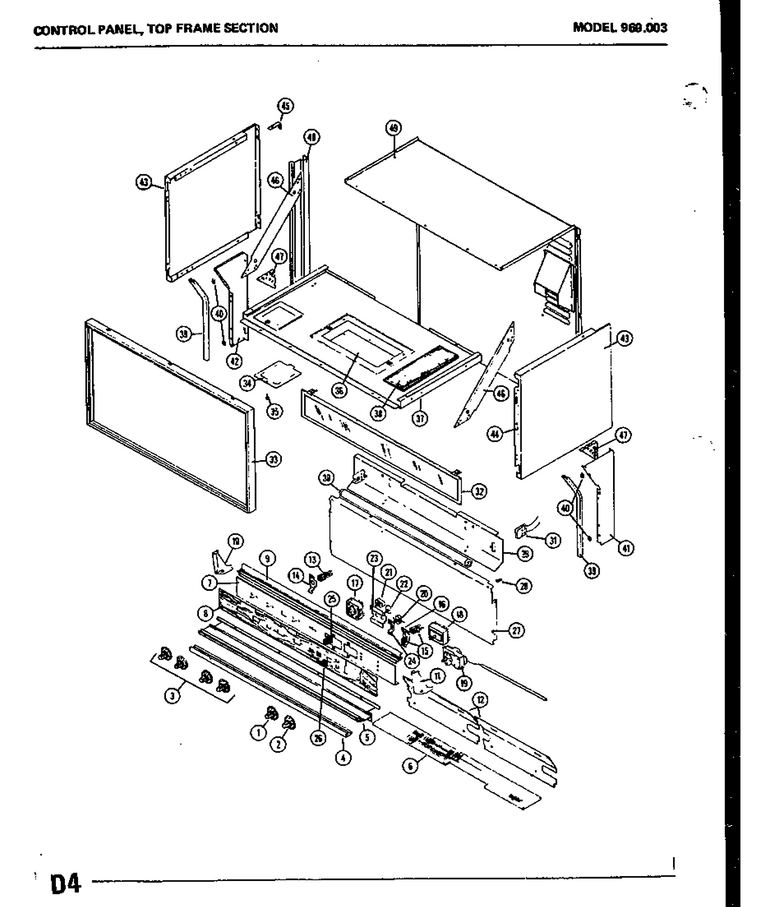

01 - Control Panel

...
...
1
M6d94 Knob Assy WPL-M6D94
...
2
Knob M6d96 WPL-M6D96
...
3
Knob M6d95 WPL-M6D95
...
4
Heat Deflector WPL-M52D123
...
5
Screw WPL-WPW10348409
...
6
Not Available WPL-M63D7
...
7
Screw, Panel Mtg. WPL-M1D392
...
8
Not Available WPL-M52D118
...
9
Extrusion WPL-M52D93
...
10
End Cap Left WPL-M7D217
...
11
Screw (25) WPL-M1D541
...
12
Screw WPL-WP90767
...
13
Light-Indx M9d65 WPL-M9D65
...
14
Not Available WPL-M2D292
...
15
Light-Indx M9d65 WPL-M9D65
...
16
Not Available WPL-M2D285
...
17
Screw 8-32 (25) WPL-M1D536
...
18
Screw 8-32 (25) WPL-M1D536
...
19
Thermostat Kit WPL-M18D8
...
20
Switch WPL-M14D116
...
21
2 Pin Conn WPL-4520400502
...
22
Switch Asm-Oven Light Kit WPL-M14D110
...
23
Nut (25) WPL-M1D313
...
24
Nut (25) WPL-M1D313
...
25
Button WPL-M6D123
...
26
Bezel Button M2d286 WPL-M2D286
...
27
Screw (25) WPL-M1D543
...
28
Clip (10) WPL-51204P01
...
29
Screw WPL-WP90767
...
30
Flourescent Lamp WPL-M9D45
...
31
No.6 Thread Forming Screw WPL-M1D627
...
32
Screw WPL-WPW10348409
...
33
Screw WPL-WPW10348409
...
34
Push Nut (25) WPL-M1D652
...
35
Screw (1) WPL-M1D553
...
36
Screw WPL-WPW10348409
...
37
Screw WPL-WP90767
...
38
Not Available WPL-M63D8
...
39
Trim, Middle Side Panel WPL-M7D202
...
40
Clip (10) WPL-51169P01
...
41
Side Pnl Rt Ald WPL-M53D32
...
42
Side Pnl Lt Ald WPL-M53D33
...
43
Not Available WPL-M82D102
...
44
Not Available WPL-M2D241
...
45
Screw WPL-WP90767
...
46
Screw WPL-WP90767
...
47
Screw WPL-WP90767
...
48
Screw WPL-WP90767
...
49
Screw WPL-WP90767

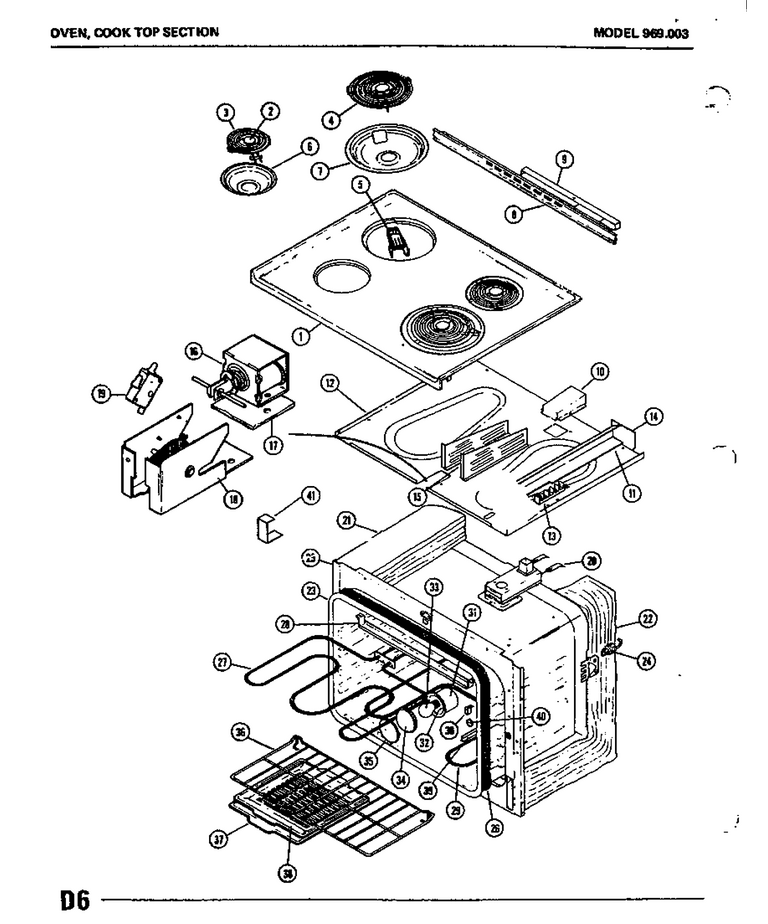

03 - Oven

...
...
1
Not Available WPL-M82D71
...
2
Medallion Blk WPL-M2D321
...
3
Surface Elem. 6`` 240 V. 1250 W WPL-Y0051573
...
4
Elmnt-Surf WPL-WP3191454
...
5
Screw (25) WPL-M1D129
...
6
Burner Bow WPL-51294P01
...
7
Bowl-Drip WPL-WPW10196405
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP90767
...
11
Terminal Block WPL-M52D95
...
12
Screw WPL-WP90767
...
13
Block-Term WPL-WP8203546
...
14
Not Available WPL-M52D98
...
15
Lock Cover WPL-M65D89
...
16
Screw (25) WPL-M1D280
...
17
Insulator WPL-M2D290
...
18
Screw WPL-WP90767
...
19
Lock Switch WPL-M14D107
...
20
Smoke Eliminator Assembly WPL-M18D7
...
21
Not Available WPL-M63D5
...
22
Not Available WPL-M63D12
...
23
Oven Cavity Assembly WPL-M77D41
...
24
Oven Spring WPL-M5D114
...
25
Washer Cup WPL-M1D531
...
26
Gasket, Oven Cavity WPL-M25D40
...
27
Element Kit WPL-M61D44
...
28
Brkt WPL-M52D72
...
29
Screw, Terminal Fastening WPL-M1D658
...
30
Screw (25) WPL-M1D532
...
31
Housing M20d69 WPL-51012P01
...
32
Socket Oven WPL-M5D113
...
33
Light Bulb WPL-8009
...
34
Lens, Oven Light WPL-M6D93
...
35
Screw (25) WPL-M1D532
...
36
Wire Rack WPL-M67D9
...
37
Broiler Pan WPL-M67D1
...
38
Broiler Pan Insert WPL-M67D3
...
39
Heat Deflector Brkt. WPL-M20D78
...
40
Hole Button WPL-M1D568
...
41
Screw WPL-WP90767

05 - Page 1

...
...
X Denotes New Parts Introduced On Model 969.003 WPL-NOTE:
...
1
Spirol Pin (10) WPL-M1D373
...
2
Not Available WPL-M79D43
...
3
Transformer WPL-M60D54
...
4
H V Cap .91 +-6% WPL-M10D43
...
5
Bracket WPL-10825501
...
6
Kit, Diode WPL-M3D71
...
7
Motor (M12d28) WPL-M12D28
...
8
Fan Blade WPL-M35D15
...
9
Screw (25) WPL-M1D107
...
10
Bracket-Blower Asm WPL-M8D115
...
11
Not Available WPL-M65D103
...
12
Stirrer Motor Kit WPL-M12D21
...
13
R F Gasket Kit WPL-M2D152
...
14
Spcr-Stir WPL-M2D26
...
15
Stirrer Blade Kit WPL-M35D11
...
16
.156 Dia Push On Clip WPL-M1D78
...
17
Cover WPL-M45D9
...
18
Not Available WPL-M65D108
...
19
Not Available WPL-M52D88
...
20
Not Available WPL-M52D89
...
21
Not Available WPL-M52D90
...
22
Control Module WPL-M22D42
...
23
Controller Brkt WPL-M8D114
...
24
Insulation Pot WPL-M5D179
...
25
Ia Screw No.10-32 WPL-M1D370
...
26
Screw (25) WPL-M1D107
...
27
Not Available WPL-M20D71
...
28
Socket WPL-M5D100
...
29
Clip (25) WPL-M1D662
...
30
Spacer (10) WPL-M1D520
...
31
Stop (10) WPL-M1D521
...
32
Light Bulb WPL-8009
...
33
Screw (1) WPL-M1D553
...
34
Push Nut (25) WPL-M1D652
...
35
Screw (25) WPL-M1D387
...
36
Fillerx WPL-M55D6
...
37
Shelf W/rtv Kit WPL-M50D14
...
38
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
39
Gasket-Rf WPL-M2D296
...
40
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
41
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
42
Washer (25) WPL-M1D361
...
43
Oval Bearing WPL-M2D175
...
44
Bearing WPL-M2D176
...
45
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
46
Fuse 20 A WPL-WPM0805101
...
47
Indicator Light WPL-M9D55
...
48
Screw (25) WPL-M1D129
...
49
No.8 T X 3/8`` Screw WPL-M1D402
...
50
Mtg Brkt Timer WPL-M2D289
...
51
Knob, Digital Timer WPL-M6D124
...
52
Knob, Range Clock WPL-M6D159
...
53
Knob, Vari-Cook WPL-M6D125
...
54
Ia Spring WPL-M2D168
...
55
Bar-Release WPL-M11D31
...
56
Dec Panel Asm WPL-M7D306
...
57
Door Handle Kit WPL-M7D209
...
58
Not Available WPL-M2D172
...
59
Nla (See D-Pb17) WPL-M27D159
...
60
Clamp, Harness To Cavity WPL-M1D75
...
61
Shield WPL-M2D304
...
62
Not Available WPL-M1D524
...
63
Ia Screw No.10-32 WPL-M1D370
...
64
Fuse WPL-M4D53
...
65
Receptacle-Fuse WPL-M5D157
...
66
Not Available WPL-M8D120

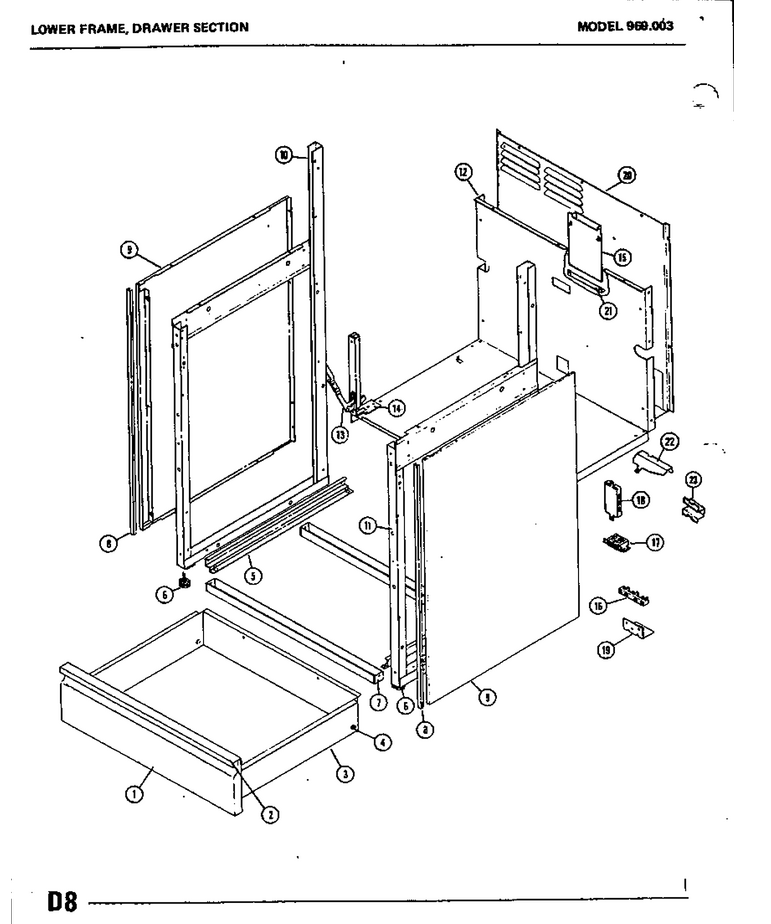

02 - Lower Frame

...
...
1
Not Available WPL-M72D24
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-WPW10348409
...
4
Stud WPL-M2D243
...
5
Button WPL-M2D244
...
6
Leveling Foot WPL-M8D117
...
7
Screw WPL-WP90767
...
8
Trim-Corner M75d19 WPL-53024P01
...
9
Lwr Side Pnl Alm WPL-M82D115
...
10
Not Available WPL-M83D1
...
11
Not Available WPL-M83D2
...
12
Not Available WPL-M82D46
...
13
Washer Cup WPL-M1D531
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
Terminal WPL-M4D45
...
17
Screw WPL-WP90767
...
18
Relay, Oven WPL-Y0091669
...
19
Not Available WPL-M2D245
...
20
Not Available WPL-M82D112
...
21
Cover-Exhaust Duct WPL-M7D279
...
22
Not Available WPL-M5D155
...
23
Clip(25) WPL-M1D635

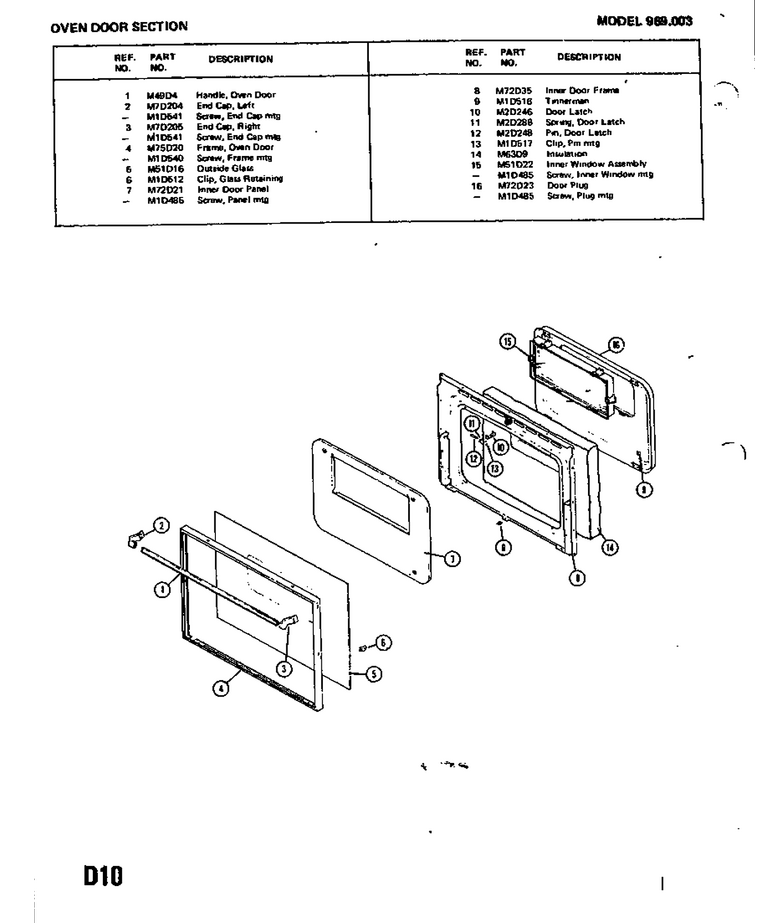

04 - Oven Door Section

...
...
1
Handle, Oven Door WPL-M49D4
...
2
Screw (25) WPL-M1D541
...
3
Screw (25) WPL-M1D541
...
4
Screw (25) WPL-M1D540
...
5
Glass Outer Door Kit WPL-M51D16
...
6
Clip (1) WPL-M1D512
...
7
Heat Shield Kit WPL-M72D21
...
8
Door Frame Asy WPL-M72D35
...
9
U-Nut (25) WPL-M1D516
...
10
Latch WPL-M2D246
...
11
Spring WPL-M2D288
...
12
Pin WPL-M2D248
...
13
C Clip (25) WPL-M1D517
...
14
Not Available WPL-M63D9
...
15
Screw WPL-WP90767
...
16
Screw WPL-WP90767
