Amana 969.002

Model: 969.002

Save Part Not Listed?
product name

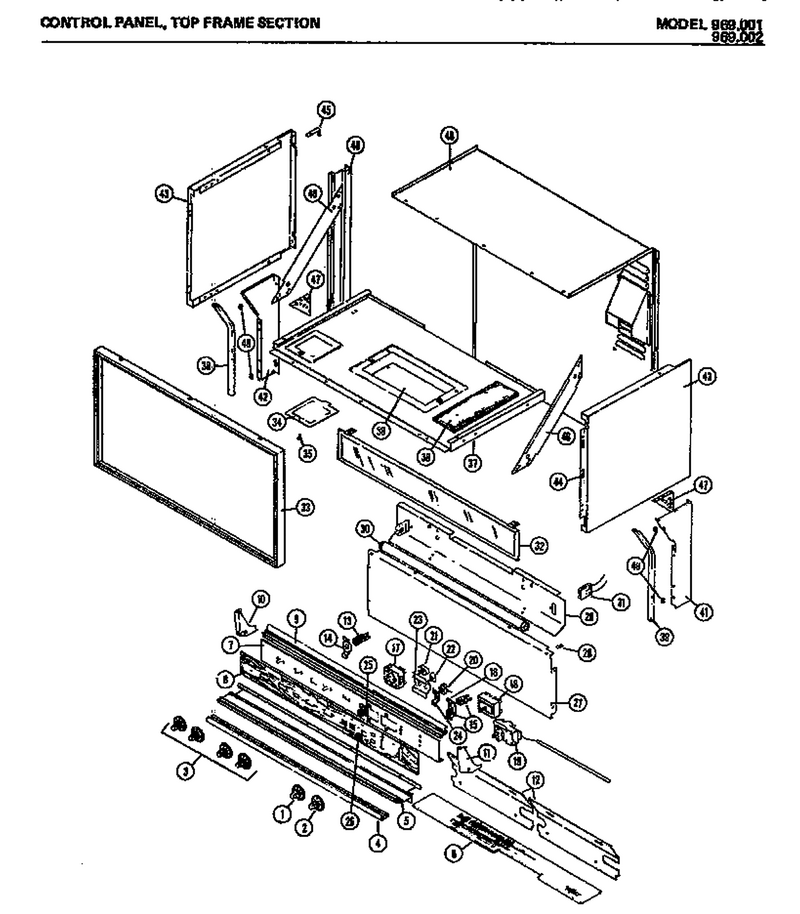

01 - Control Panel

...
...
1
M6d94 Knob Assy WPL-M6D94
...
2
Knob M6d96 WPL-M6D96
...
3
Knob M6d95 WPL-M6D95
...
4
Heat Deflector WPL-M52D123
...
5
Extrusion-Cp Btm WPL-M52D124
...
6
Not Available WPL-M63D7
...
7
Screw, Panel Mtg. WPL-M1D392
...
8
Not Available WPL-M52D118
...
9
Extrusion WPL-M52D93
...
10
End Cap Left WPL-M7D217
...
11
Not Available WPL-M7D216
...
12
Screw WPL-WP90767
...
13
Light-Indx M9d65 WPL-M9D58
...
14
Not Available WPL-M2D292
...
15
Light-Indx M9d65 WPL-M9D65
...
16
Not Available WPL-M2D285
...
17
Screw 8-32 (25) WPL-M1D536
...
18
Screw 8-32 (25) WPL-M1D536
...
19
Thermostat Kit WPL-M18D8
...
20
Switch WPL-M14D116
...
21
2 Pin Conn WPL-4520400502
...
22
Switch Asm-Oven Light Kit WPL-M14D110
...
23
Nut (25) WPL-M1D313
...
24
Nut (25) WPL-M1D313
...
25
Button WPL-M6D123
...
26
Bezel Button M2d286 WPL-M2D286
...
27
Not Available WPL-M82D62
...
28
Clip (10) WPL-51204P01
...
29
Screw WPL-WP90767
...
30
Flourescent Lamp WPL-M9D45
...
31
No.6 Thread Forming Screw WPL-M1D627
...
32
Lens Assy WPL-M51D15
...
33
Screw WPL-WPW10348409
...
34
Push Nut (25) WPL-M1D652
...
35
Screw (1) WPL-M1D553
...
36
Screw WPL-WPW10348409
...
37
Screw WPL-WP90767
...
38
Not Available WPL-M63D8
...
39
Trim, Middle Side Panel WPL-M7D202
...
40
Clip (10) WPL-51169P01
...
41
Side Pnl Rt Wht WPL-M53D2
...
42
Side Pnl Lt Avoc WPL-M53D8
...
43
Upper Panel H.g. WPL-M82D49
...
44
Not Available WPL-M2D241
...
45
Screw WPL-WP90767
...
46
Screw WPL-WP90767
...
47
Screw WPL-WP90767
...
48
Screw WPL-WP90767
...
49
Screw WPL-WP90767

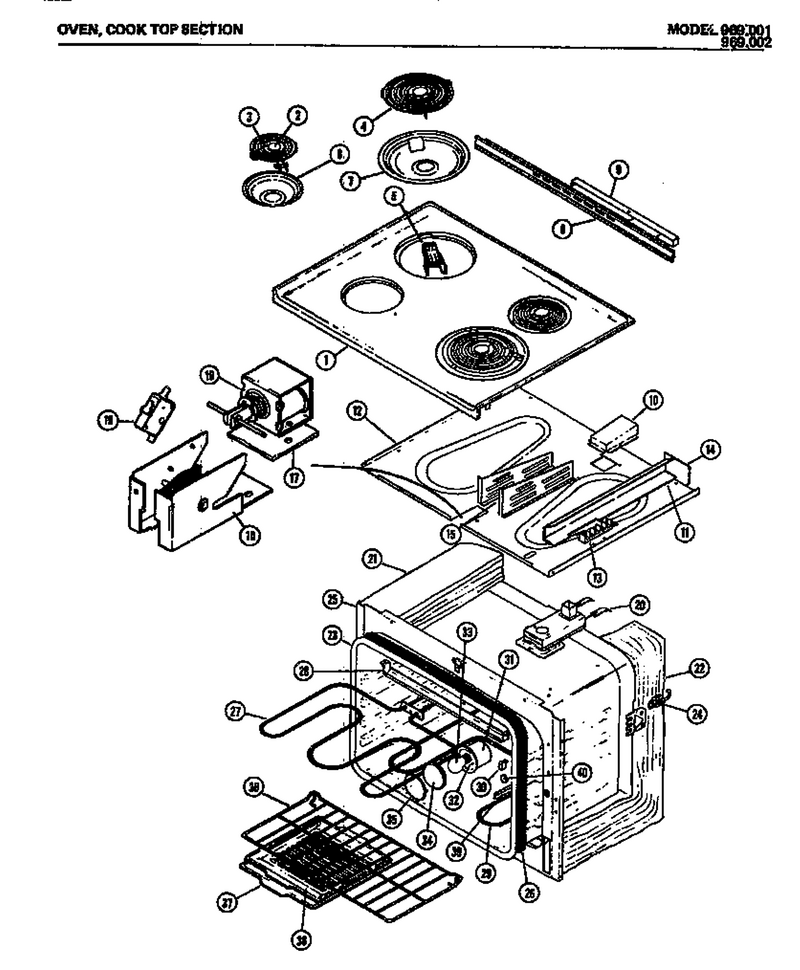

03 - Oven

...
...
1
Not Available WPL-M82D71
...
2
Insert WPL-M2D267
...
3
Surface Elem. 6`` 240 V. 1250 W WPL-Y0051573
...
4
Elmnt-Surf WPL-WP3191454
...
5
Receptacle WPL-330031
...
6
Burner Bow WPL-51294P01
...
7
Bowl-Drip WPL-WPW10196405
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP90767
...
11
Terminal Block WPL-M52D95
...
12
Screw WPL-WP90767
...
13
Block-Term WPL-WP8203546
...
14
Not Available WPL-M52D98
...
15
Lock Cover WPL-M65D89
...
16
Solenoid Assembly WPL-M16D41
...
17
Insulator WPL-M2D290
...
18
Screw WPL-WP90767
...
19
Lock Switch WPL-M14D107
...
20
Smoke Eliminator Assembly WPL-M18D7
...
21
Not Available WPL-M63D5
...
22
Not Available WPL-M63D12
...
23
Oven Cavity Assembly WPL-M77D41
...
24
Oven Spring WPL-M5D114
...
25
Washer Cup WPL-M1D531
...
26
Gasket, Oven Cavity WPL-M25D40
...
27
Screw (25) WPL-M1D532
...
28
Brkt WPL-M52D72
...
29
Screw (25) WPL-M1D532
...
30
Screw (25) WPL-M1D532
...
31
Housing M20d69 WPL-51012P01
...
32
Socket Oven WPL-M5D113
...
33
Light Bulb WPL-8009
...
34
Lens, Oven Light WPL-M6D93
...
35
Screw (25) WPL-M1D532
...
36
Wire Rack WPL-M67D9
...
37
Broiler Pan WPL-M67D1
...
38
Broiler Pan Insert WPL-M67D3
...
39
Heat Deflector Brkt. WPL-M20D78
...
40
Hole Button WPL-M1D568

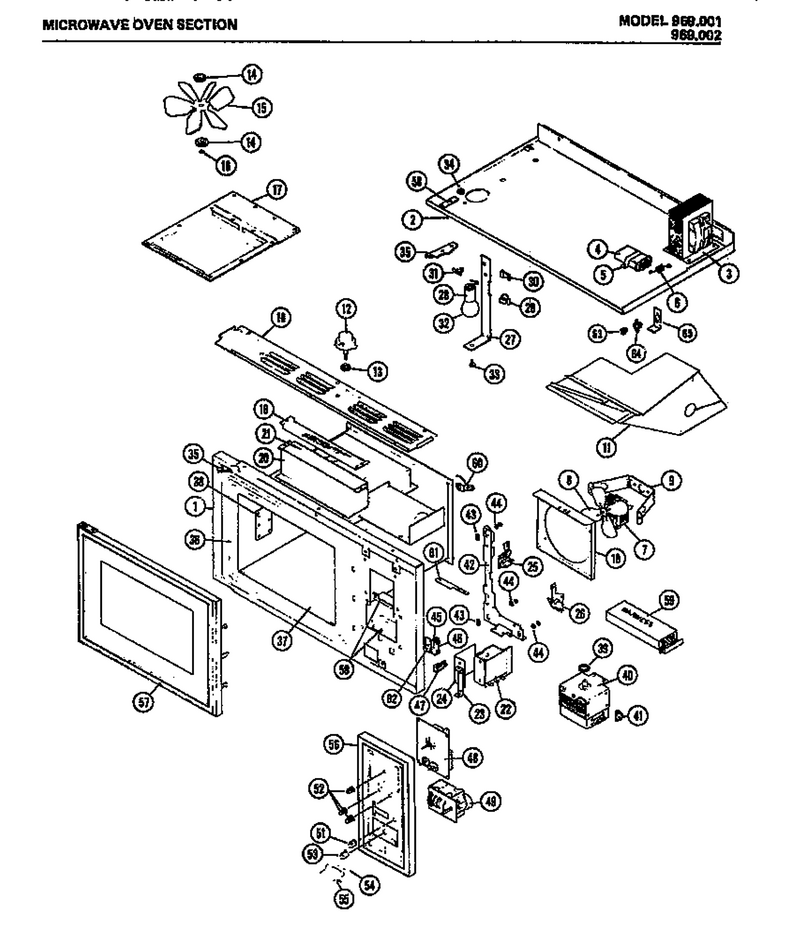

05 - Page 1

...
...
1
Not Available WPL-M77D62
...
2
Not Available WPL-M79D40
...
3
Tinnerman (25) WPL-M1D79
...
4
H V Cap .91 +-6% WPL-M10D43
...
5
Bracket WPL-10825501
...
6
Kit, Diode WPL-M3D71
...
7
Motor (M12d28) WPL-M12D28
...
8
Fan Blade WPL-M35D15
...
9
Screw (25) WPL-M1D107
...
10
Bracket-Blower Asm WPL-M8D115
...
11
Not Available WPL-M65D103
...
12
Stirrer Motor Kit WPL-M12D21
...
13
R F Gasket Kit WPL-M2D152
...
14
Spcr-Stir WPL-M2D26
...
15
Stirrer Blade Kit WPL-M35D11
...
16
.156 Dia Push On Clip WPL-M1D78
...
17
Cover WPL-M45D9
...
18
Not Available WPL-M65D65
...
19
Not Available WPL-M52D88
...
20
Not Available WPL-M52D89
...
21
Not Available WPL-M52D90
...
22
Control Module WPL-M22D42
...
23
Screw WPL-WP90767
...
24
Insulator-Controller WPL-M5D151
...
25
Ia Screw No.10-32 WPL-M1D370
...
26
Screw (25) WPL-M1D107
...
27
Not Available WPL-M20D71
...
28
Socket WPL-M5D100
...
29
Tinnerman (25) WPL-M1D389
...
30
Spacer (10) WPL-M1D520
...
31
Stop (10) WPL-M1D521
...
32
Light Bulb WPL-8009
...
33
Screw (1) WPL-M1D553
...
34
Push Nut (25) WPL-M1D652
...
35
Shim Hinge Mtg. WPL-M2D169
...
36
Fillerx WPL-M55D6
...
37
Adhesive WPL-W10841140
...
38
Light Cover WPL-M7D132
...
39
Gasket-Rf WPL-M2D296
...
40
Magnetron 2m172jd Kit WPL-M57D18
...
41
Cutout-Thermal-Control WPL-31866P01
...
42
Not Available WPL-M20D67
...
43
Oval Bearing WPL-M2D175
...
44
Bearing WPL-M2D176
...
45
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
46
Fuse 20 A WPL-WPM0805101
...
47
Indicator Light WPL-M9D55
...
48
See D-Tb073 (Tech Bulletin) WPL-M30D35
...
49
No.8 T X 3/8`` Screw WPL-M1D402
...
50
Screw WPL-WPW10068250
...
51
Knob, Digital Timer WPL-M6D124
...
52
Knobs 3/pkg Kit WPL-M6D92
...
53
Knob, Vari-Cook WPL-M6D125
...
54
Ia Spring WPL-M2D168
...
55
Bar-Release WPL-M11D31
...
56
Dec Panel, Control Panel WPL-M7D271
...
57
Screw (25) WPL-M1D473
...
58
Not Available WPL-M2D172
...
59
Nla (See D-Pb17) WPL-M27D135
...
60
High Voltage Lead WPL-M5D153
...
61
Shield WPL-M2D304
...
62
Not Available WPL-M1D524
...
63
Fuse WPL-M4D53
...
64
Receptacle-Fuse WPL-M5D157
...
65
Screw (25) WPL-M1D526

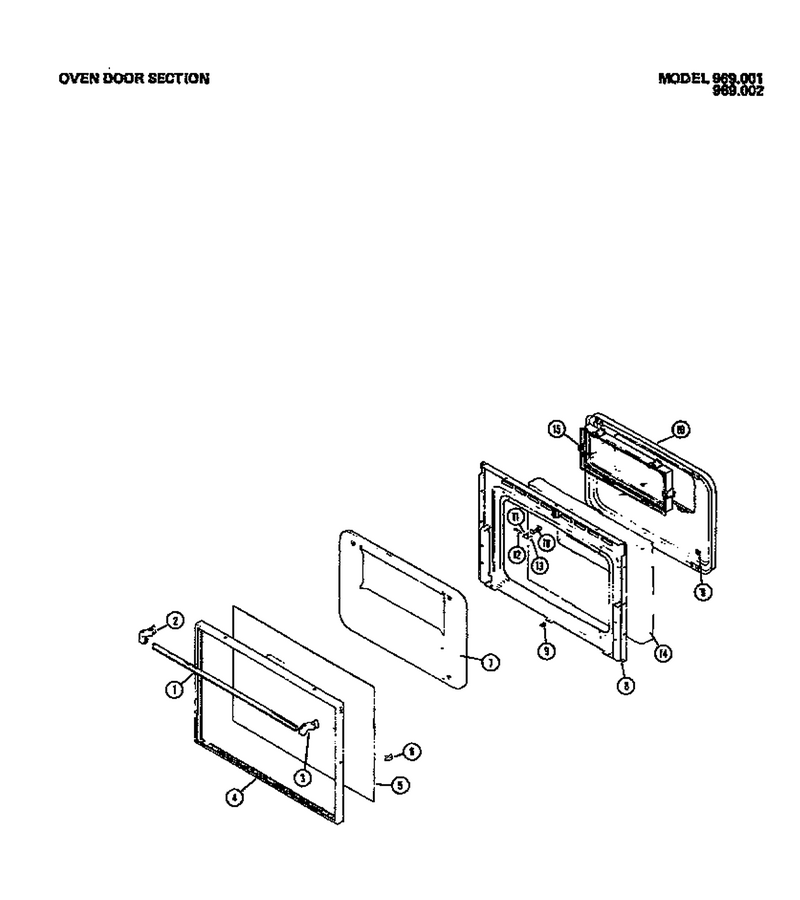

04 - Oven Door Section

...
...
1
Handle, Oven Door WPL-M49D4
...
2
Screw (25) WPL-M1D541
...
3
Screw (25) WPL-M1D541
...
4
Screw (25) WPL-M1D540
...
5
Glass Outer Door Kit WPL-M51D16
...
6
Clip (1) WPL-M1D512
...
7
Heat Shield Kit WPL-M72D21
...
8
Door Frame Asy WPL-M72D35
...
9
U-Nut (25) WPL-M1D516
...
10
Latch WPL-M2D246
...
11
Spring WPL-M2D288
...
12
Pin WPL-M2D248
...
13
C Clip (25) WPL-M1D517
...
14
Not Available WPL-M63D9
...
15
Screw WPL-WP90767
...
16
Screw WPL-WP90767

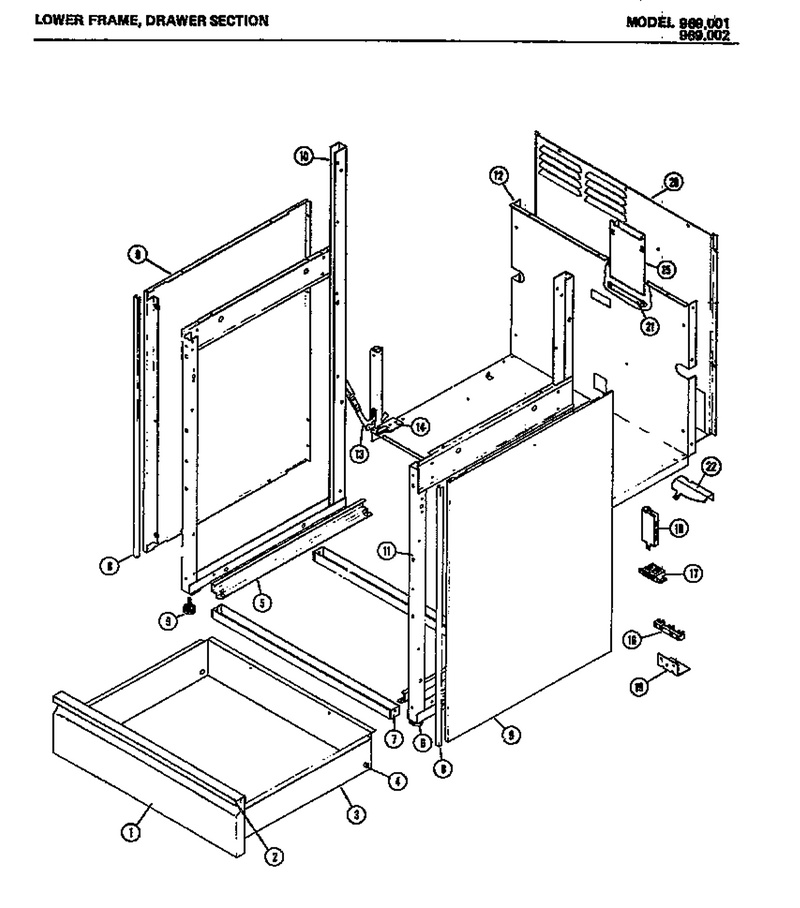

02 - Lower Frame

...
...
1
Not Available WPL-M72D26
...
2
Handle WPL-M49D3
...
3
Screw WPL-WPW10348409
...
4
Retainer (25) WPL-M1D511
...
5
Screw WPL-WP90767
...
6
Leveling Foot WPL-M8D117
...
7
Not Available WPL-M52D84
...
8
Trim-Corner M75d19 WPL-53024P01
...
9
Not Available WPL-M82D52
...
10
Not Available WPL-M83D1
...
11
Not Available WPL-M83D2
...
12
Screw WPL-WP90767
...
13
Washer Cup WPL-M1D531
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
Terminal WPL-M4D45
...
17
Screw WPL-WP90767
...
18
Relay, Oven WPL-Y0091669
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767
...
21
Cover-Exhaust Duct WPL-M7D279
...
22
Screw WPL-WP90767
