Amana 969.000

Model: 969.000

Save Part Not Listed?
product name

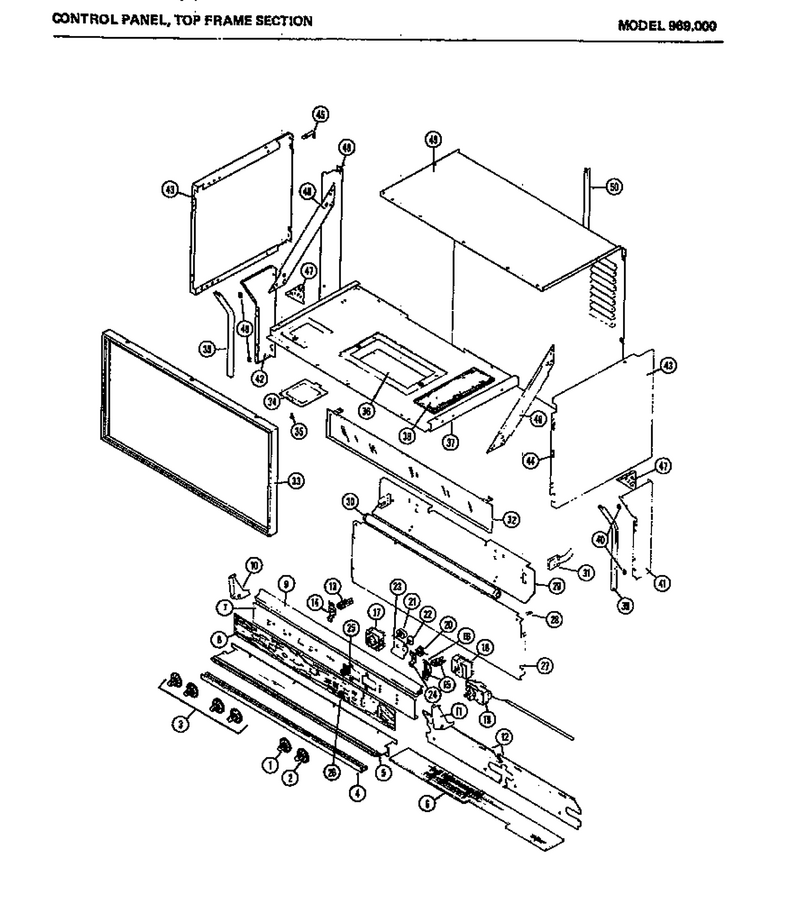

01 - Control Panel Top Frame Section

...
...
1
M6d94 Knob Assy WPL-M6D94
...
2
Knob M6d96 WPL-M6D96
...
3
Knob M6d95 WPL-M6D95
...
4
Extrusion WPL-M52D94
...
5
Screw WPL-WPW10348409
...
6
Not Available WPL-M63D7
...
7
Screw, Panel Mtg. WPL-M1D392
...
8
Not Available WPL-M52D118
...
9
Extrusion WPL-M52D93
...
10
End Cap Left WPL-M7D217
...
11
Screw (25) WPL-M1D541
...
12
Not Available WPL-M52D79
...
13
Light-Indx M9d65 WPL-M9D58
...
14
Nut (25) WPL-M1D313
...
15
Indicator Light WPL-M9D66
...
16
Nut-Brkt Mtg (25) WPL-M1D597
...
17
Pan Hd Screw(25) WPL-M1D400
...
18
Screw, Panel Mtg. WPL-M1D392
...
19
Thermostat Kit WPL-M18D8
...
20
Switch, Lock WPL-M14D108
...
21
2 Pin Conn WPL-4520400502
...
22
Switch Asm-Oven Light Kit WPL-M14D110
...
23
Nut (25) WPL-M1D313
...
24
Nut (25) WPL-M1D313
...
25
Button WPL-M6D123
...
26
Bezel Button M2d286 WPL-M2D286
...
27
Not Available WPL-M82D61
...
28
Clip (10) WPL-51204P01
...
29
Screw WPL-WP90767
...
30
Flourescent Lamp WPL-M9D45
...
31
Lamp Holder WPL-52064P01
...
32
Screw WPL-WPW10348409
...
33
Screw WPL-WPW10348409
...
34
Push Nut (25) WPL-M1D652
...
35
Screw (1) WPL-M1D553
...
36
Screw WPL-WPW10348409
...
37
Screw WPL-WP90767
...
38
Not Available WPL-M63D8
...
39
Trim, Middle Side Panel WPL-M7D202
...
40
Clip (10) WPL-51169P01
...
41
Screw WPL-WP90767
...
42
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
43
Upper Panel H.g. WPL-M82D49
...
44
Not Available WPL-M2D241
...
45
Screw WPL-WP90767
...
46
Screw WPL-WP90767
...
47
Screw WPL-WP90767
...
48
Screw WPL-WP90767
...
49
Screw WPL-WPW10348409
...
50
Screw WPL-WP90767

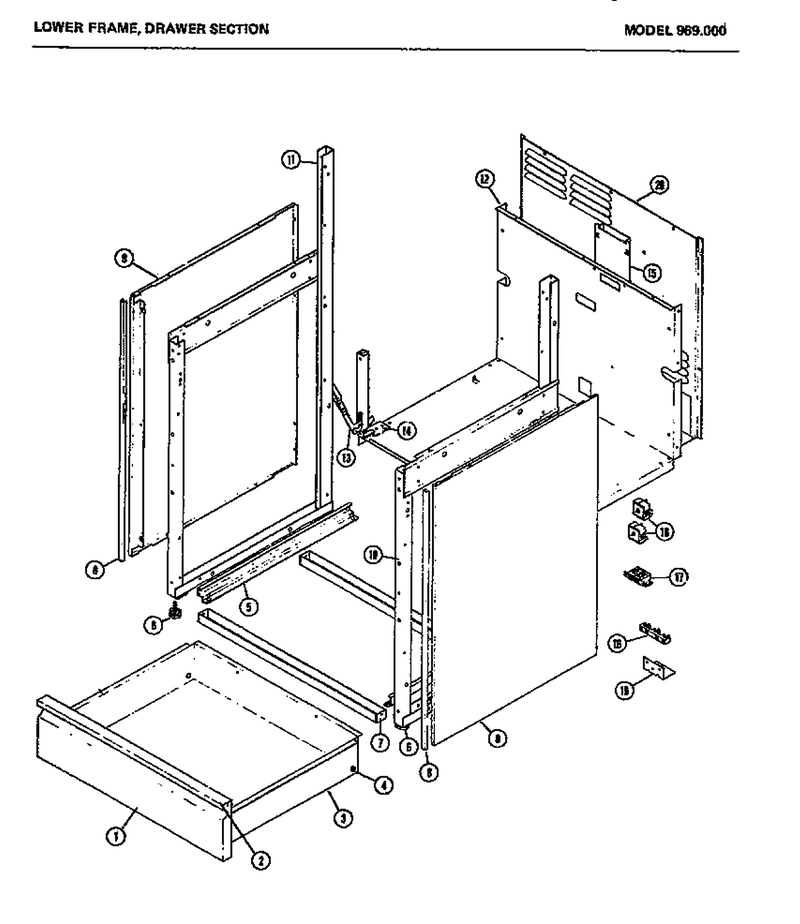

02 - Lower Frame

...
...
1
Not Available WPL-M72D26
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-WPW10348409
...
4
Roller WPL-M2D242
...
5
Drawer-Rail WPL-50106A01
...
6
Foot WPL-M8D76
...
7
Screw WPL-WP90767
...
8
Trim-Corner M75d19 WPL-53024P01
...
9
Screw WPL-WP90767
...
10
Not Available WPL-M83D1
...
11
Not Available WPL-M83D2
...
12
Screw WPL-WP90767
...
13
Screw (25) WPL-M1D280
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
Terminal WPL-M4D45
...
17
Ballast WPL-74003033
...
18
Thermal Relay WPL-M16D35
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767

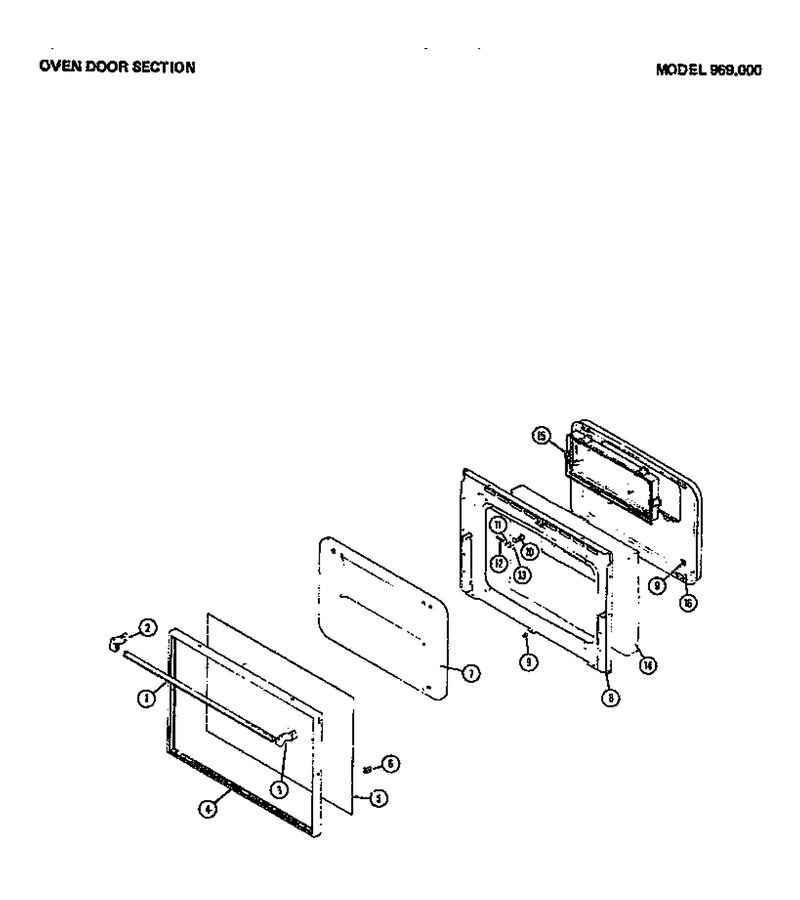

04 - Oven Door Section

...
...
1
Handle, Oven Door WPL-M49D4
...
2
End Cap WPL-M7D204
...
3
Screw (25) WPL-M1D541
...
4
Screw (25) WPL-M1D540
...
5
Glass Outer Door Kit WPL-M51D16
...
6
Clip (1) WPL-M1D512
...
7
Heat Shield Kit WPL-M72D21
...
8
Door Frame Asy WPL-M72D35
...
9
U-Nut (25) WPL-M1D516
...
10
Latch WPL-M2D246
...
11
Spring WPL-M2D288
...
12
Pin WPL-M2D248
...
13
C Clip (25) WPL-M1D517
...
14
Not Available WPL-M63D9
...
15
Inner Window Assembly WPL-M51D22
...
16
Screw WPL-WP90767

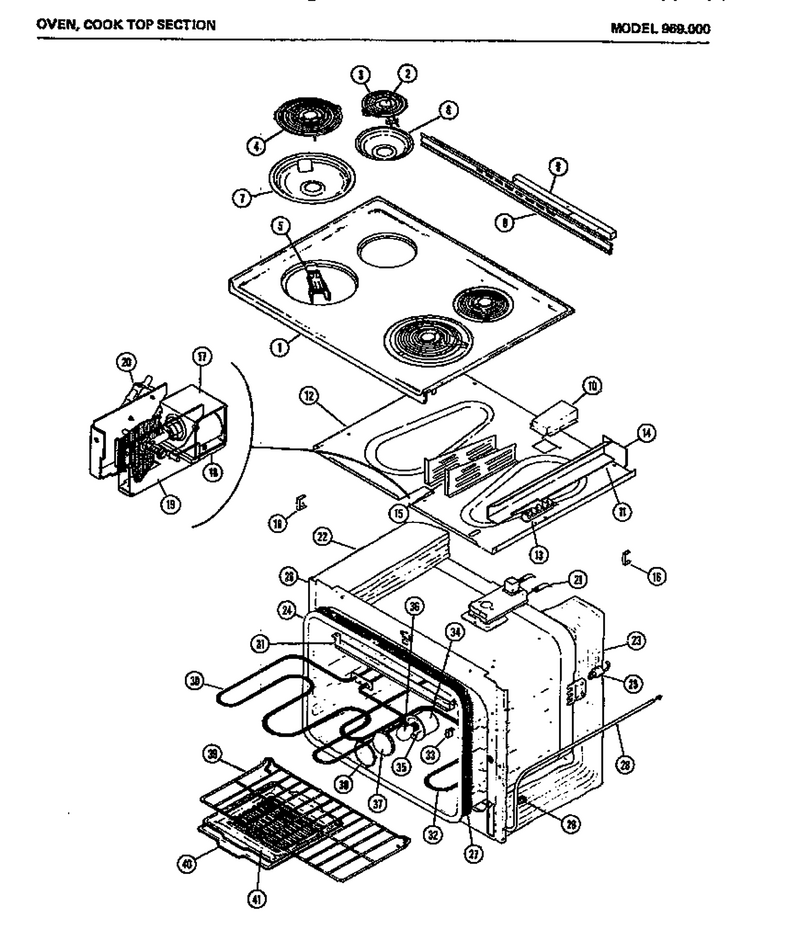

03 - Oven Cook Top Section

...
...
1
Not Available WPL-M82D73
...
2
Insert WPL-M2D267
...
3
Surface Elem. 6`` 240 V. 1250 W WPL-Y0051573
...
4
Elmnt-Surf WPL-WP3191454
...
5
Receptacle WPL-330031
...
6
Burner Bow WPL-51294P01
...
7
Bowl-Drip WPL-WPW10196405
...
8
Screw WPL-WP90767
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP90767
...
11
Terminal Block WPL-M52D95
...
12
Screw WPL-WP90767
...
13
Block-Term WPL-WP8203546
...
14
Not Available WPL-M52D98
...
15
Lock Cover WPL-M65D89
...
16
Screw WPL-WP90767
...
17
Screw (25) WPL-M1D280
...
18
Insulator WPL-M2D290
...
19
Screw WPL-WP90767
...
20
Lock Switch WPL-M14D107
...
21
Smoke Eliminator Assembly WPL-M18D7
...
22
Not Available WPL-M63D5
...
23
Not Available WPL-M63D6
...
24
Oven Cavity Assembly WPL-M77D41
...
25
Oven Spring WPL-M5D114
...
26
Washer Cup WPL-M1D531
...
27
Gasket, Oven Cavity WPL-M25D40
...
28
Element WPL-51164P01
...
29
Clip WPL-M2D236
...
30
Broil Element Kit WPL-R0157542
...
31
Screw (25) WPL-M1D532
...
32
Screw (25) WPL-M1D532
...
33
Screw (25) WPL-M1D532
...
34
Housing M20d69 WPL-51012P01
...
35
Socket Oven WPL-M5D113
...
36
Light Bulb WPL-8009
...
37
Lens, Oven Light WPL-M6D93
...
38
Screw (25) WPL-M1D532
...
39
Wire Rack WPL-M67D9
...
40
Broiler Pan WPL-M67D1
...
41
Broiler Pan Insert WPL-M67D3

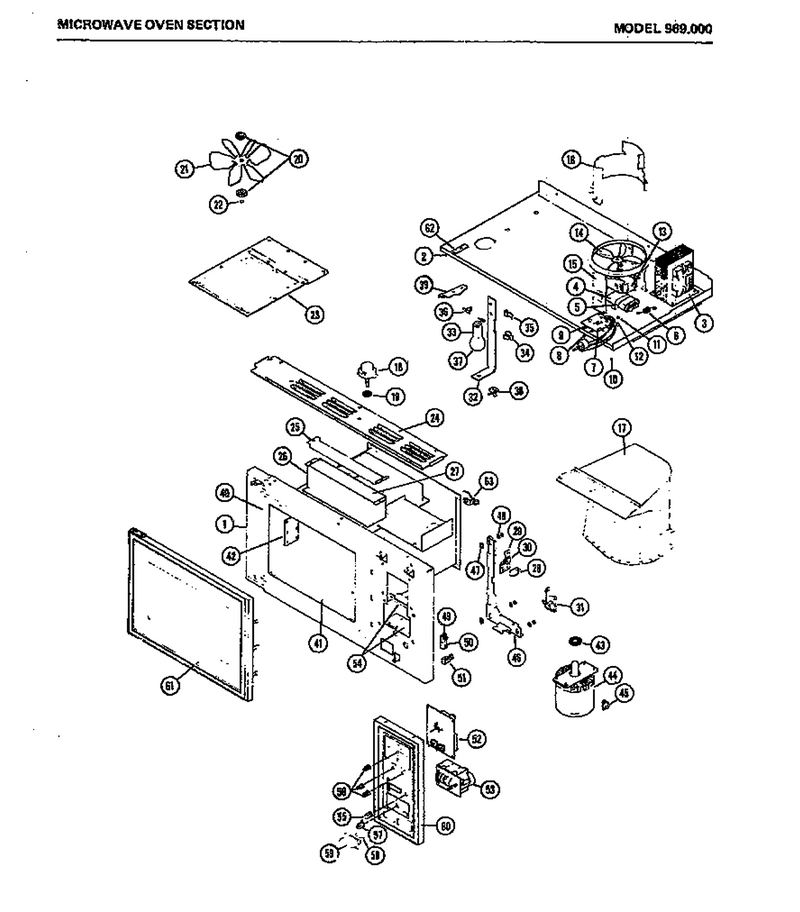

05 - Page 1

...
...
1
Roller WPL-M2D174
...
2
Not Available WPL-M79D32
...
3
Tinnerman (25) WPL-M1D79
...
4
Capacitor-.69 WPL-59001160
...
5
Nut WPL-WP488130
...
6
No.8 Ab X 1/2`` Screw WPL-M1D358
...
7
Control Module WPL-M22D42
...
8
No.6 Pan Hd Machine Screw WPL-M1D69
...
9
Nut K WPL-M0282005
...
10
Screw, Controller Mtg WPL-M1D606
...
11
Nut WPL-WP488130
...
12
Not Available WPL-M2D291
...
13
Motor (M12d28) WPL-M12D28
...
14
Fan Blade WPL-M35D15
...
15
Bracket WPL-M52D117
...
16
Tinnerman (25) WPL-M1D386
...
17
Air Duct Assy WPL-M65D79
...
18
Stirrer Motor Kit WPL-M12D21
...
19
R F Gasket Kit WPL-M2D152
...
20
Spcr-Stir WPL-M2D26
...
21
Stirrer Blade Kit WPL-M35D11
...
22
.156 Dia Push On Clip WPL-M1D78
...
23
Cover WPL-M45D9
...
24
Not Available WPL-M65D65
...
25
Not Available WPL-M52D88
...
26
Not Available WPL-M52D89
...
27
Not Available WPL-M52D90
...
28
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
29
Ia Screw No.10-32 WPL-M1D370
...
30
Latch Switch WPL-M2D173
...
31
Screw (25) WPL-M1D107
...
32
Not Available WPL-M20D71
...
33
Socket WPL-M5D100
...
34
Tinnerman (25) WPL-M1D389
...
35
Spacer (10) WPL-M1D520
...
36
Stop (10) WPL-M1D521
...
37
Light Bulb WPL-8009
...
38
Pinch Clip WPL-M2D253
...
39
Not Available WPL-M2D170
...
40
Fillerx WPL-M55D6
...
41
Shelf W/rtv Kit WPL-M50D14
...
42
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
43
R F Gasket WPL-M2D35
...
44
Insulator, Pod K WPL-M0325501
...
45
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
46
Washer (25) WPL-M1D361
...
47
Oval Bearing WPL-M2D175
...
48
Bearing WPL-M2D176
...
49
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
50
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
51
Indicator Light WPL-M9D55
...
52
See D-Tb073 (Tech Bulletin) WPL-M30D35
...
53
No.8 T X 3/8`` Screw WPL-M1D402
...
54
Mtg Brkt Timer WPL-M2D289
...
55
Knob, Digital Timer WPL-M6D124
...
56
Knobs 3/pkg Kit WPL-M6D92
...
57
Knob, Vari-Cook WPL-M6D125
...
58
Ia Spring WPL-M2D168
...
59
Bar-Release WPL-M11D31
...
60
Dec Panel WPL-M7D244
...
61
Door Assembly WPL-M68D55
...
62
Not Available WPL-M2D172
...
63
High Voltage Lead 6`` WPL-M5D12
