Amana 8P5L (BOM: P6905301R)

Model: 8P5L (BOM: P6905301R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

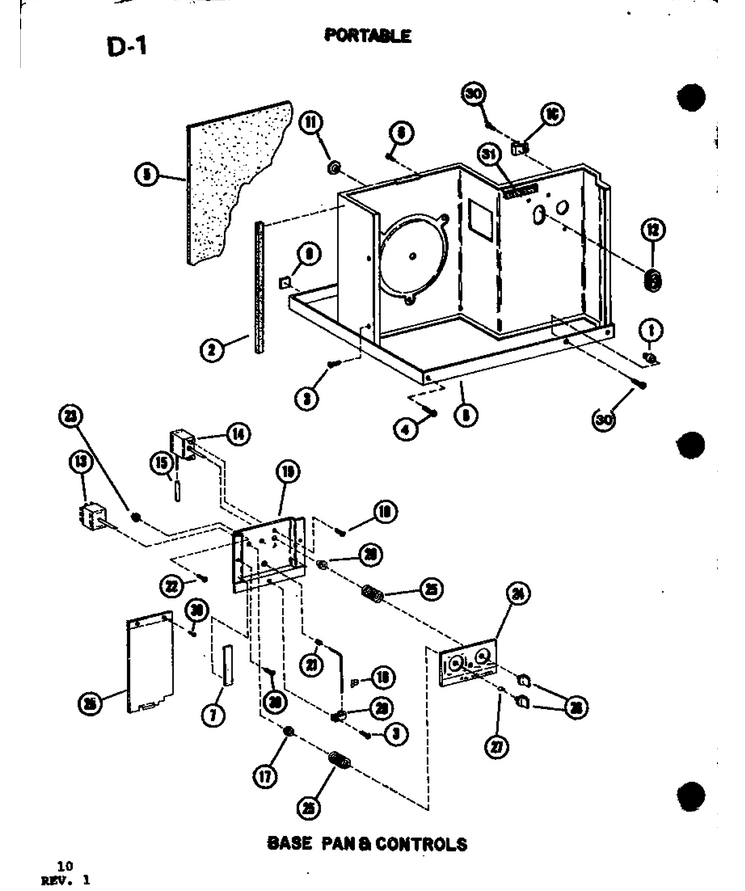

01 - Base Pan & Controls

...
...
1
Grommet WPL-A3309801
...
2
Gasket (per Foot) WPL-A3030303
...
3
Screw WPL-W11233072
...
4
Screw WPL-M0216531
...
5
Insulation, Partition Panel WPL-D5887501
...
6
Screw,sm WPL-M0233329
...
7
Gasket-Per Ft WPL-A3030331
...
8
Base Pan Weld WPL-D5497029
...
9
Pad WPL-A3317501
...
10
Clamp WPL-M0102304
...
12
Grommet WPL-A3310201
...
22
Sems Fastner WPL-M0255015
...
23
Nut WPL-WP488130
...
24
Escutcheon WPL-C5884801
...
25
Spring WPL-A4663602
...
26
Knob WPL-D7009803
...
27
Clip,retainer WPL-M0115902
...
29
Clamp WPL-M0102320
...
30
Screw WPL-WP90767
...
31
Gasket WPL-C5952403

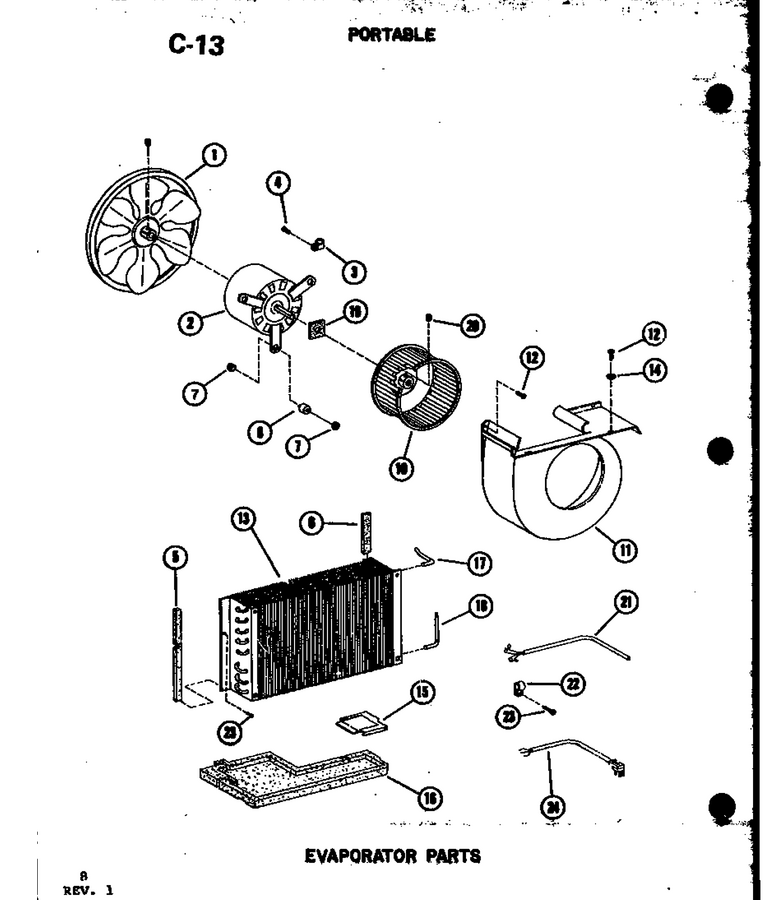

05 - Evap Parts

...
...
1
Fan Blade-Cond WPL-C5801402
...
2
Fan Motor, Franklin, 230/208 V WPL-C5934104
...
3
Clip, Wire WPL-M0585101
...
5
Gasket-Header WPL-C5952401
...
6
Gasket (per Foot) WPL-A3030313
...
7
Nut WPL-WP487939
...
10
Blower Wheel WPL-D5409401
...
11
Scroll-Evap WPL-D5496601
...
12
Screw WPL-WP90767
...
13
Evap Assy WPL-D5517301
...
14
Washer WPL-M0270504
...
15
Shield-Filler Block WPL-B1147101
...
16
Filler Block WPL-D5496901
...
19
Gasket WPL-B5107608
...
21
Wiring Harness WPL-B1151604
...
22
Clamp WPL-M0104501
...
23
Screw WPL-WP489464

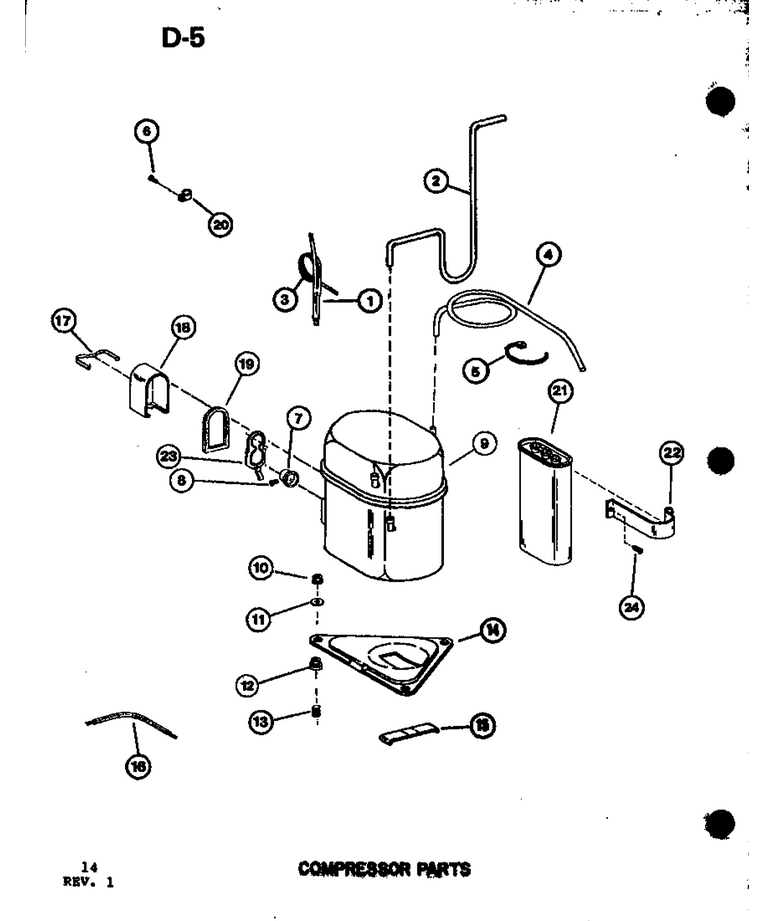

02 - Compressor Parts

...
...
1
Strainer WPL-B4143101
...
2
Discharge Tube WPL-C6350101
...
3
Capillary Preform WPL-D6905801
...
4
Suction Tube WPL-D6905701
...
5
Wire Tie WPL-M0321204
...
6
Screw WPL-WP90767
...
7
Overload WPL-D4976673
...
8
Screw WPL-M0206116
...
9
Compressor, 240/250 V., 50 Hz, WPL-D5451401
...
10
Nut WPL-M0282017
...
11
Washer WPL-M0270510
...
12
Grommet WPL-A4622801
...
13
Sleeve, Comp Mount WPL-A4622707
...
14
Plate Compressor WPL-C6273201
...
15
Spring K WPL-A4635601
...
16
Wiring Harness WPL-B1151604
...
17
Strap WPL-A4635901
...
18
Cover,terminal WPL-B5187501
...
19
Gasket,cover WPL-A4673301
...
20
Clamp WPL-M0102304
...
21
Capacitor WPL-D6879703
...
22
Strap-Capacitor WPL-A3335001
...
23
Spring, Overload WPL-A4574801
...
24
Screw WPL-WP489399

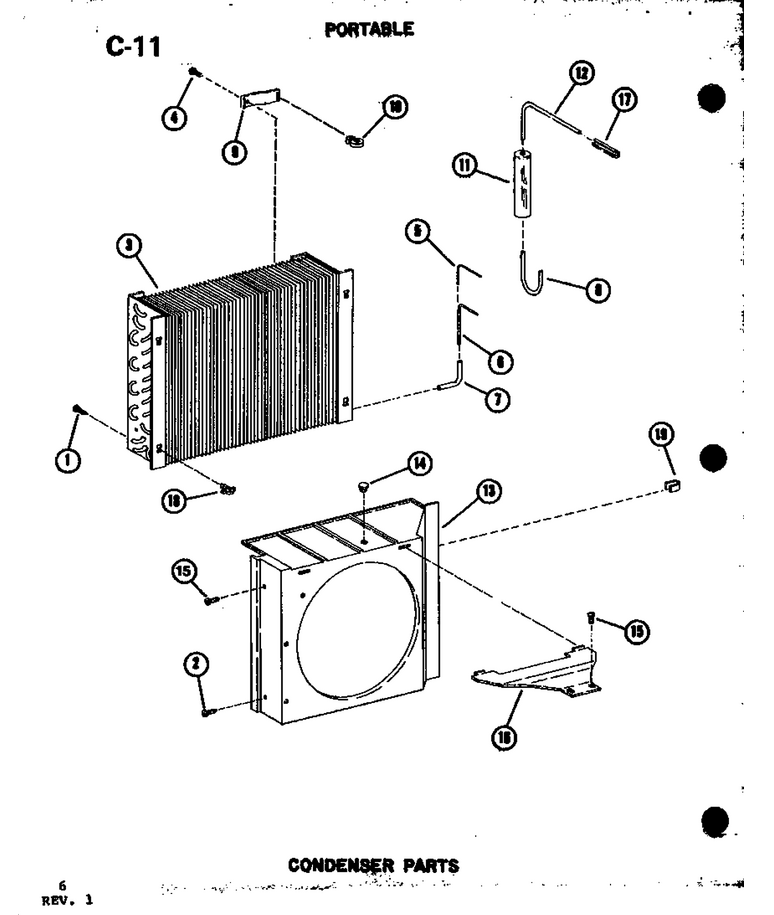

03 - Condenser Parts

...
...
1
Screw WPL-M0216531
...
3
Condenser Assy WPL-D6908501
...
5
Capillary Preform WPL-D6905801
...
6
Strainer WPL-B4143101
...
13
Shroud-Cond Fan WPL-D5497102
...
14
Plug Button K WPL-M0570801
...
15
Screw WPL-WP90767
...
16
Tie Brace WPL-C5922703
...
18
Fastener WPL-B1145301
...
19
Clip WPL-M0113603

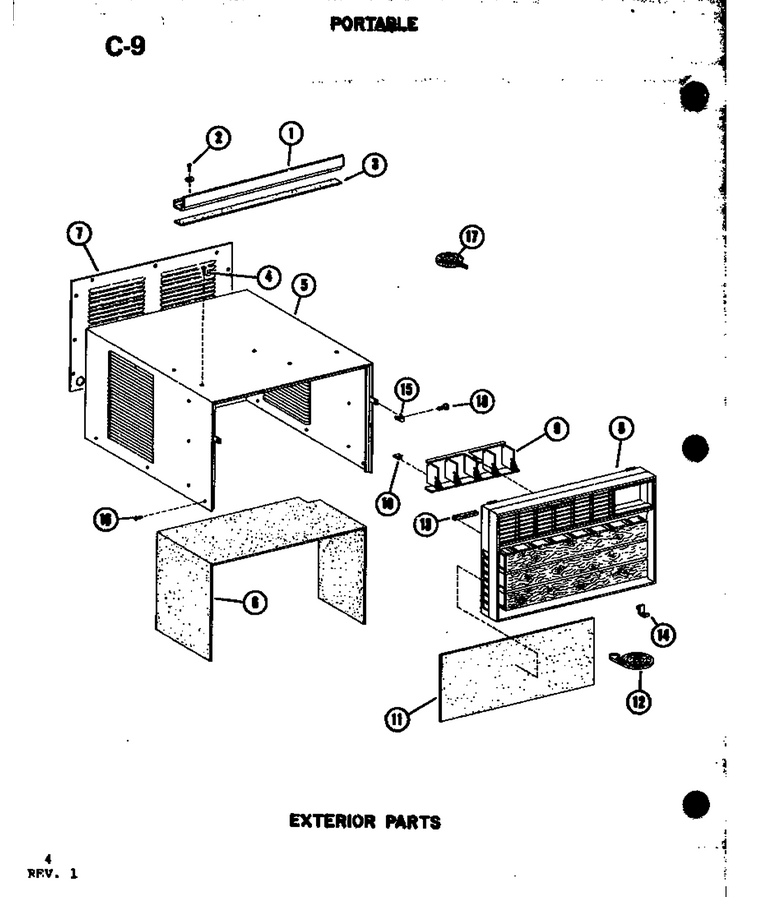

06 - Exterior Parts

...
...
2
Screw WPL-WP90767
...
4
Screw WPL-M0219058
...
5
Outer Case Pnt WPL-D6821204
...
6
Insulation-Oc WPL-B1145001
...
8
Cabinet Front, Assembly, Compl WPL-D5432409
...
9
Deflector WPL-C5298402
...
10
Clip WPL-M0116301
...
11
Filter-Air WPL-WP876775
...
12
Retainer WPL-A4542805
...
13
Gasket-Per Inch WPL-A3030311
...
15
Speed Nut WPL-M0288412
...
16
Screw WPL-WP90767
...
17
Gasket WPL-A3030302
...
18
Thumb Screw K WPL-M0234916

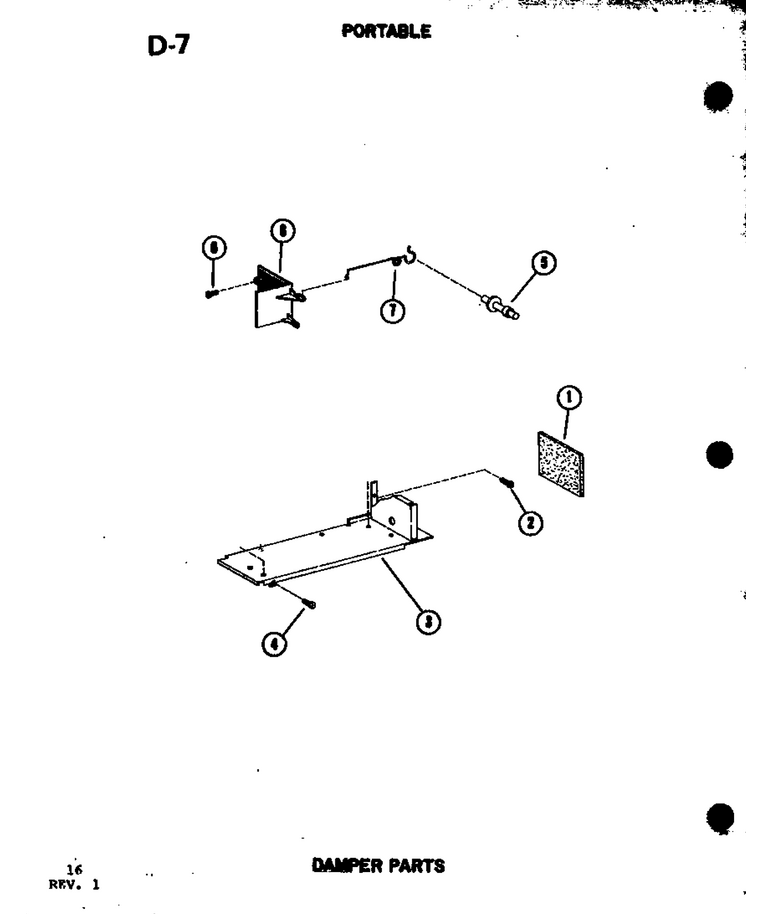

04 - Damper Parts

...
...
1
Insulation WPL-A3310401
...
2
Screw WPL-WP489464
...
3
Cover Evap Weld Pntd WPL-C5919202
...
4
Screw WPL-WP90767
...
5
Shaft Ext WPL-C5924501
...
6
Screw WPL-WP90767
...
7
Spring WPL-B1143001
...
8
Door-Damper WPL-C5924701
