Amana 8P-5G (BOM: P5435807R)

Model: 8P-5G (BOM: P5435807R)

Save Part Not Listed?
product name

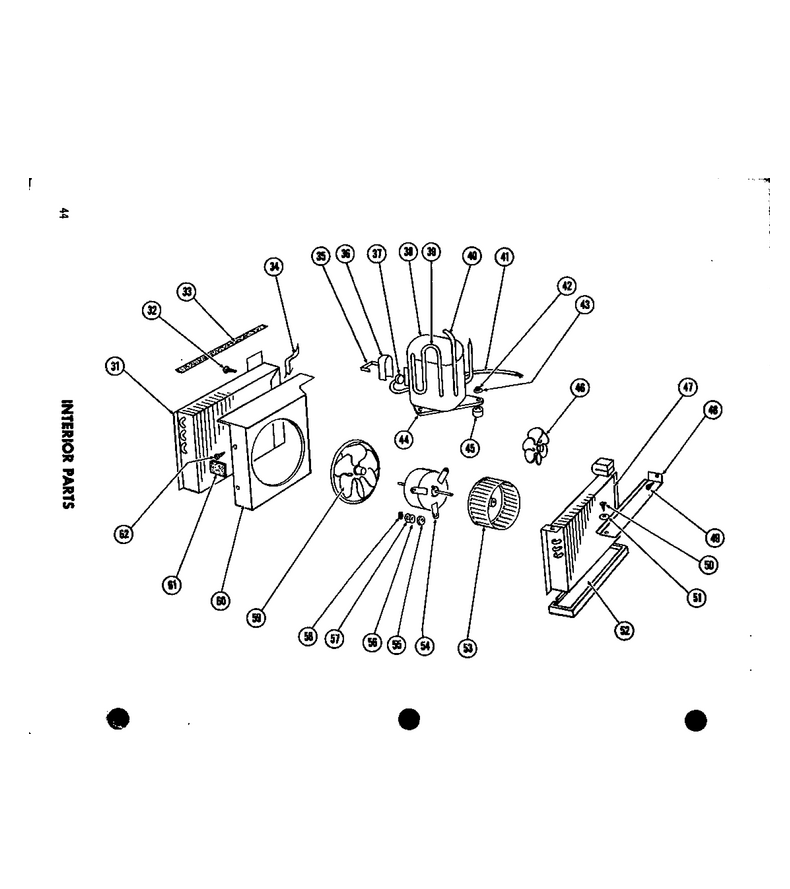

01 - Interior Parts

...
...
6p-5g/p54358-5r This Model Has An Alternate Fan Motor With Related Parts Changes. WPL-NOTE:
...
NI
Nut WPL-WP488130
...
39
Tube, Suction WPL-C5815501
...
40
Tube, Discharge WPL-C5844601
...
41
Wiring Harness WPL-B5163801
...
42
Sleeve, Compressor Mounting WPL-A4538801
...
43
Nut WPL-M0283610
...
45
Grommet WPL-B4793601
...
47
Evaporator Assy WPL-C5842202
...
49
Screw WPL-W11233072
...
50
Screw WPL-W11233072
...
52
Filler Block WPL-D5438301
...
53
Blower Wheel WPL-D5409401
...
54
Clamp WPL-M0102501
...
55
Grommet WPL-M0500501
...
56
Washer WPL-M0270519
...
57
Washer WPL-M0270504
...
58
Nut WPL-M0282009
...
59
Fan, Condenser WPL-C5801401
...
60
Shroud Condenser WPL-D5401301
...
61
Baffle, Condenser WPL-A4639501
...
62
Screw WPL-W11233072

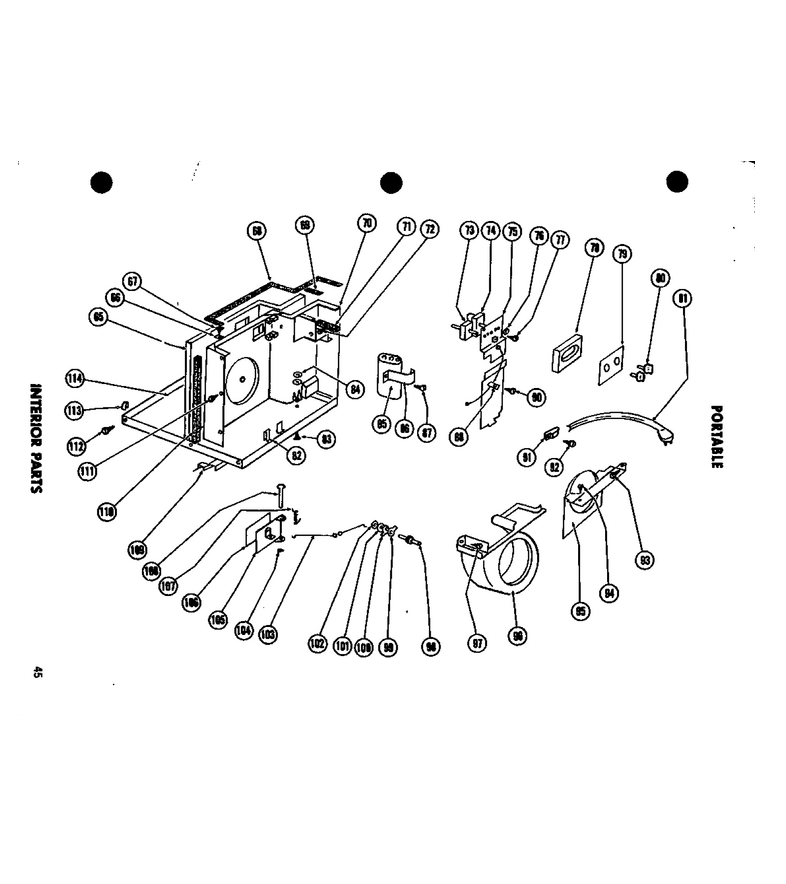

02 - Portable Interior Parts

...
...
11-2g/p54390-37r This Model Has An Alternate Compressor With Related Parts Changes. WPL-NOTE:
...
NI
Sleeve WPL-A4658902
...
65
Insulation WPL-D5404102
...
66
Speed Nut WPL-M0288210
...
67
Screw, Handle WPL-67006529
...
68
Gasket WPL-A3030302
...
69
Gasket WPL-A3030302
...
70
Partition Panel WPL-D5400804
...
72
Weld Nut WPL-M0292001
...
73
Switch WPL-B5131603
...
74
Thermostat WPL-B4763503
...
75
Panel-Control Mtg WPL-C5299302
...
76
Bushing WPL-A3073601
...
77
Screw WPL-M0232012
...
79
Escutcheon, Control WPL-C5844502
...
80
Knob WPL-D7009803
...
81
Cord Set WPL-C5258701
...
82
Spring WPL-A4668001
...
83
Screw WPL-M0204515
...
84
Nut WPL-WP487939
...
85
Capacitor, Run WPL-C5825005
...
86
Strap-Capacitor WPL-A3335001
...
87
Screw WPL-W11233072
...
88
Clamp WPL-M0102702
...
89
Panel WPL-C5804602
...
90
Screw WPL-W11233072
...
91
Clamp WPL-M0103901
...
92
Screw WPL-W11233072
...
94
Screw WPL-W11233072
...
96
Scroll WPL-D5409101
...
97
Screw WPL-W11233072
...
98
Shaft WPL-B5162401
...
99
Cam Operating WPL-A4645701
...
100
Operating Lever WPL-A4695801
...
101
Washer, Flat WPL-M0270516
...
102
Speed Nut WPL-M0289016
...
103
Control Rod WPL-A4646201
...
104
Clip Hinge WPL-M0116701
...
105
Damper Door WPL-B5162301
...
106
Gasket, Damper Door WPL-B5107611
...
107
Hinge Spring WPL-A4646001
...
108
Pin, Hinge WPL-A4645901
...
110
Gasket WPL-10839712
...
111
Screw WPL-M0219233
...
112
Screw WPL-W11233072
...
113
Speed Nut WPL-M0288411
...
114
Base Pan WPL-D5431802
