Amana 8P-2NM (BOM: P5497203R)

Model: 8P-2NM (BOM: P5497203R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

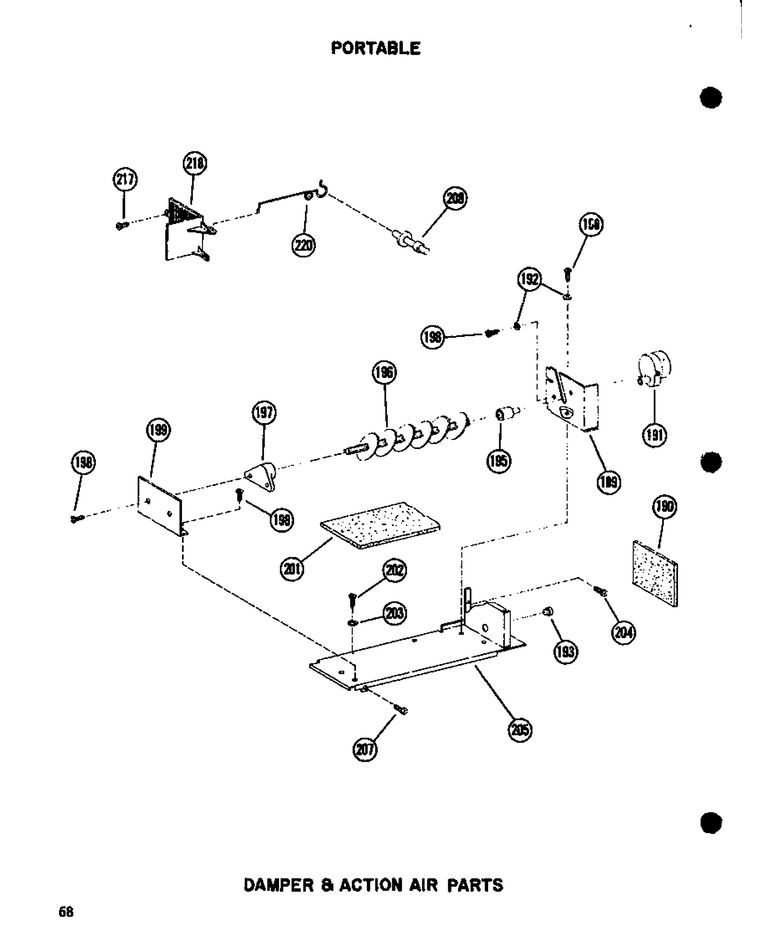

04 - Damper & Action Air Parts

...
...
190
Insulation WPL-A3310401
...
205
Cover Evap Weld WPL-C5919201
...
207
Screw WPL-WP90767
...
208
Screw WPL-WP90767
...
217
Screw WPL-WP90767
...
218
Door-Damper WPL-C5924701
...
220
Spring WPL-B1143001

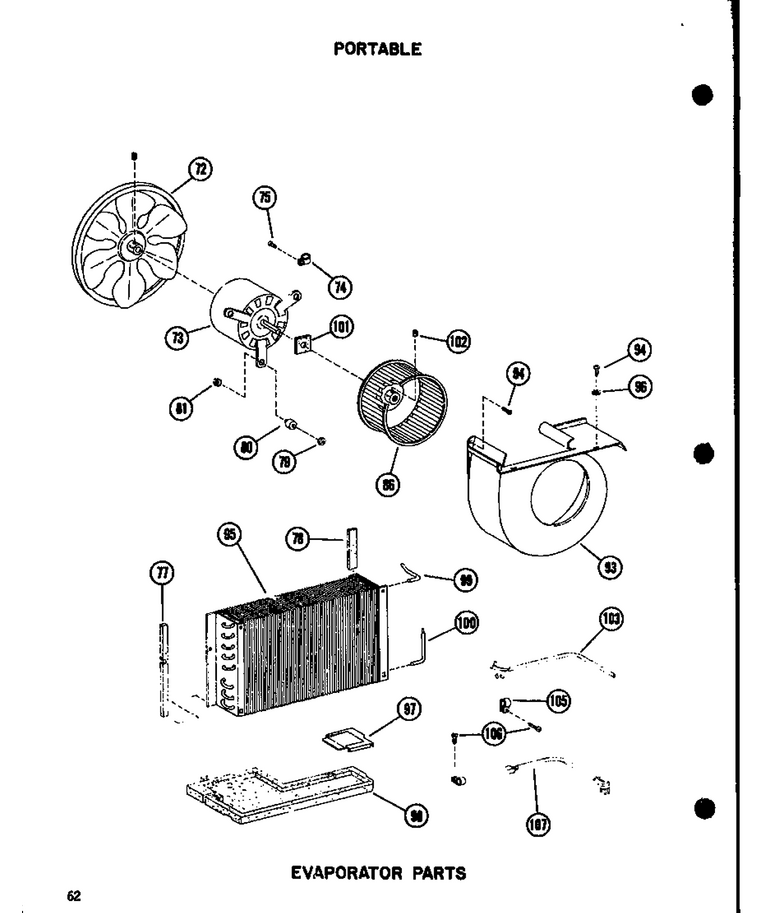

05 - Evap Parts

...
...
72
Fan, Condenser WPL-C5801401
...
73
Fan Motor, 322p630, 115., 60 H WPL-C5930202
...
94
Screw WPL-WP90767
...
95
Evap Assy WPL-D5517301
...
96
Washer WPL-M0270504
...
97
Shield-Filler Block WPL-B1147101
...
98
Filler Block WPL-D5496901
...
99
Elbow WPL-A3309101
...
100
Elbow WPL-A3318406
...
101
Gasket WPL-B5107608
...
102
Screw WPL-M0210516
...
103
Wiring Harness-Comp WPL-B1148401
...
105
Clamp WPL-M0103401
...
106
Screw WPL-W11233072
...
107
Cord, Power WPL-Y20057501

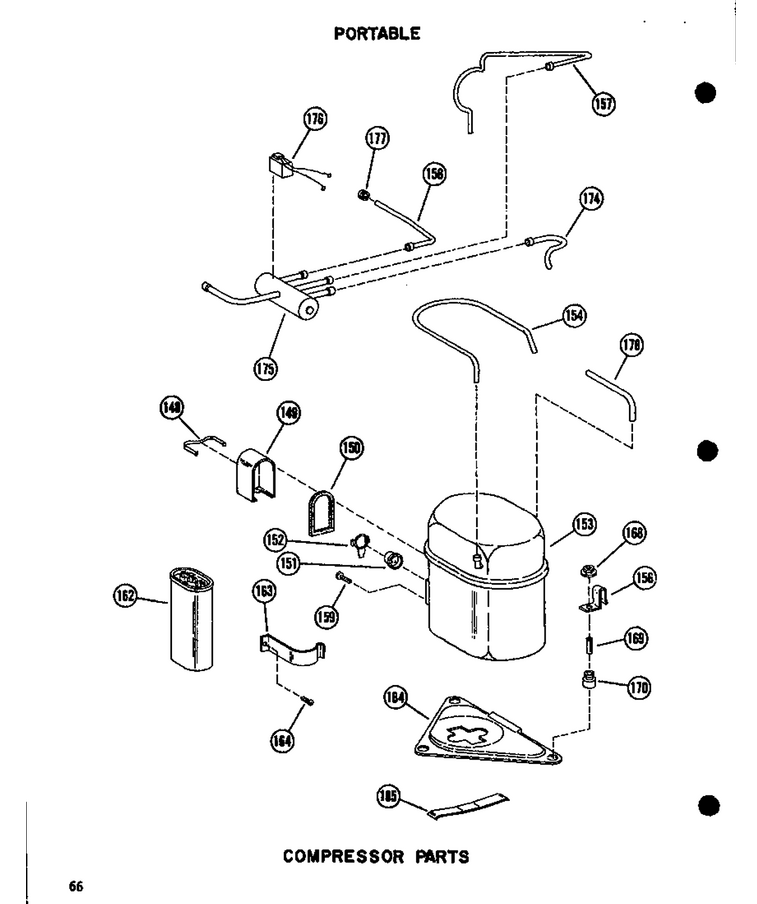

02 - Compressor Parts

...
...
151
Overload WPL-D4976676
...
152
Lockwire WPL-A4648001
...
153
Compressor Jrg4-0100paa WPL-D5501401
...
154
Tube-Suction WPL-C5931501
...
156
Clamp-Cord WPL-A3309701
...
159
Screw WPL-M0206116
...
162
Capacitor WPL-D6879703
...
163
Strap-Capacitor WPL-A3335001
...
164
Screw WPL-W11233072
...
168
Nut WPL-M0283610
...
169
Sleeve WPL-A4588801
...
170
Grommet WPL-B4793601
...
178
X$x Process Tube WPL-A4643701

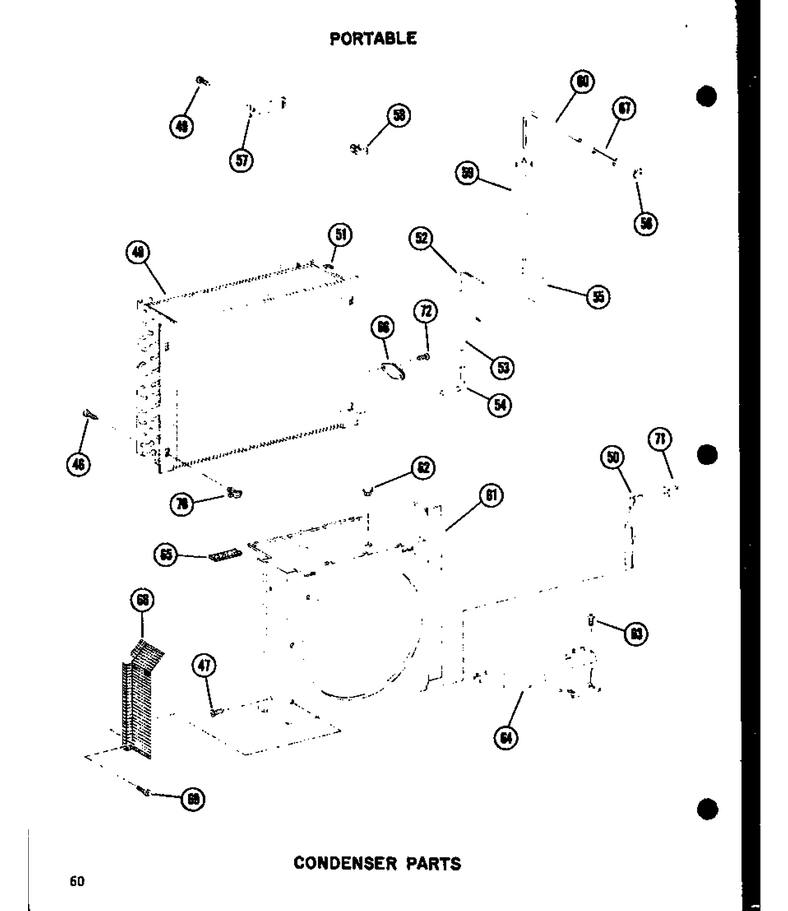

03 - Condenser Parts

...
...
46
Screw WPL-M0216531
...
47
Screw WPL-WP90767
...
48
Condenser Coil Assembly WPL-D5498302
...
49
Screw WPL-WP90767
...
50
Barrier-Term Cover WPL-B1160201
...
52
Cap Tube WPL-C5933601
...
53
Strainer WPL-B4143101
...
54
Elbow WPL-A3311901
...
55
Tube-Discharge WPL-C5932402
...
56
Wire Tie WPL-M0321204
...
57
Clamp WPL-A3310502
...
58
Bumper WPL-A3311002
...
59
Muffler WPL-C5885806
...
60
Tube-Discharge WPL-C5931401
...
61
Shroud-Cond Fan WPL-D5497102
...
62
Plug Button WPL-M0310008
...
63
Screw WPL-W11233072
...
64
Tie Brace WPL-C5922703
...
67
Dampener Tube-Per Ft WPL-B5165101
...
68
Fan Guard-Cond WPL-C5946901
...
69
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
70
Fastener WPL-B1145301
...
71
Clip WPL-M0113603
...
74
Clip, Wire WPL-M0585101
...
75
Screw WPL-M0233116
...
77
Gasket-Header WPL-C5952401
...
78
Gasket (per Foot) WPL-A3030313
...
79
Nut WPL-WP487939
...
80
Grommet WPL-M0500601
...
81
Nut WPL-WP487939
...
86
Blower Wheel WPL-D5409401
...
93
Scroll-Evap WPL-D5496601

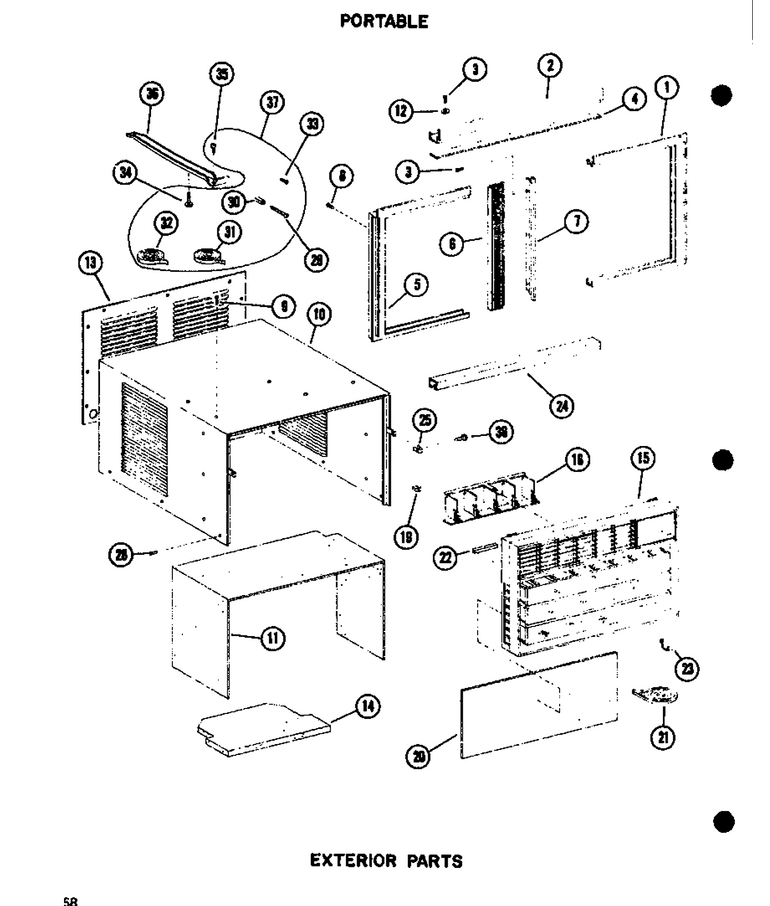

06 - Exterior Parts

...
...
1
Curtain Frame Kit Rh WPL-10659802
...
2
Top Rail-Painted WPL-C5903406
...
3
Screw A K WPL-M0211516
...
4
Gasket (inch) WPL-A3030301
...
5
Curtain & Frame Kit Lh WPL-10659801
...
6
Curtain Frame Kit Rh WPL-10659802
...
7
Curtain Frame Kit Rh WPL-10659802
...
8
Screw WPL-M1250031
...
9
Screw WPL-M0219233
...
10
Outer Case Pntd WPL-D6821203
...
11
Insulation-Oc WPL-B1145001
...
12
Washer WPL-M0270519
...
13
Outer Case Pntd WPL-D6821203
...
15
Cabinet Front, Assembly, Compl WPL-D5432409
...
16
Deflector WPL-C5298402
...
19
Clip WPL-M0116301
...
20
Filter-Air WPL-WP876775
...
21
Retainer WPL-A4542805
...
22
Gasket-Per Inch WPL-A3030311
...
23
Spring WPL-A3317601
...
24
Bottom Rail-Painted WPL-B1124703
...
25
Speed Nut WPL-M0288412
...
28
Screw WPL-W11233072
...
29
Screw WPL-M0212062
...
30
Spacer K WPL-A4065501
...
31
Gasket WPL-A3030302
...
32
Gasket WPL-10839702
...
33
Screw WPL-M0213032
...
34
Screw WPL-M0200001
...
35
Screw WPL-M0211020
...
36
Support, Safety WPL-11075307
...
37
Accessory Assy WPL-A3306902
...
38
Thumb Screw K WPL-M0234916

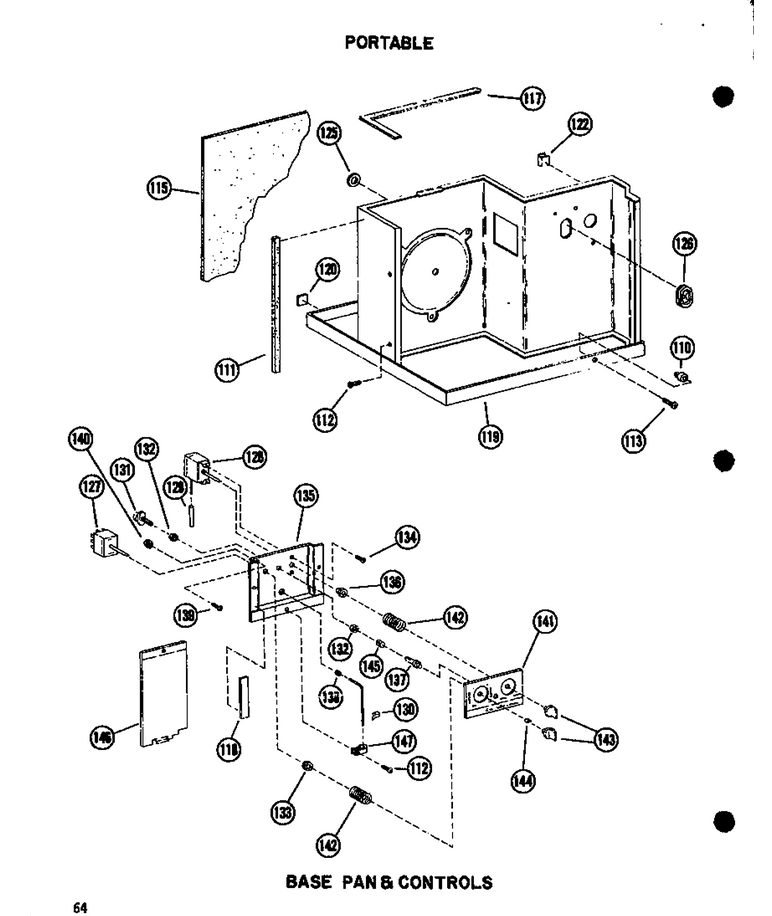

01 - Base Pan & Controls

...
...
110
Grommet WPL-A3309801
...
111
Gasket (per Foot) WPL-A3030303
...
112
Screw WPL-W11233072
...
113
Screw WPL-M0216531
...
115
Insulation WPL-D5498801
...
117
Gasket WPL-A3030302
...
118
Gasket (per Foot) WPL-A3030313
...
119
Base Pan Wld WPL-D5497001
...
120
Pad WPL-A3317501
...
122
Clamp WPL-M0102304
...
125
Plug Button WPL-A3080003
...
126
Grommet WPL-A3310201
...
127
Switch Rotary WPL-B1110903
...
128
Thermostat WPL-B4763503
...
129
Sleeve WPL-WPM0321014
...
130
Clip K WPL-M0118401
...
133
Palnut WPL-M0289601
...
134
Screw WPL-M0232012
...
135
Control Panel WPL-C5929601
...
136
Bushing WPL-A3073601
...
138
Grommet WPL-A3045501
...
139
Sems Fastner WPL-M0255015
...
140
Nut WPL-WP488130
...
141
Escutcheon WPL-C5884801
...
142
Spring WPL-A4663602
...
143
Knob WPL-D7009803
...
144
Clip,retainer WPL-M0115902
...
146
Control Panel WPL-B1143201
...
147
Clamp WPL-M0102320
