Amana 880.110

Model: 880.110

Save Part Not Listed?
product name

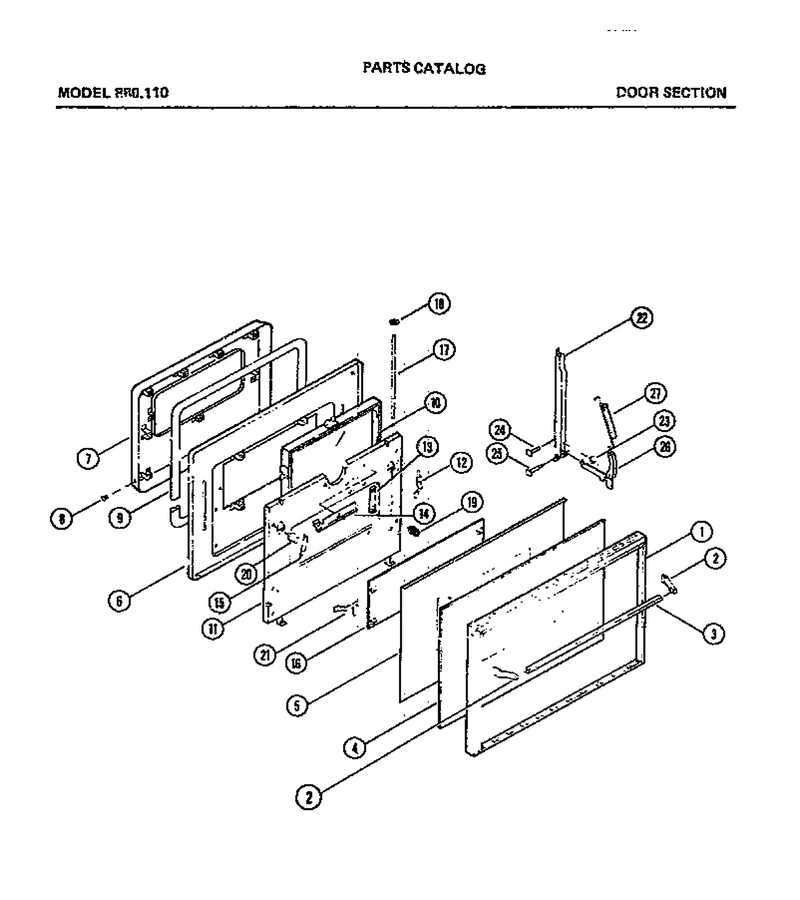

02 - Door Section

...
...
NI
Not Available WPL-M63D18
...
1
Screw (25) WPL-M1D701
...
2
Screw, End Cap Mtg. WPL-M1D716
...
3
M49d10-Handle Grip WPL-M49D10
...
4
Glass, Outer Door WPL-M51D32
...
5
Pnl Heat Refltr WPL-M72D61
...
6
Liner Oven Door WPL-M72D56
...
7
Not Available WPL-M72D60
...
8
Plug Button WPL-Y0089583
...
9
Gasket, Oven Dr 82`` WPL-31715901
...
10
Window Bronze Kit WPL-M51D30
...
11
Screw (25) WPL-M1D701
...
12
Spring Shutter Return WPL-M2D348
...
13
Screw (25) WPL-M1D709
...
14
Screw (25) WPL-M1D709
...
15
Spring Sliding Brkt WPL-M2D350
...
16
Not Available WPL-M52D147
...
17
Rod Shutter Guide WPL-M52D141
...
18
Push Nut (25) WPL-M1D712
...
19
Bumper Lwr Black WPL-M2D349
...
20
Bumper Upper Silicone WPL-M2D351
...
21
Screw, Switch Mounting WPL-M1D715
...
22
Washer, Channel Mounting WPL-M1D711
...
23
Roller, Door Stop WPL-M2D343
...
24
Rivet (1) WPL-M1D687
...
25
Pin-Hng 5308012004 WPL-M1D689
...
26
M8d135-Arm WPL-96094P01
...
27
Spring- Door WPL-R0751503

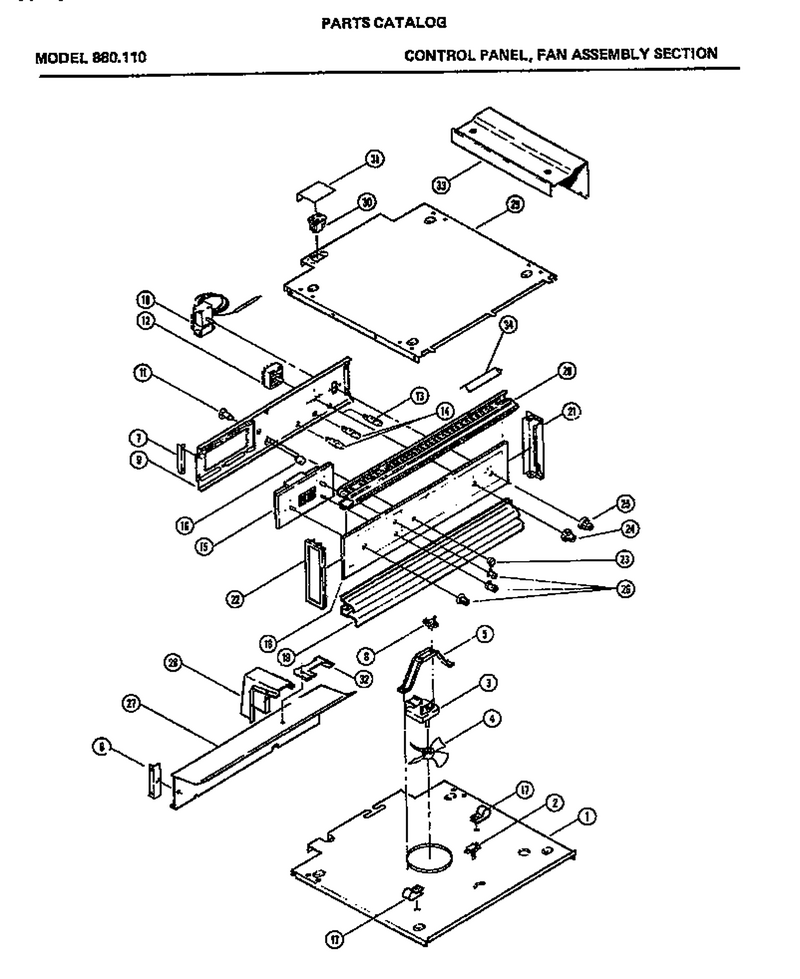

01 - Control Panel

...
...
1
Not Available WPL-M52D149
...
2
Switch Limit WPL-M14D151
...
3
Nut K WPL-M0282005
...
4
M35d21-Fan Blade WPL-M35D21
...
5
Bracket Fan Motor WPL-M8D139
...
6
Screw WPL-M1D706
...
7
Screw WPL-M1D706
...
8
Washer, Protector Mounting WPL-M1D698
...
9
Backplate C Pnl WPL-M52D154
...
10
Net Use 96228p01 WPL-M18D21
...
11
Not Available WPL-M1D656
...
12
Screw, Switch Mounting WPL-M1D715
...
13
M9d78-Ind WPL-96166P01
...
14
Indicator Light-Clean WPL-M9D79
...
15
Nut (25) WPL-M1D451
...
16
Bumper WPL-M2D346
...
17
Screw WPL-M1D706
...
18
Glass, Control Panel WPL-M51D31
...
19
Base Extrusion, Control Panel WPL-M52D144
...
20
Screw (25) WPL-M1D708
...
21
End Cap R H WPL-M7D330
...
22
Not Available WPL-M1D713
...
23
Bezel Light Sw WPL-M2D356
...
24
Knob Asm Select WPL-M6D198
...
25
Knob, Thermostat WPL-M6D209
...
26
Knob, Range Clock WPL-M6D159
...
27
Housing Control WPL-M52D145
...
28
Screw WPL-M1D706
...
29
Screw WPL-M1D706
...
30
Outlet, Grounded WPL-M5D205
...
31
Outlet Cover WPL-M8D144
...
32
Not Available WPL-M8D143
...
33
Module Support-Upper WPL-M20D121
...
34
Diverter Bracket WPL-M8D151

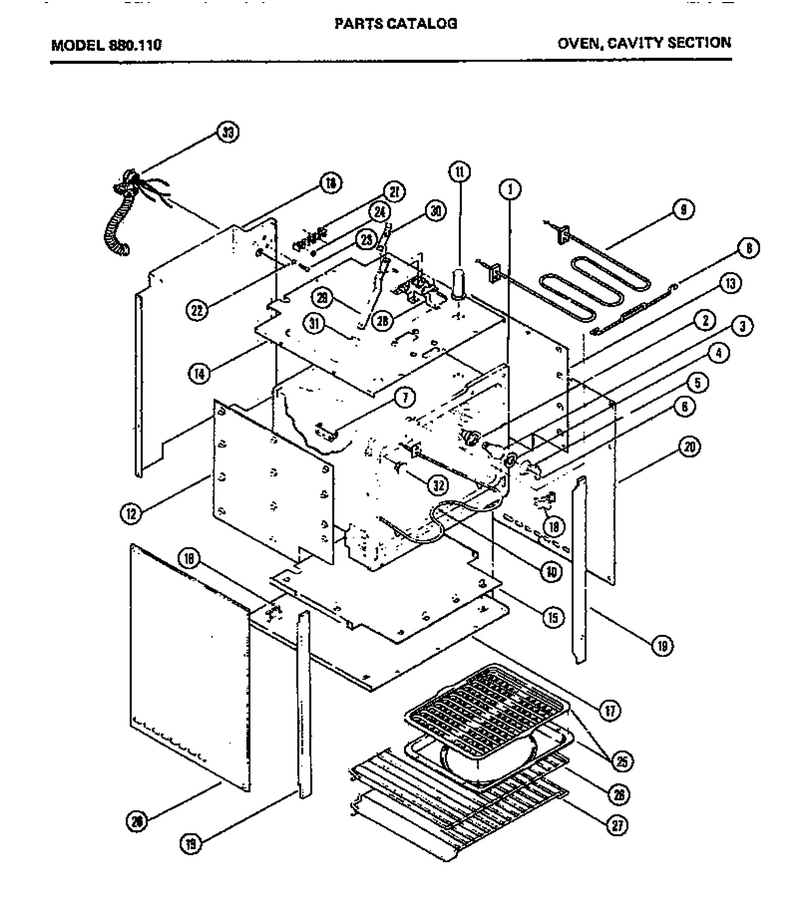

03 - Page 1

...
...
NI
Not Available WPL-M63D15
...
1
Not Available WPL-M77D79
...
2
Screw WPL-Y0089657
...
3
Light Bulb WPL-8009
...
4
Gasket Cov WPL-96089P01
...
5
Lens, Oven Light WPL-M7D328
...
6
Retainer Cover (1) WPL-M1D690
...
7
Brkt Thermo Bulb WPL-M20D111
...
8
Screw WPL-M1D702
...
9
Screw WPL-M1D702
...
10
Element, Bake WPL-M61D48
...
11
Tube Oven Vent WPL-M2D347
...
12
Not Available WPL-M52D142
...
13
Screw WPL-M1D706
...
14
Screw WPL-M1D706
...
15
Screw WPL-M1D706
...
16
Screw WPL-M1D706
...
17
Screw WPL-M1D706
...
18
Spacer Trim WPL-M2D352
...
19
Screw (25) WPL-M1D721
...
20
Screw WPL-M1D706
...
21
Terminal Block, Main WPL-M4D66
...
22
Grounding Washer WPL-M1D710
...
23
Screw, 10-24 X 1/2 WPL-4159416
...
24
Nut (25) WPL-M1D451
...
25
Broiler Pan And Insert Assembl WPL-M67D16
...
26
M67d17-Rack WPL-M67D17
...
27
Oven Rack, Offset WPL-M67D18
...
28
Screw WPL-M1D706
...
29
Not Available WPL-M11D42
...
30
Screw (5) WPL-M1D717
...
31
Screw (25) WPL-M1D707
...
32
Plug Button WPL-M2D357
...
33
Not Available WPL-M26D33
