Amana 874.000

Model: 874.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

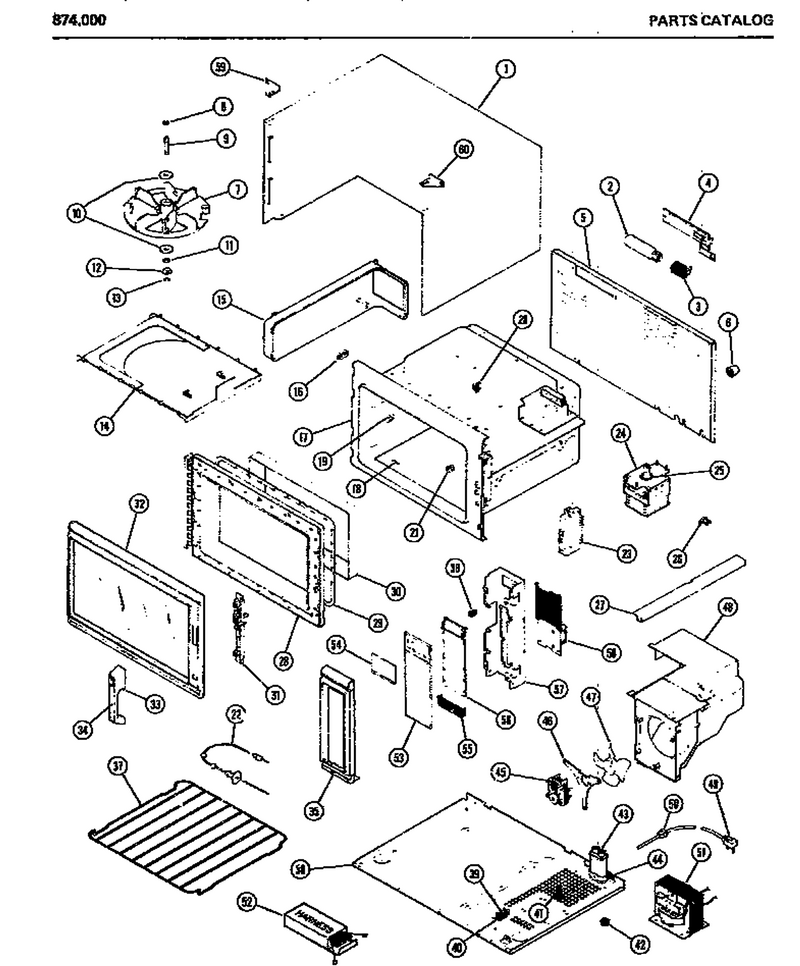

02 - Page 2

...
...
NI
Use And Care Manual WPL-M94D403
...
1
Not Available WPL-M80D110
...
2
Bulb WPL-M9D91
...
3
Lamp Holder WPL-40082P01
...
4
Screw WPL-WP90767
...
5
Screw WPL-WP90767
...
6
Screw WPL-WP489474
...
7
Stirrer Kit WPL-M35D41
...
8
Nut-Ziptwist WPL-M1D907
...
9
Hanger Stirrer Kit WPL-M2D594
...
10
Bearing Stirrer WPL-M2D595
...
11
Wshr Stirrer WPL-M2D596
...
12
Washer, Shoulder WPL-M2D597
...
13
Clip Stirrer WPL-M2D603
...
14
M45d30 Stir Cover Assy WPL-M45D26
...
15
Exhaust Duct WPL-M65D282
...
16
Fuse- Ther WPL-59001951
...
17
Cavity Assembly WPL-M77D118
...
18
Shelf W/sealant Kit WPL-M50D40
...
19
Rack Support C-Type Wht WPL-3010010002
...
20
Probe Jack WPL-M14D246
...
21
Support Rack WPL-B8371001
...
22
Probe-Temp WPL-45584P01
...
23
U-Clip WPL-M2D575
...
24
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
25
Gasket-Rf WPL-M2D296
...
26
Screw Thrm WPL-M1D666
...
27
Screw WPL-WP90767
...
28
Inner Door Assy M70d75 WPL-92521P01
...
29
Gasket-R.f. WPL-38874P01
...
30
Cap Inner Door Assy Kit WPL-M55D17
...
31
Bkg Plate Assy. WPL-M20D218
...
32
Clip-Dr M2d610 (25) WPL-38886P01
...
33
Door Handle Kit WPL-M11D62
...
34
Insert Kit WPL-M7D588
...
35
Screw (25) WPL-M1D902
...
36
Speed Clip WPL-41657P01
...
37
Rack (White) Kit WPL-M67D32
...
38
Rivet, Pop WPL-A4539629
...
39
Fuse 20 A WPL-WPM0805101
...
40
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
41
Lock Washer WPL-M0272803
...
42
Nut WPL-WP488130
...
43
Capacitor-.69 WPL-59001160
...
44
Bracket WPL-10825501
...
45
Nut K WPL-M0282005
...
46
Bracket Blower WPL-M20D219
...
47
Fan Blade WPL-M35D40
...
48
Screw Plastc (25) WPL-M1D897
...
49
Power Cord WPL-1731300202
...
50
Bush, Strain Relf (10) WPL-M1D600
...
51
No.10 T X 3/8`` Screw WPL-M1D479
...
52
H.v. Lead Kit WPL-M5D350
...
53
Touch Panel Assembly WPL-M7D633
...
54
Display Window WPL-M2D609
...
55
Not Available WPL-M8D253
...
56
Screw (25) WPL-M1D590
...
57
Cont Pnl Housing WPL-M7D609
...
58
Screw (25) WPL-M1D590
...
59
Screw (25) WPL-M1D569
...
60
Screw (25) WPL-M1D569

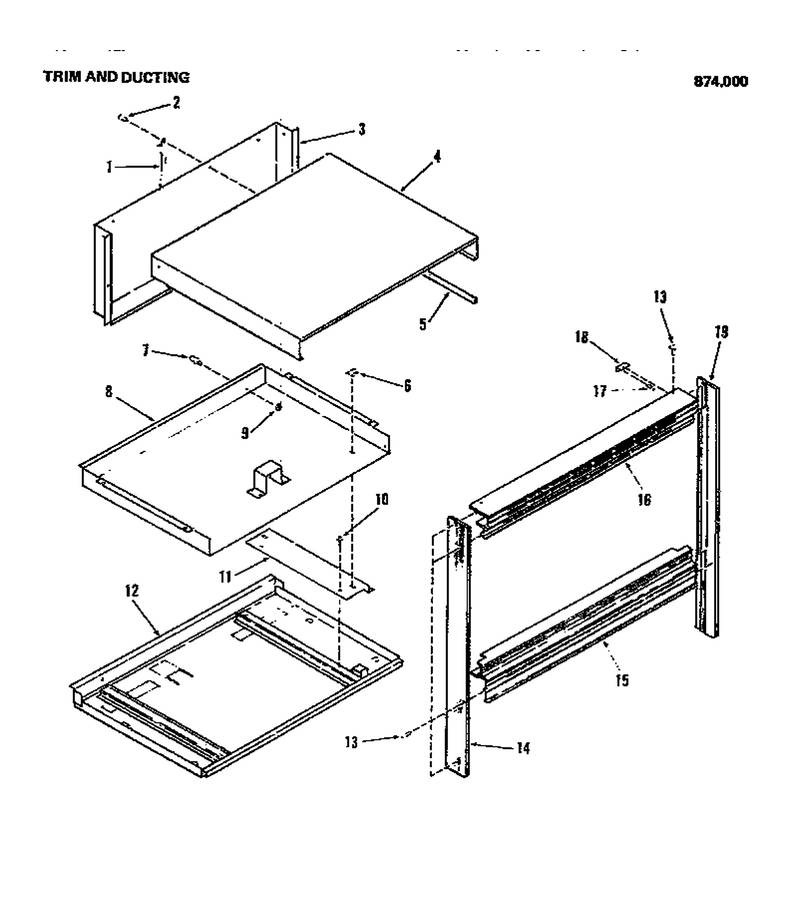

01 - Page 1

...
...
NI
Instl Instr WPL-M94D405
...
1
Clamp, Harness To Cavity WPL-M1D75
...
2
Screw WPL-WP90767
...
3
Rear Duct Exh. WPL-M65D288
...
4
Top Duct Exhaust WPL-M65D289
...
5
Foamx(Bl) 1 Pc.= 1 Ft. WPL-M2D493
...
6
Quick Fastener WPL-M2D620
...
7
Ball Studs WPL-M2D621
...
8
Not Available WPL-M79D92
...
9
Nut (25) WPL-M1D337
...
10
Screw (25) WPL-M1D807
...
11
Support, Right WPL-M20D230
...
12
Not Available WPL-M79D93
...
13
Screw 6-32 X 1/2 Pan Hd WPL-M1D213
...
14
Left Side Trim WPL-M75D96
...
15
Not Available WPL-M75D103
...
16
Top Trim WPL-M75D97
...
17
Screw (25) WPL-M1D92
...
18
Brkt Cont Pnl WPL-M8D260
...
19
Right Side Trim WPL-M75D98
