Amana 86858 (BOM: P1116906W L)

Model: 86858 (BOM: P1116906W L)

Save Part Not Listed?
product name

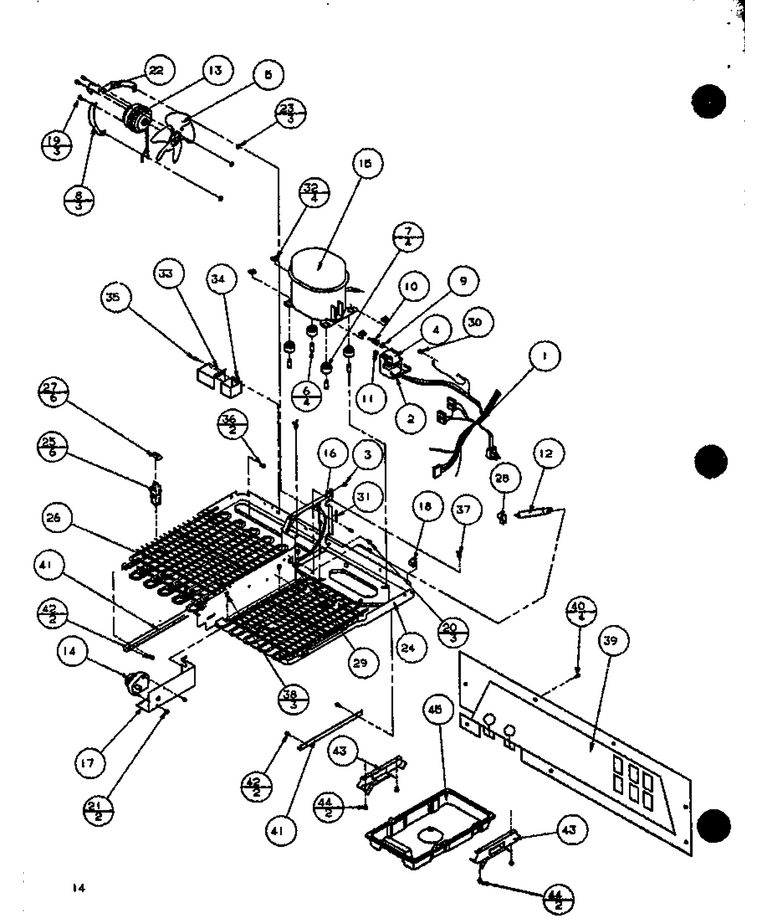

06 - Page 6

...
...
1
Harness. M.c. WPL-10354601
...
2
Bale Strap WPL-YB8358601
...
3
Screw WPL-WP489069
...
4
Term Cover WPL-C8960801
...
5
Blade, Fan WPL-B5742603
...
6
Sleeve K WPL-A3072001
...
7
Grommet, Compressor WPL-67003493
...
8
Bracket, Cond Motor WPL-C8982101
...
9
Spring, Overload WPL-B8358301
...
10
Overload WPL-C8906207
...
11
Relay WPL-2154436
...
12
Drier WPL-WPB2150504
...
13
Motor-Cond WPL-833697
...
14
Timer-Def WPL-R0168027
...
15
Compressor WPL-W10439652
...
16
Cond. Fan Shrd WPL-D7691002
...
17
Bracket, Timer WPL-D7752701
...
18
Clip WPL-M0110508
...
19
Screw WPL-M0223803
...
20
Screw Shoulder WPL-M0238833
...
21
Screw WPL-M0218118
...
22
Tie-Wire WPL-WPW10339879
...
23
Grommet K WPL-M0500107
...
24
Base Pan - Ptd WPL-D7595411
...
25
Spacer Cond. WPL-B8346301
...
26
Condenser Pntd WPL-D7654301
...
27
Speednut WPL-M0293703
...
28
Clamp-Drier WPL-M0104002
...
29
Felt WPL-A9008301
...
30
Screw WPL-M0253916
...
31
Gasket WPL-B5759604
...
32
Clip Comp WPL-B8352901
...
33
Shield, Capacitor WPL-10266402
...
34
Capacitor WPL-WPW10662129
...
35
Screw WPL-WP489464
...
36
Screw WPL-M0294459
...
37
Tie, Wire WPL-M0585401
...
38
Screw WPL-WP12990527
...
39
Mc Back Assy WPL-C8890206
...
40
Screw WPL-WP489464
...
41
Support, Mc WPL-C8913701
...
42
Screw WPL-M0211530
...
43
Support Drain Pan WPL-D7790501
...
44
Screw WPL-WP489069
...
45
Drain Pan WPL-D7790601

08 - Page 9

...
...
1
Heat Exchanger Cover WPL-D7539419
...
2
Screw WPL-WP489069
...
3
Grommet WPL-10110601
...
4
Grommet WPL-10110701
...
5
Drain Tube WPL-D7653906
...
6
Harness, Cabinet WPL-10104901
...
7
Wire Cover WPL-10110202
...
8
Plug Button WPL-M0310319
...
9
Clamp WPL-M0103901
...
10
Screw WPL-WP90767
...
11
Clamp WPL-M0102325
...
12
Clamp WPL-M0102329
...
13
Cord-Power WPL-10916505
...
14
Screw WPL-M0253916
...
15
Clamp WPL-B8372901
...
16
Gasket,per Ft WPL-A30303-30
...
17
Screw, Spextite WPL-M0232330
...
18
Clip WPL-WPM0104106
...
19
Clip, Cord WPL-M0104102
...
20
Tie-Wire WPL-WPW10339879

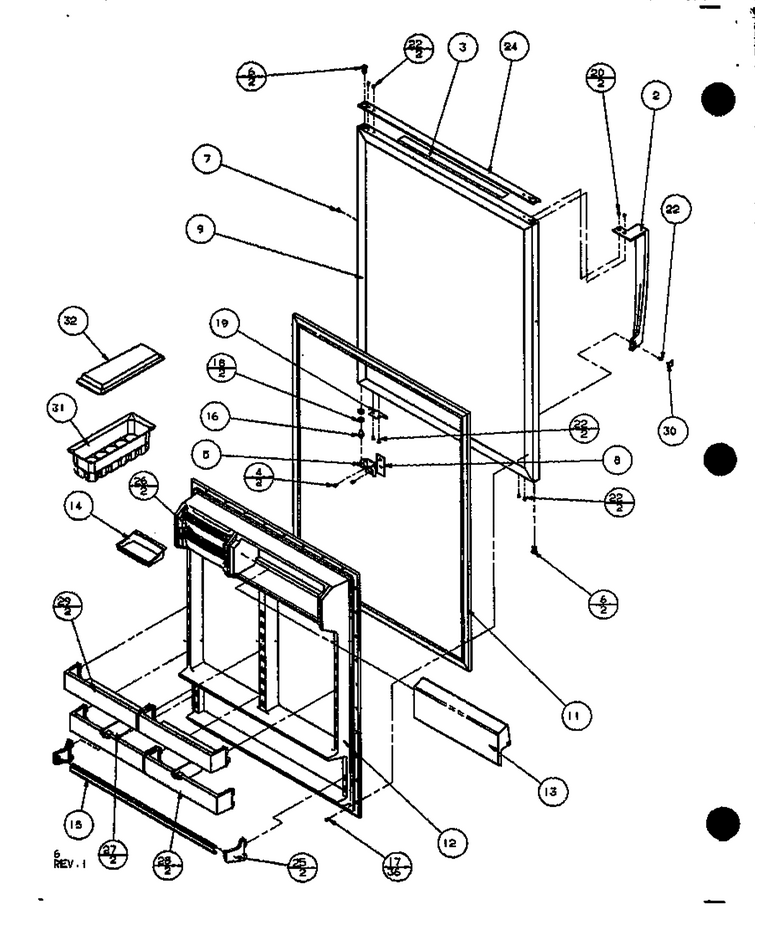

02 - Page 2

...
...
2
Handle WPL-WP10253523Q
...
3
Tape Per Roll WPL-M0275163
...
4
Screw WPL-WP67006715
...
5
Btm Hinge Brkt E WPL-10163607
...
6
Bushing WPL-10392602
...
7
Plug Button (almond) WPL-M0310730
...
8
Shim WPL-B5744803
...
9
L Ref Dr As Cfc11 WPL-10253906Q
...
11
Gasket WPL-D7605107Q
...
12
Inner Door Liner Ref WPL-D7805605
...
13
Door Dairy WPL-D7805708
...
14
Tray, Butter WPL-10310901
...
15
Retainer Pkg WPL-C8907223
...
16
Pin, Hinge K WPL-C8814901
...
17
Screw WPL-WPM0219730
...
18
Washer WPL-M0274049
...
19
Stop Door WPL-10266101
...
20
Screw WPL-WPW10348409
...
22
Screw WPL-WPW10348409
...
24
Cap Door WPL-D3958306
...
25
Cap, Pkg Retainer End WPL-D7681804
...
26
Container Sec. Ser. WPL-D7806403
...
27
Snugger Door WPL-D7806103
...
28
Retainer- WPL-67003698
...
29
Door Shelf V WPL-D7565413
...
30
Cover- Hndl Screw Almond WPL-10201806
...
31
Assy,egg Bkt W/ Lid WPL-12460016
...
32
Cover, Egg Bucket WPL-D7805909

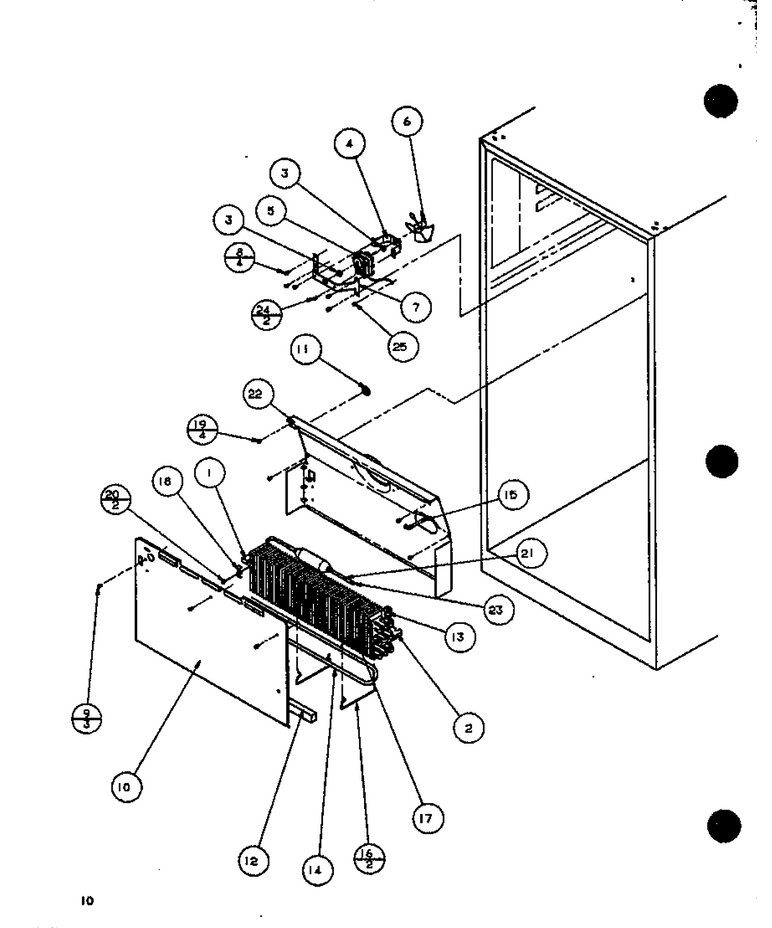

04 - Page 4

...
...
1
Block Evap. Coil WPL-B8322902
...
2
Block Evap Coil WPL-B8361701
...
3
Grommet WPL-WP2264462
...
4
Brkt Evap Fan WPL-C8881301
...
5
Motor-Evap WPL-WPC8891605
...
6
Blade, Evap Fan WPL-C8927801
...
7
Brkt Evap Fan Shroud WPL-D7524502
...
8
Screw WPL-WP489464
...
9
Screw (3) WPL-67006425
...
10
Evap Cover WPL-10201603
...
11
Grommet WPL-A3138301
...
12
Gasket, Poly WPL-A31389320
...
13
Thermostat WPL-WP10442411
...
14
Heater, Evaporator WPL-D7549705
...
15
Assy, Heat Exch. WPL-D7759002
...
16
Clip WPL-C8952001
...
17
Evaporator Assembly WPL-R0170032
...
18
Clamp WPL-A3253803
...
19
Screw, S.m., Evaporator WPL-M02110018
...
20
Screw (3) WPL-67006425
...
21
Wire Tie WPL-M0321204
...
22
Evap Fan Shroud WPL-D7691118
...
23
Tie-Wire WPL-WPW10339879
...
24
Screw WPL-WP12990527
...
25
Screw WPL-M0253916

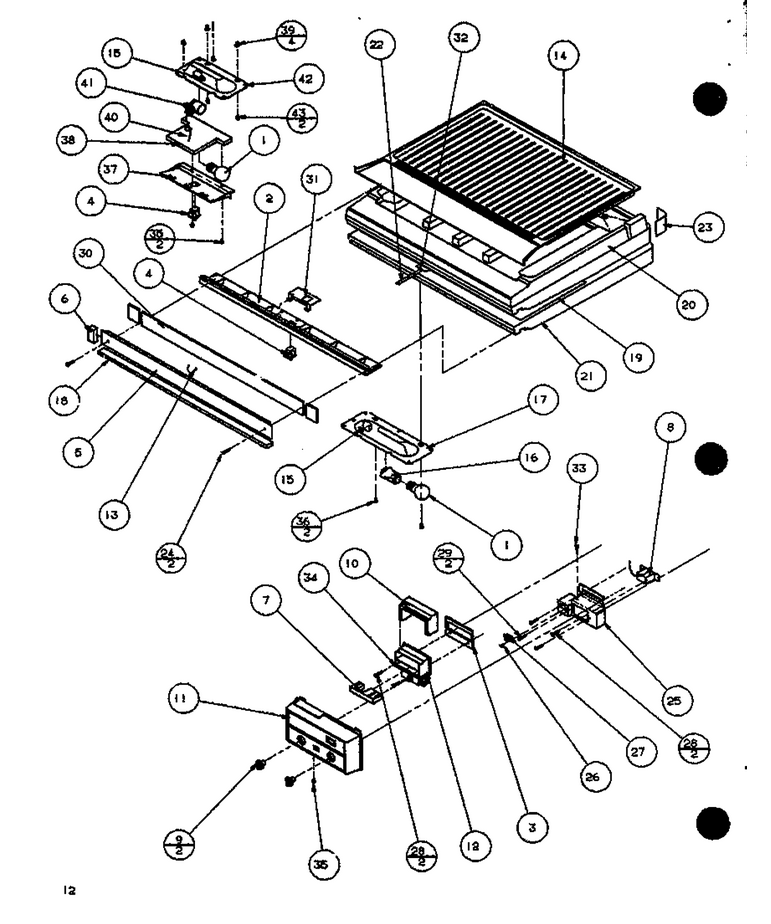

05 - Page 5

...
...
NI
Harness Frz Light WPL-10118701
...
1
Light Bulb WPL-8009
...
2
Breaker, Ref Top V WPL-D7653003
...
3
Gasket, Damper WPL-B8345401
...
4
Switch WPL-W11384469
...
5
Center Mullion, Almond WPL-C8842505
...
6
Gasket, Sealing WPL-B5759626
...
7
Insert, Control WPL-C8902601
...
8
Cold Control WPL-C8907301
...
9
Knob WPL-D7009802
...
10
Insulation Damper WPL-D7543201
...
11
Cover Control WPL-D7545020
...
12
Damper Control, Warm 26.5f, N WPL-D7547402
...
13
Heater, Mullion, 5.5 Watts, 11 WPL-D75654508
...
14
Bottom; Freezer WPL-D7714704
...
15
Clip, Ground WPL-B5733302
...
16
Socket-Light WPL-D7714407
...
17
Shield, Light WPL-R0176034
...
18
Gasket K WPL-B5759628
...
19
Insulation WPL-C8887902
...
20
Drain Block Kit WPL-10356701
...
21
Top Ref. WPL-D7539308
...
22
Harness, Mullion WPL-10105001
...
24
Tape Per Roll A WPL-M0275117
...
25
Bracket, Control WPL-D7713802
...
26
Screw WPL-WP489349
...
27
Switch WPL-M0350101
...
28
Screw WPL-WP98165
...
29
Screw WPL-WP90767
...
30
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
31
Barrier Lt-Sw K WPL-C8932201
...
32
Insulation Per Ft. WPL-B0523584
...
33
Screw WPL-M0253916
...
34
Gasket-Per Ft WPL-A3263906
...
35
Screw (3) WPL-67006425
...
36
Screw WPL-WP12990527
...
37
Cover Light WPL-10073201
...
38
Barrier WPL-C8976301
...
39
Grommet, Screw WPL-M0580007
...
40
Jumper Wire WPL-B5781002
...
41
Socket-Light WPL-C8973404
...
42
Housing, Light WPL-D7760104
...
43
Screw (3) WPL-67006425

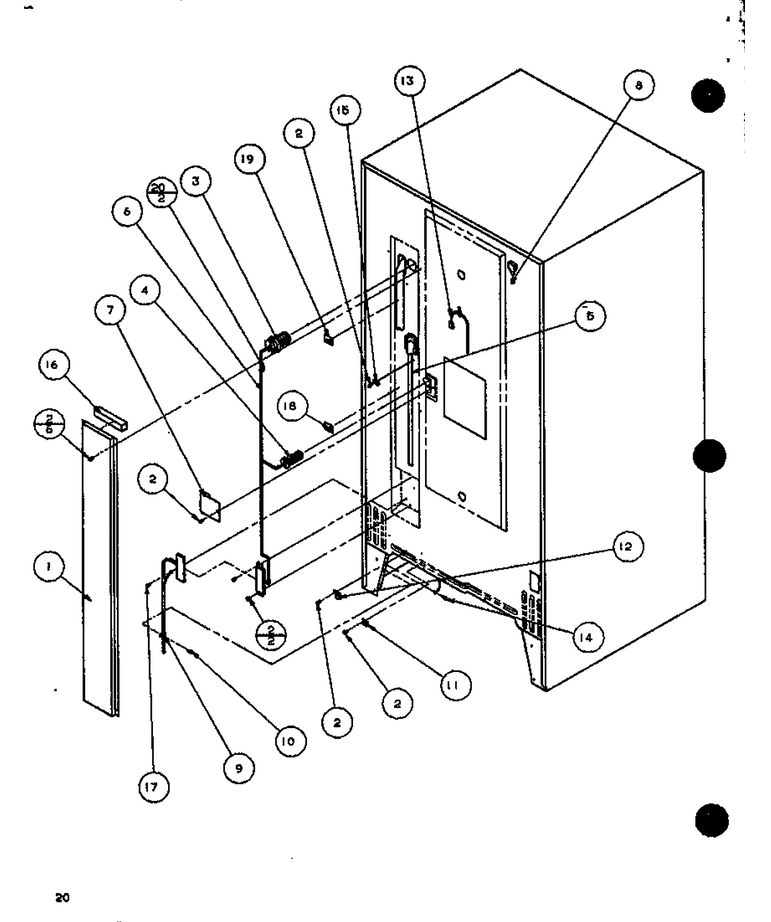

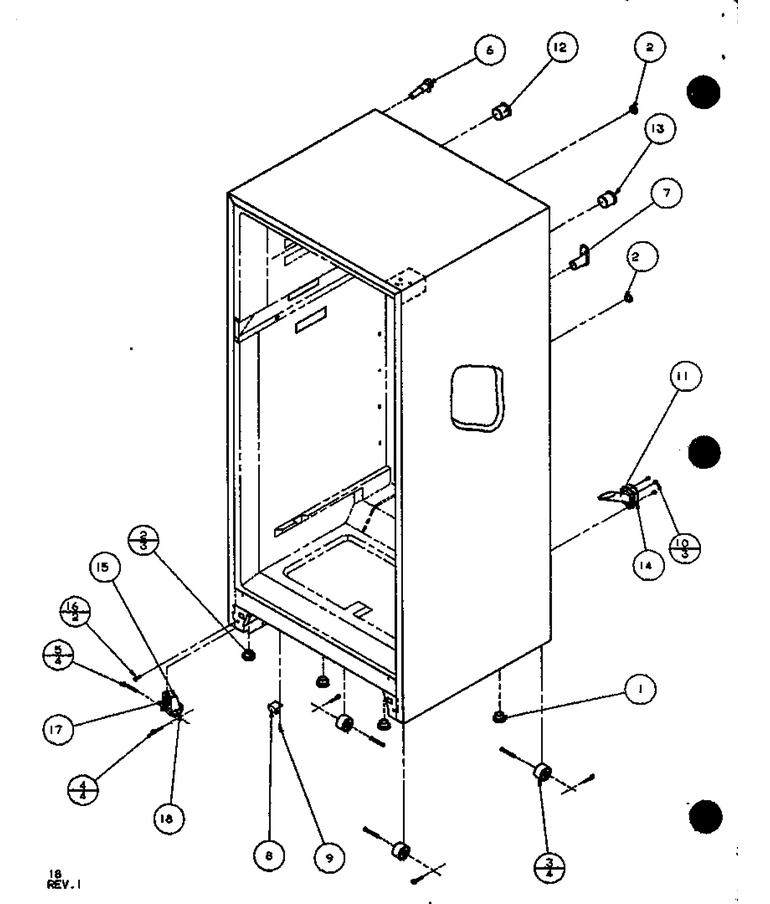

07 - Page 8

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Roller WPL-M0520102
...
5
Pin K WPL-M1200202
...
6
Fill Tube Assy WPL-R0000027
...
7
Tunnel-Heat Ex WPL-B5749501
...
8
Holder Tube WPL-10161301
...
9
Screw WPL-WP489069
...
10
Screw WPL-W11233072
...
11
Elbow Drain Tube WPL-10163201
...
12
Tunnel, Wire WPL-10110401
...
13
Tunnel Wire WPL-10110502
...
14
Gasket WPL-A3132301
...
15
Assy, Roller Bracket WPL-12452602Q
...
16
Screw, Mach WPL-M0206313
...
17
Nut, Speed WPL-M0286708
...
18
Rivet WPL-M1205302

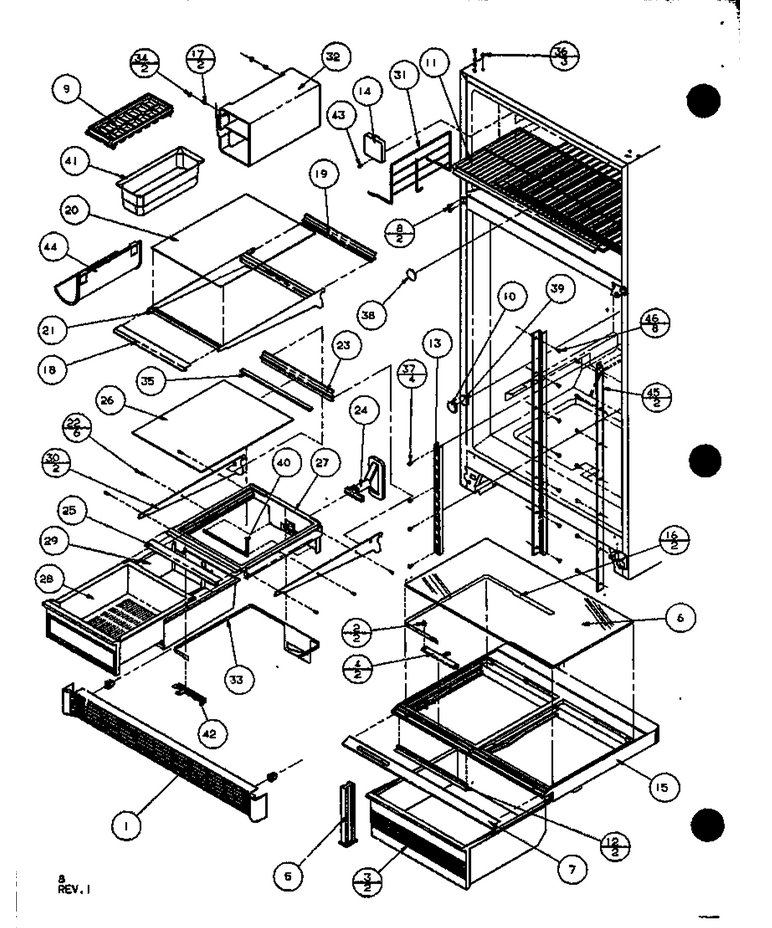

03 - Page 3

...
...
NI
See Note Add-On Ice Maker -- (available From Sales) WPL-Y00000000
...
1
Grille-Toe L WPL-D7520514
...
2
Knob, Crisper Control WPL-10038401
...
3
Pan Crisper WPL-D7581033
...
4
Slide, Crisper WPL-YD7860605
...
5
Post, Crisper Support WPL-10199701
...
6
Glass Cris WPL-10036035
...
7
Trim, Crisper WPL-D7616652
...
8
Kit, Screw WPL-R9800670
...
9
Tray WPL-WP841180A
...
10
Plug WPL-M0310314
...
11
Shelf, Frz WPL-D7580706
...
12
Seal Crisper WPL-D7718402
...
13
Ladder, Center WPL-D7599002
...
14
Cover-Fl Tb/plug WPL-D7874402
...
15
Frame Crisper WPL-D7856502
...
16
Band M.k. Control WPL-D7859604
...
17
Screw Shoulder WPL-M0238833
...
18
Trim, Shelf WPL-10049908
...
19
Trim, Shelf Rear WPL-C8913603
...
20
Glass Shelf WPL-10036020
...
21
Assy, Glass Shelf WPL-D7871001
...
22
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
23
Trim WPL-C8990403
...
24
Grommet M.k. WPL-D7859304
...
25
Trim, Shelf WPL-10049913
...
26
Glass, Meatkeeper, Shelf WPL-10036019
...
27
Frame M.k. V WPL-D7853302
...
28
Pan-Meat WPL-D7698329
...
29
Sleeve M.k. WPL-D7698113
...
30
Blank Side Rail WPL-D7862901
...
31
Divider, Wire WPL-D7806002
...
32
Rack, Ice WPL-D7620110
...
33
Band M.k. Control WPL-D7859503
...
34
Washer WPL-M0270519
...
35
Ext. Rear Glass WPL-10043101
...
36
Plug Button (almond) WPL-M0310730
...
37
Screw-Sm WPL-M0238636
...
38
Plug, Button (wht) WPL-M0310305
...
39
Insul. Mk Plug WPL-B8362502
...
40
Gasket WPL-A3030302
...
41
Bin, Ice WPL-D7620024
...
42
Slide-Mk Control WPL-D7859401
...
43
Screw (3) WPL-67006425
...
44
Rack, Bottle WPL-D7547614
...
45
Ladder, Side WPL-D7599105
...
46
Screw WPL-WP90767

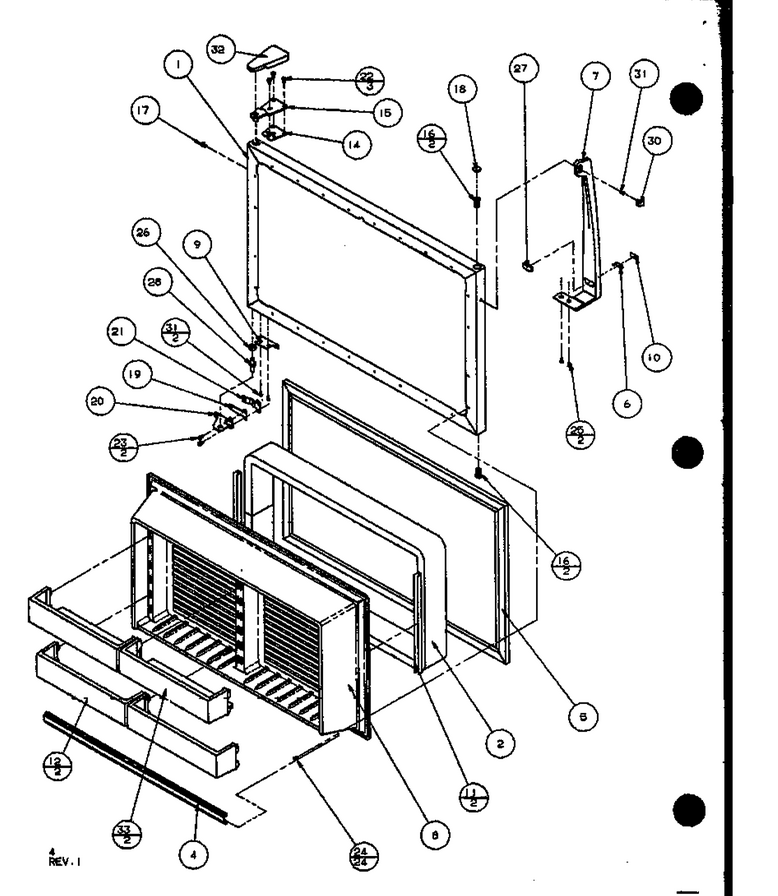

01 - Page 1

...
...
1
Foam Dr Assy Almond WPL-10253803Q
...
2
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
5
Gasket WPL-D7605106
...
6
Pad Nameplate WPL-10184501
...
7
Handle WPL-WP10253524Q
...
8
Inner Door, Frz WPL-D7869601
...
9
Stop Door WPL-10266101
...
10
Nameplate, Handle WPL-10184401
...
11
Seal Door Dike WPL-C8987106
...
12
Retainer, Cant. V WPL-D7869807
...
14
Shim, Top Hinge, .016 WPL-B8389003
...
15
Hinge WPL-B5744301
...
16
Bushing WPL-10392602
...
17
Button- Pl WPL-WP67001130
...
18
Plug WPL-M0310601
...
19
Shim, Center Hinge WPL-B8351403
...
20
Center Hinge Bracket WPL-C8948601
...
21
Strip Hinge Top WPL-C8925502
...
22
Kit, Screw WPL-R9800670
...
23
Screw WPL-WP67006380
...
24
Screw WPL-WPM0219730
...
25
Screw WPL-WPW10348409
...
26
Washer WPL-M0274049
...
27
Plug-L Nameplate WPL-10184306
...
28
Center Pin Hinge WPL-B8373101
...
30
Cover-Handle Screw W WPL-10201801
...
31
Screw WPL-WPW10348409
...
32
Cover Hinge L WPL-D7872105
...
33
Door Shelf WPL-D7869907
