Amana 86068 (BOM: P1125513W L)

Model: 86068 (BOM: P1125513W L)

Save Part Not Listed?
product name

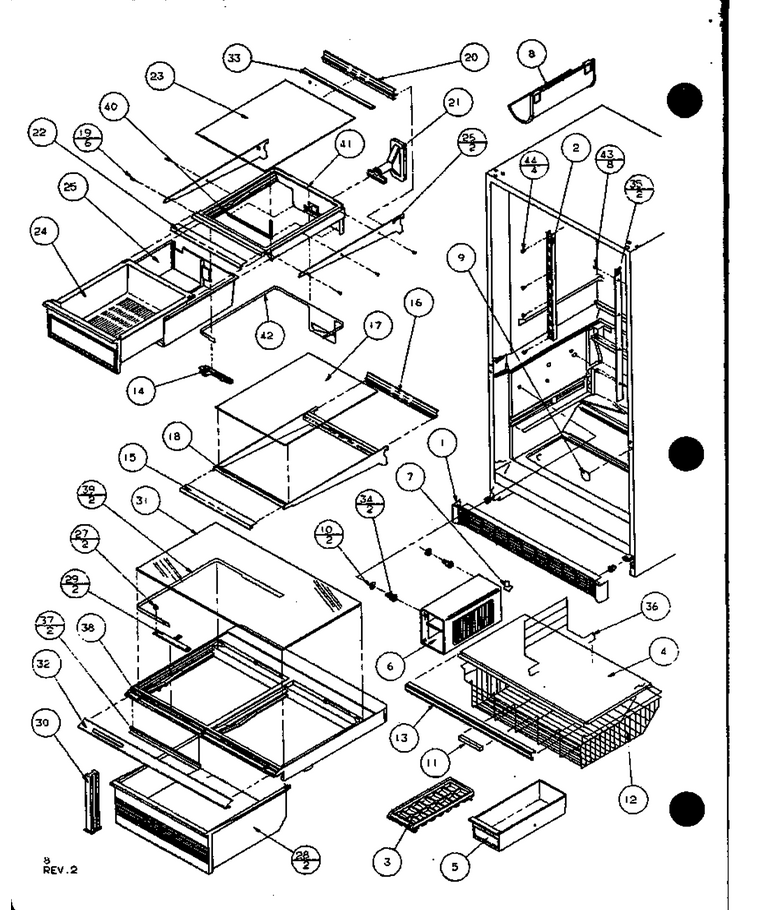

02 - Cabinet Interior

...
...
NI
Glass Crisper Frame Assy WPL-R0179185
...
1
Grille-Toe L WPL-D7520514
...
2
Ladder, Center WPL-D7599002
...
3
Tray WPL-WP841180A
...
4
Shelf WPL-D7681202
...
5
Bin, Ice WPL-D7620024
...
6
Rack, Ice WPL-D7620110
...
7
Clip WPL-B5720301
...
8
Rack, Bottle WPL-D7547614
...
9
Button- Pl WPL-WP67001130
...
10
Washer WPL-M0270519
...
11
Handle Basket WPL-B0571806
...
12
Basket WPL-D7677402
...
13
Trim Shelf WPL-C8832509
...
14
Slide-Mk Control WPL-D7859401
...
15
Trim, Shelf WPL-10049908
...
16
Trim, Shelf Rear WPL-C8913603
...
17
Glass Shelf WPL-10036018
...
18
Frame, Cantilever WPL-D7871002
...
19
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
20
Trim WPL-C8990403
...
21
Grommet M.k. WPL-D7859305
...
22
Trim, Shelf WPL-10049913
...
23
Glass M.k. Shelf WPL-10036017
...
24
Pan-Meat WPL-D7698329
...
25
Sleeve M.k. WPL-D7698113
...
26
Blank Side Rail WPL-D7862904
...
27
Knob, Crisper Control WPL-10038401
...
28
Pan Crisper WPL-D7581033
...
29
Slide, Crisper WPL-YD7860605
...
30
Crisper Support Post WPL-D7602202
...
31
Glass Cris WPL-10036035
...
32
Trim, Crisper WPL-D7616652
...
33
Ext. Rear Glass WPL-10043101
...
34
Screw Shoulder WPL-M0238833
...
35
Ladder, Side WPL-D7599105
...
36
Divider, Frz Shelf WPL-D7815401
...
37
Seal Crisper WPL-D7718402
...
38
Frame Crisper WPL-D7856502
...
39
Band M.k. Control WPL-D7859604
...
40
Gasket WPL-A3030302
...
41
Frame M.k. V WPL-D7853302
...
42
Band M.k. Control WPL-D7859503
...
43
Screw WPL-WP90767
...
44
Screw-Sm WPL-M0238636

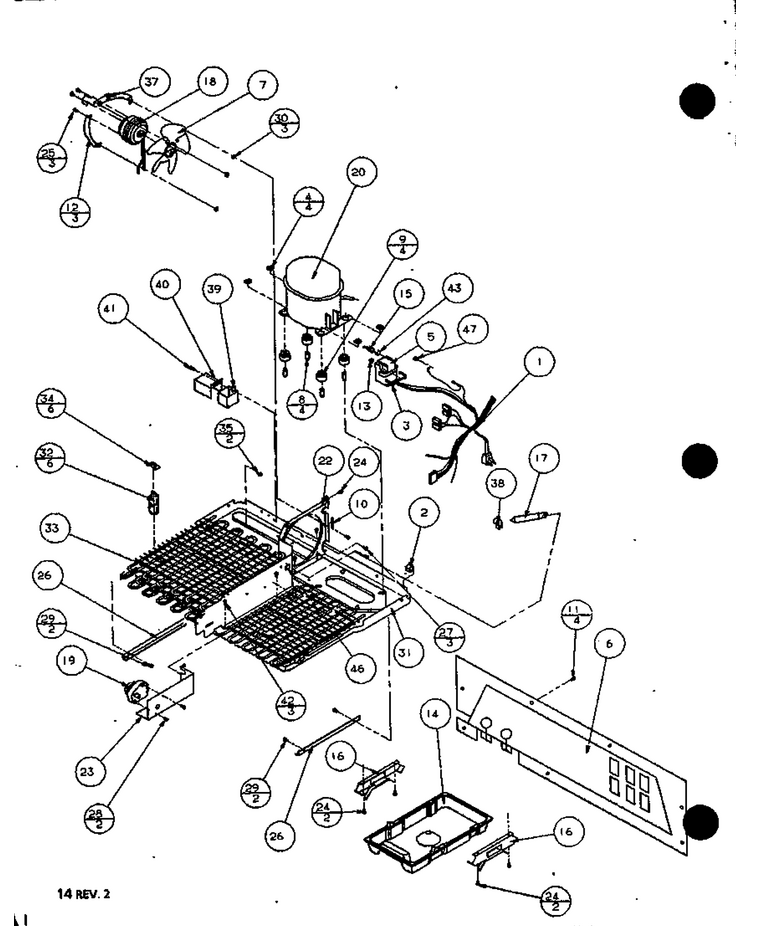

03 - Compressor Compartment

...
...
1
Harness M.c. WPL-10356601
...
2
Clip WPL-M0110508
...
3
Bale Strap WPL-YB8358601
...
4
Clip Comp WPL-B8352901
...
5
Term Cover WPL-C8960801
...
6
Mc Back Assy WPL-C8890206
...
7
Blade, Fan WPL-B5742603
...
8
Sleeve K WPL-A3072001
...
9
Grommet, Compressor WPL-67003493
...
10
Gasket WPL-B5759604
...
11
Screw WPL-WP489464
...
12
Bracket, Cond Motor WPL-C8982101
...
13
Relay WPL-C8931503
...
14
Drain Pan WPL-D7790601
...
15
Overload WPL-10377005
...
16
Support Drain Pan WPL-D7790501
...
17
Drier WPL-WPB2150504
...
18
Motor-Cond WPL-833697
...
19
Timer-Def WPL-R0168027
...
20
Compressor Ae1413a WPL-C3667002
...
22
Evap Fan Schroud WPL-D7691116
...
23
Timer Bracket WPL-D7690801
...
24
Screw WPL-WP489069
...
25
Screw WPL-M0223803
...
26
Support M.c. WPL-D7835501
...
27
Screw Shoulder WPL-M0238833
...
28
Screw WPL-M0218118
...
29
Screw WPL-M0211530
...
30
Grommet K WPL-M0500107
...
31
Base Pan - Ptd WPL-D7595411
...
32
Spacer Cond. WPL-B8346301
...
33
Condenser Pntd WPL-D7654301
...
34
Speednut WPL-M0293703
...
35
Screw, Sm WPL-M0211357
...
37
Tie-Wire WPL-WPW10339879
...
38
Clamp WPL-M0103901
...
39
Capacitor WPL-WPW10662129
...
40
Shield, Capacitor WPL-10266402
...
41
Screw WPL-WP489464
...
42
Screw WPL-WP12990527
...
43
Spring, Overload WPL-B8358301
...
46
Felt WPL-A9008301
...
47
Screw WPL-M0253916

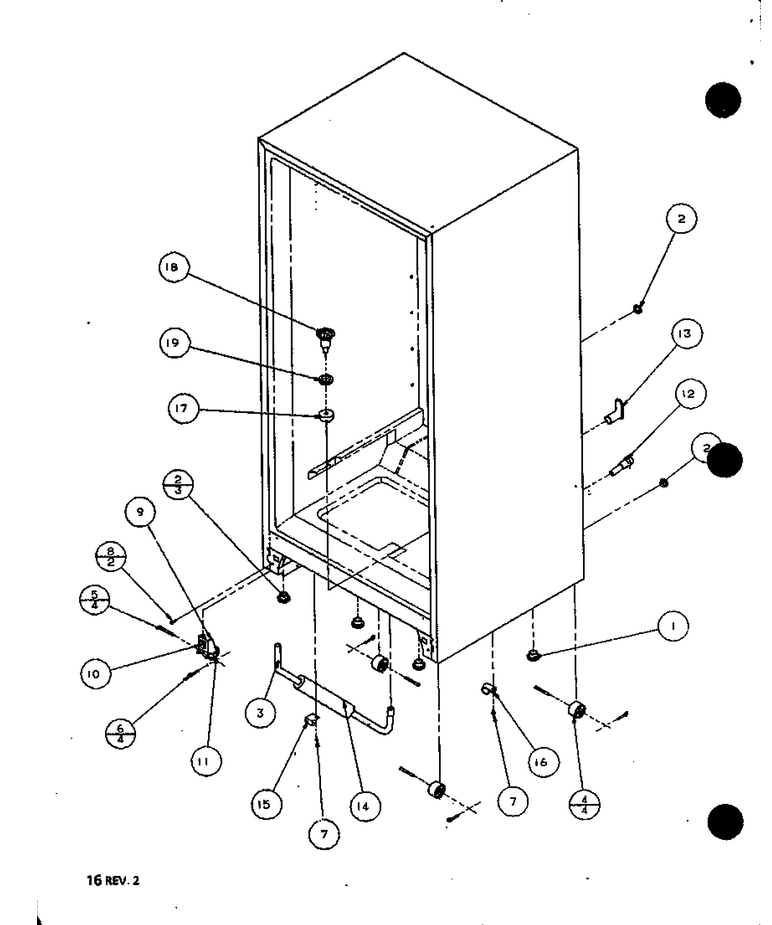

01 - Cabinet Bottom And Back

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Drain Tube WPL-10393003
...
4
Roller WPL-M0520102
...
5
Pin K WPL-M1200202
...
6
Cotter Pin K WPL-M1200004
...
7
Screw WPL-WP489069
...
8
Screw, Mach WPL-M0206313
...
9
Assy, Roller Bracket WPL-12452602Q
...
10
Nut, Speed WPL-M0286708
...
11
Rivet WPL-M1205302
...
12
Fill Tube Assy WPL-10277305
...
13
Tunnel-Heat Ex WPL-B5749501
...
14
Insulation, Tube WPL-10851302
...
15
Clamp WPL-M0102303
...
16
Holder Tube WPL-10161301
...
17
Gasket- Dr WPL-WPB8381501
...
18
Funnel WPL-W10815413
...
19
Seal- O Ri WPL-WPM0500703

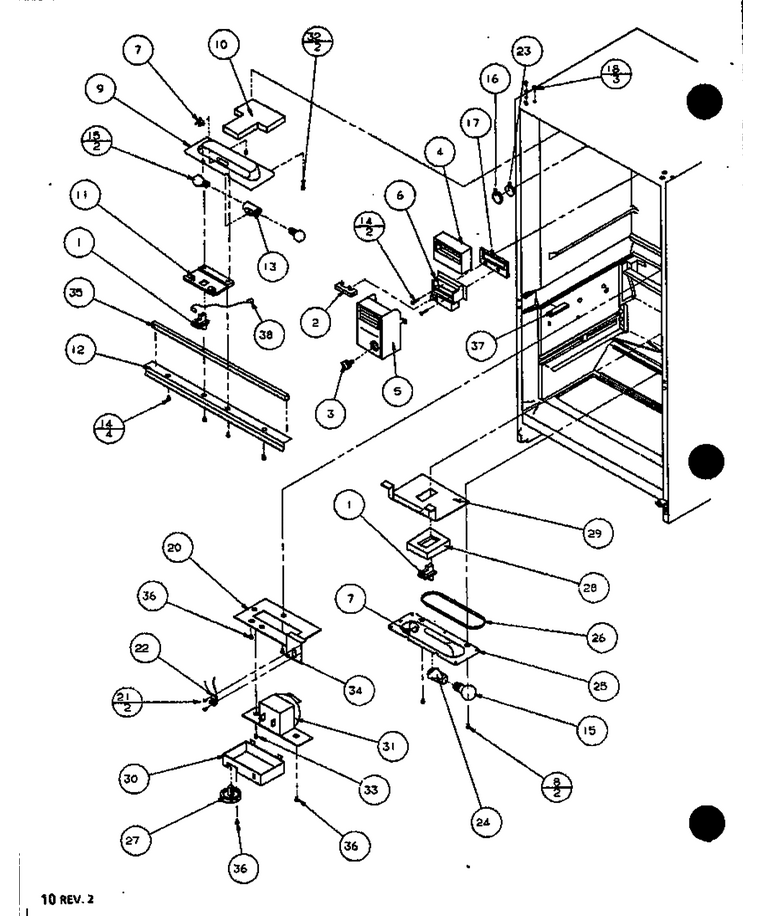

04 - Controls And Lamps

...
...
1
Switch WPL-W11384469
...
2
Insert, Control WPL-C8902601
...
3
Knob WPL-D7009802
...
4
Insul. Damper WPL-D7687701
...
5
Cover, Control WPL-D7687512
...
6
Damper Control Kit WPL-D7547403
...
7
Clip, Ground WPL-B5733302
...
8
Screw WPL-WP12990527
...
9
Housing-Ref Light WPL-D7716409
...
10
Insulation WPL-C8778301
...
11
Cover, Light Sw WPL-D7297604
...
12
Shield, Light WPL-D7288109
...
13
Socket, Dual Lamp WPL-D7808602
...
14
Screw WPL-WP98165
...
15
Light Bulb WPL-8009
...
16
Plug, Button (wht) WPL-M0310308
...
17
Gasket, Damper WPL-B8345401
...
18
Plug Button (almond) WPL-M0310730
...
20
Bracket, Control WPL-C8943302
...
21
Pop Rivet WPL-M0010215
...
22
Switch WPL-M0350101
...
23
Insulation WPL-B8362503
...
24
Socket-Light WPL-D7714407
...
25
Shield, Light WPL-R0176034
...
26
Gasket WPL-B5759607
...
27
Knob, Control WPL-D7689901
...
28
Gasket WPL-B8314801
...
29
Barrier Lt. S.w. WPL-C8940401
...
30
Cover, Temp. Control WPL-D7878809
...
31
Control Temp WPL-C8946701
...
32
Screw (3) WPL-67006425
...
33
Screw WPL-WP489464
...
34
Screw WPL-M0253916
...
35
Gasket 1 WPL-10839714
...
36
Screw WPL-M0216531
...
37
Gasket Air Block WPL-B5759618
...
38
Jumper Wire WPL-B5781002

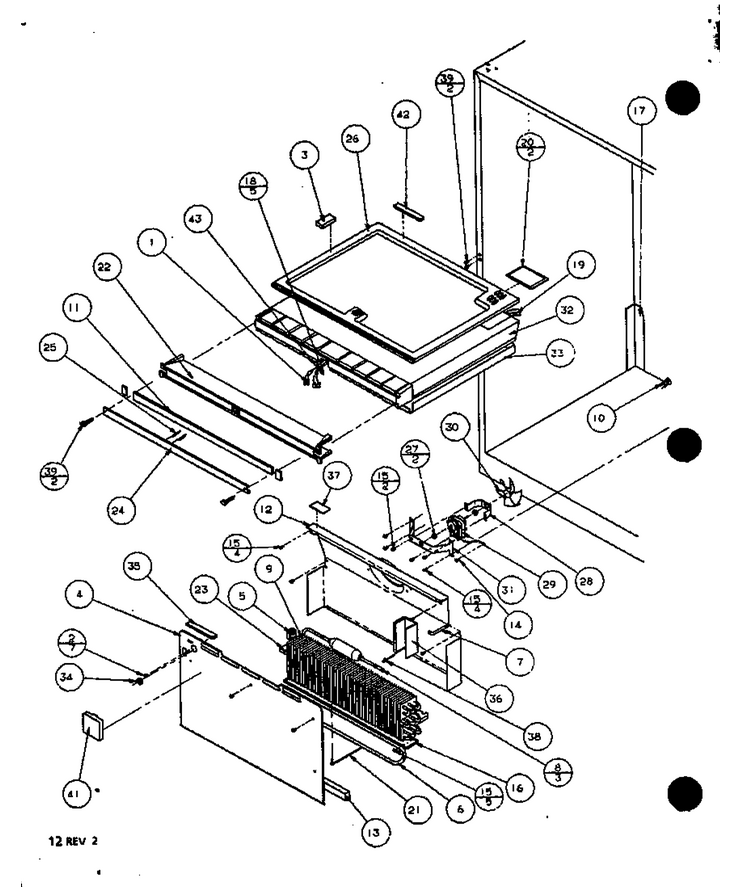

05 - Divider And Evap

...
...
1
Harness, Mullion WPL-10291801
...
2
Screw (3) WPL-67006425
...
3
Gasket, Sealing WPL-B5759617
...
4
Cover Evap WPL-D7874703
...
5
Thermostat WPL-WP10442411
...
6
Heater Defrost WPL-D7718301
...
7
Heat Exchanger WPL-D7759001
...
8
Tie-Wire WPL-WPW10339879
...
9
Assy,low Side WPL-R0170030
...
10
Harness Liner WPL-D7711701
...
11
Insulation Per Ft. WPL-B0523584
...
12
Evap Fan Schroud WPL-D7691116
...
13
Gasket, Bottom WPL-A3189394
...
14
Screw WPL-M0253916
...
15
Screw WPL-WP12990527
...
16
Tray, Drip WPL-D7679402
...
17
Barrier WPL-C8953701
...
18
Clamp-Wiring WPL-A3195601
...
19
Heater-Ref Bottom WPL-D7742901
...
20
Gasket WPL-A3030302
...
21
Clamp WPL-M0103502
...
22
Frame Ctr Brk WPL-10367101
...
23
Block Evap Coil WPL-B8373201
...
24
Center Mullion, Almond WPL-C8842513
...
25
Heater-Mullion WPL-D7654507
...
26
Bottom Ref. WPL-D7681701
...
27
Grommet WPL-WP2264462
...
28
Brkt Evap Fan WPL-C8881301
...
29
Motor-Evap WPL-WPC8891605
...
30
Blade, Evap Fan WPL-C8927801
...
31
Brkt Evap Fan Shroud WPL-D7524501
...
32
Block-Waxed Ctr WPL-10377701
...
33
Top Freezer WPL-D7878701
...
34
Grommet WPL-A3138301
...
35
Gasket 1 WPL-10839714
...
36
Duct, Returnair WPL-D7680901
...
37
Gasket WPL-B8358502
...
38
Pop Rivet WPL-A4539602
...
39
Kit, Screw WPL-R9800670
...
41
Cover-Fl Tb/plug WPL-D7874402
...
42
Gasket WPL-B5759616
...
43
Lock, Purse WPL-74007369

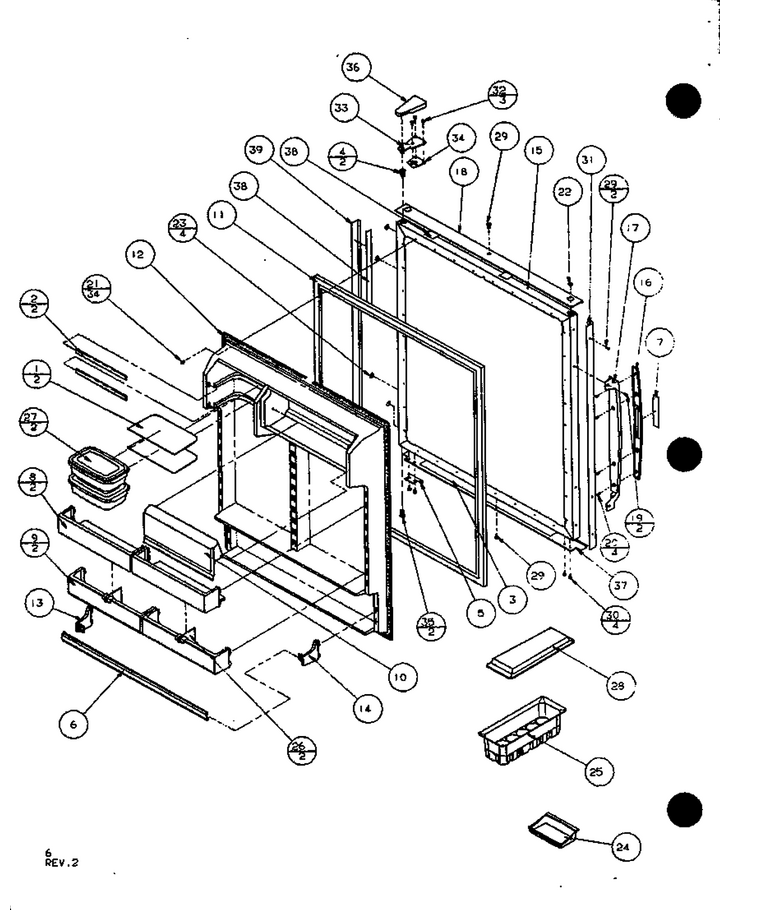

07 - Ref Door

...
...
1
Shelf Sec. Service WPL-10391101
...
2
Extrusion Shelf WPL-10304101
...
4
Bushing WPL-10392602
...
5
Stop Door WPL-10266101
...
6
Retainer Pkg WPL-C8907223
...
7
Nameplate WPL-C8945004
...
8
Door Shelf V WPL-D7565413
...
9
Retainer- WPL-67003698
...
10
Door Dairy WPL-D7805708
...
11
Gasket, Door WPL-D7605116
...
12
Liner Ref Door WPL-10289501
...
13
Cap, Pkg Retainer End WPL-D7681803
...
14
Cap, Pkg Retainer End WPL-D7681804
...
15
L Ref Dr Assy Fm WPL-10288602LQ
...
16
Insert, L Handle WPL-D7694708
...
17
Handle WPL-WPD7694803
...
19
Screw, Handle WPL-67006529
...
20
Screw WPL-WP8281236
...
21
Screw WPL-WPM0219730
...
22
Plug WPL-M0310606
...
23
Plug Button (almond) WPL-M0310730
...
24
Tray, Butter WPL-10310901
...
25
Assy,egg Bkt W/ Lid WPL-12460016
...
26
Snugger Door WPL-D7806103
...
27
Container Sec. Ser. WPL-D7806403
...
28
Cover, Egg Bucket WPL-D7805909
...
29
Screw WPL-W11245710
...
30
Screw WPL-WPW10348409
...
31
Trim, L WPL-D7739606
...
32
Kit, Screw WPL-R9800670
...
33
Hinge WPL-B5744301
...
34
Shim, Top Hinge, .016 WPL-B8389003
...
35
Bushing WPL-10392601
...
36
Cover Hinge L WPL-D7872105

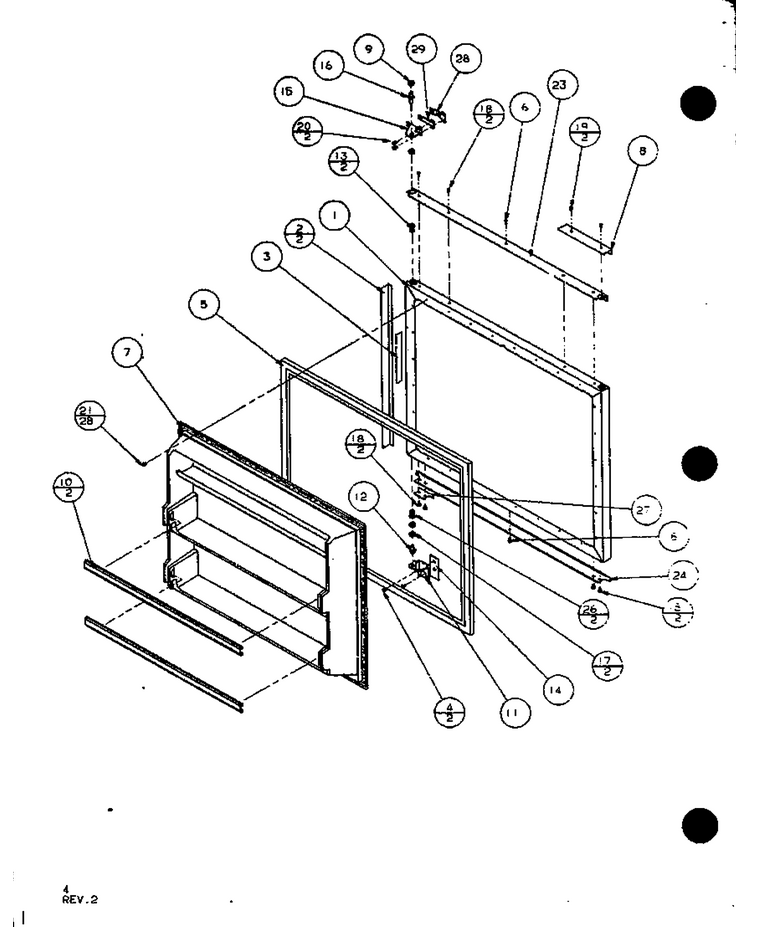

06 - Fz Door

...
...
1
Dr Fr-L-T Bc20h WPL-10288401LQ
...
4
Screw WPL-WP67006715
...
5
Gasket- Do WPL-WPD7605115Q
...
7
Inner Dr Panel, Frz WPL-D7689102
...
8
Assy- Frz WPL-C8944913Q
...
9
Washer WPL-M0274050
...
10
Retainer, Package WPL-C8907219
...
11
Btm Hinge Brkt E WPL-10163607
...
12
Pin, Hinge K WPL-C8814901
...
13
Bushing WPL-10392602
...
14
Kit,btm Hinge Shim WPL-B5744801
...
15
Center Hinge Bracket WPL-C8948601
...
16
Center Pin Hinge WPL-B8373101
...
17
Washer WPL-M0274049
...
18
Screw WPL-WPW10348409
...
19
Screw WPL-WPW10348409
...
20
Screw WPL-WP67006380
...
21
Screw WPL-WPM0219730
...
23
Cap Door WPL-D3958307
...
26
Bushing WPL-10392601
...
27
Stop Door WPL-10266101
...
28
Strip Hinge Top WPL-C8925502
...
29
Shim K WPL-B8351402
