Amana 85161 (BOM: P1117111W W)

Model: 85161 (BOM: P1117111W W)

Save Part Not Listed?
product name

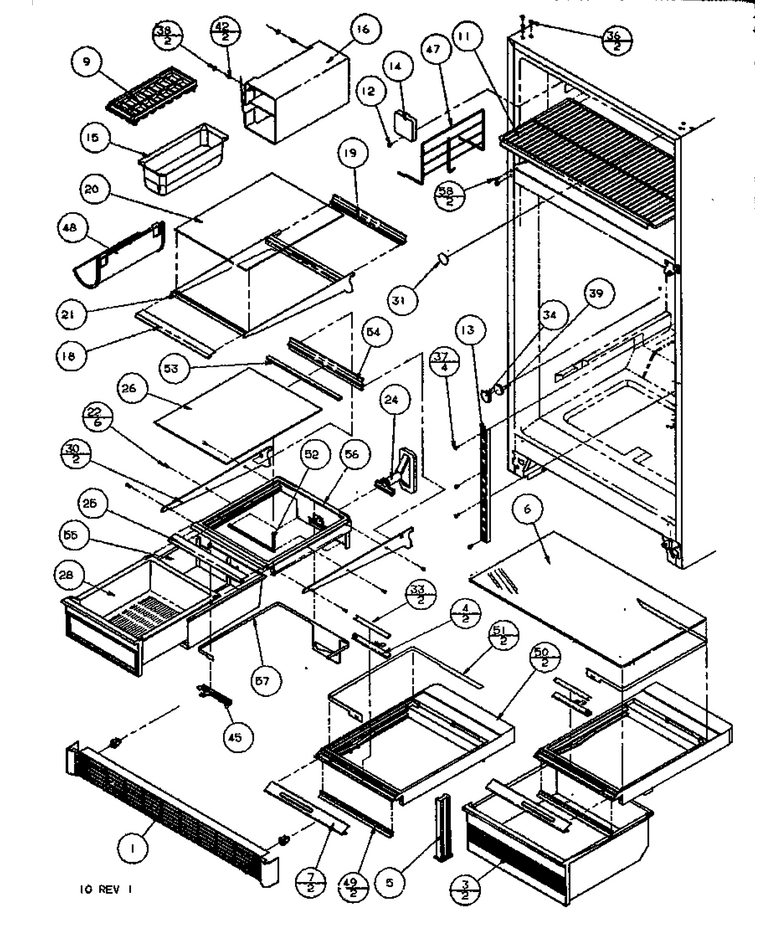

07 - Page 4

...
...
NI
Crisper Frame Assembly, Right WPL-10259613
...
1
Grille-Toe K WPL-D7520512
...
3
Pan Crisper WPL-D7581033
...
4
Slide Crisper Control WPL-10199801
...
5
Post, Crisper Support WPL-10199601
...
6
Glass Cris WPL-10036035
...
7
Trim Fz WPL-D7616675
...
11
Shelf, Frz WPL-D7580706
...
13
Ladder, Center WPL-D7599002
...
15
Bin, Ice WPL-D7620024
...
18
Trim, Shelf WPL-10049908
...
19
Trim, Shelf Rear WPL-C8913603
...
20
Glass Shelf WPL-10036018
...
21
Frame, Cantilever WPL-D7871002
...
22
Screw, No.8-32 X 5/16 Pph (blk) WPL-31750402
...
24
Grommet M.k. WPL-D7859305
...
25
Trim, Shelf WPL-10049913
...
26
Glass M.k. Shelf WPL-10036017
...
28
Pan-Meat WPL-D7698329
...
30
Blank Side Rail WPL-D7862903
...
31
Plug, Button (wht) WPL-M0310305
...
33
Insert Crisper Slide WPL-10199904
...
34
Plug WPL-M0310314
...
36
Plug Button (almond) WPL-M0310730
...
37
Screw-Sm WPL-M0238636
...
39
Insul. Mk Plug WPL-B8362502
...
45
Slide-Mk Control WPL-D7859401
...
47
Divider, Wire WPL-D7806002
...
48
Rack, Bottle WPL-D7547614
...
49
Seal Crisper WPL-D7718402
...
50
Frame-Crisper WPL-10182507
...
51
Band, Crisper Control WPL-10200001
...
52
Gasket WPL-A3030302
...
53
Ext. Rear Glass WPL-10043101
...
54
Trim WPL-C8990403
...
55
Sleeve M.k. WPL-D7698113
...
56
Frame M.k. V WPL-D7853302
...
57
Band M.k. Control WPL-D7859503
...
58
Kit, Screw WPL-R9800670

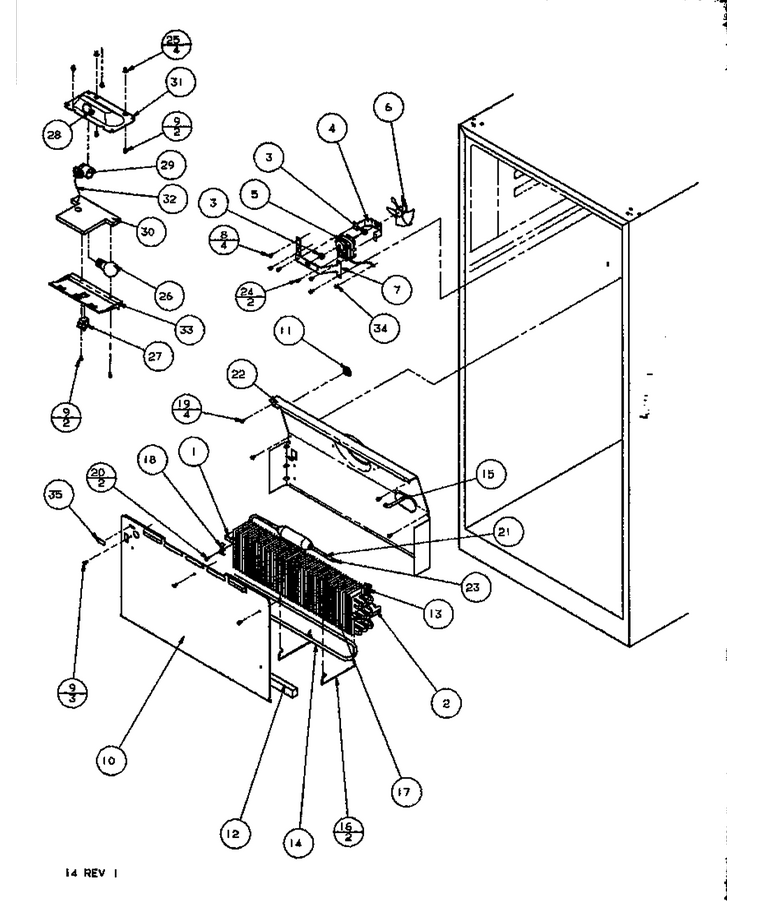

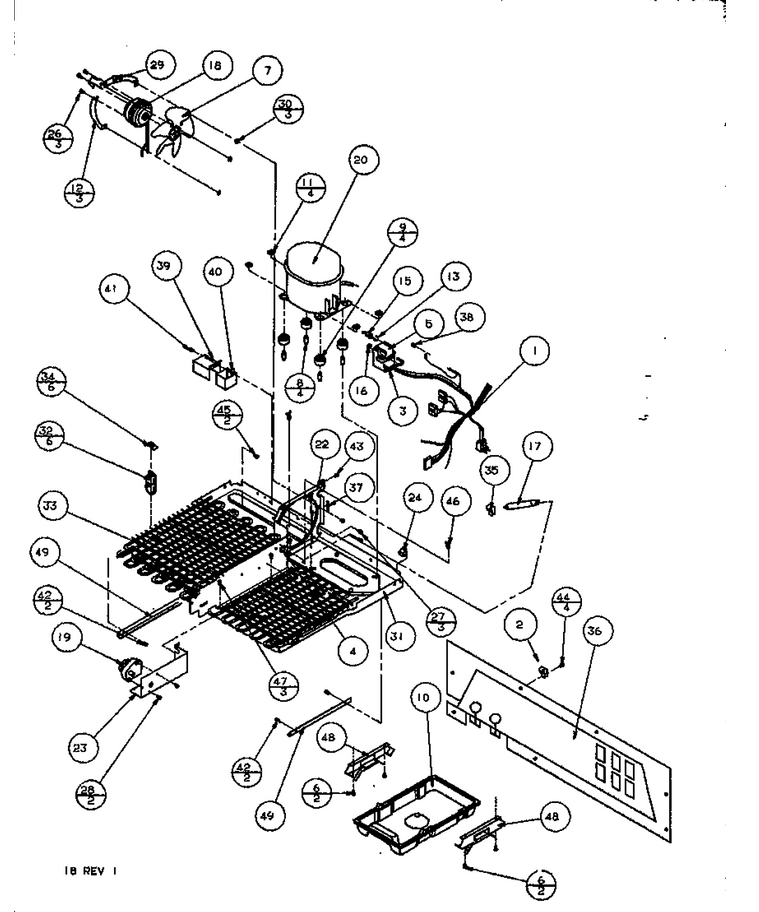

08 - Page 6

...
...
NI
Harness Frz Light WPL-10118701
...
1
Block Evap. Coil WPL-B8322902
...
2
Block Evap Coil WPL-B8361701
...
3
Grommet WPL-WP2264462
...
4
Brkt Evap Fan WPL-C8881301
...
5
Motor-Evap WPL-WPC8891605
...
6
Blade, Evap Fan WPL-C8927801
...
7
Brkt Evap Fan Shroud WPL-D7524501
...
8
Screw WPL-WP489464
...
9
Screw (3) WPL-67006425
...
10
Evap Cover WPL-10201604
...
11
Grommet WPL-A3138301
...
12
Gasket, Bottom WPL-A3189394
...
13
Thermostat WPL-WP10442411
...
14
Heater, Evaporator WPL-D7549705
...
15
Assy, Heat Exch. WPL-D7759002
...
16
Clip WPL-C8952001
...
17
Evaporator Assembly WPL-R0170042
...
18
Clamp WPL-A3253803
...
19
Screw WPL-WP98165
...
20
Screw (3) WPL-67006425
...
21
Wire Tie WPL-M0321204
...
22
Evap Fan Shroud WPL-D7691110
...
23
Tie-Wire WPL-WPW10339879
...
24
Screw WPL-WP12990527
...
25
Grommet, Screw WPL-M0580007
...
26
Light Bulb WPL-8009
...
27
Switch WPL-W11384469
...
28
Clip, Ground WPL-B5733302
...
29
Socket-Light WPL-C8973404
...
30
Barrier WPL-C8976301
...
31
Housing, Light WPL-D7760104
...
32
Jumper Wire WPL-B5781002
...
33
Cover Light WPL-10073101
...
34
Screw WPL-M0253916
...
35
Plug WPL-A3124301

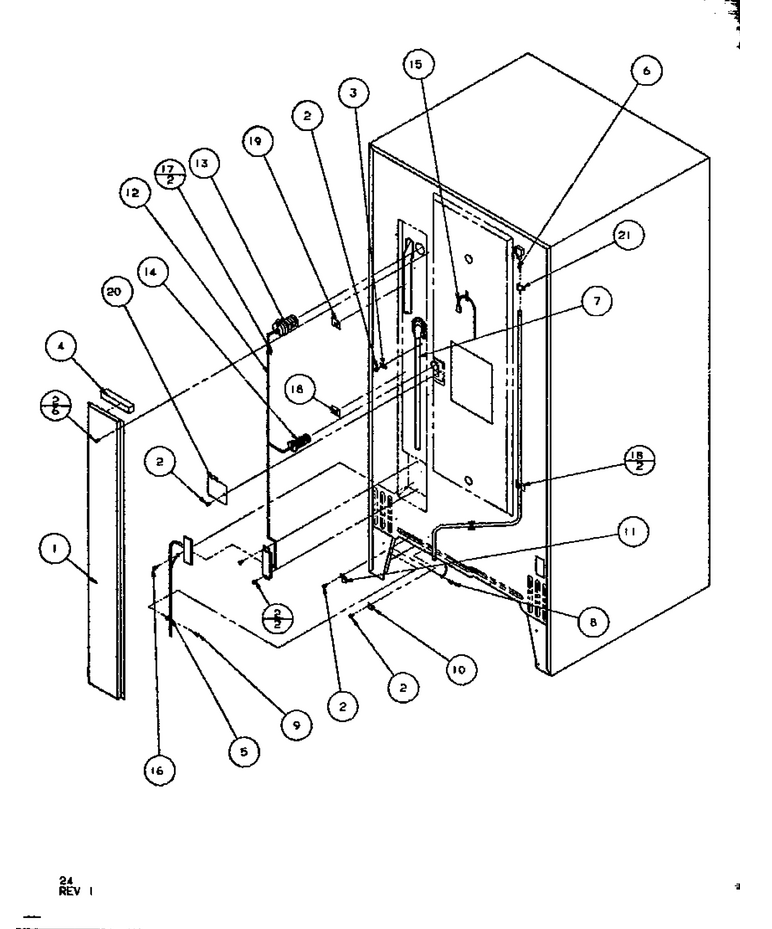

03 - Page 11

...
...
1
Heat Exchanger Cover WPL-D7539415
...
2
Screw WPL-WP489069
...
3
Clamp WPL-B8372901
...
4
Gasket,per Ft WPL-A30303-30
...
5
Clamp WPL-M0103901
...
7
Drain Tube WPL-D7653906
...
8
Screw WPL-M0253916
...
9
Screw WPL-WP90767
...
10
Clamp WPL-M0102325
...
11
Clamp WPL-M0102329
...
12
Harness, Cabinet WPL-10104901
...
13
Grommet WPL-10110601
...
14
Grommet WPL-10110701
...
15
Cord-Power WPL-10916505
...
16
Screw, Spextite WPL-M0232330
...
17
Tie-Wire WPL-WPW10339879
...
18
Clip WPL-WPM0104106
...
19
Clip, Cord WPL-M0104102
...
20
Wire Cover WPL-10110202
...
21
Clip- Spee WPL-WPM0114003

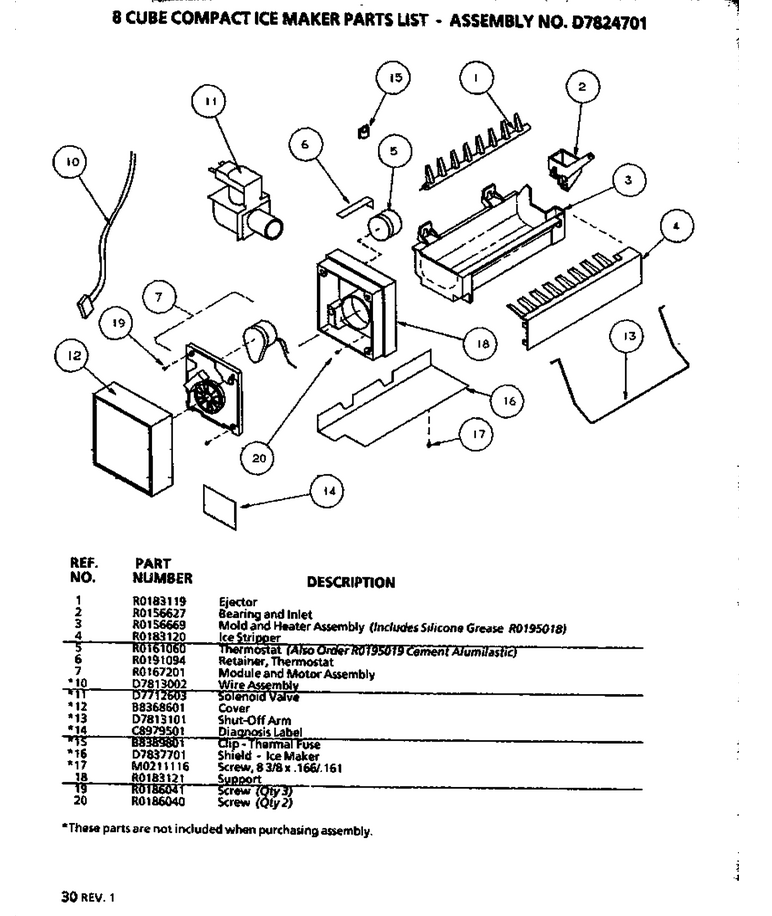

05 - Page 15

...
...
1
Arm-Ejectr WPL-WP627843
...
2
Cup-Fill WPL-WP628356
...
3
Ice Maker Assy. WPL-D7824706Q
...
4
Arm-Stripr WPL-WP2182124
...
5
Bimetl-Def WPL-WP627985
...
6
Clip WPL-WP2315522
...
7
Ice Maker Assy. WPL-D7824706Q
...
10
Harns-Wire WPL-WPD7813010
...
11
Valve-Inlt WPL-WPD7712603
...
12
Cover WPL-B8368601
...
13
Arm-Shut WPL-WP67004028
...
14
Label Diagnostic Im WPL-C8979501
...
15
Clip WPL-WP628379
...
16
Shield, Ice Maker WPL-D7837701
...
17
Screw WPL-WP90767
...
18
Housing-Im WPL-WP2195914
...
19
Screw WPL-R0186041
...
20
Screw WPL-R0186040

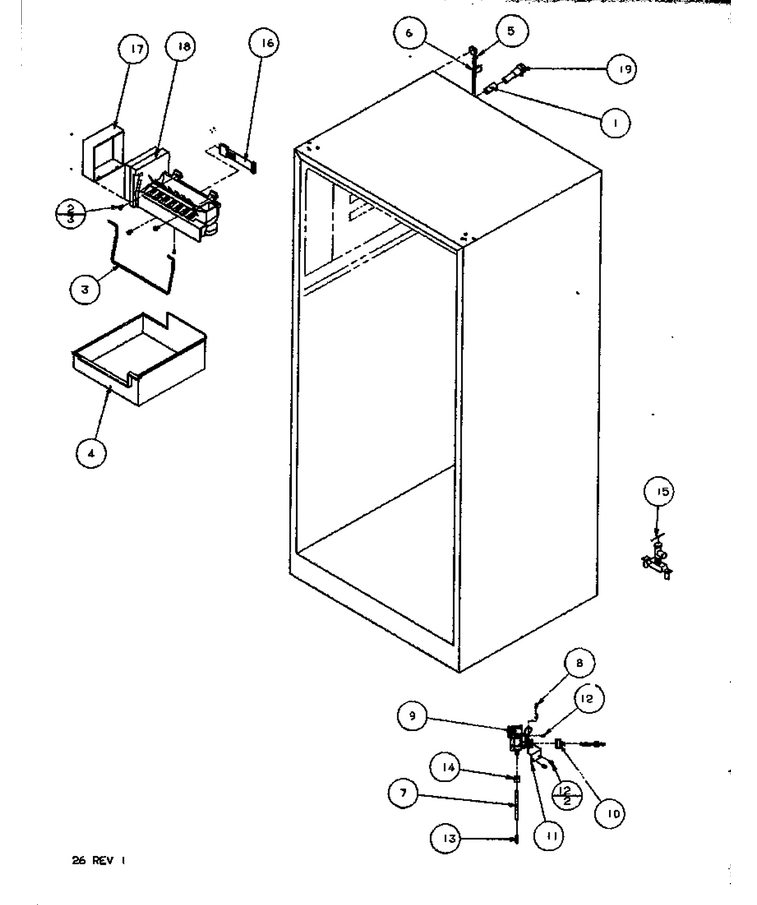

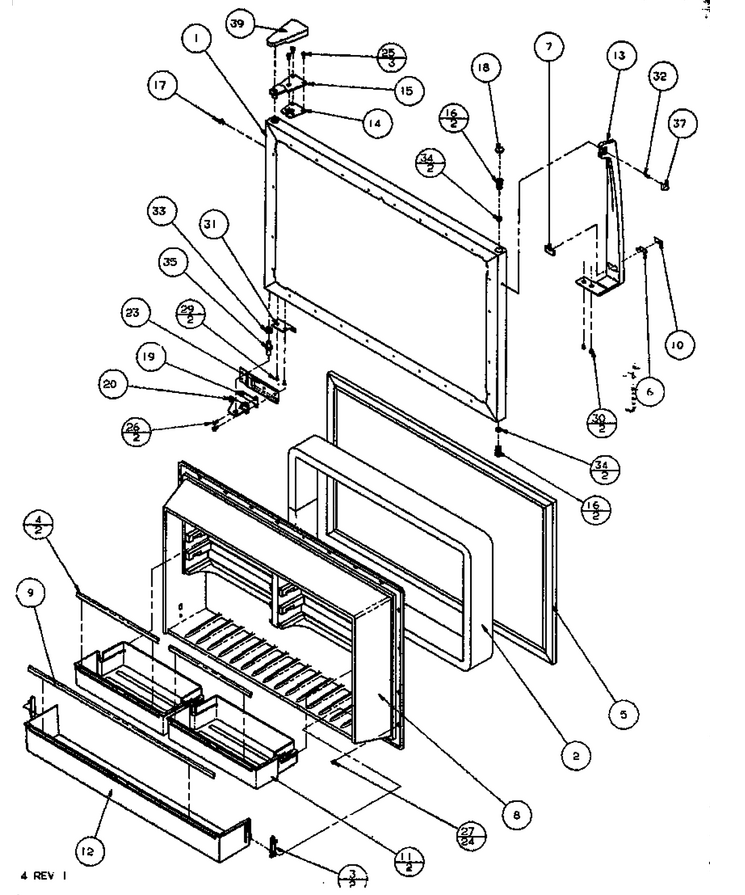

01 - Page 1

...
...
1
Fz Door Foam Assembly, Almond WPL-10263506LQ
...
2
Miscellaneous, Insulation (2 Pieces, 3`` X 24`` X 48``) WPL-876370
...
3
Clip, Retainer WPL-10202001
...
4
Trim Dr. Shelf WPL-10183927
...
5
Gasket WPL-D7605108
...
6
Pad, Nameplate WPL-1084501
...
7
Plug-L Nameplate WPL-10184306
...
8
Liner Fz. Door WPL-10184602
...
9
Trim Door Shelf WPL-10183928
...
10
Nameplate, Handle WPL-10184401
...
11
Shelf Fz Door WPL-10183205
...
12
Retainer Fz Door WPL-10183305
...
13
Handle WPL-WP10253524Q
...
14
Shim, Top Hinge WPL-10200301
...
15
Top Hinge Assy WPL-D7757806
...
16
Bushing, Door (wht) WPL-10263802
...
17
Plug Button (almond) WPL-M0310730
...
18
Plug Button L WPL-10263702
...
19
Shim, Center Hinge WPL-10200505
...
20
Hinge, Center WPL-10200701
...
23
Top Strip WPL-10321201
...
25
Kit, Screw WPL-R9800670
...
26
Screw WPL-WP67006380
...
27
Screw WPL-WPM0219730
...
29
Screw WPL-WPW10348409
...
30
Screw WPL-WPW10348409
...
31
Stop, Door WPL-10200201
...
32
Screw WPL-74009538
...
33
Shim- Non WPL-WPM0274057
...
34
Filter Bushing WPL-10252902
...
35
Pin- Cente WPL-WP67006744
...
37
Cover- Hndl Screw Almond WPL-10201805
...
39
Cover, Hinge L WPL-10182603

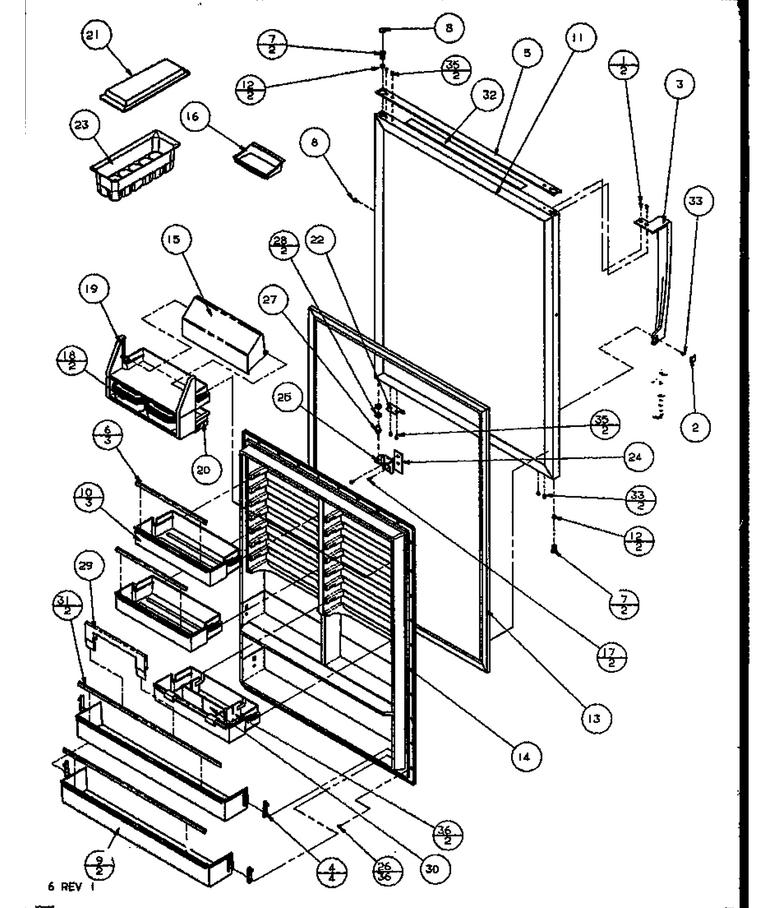

06 - Page 2

...
...
1
Screw WPL-WPW10348409
...
2
Cover- Hndl Screw Almond WPL-10201806
...
3
Handle WPL-WP10253510Q
...
4
Clip, Retainer WPL-10202001
...
5
Cap, Door WPL-1020150
...
6
Trim Dr. Shelf WPL-10183925
...
7
Bushing, Door (wht) WPL-10263802
...
8
Plug Button, Door Side, White WPL-M031070
...
9
Retainer- WPL-WP10183120
...
10
Shelf, Ref Door WPL-10183021
...
11
Ref Dr Fm As L WPL-10263606LQ
...
12
Filter Bushing WPL-10252902
...
13
Gasket WPL-WPD7605109Q
...
14
Liner Ref Door WPL-10184901
...
15
Door-Dairy WPL-10182904
...
16
Tray, Butter WPL-10310901
...
17
Screw WPL-M0294459
...
18
Container Server WPL-10185002
...
19
Shelf, Dairy WPL-10182702
...
20
Shelf, Container Server WPL-M0182802
...
21
Cover, Egg Bucket WPL-D7805909
...
22
Stop Door WPL-10266103
...
23
Assy,egg Bkt W/ Lid WPL-12460016
...
24
Shim WPL-B5744802
...
25
Bottom Hinge WPL-10163606
...
26
Screw WPL-WPM0219730
...
27
Pin Hinge Bottom WPL-67007018
...
28
Shim- Non WPL-WPM0274057
...
29
Retainer-Tall Pkg WPL-10182405
...
30
Divider Door Shelf WPL-10183807
...
31
Trim Dr Shelf WPL-10183926
...
32
Tape Per Roll WPL-M0275163
...
33
Screw WPL-74009538
...
35
Screw WPL-WPW10348409
...
36
Snugger, Door Shelf (shelf Div WPL-10183705

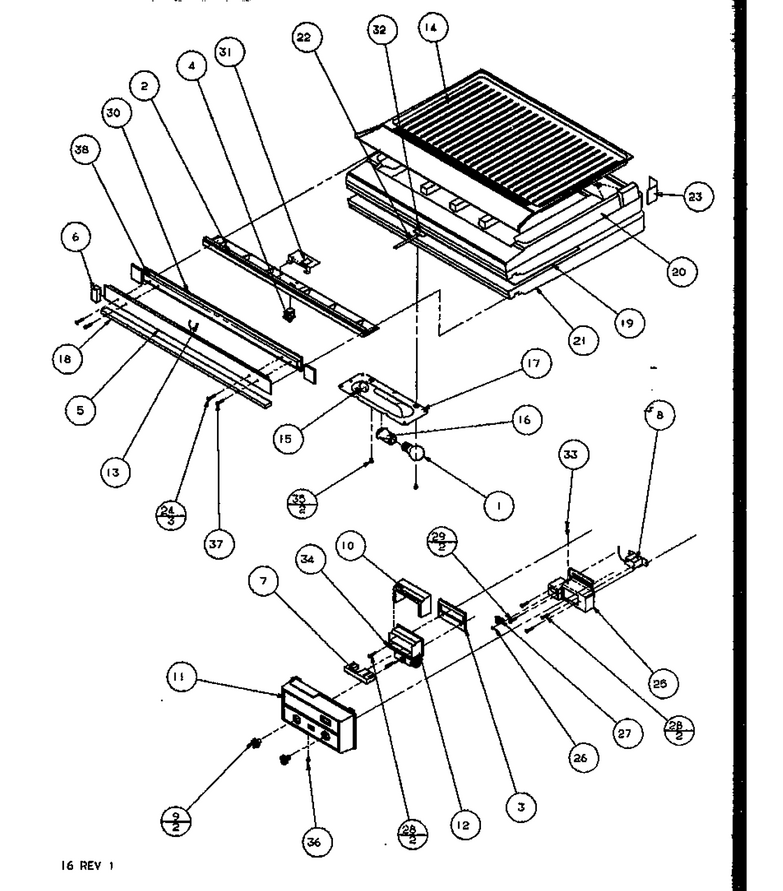

09 - Page 7

...
...
1
Light Bulb WPL-8009
...
2
Breaker, Ref Top V WPL-D7653003
...
3
Gasket, Damper WPL-B8345401
...
4
Switch WPL-W11384469
...
5
L Center Mull Pnt. WPL-C8842516
...
6
Gasket, Sealing WPL-B5759626
...
7
Insert, Control WPL-C8902601
...
8
Cold Control WPL-C8907301
...
9
Knob WPL-D7009802
...
10
Insulation Damper WPL-D7543201
...
11
Cover Control WPL-D7545020
...
12
Damper Control, Warm 26.5f, N WPL-D7547402
...
13
Heater, Mullion WPL-D7654510
...
14
Bottom, Freezer WPL-D7714706
...
15
Clip, Ground WPL-B5733302
...
16
Socket-Light WPL-D7714407
...
17
Shield, Light WPL-R0176034
...
18
Gasket K WPL-B5759628
...
19
Insulation WPL-C8887903
...
20
Drain Bloc WPL-R0156843
...
21
Top Ref. WPL-D7539310
...
22
Harness, Mullion WPL-10105001
...
23
Tape Per Roll A WPL-M0275117
...
24
Kit, Screw WPL-R9800670
...
25
Bracket, Control WPL-D7713802
...
26
Screw WPL-WP489349
...
27
Switch WPL-M0350101
...
28
Screw WPL-WP98165
...
29
Screw WPL-WP90767
...
30
Insulation, Batt Frz. Dr. WPL-B0523593
...
31
Barrier Lt-Sw K WPL-C8932201
...
32
Insulation Per Ft. WPL-B0523584
...
33
Screw WPL-M0253916
...
34
Gasket-Per Ft WPL-A3263906
...
35
Screw WPL-WP12990527
...
36
Screw (3) WPL-67006425
...
37
Screw WPL-WP67006380
...
38
Channel, Mullion WPL-10321101

10 - Page 8

...
...
1
Harness. M.c. WPL-10354601
...
3
Bale Strap WPL-YB8358601
...
4
Felt WPL-A9008301
...
5
Term Cover WPL-C8960801
...
6
Screw WPL-WP489069
...
7
Blade, Fan WPL-B5742603
...
8
Sleeve K WPL-A3072001
...
9
Grommet, Compressor WPL-67003493
...
10
Drain Pan WPL-D7790601
...
11
Clip Comp WPL-B8352901
...
12
Bracket, Cond Motor WPL-C8982101
...
13
Spring, Overload WPL-B8358301
...
15
Overload WPL-C8906203
...
16
Relay WPL-2154436
...
17
Drier WPL-WPB2150504
...
18
Motor-Cond WPL-833697
...
19
Timer-Def WPL-R0168027
...
20
Compressor WPL-W10439652
...
22
Cond. Fan Shrd WPL-D7691002
...
23
Bracket, Timer WPL-D7752701
...
24
Clip WPL-M0110508
...
26
Screw WPL-M0223803
...
27
Screw Shoulder WPL-M0238833
...
28
Screw WPL-M0218118
...
29
Tie-Wire WPL-WPW10339879
...
30
Grommet K WPL-M0500107
...
31
Base Pan - Ptd WPL-D7595411
...
32
Spacer Cond. WPL-B8346301
...
33
Condenser Pntd WPL-D7654301
...
34
Speednut WPL-M0293703
...
35
Clamp-Drier WPL-M0104002
...
36
Mc Back Assy WPL-C8890206
...
37
Gasket WPL-B5759604
...
38
Screw WPL-M0253916
...
39
Shield, Capacitor WPL-10266402
...
40
Capacitor WPL-WPW10662129
...
41
Screw WPL-WP489464
...
42
Screw WPL-M0211530
...
43
Screw WPL-WP489069
...
44
Screw WPL-WP489464
...
45
Screw WPL-M0294459
...
46
Tie, Wire WPL-M0585401
...
47
Screw WPL-WP12990527
...
48
Support Drain Pan WPL-D7790501
...
49
Support M.c. WPL-D7835501

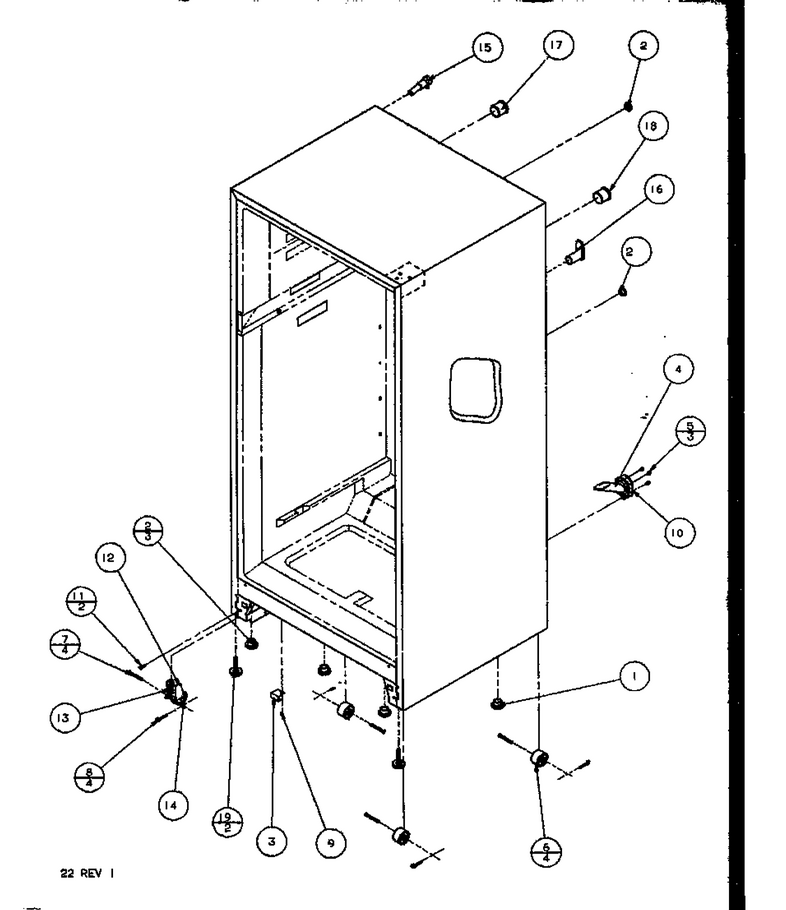

02 - Page 10

...
...
NI
Assy, Roller Bracket WPL-12452602Q
...
1
Plug, Button WPL-A3076901
...
2
Plug, Button (blk) WPL-A3080001
...
3
Holder Tube WPL-10161301
...
4
Elbow Drain Tube WPL-10163201
...
5
Screw WPL-W11233072
...
6
Roller WPL-M0520102
...
7
Pin K WPL-M1200202
...
8
Cotter Pin K WPL-M1200004
...
9
Screw WPL-WP489069
...
10
Gasket WPL-A3132301
...
11
Screw, Mach WPL-M0206313
...
12
Assy, Roller Bracket WPL-12452602Q
...
13
Nut, Speed WPL-M0286708
...
14
Rivet WPL-M1205302
...
15
Fill Tube WPL-R0182123
...
16
Tunnel-Heat Ex WPL-B5749501
...
17
Tunnel, Wire WPL-10110401
...
18
Tunnel Wire WPL-10110502
...
19
Feet-Lvlng WPL-W11177593

04 - Page 12

...
...
NI
Icemaker Instruction WPL-10414701
...
1
Tube WPL-A3127404
...
2
Screw WPL-WP98165
...
3
Arm-Shut WPL-WP67004028
...
4
Pan, Ice WPL-D7621119
...
5
Clip WPL-WPM0104106
...
6
Clip- Spee WPL-WPM0114003
...
7
Tube WPL-WPB5705307
...
8
Clip, Water Valve WPL-10798001
...
9
Valve-Inlt WPL-WPD7712603
...
10
Coupling WPL-10244901
...
11
Bracket WPL-WPD7701602
...
12
Screw, 8-32 X 3/8 WPL-681390
...
13
Spring WPL-WPA1055105
...
14
Nut WPL-WP627018
...
15
Saddle Valve WPL-A3034801
...
16
Harns-Wire WPL-WPD7813010
...
17
Cover-Frnt WPL-WPW10289690
...
18
Ice Maker Assy. WPL-D7824706Q
...
19
Fill Tube WPL-R0182123
