Amana 817.000

Model: 817.000

Save Part Not Listed?
product name

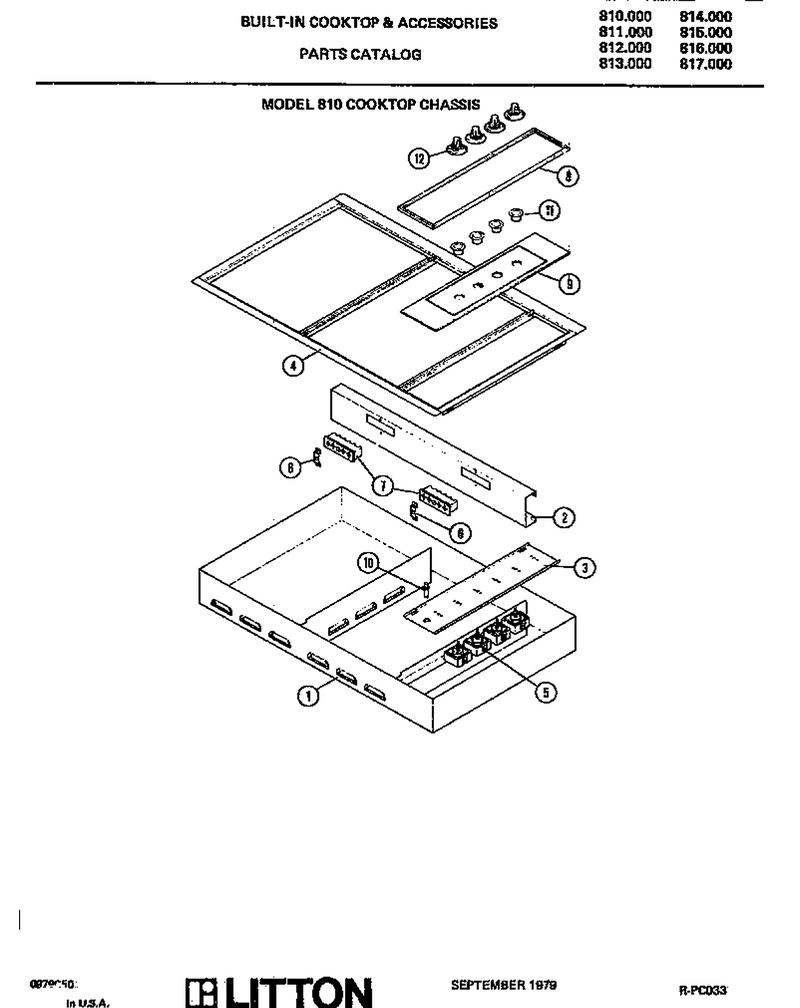

01 - Cooktop Chassis

...
...
Model 812 Has The Large Surface Element Located In The Front Of The Cooktop. Model 813 Has The Large Element Located In The Back WPL-NOTE:
...
1
Not Available WPL-M80D75
...
2
Pnl-Recpt WPL-M52D178
...
3
No.8 B X 1/4`` Screw (25) WPL-M1D812
...
4
No.8 B X 1/4`` Screw (25) WPL-M1D812
...
5
Switch Nut (1) WPL-M1D810
...
6
Not Available WPL-M2D416
...
7
Receptacle, Module WPL-M5D256
...
8
Glass Trim WPL-M7D396
...
9
Control Panel WPL-M7D397
...
10
Ind Light WPL-M9D90
...
11
Switch Cup WPL-M2D415
...
12
Knob M6d95 WPL-M6D95

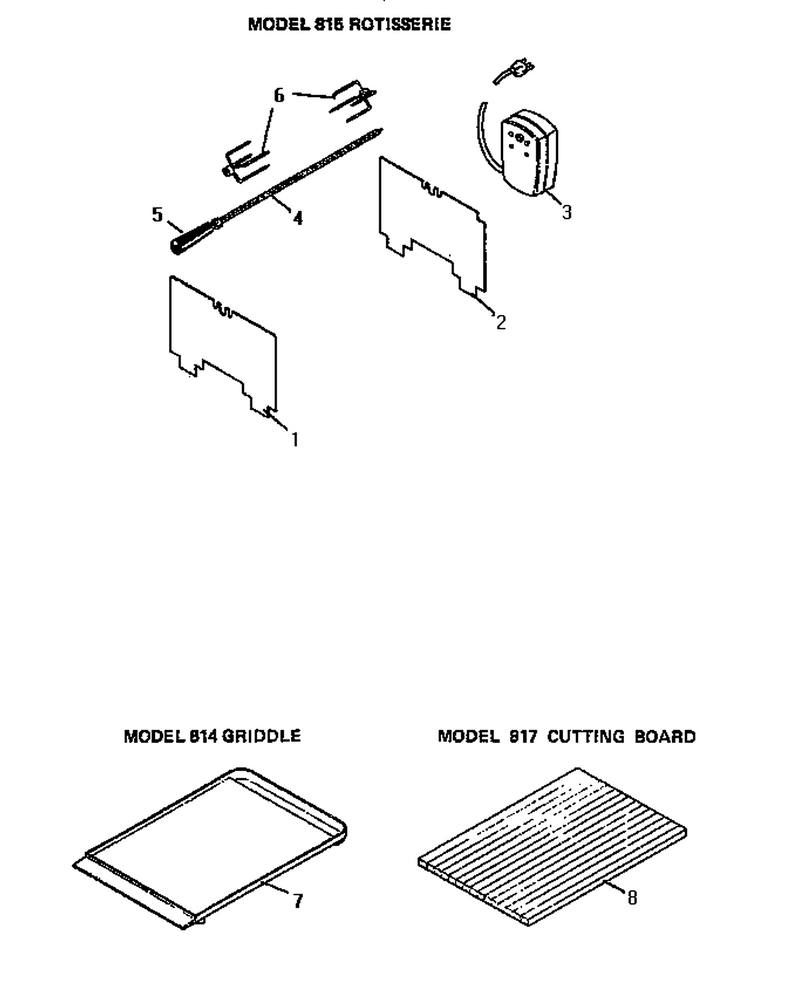

02 - Rotisserie, Griddle & Cutting Board

...
...
8
Not Available WPL-M90D22
