Amana 813.000

Model: 813.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

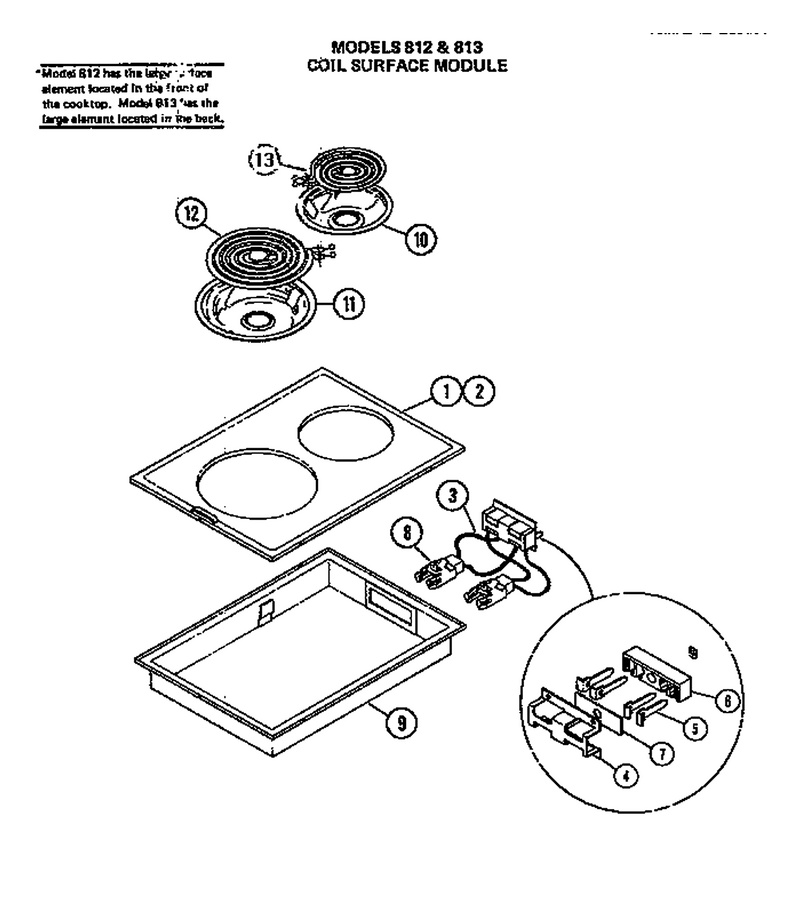

01 - Coil Surface Module

...
...
1
Tp Sm Ft Elemt WPL-M61D59
...
2
Top Lg Ft Elemt WPL-M61D58
...
3
Nla (See D-Pb17) WPL-M27D228
...
4
Brkt, Plug Mtg WPL-M2D417
...
5
Terminal Plug WPL-M5D258
...
6
Plug Block WPL-M5D257
...
7
Fiber Insul. WPL-M2D448
...
8
Nut, Switch Mtg. WPL-M1D820
...
9
Chassis-Module WPL-M52D179
...
10
Burner Bow WPL-51294P01
...
11
Bowl-Drip WPL-WPW10196405
...
12
Element Lg 240v WPL-M61D36
...
13
Element Sm 240v WPL-M61D35

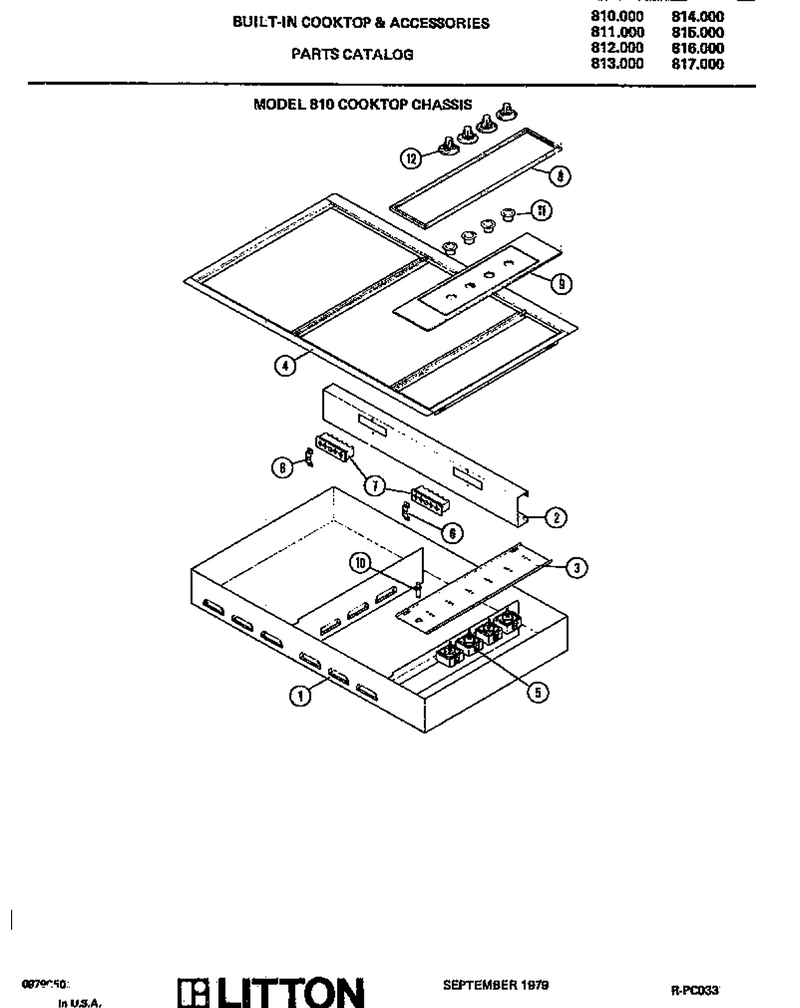

02 - Cooktop Chassis

...
...
Model 812 Has The Large Surface Element Located In The Front Of The Cooktop. Model 813 Has The Large Element Located In The Back WPL-NOTE:
...
1
Not Available WPL-M80D75
...
2
Pnl-Recpt WPL-M52D178
...
3
No.8 B X 1/4`` Screw (25) WPL-M1D812
...
4
No.8 B X 1/4`` Screw (25) WPL-M1D812
...
5
Switch Nut (1) WPL-M1D810
...
6
Not Available WPL-M2D416
...
7
Receptacle, Module WPL-M5D256
...
8
Glass Trim WPL-M7D396
...
9
Control Panel WPL-M7D397
...
10
Ind Light WPL-M9D90
...
11
Switch Cup WPL-M2D415
...
12
Knob M6d95 WPL-M6D95
