Amana 8094.A05

Model: 8094.A05

Save Part Not Listed?
product name

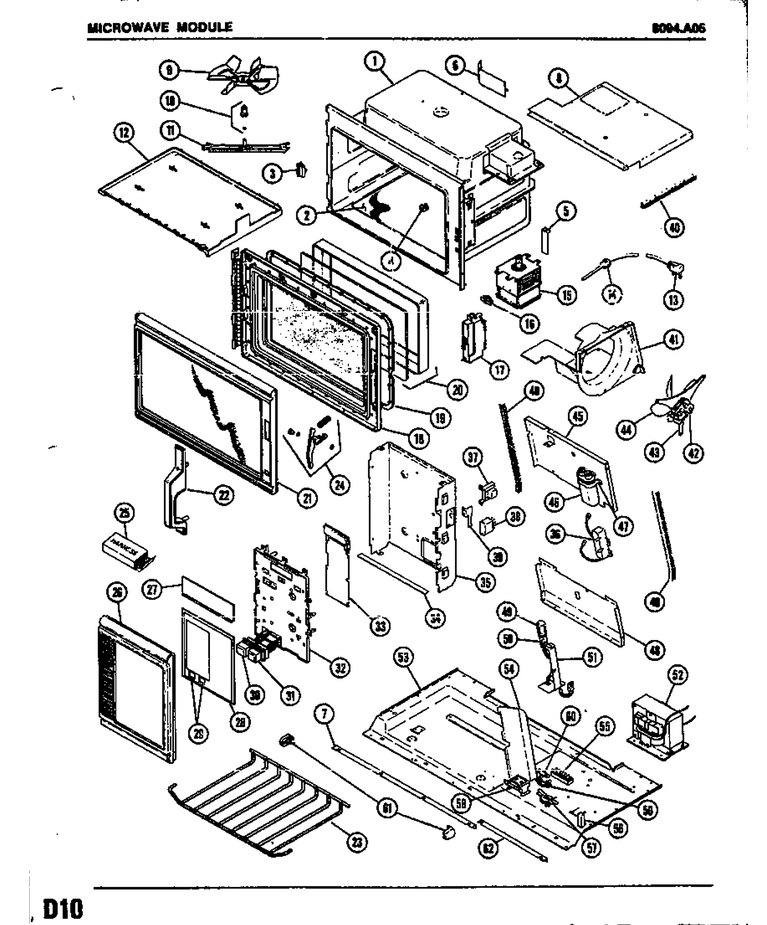

01 - Page 1

...
...
1
Rivet, Pop WPL-A4539629
...
2
Adhesive WPL-W10841140
...
3
Fuse- Ther WPL-59001951
...
4
Support Rack WPL-B8371001
...
5
Rivet, Pop WPL-A4539629
...
6
Baffle Waveguide WPL-M8D281
...
7
Screw WPL-WP90767
...
8
Retainer Clip, Duct Mounting WPL-M2D645
...
9
Stirrer Blade Kit WPL-M35D44
...
10
Ball WPL-38321P01
...
11
Support-Stir WPL-M20D236
...
12
Stirrer Co WPL-3010007901
...
13
Flat Washer (1) WPL-M1D56
...
14
Strain Relief WPL-8536977
...
15
Gasket-Rf WPL-M2D296
...
16
Therm Prot WPL-M4D104
...
17
Screw WPL-WPW10001160
...
18
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
19
Gasket-R.f. WPL-38874P01
...
20
Cap Inner Door Assy Kit WPL-M55D23
...
21
No.8 Ab X 3/8`` Screw WPL-M1D900
...
22
Handle Asy WPL-M11D79
...
23
Wire Rack WPL-42110P01
...
24
Kit, Latch Hook WPL-M2D739
...
25
Wire Pkg Assy WPL-M27D369
...
26
No.8 Ab X 3/8`` Screw WPL-M1D900
...
27
Display Window WPL-M2D720
...
28
Mem Swi Asy 8094.004 WPL-M7D782
...
29
Bezel Button WPL-M2D641
...
30
Switch-Fan Pushbutton WPL-M14D262
...
31
Switch, Light WPL-M14D264
...
32
Ia Clip WPL-43274P01
...
33
Screw (25) WPL-M1D590
...
34
Not Available WPL-M8D279
...
35
Bushing WPL-M2D639
...
36
H.v. Relay WPL-M16D103
...
37
Screw WPL-WP90767
...
38
Screw WPL-WP90767
...
39
Screw WPL-WP90767
...
40
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
41
Retainer Clip, Duct Mounting WPL-M2D645
...
42
Motor Blower WPL-M12D86
...
43
Blower Brkt Mtg WPL-M20D235
...
44
Fan Blade WPL-M35D15
...
45
Cover, Rear Top WPL-M52D214
...
46
H V Cap .91 +-6% WPL-M10D100
...
47
Capacitor Brkt WPL-M20D60
...
48
Screw WPL-WP90767
...
49
M9d107 Lamp WPL-2031415101
...
50
Rivet, Pop WPL-A4539629
...
51
Screw WPL-WP90767
...
52
No.10 T X 3/8`` Screw WPL-M1D479
...
53
Screw WPL-WP90767
...
54
Rivet, Pop WPL-A4539629
...
55
Screw WPL-WP90767
...
56
Kit, Diode WPL-M3D71
...
57
Screw WPL-WP90767
...
58
Screw WPL-WP90767
...
59
Ia Screw WPL-M1D329
...
60
Fuse 20 A WPL-WPM0805101
...
61
Fluorescent Lamp Holder WPL-M5D311
...
62
Screw WPL-WP90767

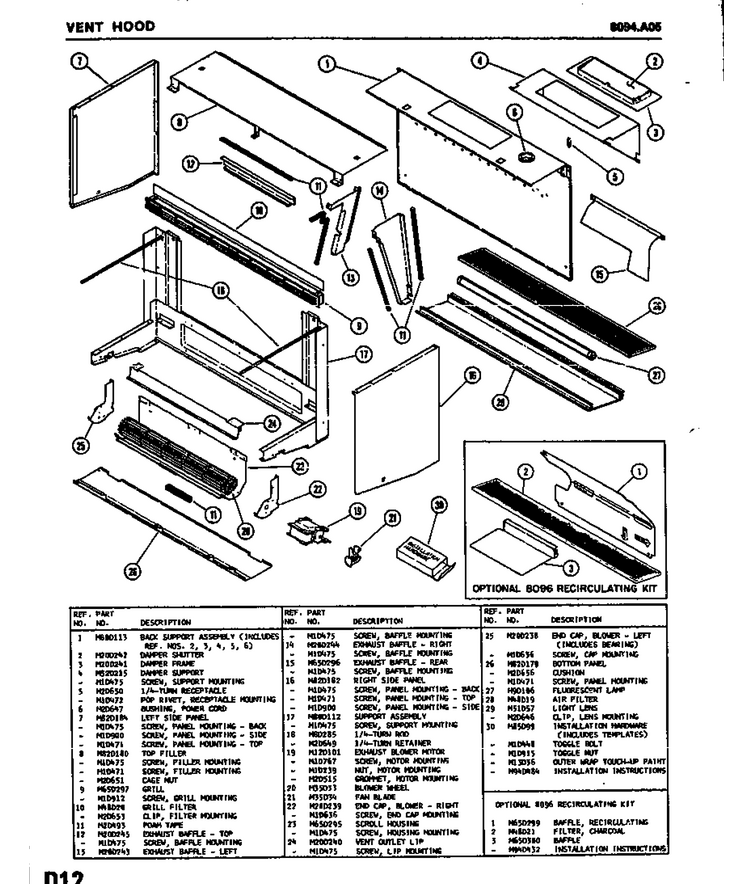

02 - Vent Hood

...
...
1
Baffle WPL-M65D299
...
2
Shutter WPL-M20D242
...
3
Instl Instr WPL-M94D432
...
4
Screw WPL-WP90767
...
5
Rivet (25) WPL-M1D472
...
6
Bushing, Wire WPL-M2D647
...
7
Screw WPL-WP90767
...
8
Screw WPL-WP90767
...
9
Grille WPL-M65D297
...
10
Clip Filter WPL-M2D653
...
11
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
12
Exhaust Baffle - Top WPL-M20245
...
13
Screw WPL-WP90767
...
14
Exh Baffle Right Kit WPL-M20D244
...
15
Screw WPL-WP90767
...
16
Screw WPL-WP90767
...
17
Screw WPL-WP90767
...
18
1/4 Turn Clip WPL-M2D649
...
19
Screw (25) WPL-M1D767
...
20
Blower Wheel WPL-M35D33
...
21
Fan Blade WPL-M35D34
...
22
No.8-Screw WPL-M1D636
...
23
Screw WPL-WP90767
...
24
Screw WPL-WP90767
...
25
No.8-Screw WPL-M1D636
...
26
Cushion-Flr WPL-M2D656
...
27
Light Bulb WPL-Y0064116
...
28
Filter WPL-42149P01
...
29
Clip, Lens Mounting WPL-M2D646
...
30
Toggle Nut (5) WPL-42385P01
