Amana 8072.000

Model: 8072.000

Save Part Not Listed?
product name

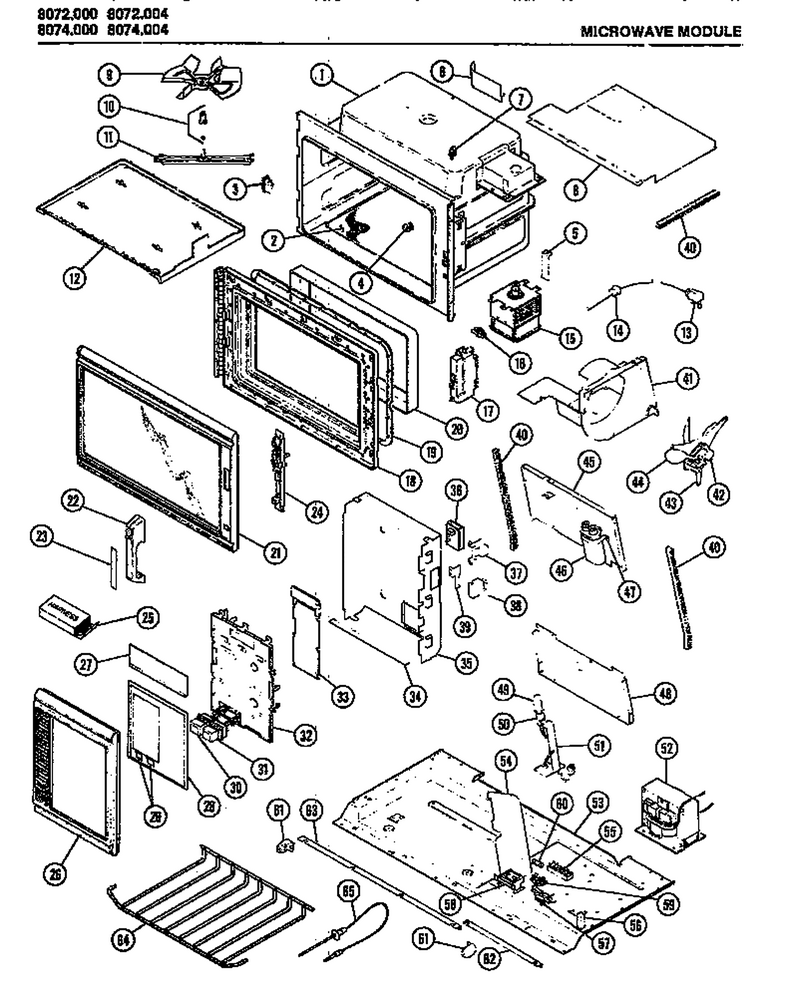

01 - Page 1

...
...
NI
Paint-Off- WPL-R0197018
...
1
Trim Strip Kit WPL-M7D701
...
2
Shelf W/sealant Kit WPL-M50D42
...
3
Fuse- Ther WPL-59001951
...
4
Support Rack WPL-B8371001
...
5
Rivet, Pop WPL-A4539629
...
6
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
7
Probe Jack WPL-M14D246
...
8
Retainer Clip, Duct Mounting WPL-M2D645
...
9
Stirrer Blade Kit WPL-M35D44
...
10
Insert Stirrer Kit WPL-M2D571
...
11
Support-Stir WPL-M20D236
...
12
Stirrer Co WPL-3010007901
...
13
No.8 Spring Lockwasher (25) WPL-M1D57
...
14
Strain Relief WPL-8536977
...
15
Gasket-Rf WPL-M2D296
...
16
Screw Thrm WPL-M1D666
...
17
U-Clip WPL-M2D575
...
18
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
19
Gasket-R.f. WPL-38874P01
...
20
Cap Inner Door Assy Kit WPL-M55D17
...
21
No.8 Ab X 3/8`` Screw WPL-M1D900
...
22
Door Handle Kit WPL-M11D62
...
23
Insert Kit WPL-M7D588
...
24
Bkg Plate Assy. WPL-M20D218
...
25
Harness Pkg- WPL-M27D334
...
26
Screw (25) WPL-M1D902
...
27
Display Window WPL-M2D763
...
28
Assy, Mem Sw 8072 WPL-M7D667
...
29
Bezel Button WPL-M2D640
...
30
Switch-Fan Pushbutton WPL-M14D263
...
31
Light Sw WPL-M14D265
...
32
Component Holder WPL-M7D664
...
33
Net-Assy,ckt Bd WPL-M32R32
...
34
Not Available WPL-M8D279
...
35
Bushing WPL-M2D639
...
36
Screw (25) WPL-M1D590
...
37
Screw WPL-WP90767
...
38
Screw WPL-WP90767
...
39
Screw WPL-WP90767
...
40
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
41
Duct Assembly, Magnetron WPL-M65D294
...
42
Nut K WPL-M0282005
...
43
Blower Brkt Mtg WPL-M20D235
...
44
Fan Blade WPL-M35D15
...
45
Cover, Rear Top WPL-M52D214
...
46
H V Cap .91 +-6% WPL-M10D100
...
47
Screw WPL-WP90767
...
48
Screw WPL-WP90767
...
49
M9d107 Lamp WPL-2031415101
...
50
Rivet, Pop WPL-A4539629
...
51
Screw WPL-WP90767
...
52
No.10 T X 3/8`` Screw WPL-M1D479
...
53
Rivet, Pop WPL-A4539629
...
54
Rivet, Pop WPL-A4539629
...
55
Terminal Block WPL-M5D277
...
56
Nut WPL-WP488130
...
57
Thermal Switch WPL-M4D105
...
58
Screw WPL-WP90767
...
59
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
60
Fuse 20 A WPL-WPM0805101
...
61
Fluorescent Lamp Holder WPL-M5D311
...
62
Screw WPL-WP90767
...
63
Screw WPL-WP90767
...
64
Wire Rack WPL-42110P01
...
65
Probe-Temp WPL-45584P01

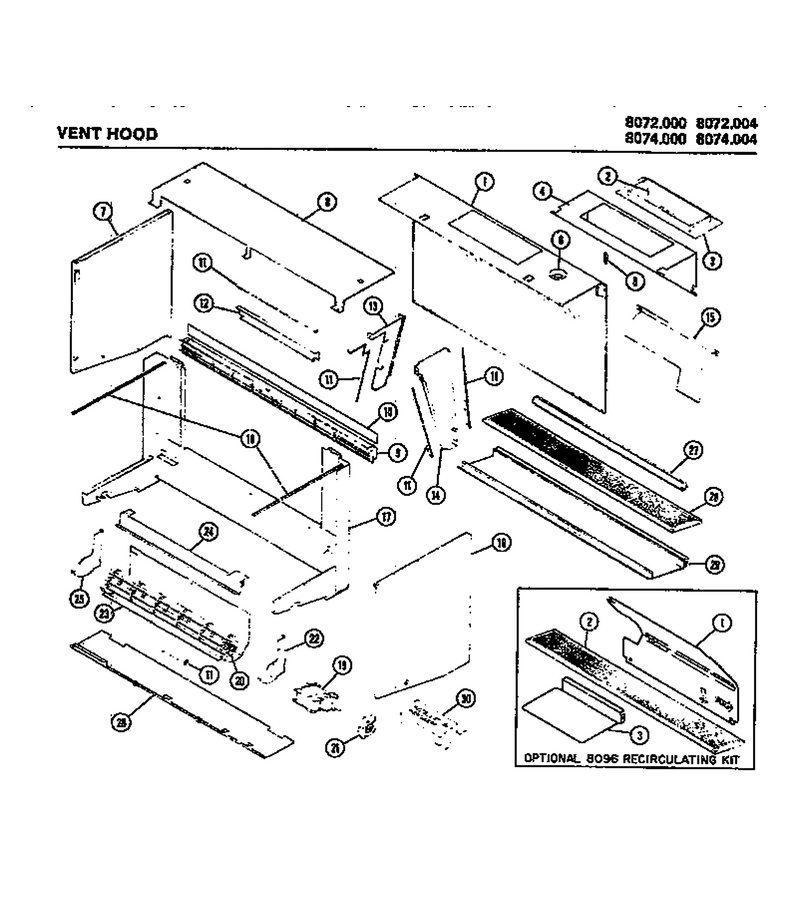

02 - Vent Hood

...
...
1
Bck Sprt Asy M80d113 WPL-42157P01
...
2
Filter- Ch WPL-42228P01
...
3
Damper Frame Kit WPL-M20D367
...
4
Damper Support WPL-M52D215
...
5
1/4 Turn Recept. WPL-M2D650
...
6
Bushing, Wire WPL-M2D647
...
7
Screw WPL-WPW10348409
...
8
Screw WPL-WP90767
...
9
Grill WPL-M65D298
...
10
Filter, Air 15 X 24 X 1/4 WPL-R0139413
...
11
Foam Tape WPL-M20493
...
12
Exh Baffle Cover Kit WPL-M20D245
...
13
Screw WPL-WP90767
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
Screw WPL-WPW10348409
...
17
Screw WPL-WP90767
...
18
1/4 Turn Rod WPL-M8D285
...
19
Grommet WPL-M2D515
...
20
Blower Wheel WPL-M35D33
...
21
Fan Blade WPL-M35D34
...
22
End-Cap Blwr WPL-42174P01
...
23
Scroll Housing WPL-M65D295
...
24
Vent Outlet Lip WPL-M20D240
...
25
End Cap - Left WPL-M20D238
...
26
Cushion-Flr WPL-M2D656
...
27
Light Bulb WPL-Y0064116
...
28
Filter WPL-42149P01
...
29
Clip, Lens Mounting WPL-M2D646
...
30
Installation Hardware WPL-M85D89
