Amana 8022.004

Model: 8022.004

Save Part Not Listed?
product name

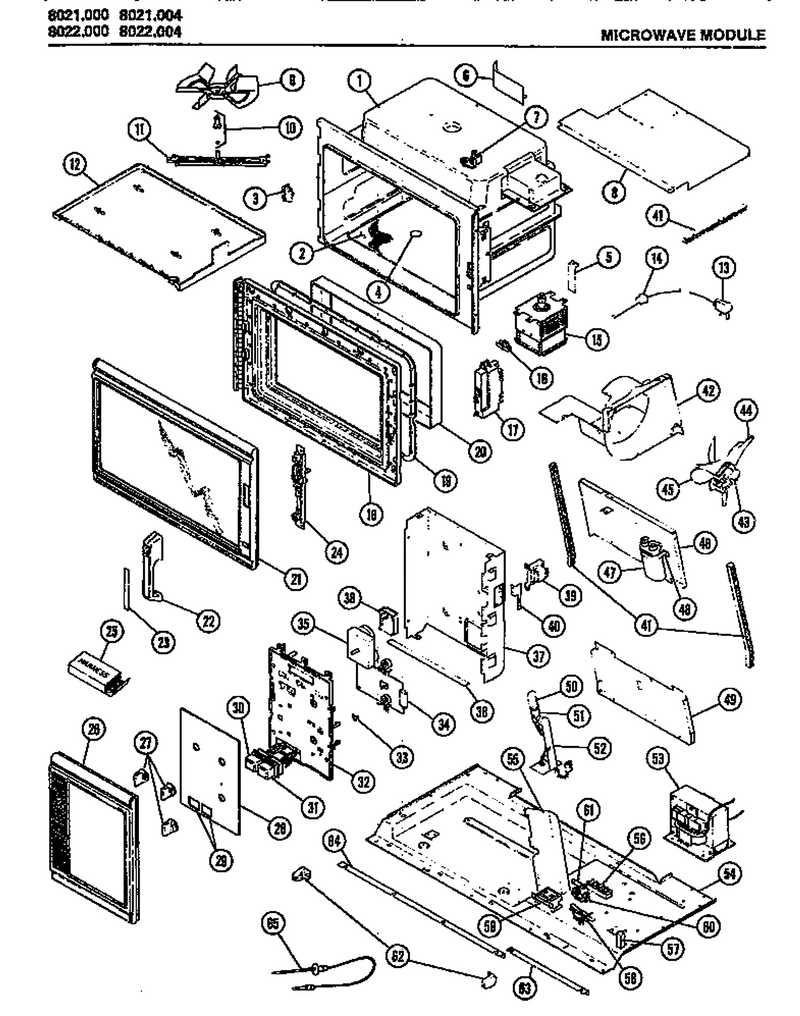

01 - Page 1

...
...
1
Rivet, Pop WPL-A4539629
...
2
Shelf W/sealant Kit WPL-M50D42
...
3
Washer (25) WPL-M1D914
...
4
Rack Support Set WPL-M2D601
...
5
Air Deflector WPL-M8D286
...
6
Baffle Waveguide WPL-M8D281
...
7
Probe Jack WPL-M14D247
...
8
Comp Cover Top WPL-M52D212
...
9
Stirrer Blade Kit WPL-M35D44
...
10
Insert Stirrer Kit WPL-M2D571
...
11
Support-Stir WPL-M20D236
...
12
Stirrer Co WPL-3010007901
...
13
Ia Screw8-32 (25) WPL-M1D368
...
14
Strain Relief WPL-8536977
...
15
Gasket-Rf WPL-M2D296
...
16
Therm Prot WPL-M4D104
...
17
Switch, Interlock WPL-M14D253
...
18
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
19
Gasket-R.f. WPL-38874P01
...
20
Cap Inner Door Assy Kit WPL-M55D17
...
21
Clip-Dr M2d610 (25) WPL-38886P01
...
22
No.10 Flat Hd Machine Screw M1d9 WPL-M1D901
...
23
Insert Kit WPL-M7D588
...
24
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
25
Ground Lead Kit WPL-M5D351
...
26
No.8 Ab X 3/8`` Screw WPL-M1D900
...
27
Knobx WPL-42180P01
...
32
Ia Clip WPL-43274P01
...
33
Terminal Ground WPL-M5D360
...
34
Controller WPL-M22D55
...
35
Timer WPL-M30D76
...
36
Not Available WPL-M8D279
...
37
Hsg Cont Panel WPL-M7D663
...
38
Triac WPL-M16D93
...
39
Screw WPL-WP90767
...
40
Screw WPL-WP90767
...
41
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
42
Duct Assembly, Magnetron WPL-M65D294
...
43
Nut K WPL-M0282005
...
44
Screw (25) WPL-M1D903
...
45
Fan Blade WPL-M35D15
...
46
Cover, Rear Top WPL-M52D214
...
47
H V Cap .91 +-6% WPL-M10D100
...
48
Screw WPL-WP90767
...
49
Screw WPL-WP90767
...
50
M9d107 Lamp WPL-2031415101
...
51
Rivet, Pop WPL-A4539629
...
52
Screw WPL-WP90767
...
53
Kit, Transformer WPL-M60D181
...
54
Rivet, Pop WPL-A4539629
...
55
Rivet, Pop WPL-A4539629
...
56
Screw WPL-WP90767
...
57
Nut WPL-WP488130
...
58
Screw WPL-WP90767
...
59
Screw WPL-WP90767
...
60
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
61
Fuse 20 A WPL-WPM0805101
...
62
Fluorescent Lamp Holder WPL-M5D311
...
63
Screw WPL-WP90767
...
64
Not Available WPL-M8D283
...
65
Paint-Off- WPL-R0197018

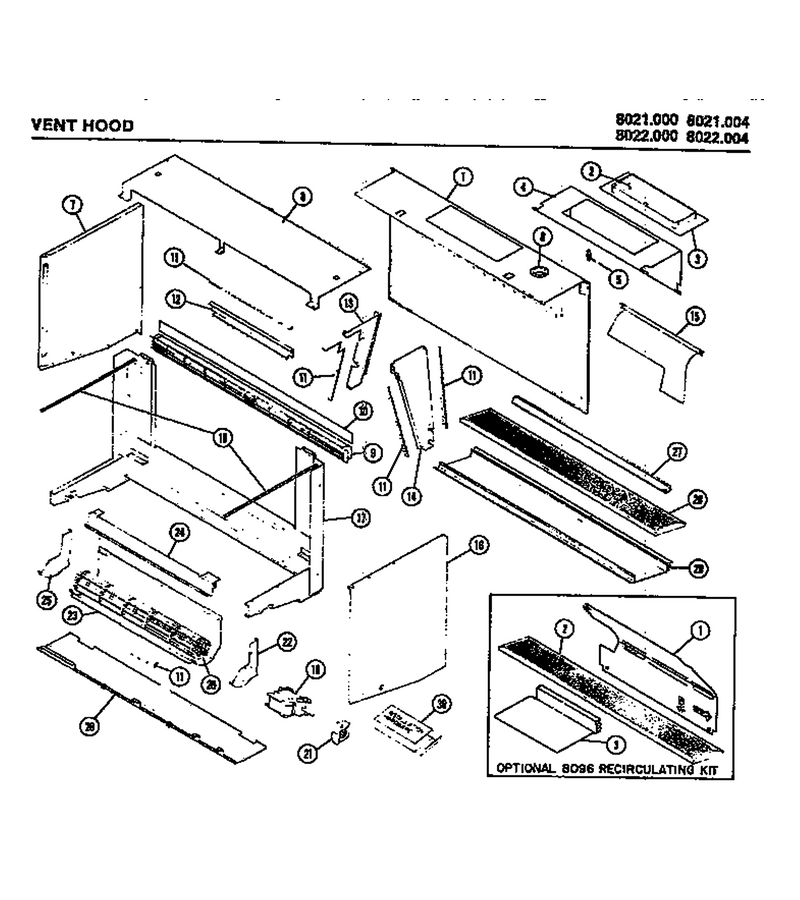

02 - Vent Hood

...
...
NI
Instl Instr WPL-M94D432
...
1
Bck Sprt Asy M80d113 WPL-42157P01
...
2
Shutter WPL-M20D242
...
3
Baffle Recir M65d300 WPL-M65D300
...
4
Screw WPL-WP90767
...
5
1/4 Turn Recept. WPL-M2D650
...
6
Bushing, Wire WPL-M2D647
...
7
Screw WPL-WPW10348409
...
8
Screw WPL-WPW10348409
...
9
Screw WPL-WP3-24004-109
...
10
Clip Filter WPL-M2D653
...
11
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
12
Exh Baffle Cover Kit WPL-M20D245
...
13
Screw WPL-WP90767
...
14
Exh Baffle Right Kit WPL-M20D244
...
15
Screw WPL-WP90767
...
16
Screw WPL-WP90767
...
17
Screw WPL-WP90767
...
18
1/4 Turn Clip WPL-M2D649
...
19
Exhaust Motor Kit WPL-M12D87
...
20
Blower Wheel WPL-M35D33
...
21
Fan Blade WPL-M35D34
...
22
No.8-Screw WPL-M1D636
...
23
Screw WPL-WP90767
...
24
Screw WPL-WP90767
...
25
No.8-Screw WPL-M1D636
...
26
Cushion-Flr WPL-M2D656
...
27
Light Bulb WPL-Y0064116
...
28
Filter WPL-42149P01
...
29
Light Lens Kit WPL-M51D57
...
30
Installation Hardware WPL-M85D89
