Amana 8022.000

Model: 8022.000

Save Part Not Listed?
product name

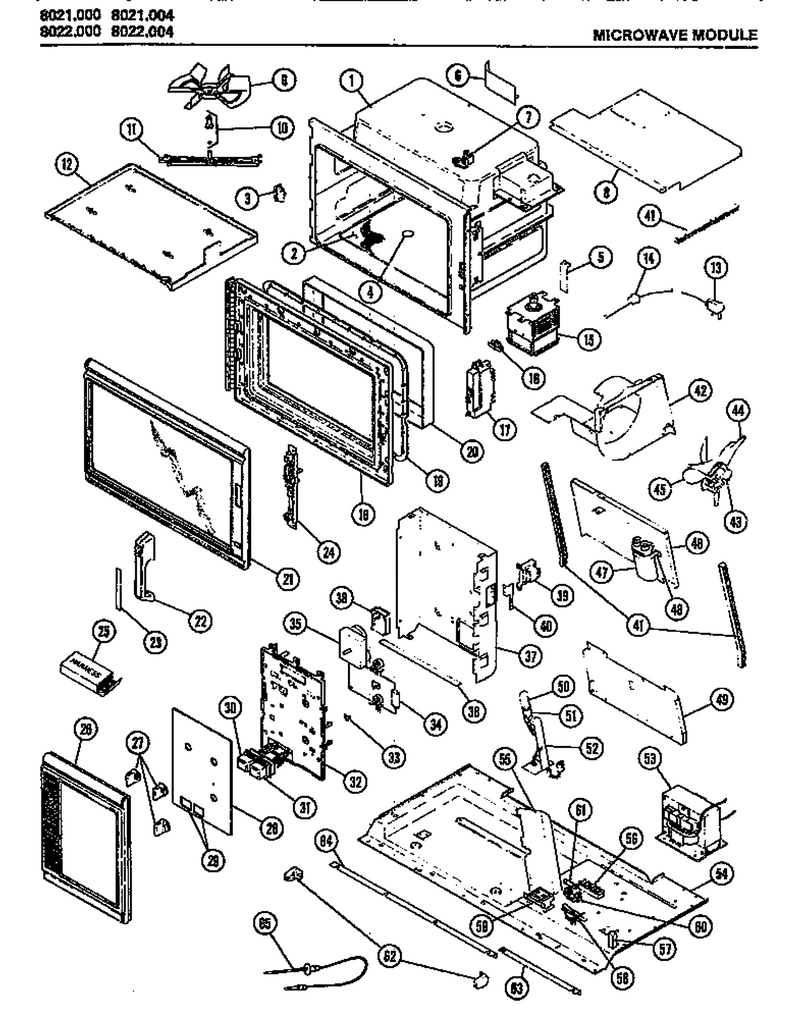

01 - Page 1

...
...
1
Trim Strip Kit WPL-M7D701
...
2
Adhesive WPL-W10841140
...
3
Fuse- Ther WPL-59001951
...
4
Rack Support Set WPL-M2D601
...
5
Air Deflector WPL-M8D286
...
6
Baffle Waveguide WPL-M8D281
...
7
3/8 Int Tooth Lockwasher WPL-M1D598
...
8
Retainer Clip, Duct Mounting WPL-M2D645
...
9
Stirrer Blade Kit WPL-M35D44
...
10
Insert Stirrer Kit WPL-M2D571
...
11
Support-Stir WPL-M20D236
...
12
Stirrer Co WPL-3010007901
...
13
Ia Screw8-32 (25) WPL-M1D368
...
14
Strain Relief WPL-8536977
...
15
Gasket-Rf WPL-M2D296
...
16
Therm Prot WPL-M4D104
...
17
Screw WPL-WPW10001160
...
18
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
19
Gasket-R.f. WPL-38874P01
...
20
Cap Inner Door Assy Kit WPL-M55D17
...
21
No.8 Ab X 3/8`` Screw WPL-M1D900
...
22
Door Handle Kit WPL-M11D62
...
23
Insert Kit WPL-M7D588
...
24
Bkg Plate Assy. WPL-M20D218
...
25
Harness Pkg WPL-M27D333
...
26
No.8 Ab X 3/8`` Screw WPL-M1D900
...
27
Knobx WPL-42180P01
...
28
Dec Pnl WPL-M7D662
...
29
Bezel Button WPL-M2D640
...
30
Switch-Fan Pushbutton WPL-M14D263
...
31
Light Sw WPL-M14D265
...
32
Component Holder WPL-M7D664
...
33
Terminal Ground WPL-M5D360
...
34
Controller WPL-M22D55
...
35
Screw, No.6-32 X 1/4 Inch WPL-212951
...
36
Not Available WPL-M8D279
...
37
Bushing WPL-M2D639
...
38
Screw (25) WPL-M1D590
...
39
Screw WPL-WP90767
...
40
Screw WPL-WP90767
...
41
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
42
Retainer Clip, Duct Mounting WPL-M2D645
...
43
Motor Blower WPL-M12D86
...
44
Blower Brkt Mtg WPL-M20D235
...
45
Fan Blade WPL-M35D15
...
46
Cover, Rear Top WPL-M52D214
...
47
H V Cap .91 +-6% WPL-M10D100
...
48
Screw WPL-WP90767
...
49
Screw WPL-WP90767
...
50
M9d107 Lamp WPL-2031415101
...
51
Rivet, Pop WPL-A4539629
...
52
Screw WPL-WP90767
...
53
No.10 T X 3/8`` Screw WPL-M1D479
...
54
Screw WPL-WP90767
...
55
Rivet, Pop WPL-A4539629
...
56
Screw WPL-WP90767
...
57
Kit, Diode WPL-M3D71
...
58
Screw WPL-WP90767
...
59
Screw WPL-WP90767
...
60
Ia Screw WPL-M1D329
...
61
Fuse 20 A WPL-WPM0805101
...
62
Fluorescent Lamp Holder WPL-M5D311
...
63
Screw WPL-WP90767
...
64
Screw WPL-WP90767
...
65
Paint-Off- WPL-R0197018

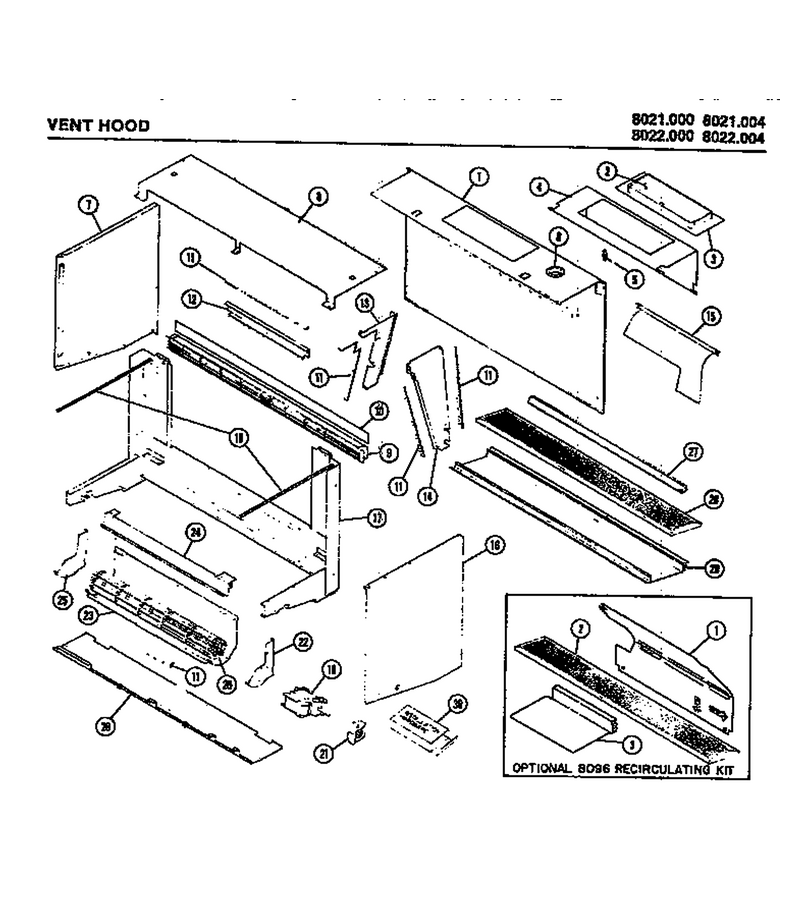

02 - Vent Hood

...
...
NI
Instl Instr WPL-M94D432
...
1
Bck Sprt Asy M80d113 WPL-42157P01
...
2
Shutter WPL-M20D242
...
3
Damper Frame Kit WPL-M20D367
...
4
Damper Support WPL-M52D215
...
5
1/4 Turn Recept. WPL-M2D650
...
6
Bushing, Wire WPL-M2D647
...
7
Side Panel Left WPL-M82D185
...
8
Not Available WPL-M82D181
...
9
Screw WPL-WP3-24004-109
...
10
Filter, Air 15 X 24 X 1/4 WPL-R0139413
...
11
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
12
Exh Baffle Cover Kit WPL-M20D245
...
13
Exh Baffle Left WPL-M20D243
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
No.8 Ab X 3/8`` Screw WPL-M1D900
...
17
Screw WPL-WP90767
...
18
1/4 Turn Clip WPL-M2D649
...
19
Screw (25) WPL-M1D767
...
20
Blower Wheel WPL-M35D33
...
21
Fan Blade WPL-M35D34
...
22
No.8-Screw WPL-M1D636
...
23
Screw WPL-WP90767
...
24
Screw WPL-WP90767
...
25
End Cap - Left WPL-M20D238
...
26
Cushion-Flr WPL-M2D656
...
27
Light Bulb WPL-Y0064116
...
28
Filter WPL-42149P01
...
29
Light Lens Kit WPL-M51D57
...
30
Paint-Blac WPL-R0197056
