Amana 8021.000

Model: 8021.000

Save Part Not Listed?
product name

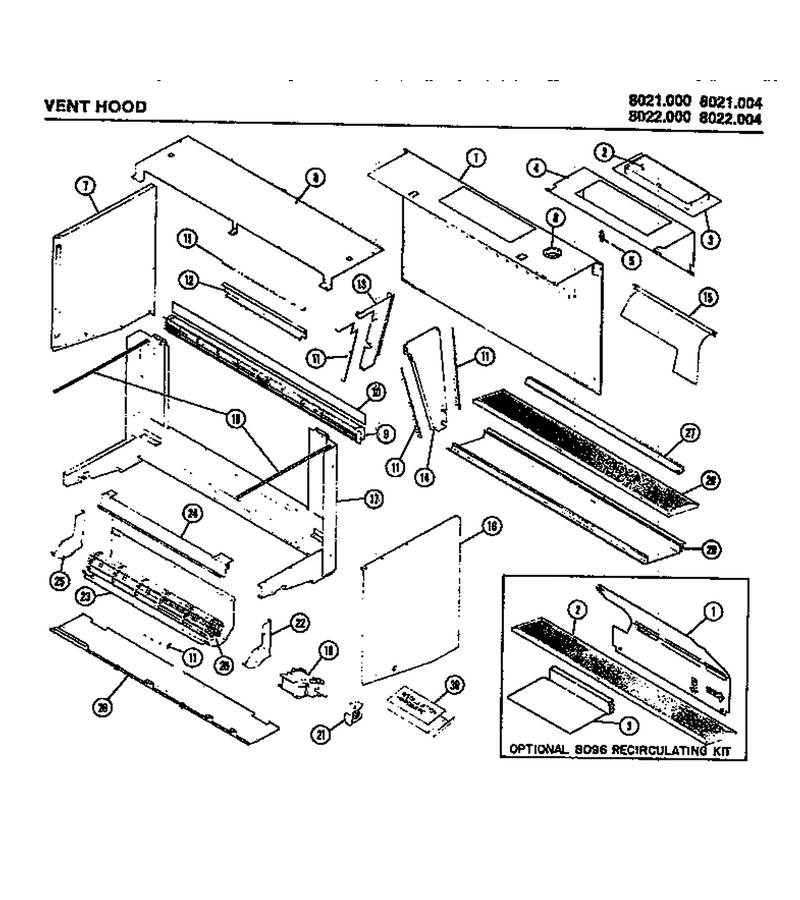

02 - Vent Hood

...
...
NI
Instl Instr WPL-M94D432
...
1
Bck Sprt Asy M80d113 WPL-42157P01
...
2
Filter- Ch WPL-42228P01
...
3
Damper Frame Kit WPL-M20D367
...
4
Damper Support WPL-M52D215
...
5
1/4 Turn Recept. WPL-M2D650
...
6
Bushing, Wire WPL-M2D647
...
7
Screw WPL-WPW10348409
...
8
Screw WPL-WPW10348409
...
9
Grille WPL-M65D297
...
10
Clip Filter WPL-M2D653
...
11
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
12
Exh Baffle Cover Kit WPL-M20D245
...
13
Screw WPL-WP90767
...
14
Screw WPL-WP90767
...
15
Screw WPL-WP90767
...
16
No.8 Ab X 3/8`` Screw WPL-M1D900
...
17
Support Assembly WPL-M8D0112
...
18
1/4 Turn Rod WPL-M8D285
...
19
Nut WPL-WP488130
...
20
Blower Wheel WPL-M35D33
...
21
Fan Blade WPL-M35D34
...
22
End-Cap Blwr WPL-42174P01
...
23
Scroll Housing WPL-M65D295
...
24
Vent Outlet Lip WPL-M20D240
...
25
End Cap - Left WPL-M20D238
...
26
Cushion-Flr WPL-M2D656
...
27
Light Bulb WPL-Y0064116
...
28
Filter WPL-42149P01
...
29
Clip, Lens Mounting WPL-M2D646
...
30
Toggle Nut (5) WPL-42385P01

01 - Page 1

...
...
1
Trim Strip Kit WPL-M7D701
...
2
Shelf W/sealant Kit WPL-M50D42
...
3
Fuse- Ther WPL-59001951
...
4
Rack Support Set WPL-M2D601
...
5
Air Deflector WPL-M8D286
...
6
Baffle Waveguide WPL-M8D281
...
7
Washer (25) WPL-M1D617
...
8
Retainer Clip, Duct Mounting WPL-M2D645
...
9
Stirrer Blade Kit WPL-M35D44
...
10
Insert Stirrer Kit WPL-M2D571
...
11
Support-Stir WPL-M20D236
...
12
Stirrer Co WPL-3010007901
...
13
No.8-32 Hex Nut Jw (25) WPL-M1D84
...
14
Strain Relief WPL-8536977
...
15
Gasket-Rf WPL-M2D296
...
16
Therm Prot WPL-M4D104
...
17
Switch, Interlock WPL-M14D253
...
18
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
19
Gasket-R.f. WPL-38874P01
...
20
Cap Inner Door Assy Kit WPL-M55D17
...
21
Outer Door (gen) Kit WPL-M70D97
...
22
Door Handle Kit WPL-M11D61
...
23
Insert Kit WPL-M7D588
...
24
Bkg Plate Assy. WPL-M20D218
...
25
Ground Lead Kit WPL-M5D351
...
26
No.8 Ab X 3/8`` Screw WPL-M1D900
...
27
Knobx WPL-42180P01
...
28
Dec Pnl WPL-M7D661
...
29
Bezel Button WPL-M2D641
...
30
Switch-Fan Pushbutton WPL-M14D262
...
31
Switch, Light WPL-M14D264
...
32
Ia Clip WPL-43274P01
...
33
Terminal Ground WPL-M5D360
...
34
Controller WPL-M22D55
...
35
Screw, No.6-32 X 1/4 Inch WPL-212951
...
36
Not Available WPL-M8D279
...
37
Bushing WPL-M2D639
...
38
Triac WPL-M16D93
...
39
Screw WPL-WP90767
...
40
Screw WPL-WP90767
...
41
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
42
Duct Assembly, Magnetron WPL-M65D294
...
43
Nut K WPL-M0282005
...
44
Blower Brkt Mtg WPL-M20D235
...
45
Fan Blade WPL-M35D15
...
46
Cover, Rear Top WPL-M52D214
...
47
H V Cap .91 +-6% WPL-M10D100
...
48
Capacitor Brkt WPL-M20D60
...
49
Screw WPL-WP90767
...
50
M9d107 Lamp WPL-2031415101
...
51
Lamp Socket-Uas-S/s-2041112201 WPL-M5D361
...
52
Screw WPL-WP90767
...
53
Kit, Transformer WPL-M60D181
...
54
Screw WPL-WP90767
...
55
Light Reflector WPL-M20D237
...
56
Screw WPL-WP90767
...
57
Nut WPL-WP488130
...
58
Screw WPL-WP90767
...
59
Screw WPL-WP90767
...
60
Ia Screw WPL-M1D329
...
61
Fuse 20 A WPL-WPM0805101
...
62
Fluorescent Lamp Holder WPL-M5D311
...
63
Screw WPL-WP90767
...
64
Not Available WPL-M8D283
...
65
Paint-Off- WPL-R0197018
