Amana 80/80.000

Model: 80/80.000

Save Part Not Listed?
product name

01 - Page 6

...
...
1
Wrap WPL-M80D93
...
2
Screw, No.10-12 X 500`` Ab (zn) WPL-M1D878
...
3
Screw, No.10-12 X 500`` Ab (zn) WPL-M1D878
...
4
Filter Frame WPL-M48D7
...
5
Filter WPL-20098P01
...
6
Drip Shield WPL-M65D21
...
7
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
8
Protector-X WPL-M4D77
...
9
Thermostat Sw Jetwave WPL-M4D92
...
10
Ia Door WPL-36707P01
...
11
Outer Door Cast WPL-M70D34
...
13
Shaft WPL-21516P01
...
14
Latch Spring WPL-M2D98
...
15
Arm WPL-M2D148
...
16
Catch WPL-21515P01
...
17
Screw (25) WPL-M1D199
...
18
Door Spring Kit WPL-M2D120
...
19
No.6 Trimmed Hex Hd Screw WPL-5000632401
...
20
Retainer WPL-M7D66
...
21
Retainer WPL-19920P01
...
22
Retainer M7d68 WPL-19922P01
...
23
Retainer WPL-M7D69
...
24
Outer Glass WPL-M51D3
...
25
Spacer WPL-M25D25
...
26
Spacer WPL-M25D26
...
27
M70d49 Painted Door. WPL-M70D49
...
28
Pin WPL-19915P01
...
29
Cam Arm WPL-37187P01
...
30
Allen Screw WPL-M1D210
...
31
Ferrite Stop WPL-M25D15
...
32
Filler WPL-23230P01
...
33
Filler WPL-23230P02
...
34
Handle Kit WPL-M11D9
...
35
Slide Block WPL-M2D231
...
36
Screw, Switch Mtg. WPL-M1D37
...
37
No.3/8-24 Palnut (25) WPL-M1D308
...
38
Cover WPL-24305P01
...
39
Shield Splash WPL-M45D23
...
40
Shelf Kit WPL-M50D6
...
41
Lamp WPL-M9D10
...
42
Screw WPL-M0202325
...
43
Cam Roller Assembly, Right WPL-M2D532
...
44
Nut WPL-WP488130
...
45
Switch WPL-37184P01
...
46
Nut (25) WPL-M1D313
...
47
Bracket WPL-M2D153
...
48
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
49
Ia Shim WPL-M2D375
...
50
Bracket M2d495 WPL-34704P01
...
51
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
52
Tinnerman (10) WPL-M1D317
...
53
Gasket WPL-M25D28
...
54
Screw (10) WPL-M1D879
...
55
Nut K WPL-M0282005
...
56
Coupler WPL-M65D249
...
57
Nut, Push WPL-Y04100035
...
58
Screw WPL-M1D8
...
59
Stirrer Motor WPL-M12D74
...
60
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
61
Gasket WPL-M2D252
...
62
Cavity Assy WPL-M77D104
...
63
Clamp WPL-M2D154
...
64
Hinge Support WPL-M52D33
...
65
Spacer (10) WPL-M1D315
...
66
Hinge WPL-24216P01
...
67
Allen Screw WPL-M1D210
...
68
Hinge WPL-19917P01
...
69
No.6 Pan Hd Machine Screw WPL-M1D321
...
70
M2d103 Hook WPL-20159P01
...
71
Linkage Strap WPL-M2D165
...
72
Balance Spring WPL-M2D104
...
73
Nut WPL-WP3400029
...
74
Clamp Blwr WPL-28444P01
...
75
Assy, Blower WPL-M41D26
...
76
Cord WPL-M26D46
...
77
Strain Rel WPL-14138P01
...
78
Base WPL-M79D83
...
79
Cover WPL-36733P01
...
80
Pull Knob WPL-M6D26
...
81
Wing Nut (10) WPL-M1D872
...
82
Rivet WPL-WP210720
...
83
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
84
Fuse WPL-M4D88
...
85
Relay WPL-M16D86
...
86
Nut WPL-WP3400029
...
87
Nut WPL-WP488130
...
88
Nut WPL-WP488130
...
89
Nut WPL-WP488130
...
90
Nut WPL-WP488130
...
91
Panelx WPL-36708P01
...
92
Net-Timer,push Button WPL-M59D102
...
93
Knob WPL-M6D166
...
94
Knob WPL-M6D165
...
95
Spacer WPL-M2D541
...
96
Control Pnl WPL-M52D187
...
97
Mylar Gasket WPL-M25D18
...
98
Indicator Light WPL-M9D38
...
99
Trim WPL-M75D4
...
100
Knob WPL-M6D40
...
101
H.v. Lead Diode To Ground WPL-M5D326

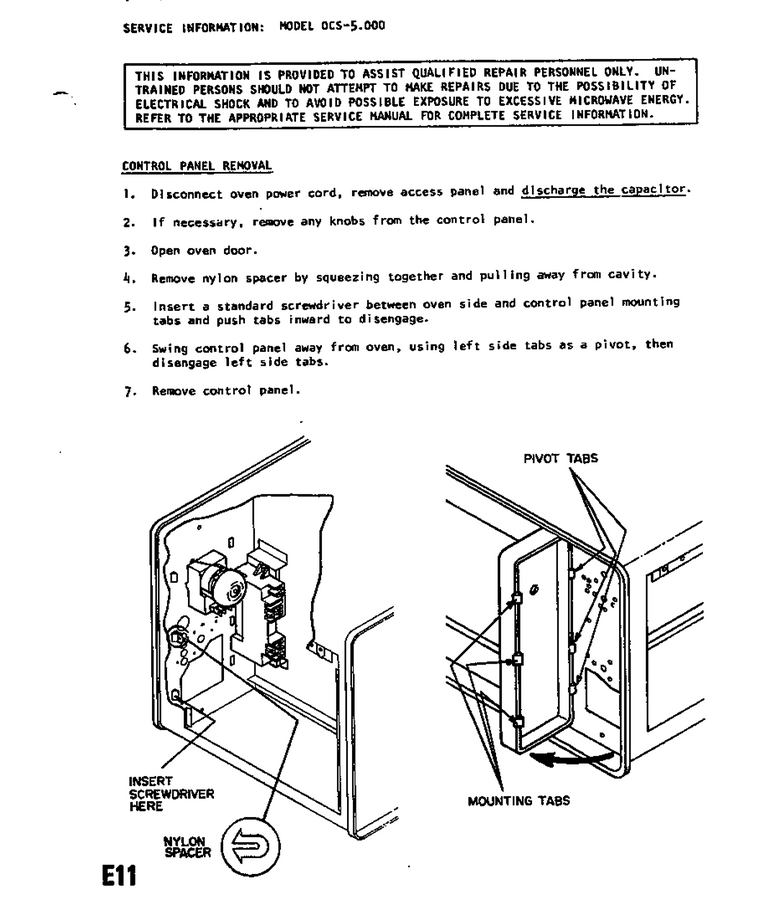

Schematic Image Zoomed
