Amana 80/66.000

Model: 80/66.000

Save Part Not Listed?
product name

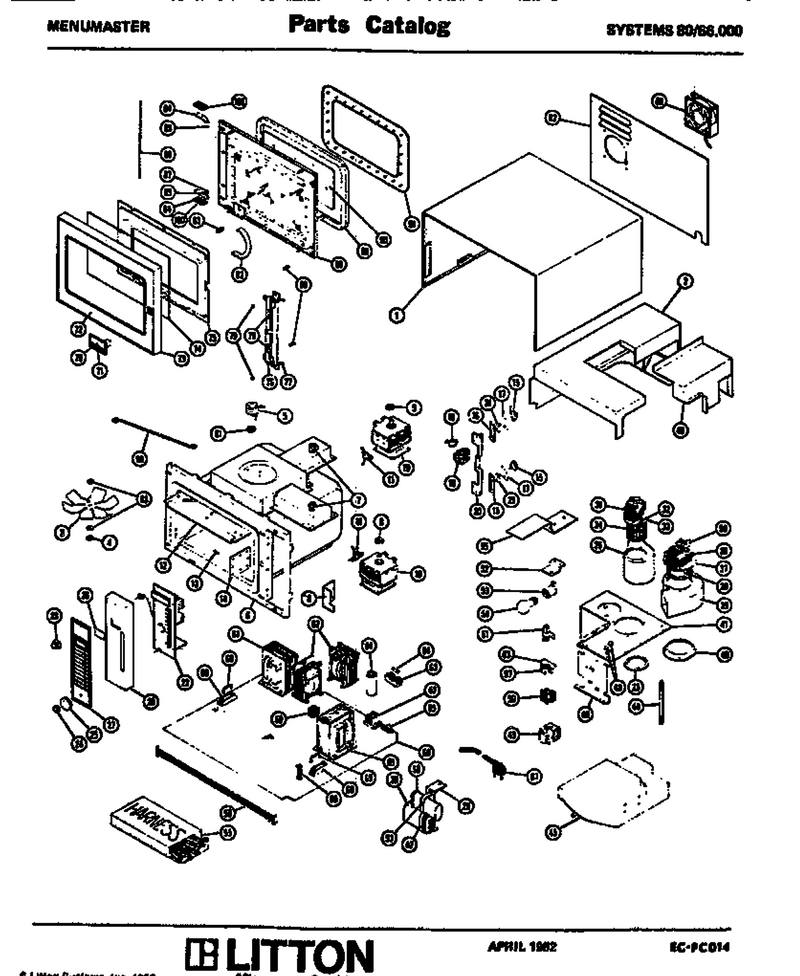

01 - Page 1

...
...
NI
Not Available WPL-M1D295
...
1
Screw, Panel Mtg. WPL-M1D757
...
2
Duct Exhaust Kit WPL-M65D183
...
3
Stirrer Blade Kit WPL-M35D22
...
4
.156 Dia Push On Clip WPL-M1D78
...
5
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
6
Cavity Assembly WPL-M77D86
...
7
Antenna Pin WPL-M2D553
...
8
Baffle Asm WPL-M65D211
...
9
Gasket-Rf WPL-M2D296
...
10
Net Use 39143p02 WPL-39143P01
...
11
Protector, Thermal WPL-M4D82
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Adhesive WPL-W10841140
...
14
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
15
Not Available WPL-M5D193
...
16
Strike, Latch WPL-M8D191
...
17
Insulator, Switch WPL-M5D268
...
18
Bracket, Monitor Switch Mtg. WPL-M8D65
...
19
Sw-Monitor M14d212 WPL-M14D212
...
20
Bracket, Switch WPL-M8D192
...
21
Spacer, Switch WPL-M8D190
...
22
Vp Timer WPL-M31D24
...
23
Knob, Vari-Power WPL-M6D212
...
24
Knob Dial WPL-31818P01
...
25
Knob Minutes WPL-M6D288
...
26
Lens/filter WPL-31820P01
...
27
Dec Panel WPL-M7D372
...
28
Timer Casting WPL-M7D362
...
29
Cap Bracket WPL-M20D202
...
30
Dual Cap 1.4x2mf WPL-M10D75
...
31
No.6 Pan Hd Machine Screw WPL-M1D69
...
32
Screw WPL-M1D574
...
33
Flange, Blower Housing WPL-M8D195
...
34
Impeller WPL-M35D29
...
35
Screw (25) WPL-M1D5
...
36
Nut K WPL-M0282005
...
37
Screw WPL-M1D574
...
38
Wheel, Blower WPL-34487P01
...
39
Screw (25) WPL-M1D5
...
40
Flange, Blower Housing WPL-M8D197
...
41
Screw (25) WPL-M1D5
...
42
Bracket, Capacitor WPL-74001039
...
43
Snap Bushing WPL-M2D114
...
44
Stand Off WPL-M2D382
...
45
Screw (25) WPL-M1D484
...
46
No.8 Flat Washer WPL-M1D136
...
47
Termnl Block WPL-M4D55
...
48
Screw (25) WPL-M1D5
...
49
Relay WPL-M16D71
...
50
Screw, Tf WPL-M0231704
...
51
Resistor, 132 Ohm WPL-M3D58
...
52
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
53
Lamp Holder WPL-M5D267
...
54
Lamp, Cavity WPL-M9D54
...
55
Harness Package WPL-M27D292
...
56
Air Filter Kit WPL-M48D13
...
57
Screw WPL-WP90767
...
58
Capacitor 1.15 WPL-D8547913
...
59
Bumper, Transformer WPL-M2D439
...
60
.187 Dia Pop Rivet Steel WPL-M1D349
...
61
Transformer (M60d125) WPL-38437P01
...
62
Ia Screw No.10-32 WPL-M1D370
...
63
Screw (25) WPL-M1D5
...
64
Fuse, 15 Amp WPL-M4D4
...
65
Insulator WPL-M2D281
...
66
Screw, Panel Mtg. WPL-M1D757
...
67
Screw-8-32x WPL-M1D765
...
68
Screw WPL-M1D764
...
69
Resistor, Bleeder WPL-M3D59
...
70
No.10 X 3/8`` Set Screw WPL-M2D554
...
71
Inlay Handle WPL-M7D520
...
72
Dr Inlay Gold Kit WPL-M7D368
...
73
Ia 6-32 Screw (25) WPL-M1D123
...
74
Window, Outer WPL-M51D33
...
75
M70d60 Mask WPL-34429P01
...
76
Bracket, Latch Bar Mtg. WPL-M20D128
...
77
Latch Plated WPL-M8D200
...
78
Spring Latch Kit WPL-M2D198
...
79
Nut, Locking WPL-M1D859
...
80
Screw Adjust M1d744 (10) WPL-M1D744
...
81
R F Gasket Kit WPL-M2D152
...
82
Screw Bkt Mtg WPL-M1D336
...
83
Cushion WPL-M2D452
...
84
Nut WPL-M0282009
...
85
Bearing Flng (10) WPL-M1D112
...
86
Set Screw Kit (1) WPL-M1D461
...
87
Flat Washer WPL-M1D117
...
88
Net Use 10897701 Dr Pnl K WPL-M70D66
...
89
Choke Filler WPL-33775P01
...
90
Window, Inner WPL-M51D34
...
91
Nut K WPL-M0282005
...
92
Not Available WPL-M82D154
...
93
Spcr-Stir WPL-M2D491
...
94
Lock Washer WPL-M0272803
...
95
Sealer Assy WPL-33487A01
...
96
Res Asy Service M3d60 WPL-M3D60
...
97
Fuse- 3 Am WPL-Y0078733
...
98
Fan Blade, Motor Cooling WPL-M35D31
...
99
Screw (25) WPL-M1D860
...
100
Gasket, Hinge Mtg. WPL-M25D65
