Amana 80/55.101UK

Model: 80/55.101UK

Save Part Not Listed?
product name

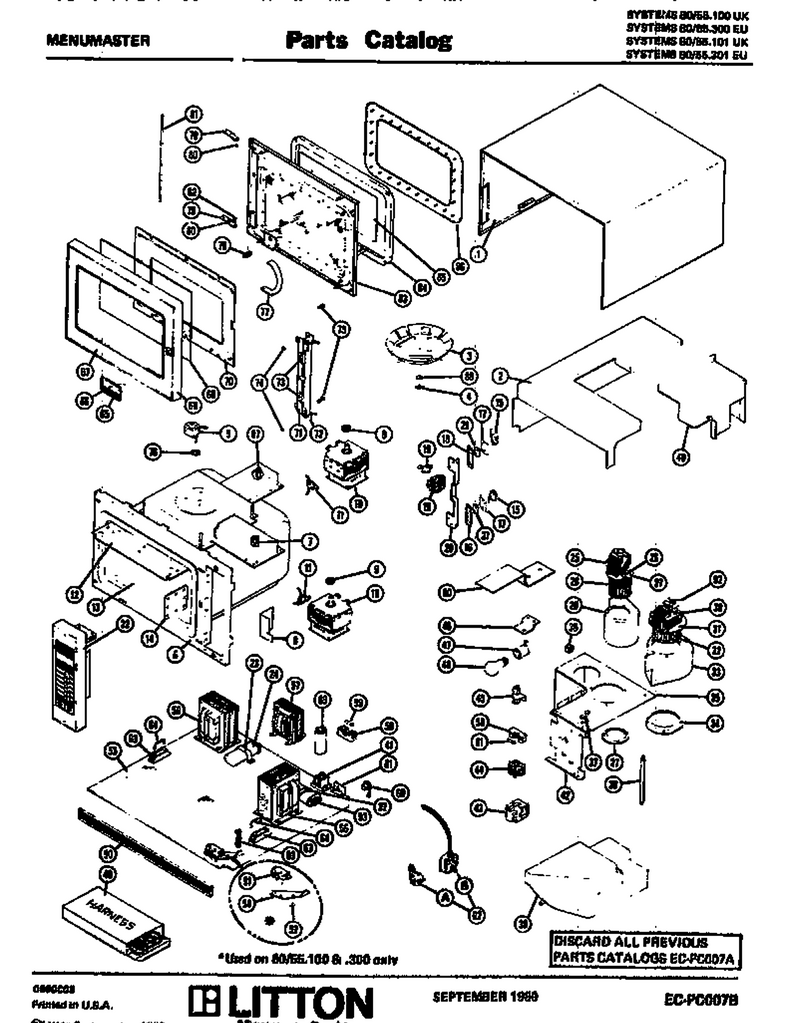

01 - Page 1

...
...
NI
Not Available WPL-M1D295
...
1
Not Available WPL-M80D80
...
2
Duct, Air Exhaust WPL-M85D183
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Screw (25) WPL-M1D5
...
6
Cavity Assembly WPL-M77D86
...
7
Antenna Pin Kit WPL-M2D567
...
8
Baffle Asm WPL-M65D211
...
9
Gasket-Rf WPL-M2D296
...
10
Kit, Magnetron WPL-M57D30
...
11
Protector, Thermal WPL-M4D82
...
12
Stirrer Cover WPL-M45D19
...
13
Shelf Kit WPL-M50D33
...
14
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
15
Not Available WPL-M5D193
...
16
Strike, Latch WPL-M8D191
...
17
Insulator, Switch WPL-M5D268
...
18
Bracket, Monitor Switch Mtg. WPL-M8D65
...
19
Sw-Monitor M14d212 WPL-M14D212
...
20
Bracket, Switch WPL-M8D192
...
21
Spacer, Switch WPL-M8D190
...
22
Button Push WPL-43725P04
...
23
Screw WPL-M1D764
...
24
Capacitor-Doubler WPL-10366913
...
25
No.6 Pan Hd Machine Screw WPL-M1D69
...
26
Screw WPL-M1D574
...
27
Flange, Blower Housing WPL-M8D195
...
28
Impeller WPL-M35D29
...
29
Screw (25) WPL-M1D5
...
30
Nut K WPL-M0282005
...
31
Screw WPL-M1D574
...
32
Wheel, Blower WPL-34487P01
...
33
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
34
Flange, Blower Housing WPL-M8D197
...
35
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
36
Bushing, Snap WPL-A3293504
...
37
Snap Bushing WPL-M2D114
...
38
Stand Off WPL-M2D382
...
39
Duct Asm WPL-M65D212
...
40
No.8 Flat Washer WPL-M1D136
...
41
Pin (25) WPL-M1D65
...
42
Screw (25) WPL-M1D5
...
43
Relay WPL-M16D71
...
44
Screw, Tf WPL-M0231704
...
45
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
46
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
47
Lamp Holder WPL-M5D267
...
48
Lamp, Cavity WPL-M9D54
...
49
Nla (See D-Pb17) WPL-M27D233
...
50
Air Filter Kit WPL-M48D13
...
51
No.6 Pan Hd Machine Screw WPL-M1D836
...
52
Stand Off Arm Mtg WPL-M2D380
...
53
Res Asy Service M3d60 WPL-M3D60
...
54
Bracketx WPL-M8D158
...
55
.187 Dia Pop Rivet Steel WPL-M1D349
...
56
Not Available WPL-M80D84
...
57
Ia Screw No.10-32 WPL-M1D370
...
58
Screw (25) WPL-M1D5
...
59
Fuse 20 A WPL-WPM0805101
...
60
Strain Relf WPL-26632P01
...
61
Bracket, Strain Relief WPL-M8D199
...
62
See Note Fuse, Model Uk Power Cord, Type Bs1362, 13 Amp -- (Procurelocally) WPL-Y00000000
...
63
Screw WPL-M1D764
...
64
Resistor, Bleeder WPL-M3D59
...
65
No.10 X 3/8`` Set Screw WPL-M1D667
...
66
Inlay, Door Handle WPL-M7D417
...
67
Dr Inlay Gold Kit WPL-M7D368
...
68
Ia 6-32 Screw (25) WPL-M1D123
...
69
Window, Outer WPL-M51D33
...
70
Nut WPL-M1D760
...
71
Bracket, Latch Bar Mtg. WPL-M20D128
...
72
Latch Plated WPL-M8D200
...
73
Spring Latch Kit WPL-M2D198
...
74
Nut, Locking WPL-M1D414
...
75
Screw Adjust M1d744 (10) WPL-M1D744
...
76
R F Gasket Kit WPL-M2D152
...
77
Screw Bkt Mtg WPL-M1D336
...
78
Cushion WPL-M2D452
...
79
Hinge M8d212 (2per) WPL-94115P01
...
80
Bearing Flng (10) WPL-M1D112
...
81
Rod Hinge M52d157 WPL-31618P01
...
82
Flat Washer WPL-M1D117
...
83
Door, Inner WPL-M70D61
...
84
Choke Filler WPL-33775P01
...
85
Window, Inner WPL-M51D34
...
86
Nut K WPL-M0282005
...
87
Antenna Rear WPL-M2D472
...
88
Wshr-Rubber WPL-32383P01
...
89
Line Filter Kit WPL-M10D35
...
90
Sealer Assy WPL-33487A01
...
91
Fuse- 3 Am WPL-Y0078733
...
92
Fan Blade, Motor Cooling WPL-M35D31
...
93
Capacitor 1.05mf Kit WPL-M10D78
