Amana 80/52.001

Model: 80/52.001

Save Part Not Listed?
product name

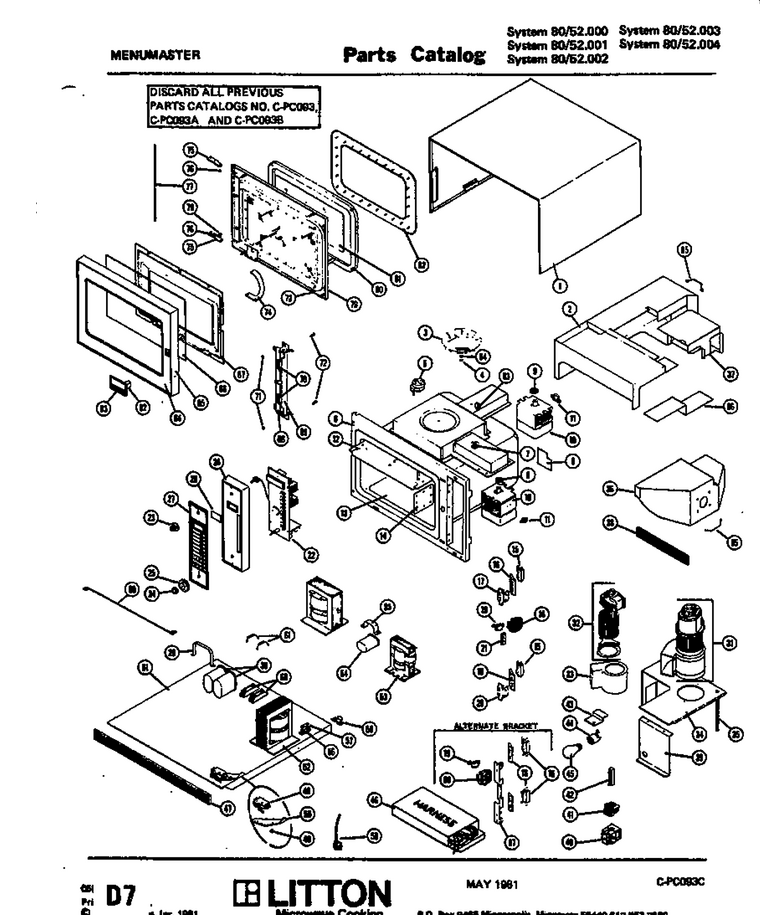

01 - Page 2

...
...
1
Ia Screw 10ab WPL-M1D369
...
2
Duct Exhaust Kit WPL-M65D183
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Screw (25) WPL-M1D5
...
6
Cavity Assy WPL-M77D101
...
7
Antenna Pin Kit WPL-M2D567
...
8
Baffle, Air WPL-M65D175
...
9
Gasket-Rf WPL-M2D296
...
10
Kit, Magnetron WPL-M57D25
...
11
Screw Thrm WPL-M1D666
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Shelf Kit WPL-M50D33
...
14
Lamp Cover WPL-M7D367
...
15
Switch, Interlock WPL-32162P01
...
16
Strike WPL-M8D157
...
17
Nut WPL-WP488130
...
18
Bracket, Monitor Switch Mtg. WPL-M8D65
...
19
Switch, Monitor WPL-35370P01
...
20
Nut WPL-WP488130
...
21
Spacer WPL-M8D160
...
22
Net-Kit,timer WPL-M31D28
...
23
Knob, Vari-Power WPL-M6D212
...
24
Knob Dial WPL-31818P01
...
25
Knob, Minutes WPL-M6D214
...
26
Lens/filter WPL-31820P01
...
27
Dec Panel WPL-M7D372
...
28
Timer Casting WPL-M7D362
...
29
Brkt Cap Mtg WPL-M20D130
...
30
Capacitor-.85 WPL-59001651
...
31
Baffle- WPL-M65D176
...
32
Assy, Motor M41d23 WPL-M41D23
...
33
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
34
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
35
Nut (25) WPL-M1D451
...
36
No.8 T X 1/4`` Screw WPL-M1D486
...
37
Duct Assy WPL-33421A01
...
38
Air Duct Cont WPL-M65D198
...
39
Panel, Power WPL-M52D160
...
40
Screw, Tf WPL-M0231704
...
41
Screw, Tf WPL-M0231704
...
42
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
43
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
44
Socket WPL-M5D100
...
45
Light Bulb WPL-8009
...
46
Wire Harness 80/52 WPL-M27D212
...
47
Air Filter Kit WPL-M48D13
...
48
No.6 Pan Hd Machine Screw WPL-M1D836
...
49
Stand Off Arm Mtg WPL-M2D380
...
50
Pivot Arm WPL-M8D156
...
51
.187 Dia Pop Rivet Steel WPL-M1D349
...
52
Ia Screw No.10-32 WPL-M1D370
...
53
Ia Screw No.10-32 WPL-M1D370
...
54
Capacitor 4.00mf Kit WPL-M10D60
...
55
Capacitor Brkt WPL-M20D47
...
56
Holder, Fuse WPL-M3D91
...
57
Fuse 20 A WPL-WPM0805101
...
58
Not Available WPL-M2D381
...
59
Cord Asy Fs-14evp.000 M26d43 WPL-M26D43
...
60
Hv Rect 12kv 750max WPL-1330000301
...
61
Bleeder Resistor WPL-M3D42
...
62
Handle Kit WPL-M8D153
...
63
Handle Inlay WPL-M7D378
...
64
Dr Inlay Gold Kit WPL-M7D368
...
65
Casting, Outer Door WPL-M70D59
...
66
Window, Outer WPL-M51D33
...
67
M70d60 Mask WPL-34429P01
...
68
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
69
Bushing M2d46 WPL-25788P01
...
70
Spring Latch Kit WPL-M2D198
...
71
Nut, Locking WPL-M1D859
...
72
Screw Adjust M1d744 (10) WPL-M1D744
...
73
Ball Stud (1) WPL-M1D594
...
74
Nut WPL-WP488130
...
75
Hinge M8d212 (2per) WPL-94115P01
...
76
Bearing Flng (10) WPL-M1D112
...
77
Rod Hinge M52d157 WPL-31618P01
...
78
Flat Washer WPL-M1D117
...
79
Door, Inner WPL-M70D61
...
80
Choke Filler WPL-33775P01
...
81
Window, Inner WPL-M51D34
...
82
Nut K WPL-M0282005
...
83
Antenna Pin, Rear WPL-M2D504
...
84
Wshr-Rubber WPL-32383P01
...
85
Guard M2d389 WPL-33414P01
...
86
Sealer Assy WPL-33487A01
...
87
Nut WPL-WP488130
...
88
Screw WPL-WP489474
...
89
Screw (25) WPL-M1D860
