Amana 80/46EVP500

Model: 80/46EVP500

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
M95d11-Centigrade Thermo WPL-M95D11
...
1
Ia Screw 10ab WPL-M1D369
...
2
Clip (10) WPL-M1D680
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Motor, Stirrer (M12d88) WPL-M12D88
...
6
Cavity Assy WPL-M77D116
...
7
Antenna Pin Kit WPL-M2D563
...
8
Not Available WPL-M65D274
...
9
Gasket-Rf WPL-M2D305
...
10
Net Use 39143p02 WPL-39143P01
...
11
Screw Thrm WPL-M1D666
...
12
Stirrer Cover WPL-M45D19
...
13
Adhesive WPL-W10841140
...
14
Nut WPL-WP488130
...
15
Spacer, Switch WPL-M8D190
...
16
Strike, Latch WPL-M8D191
...
17
Switch, Door Interlock-Upper WPL-M14D266
...
18
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
19
Sw-Monitor M14d212 WPL-M14D212
...
20
Switch Logic WPL-M14D267
...
21
Shield Lt/rt WPL-M2D622
...
22
Bezel,cont Pnl WPL-M7D714
...
23
Screw (25) WPL-M1D549
...
24
Lamp Acc Door Kit WPL-M20D294
...
25
Screw WPL-WPW10068250
...
26
Controller WPL-M31D43
...
27
Screw (25) WPL-M1D549
...
28
Capacitor Kit WPL-M10D113
...
29
Screw WPL-M1D764
...
30
Wheel, Blower M35d39 WPL-36300P01
...
31
Housing Blower, Kit WPL-M65D277
...
32
Duct Mag Intake Kit WPL-M65D273
...
33
Clip (10) WPL-M1D680
...
34
Panel Dec WPL-43489P01
...
35
Screw, No.6-32 X 1/4 Inch WPL-212951
...
36
Strike/retainer Kit WPL-M8D295
...
37
Screw (25) WPL-M1D268
...
38
Screw (25) WPL-M1D5
...
39
Lamp, Cavity WPL-M9D54
...
40
Harness WPL-M27D344
...
41
Clip WPL-M2D587
...
42
Ia Screw 10ab WPL-M1D369
...
43
Brkt Strain Relief WPL-M20D250
...
44
Wshr-Rubber WPL-32383P01
...
45
Base Assy WPL-M79D87
...
46
Ia Screw No.10-32 WPL-M1D370
...
47
Fuse Holder WPL-10091101
...
48
Ia Fuse WPL-M4D51
...
49
Strain Relf WPL-26632P01
...
50
Screw-8-32x WPL-M1D765
...
51
Screw WPL-M1D764
...
52
Bleeder Resistor WPL-M3D42
...
53
Not Available WPL-M2D453
...
54
Inlay Handle WPL-M7D716
...
55
Dr Inlay Gold Kit WPL-M7D368
...
56
Clip, Casting Mtg. WPL-M1D759
...
57
Outer Window WPL-M51D47
...
58
M70d60 Mask WPL-34429P01
...
59
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
60
Bushing M2d46 WPL-25788P01
...
61
Spring Latch Kit WPL-M2D198
...
62
Nut, Locking WPL-M1D859
...
63
Screw Adjust M1d744 (10) WPL-M1D744
...
64
Screw WPL-WP90767
...
65
Nut WPL-WP488130
...
66
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
67
Bearing Flng (10) WPL-M1D112
...
68
Set Screw Kit (1) WPL-M1D461
...
69
Bushing WPL-M2D117
...
70
Net Use 10897701 Dr Pnl K WPL-M70D66
...
71
Choke Filler WPL-33775P01
...
72
Window, Inner WPL-M51D34
...
73
Plate, Seal WPL-M54D10
...
74
Gasket, Hinge Mtg. WPL-M25D65
...
75
Cushion WPL-M2D452
...
76
Relay WPL-38806P01
...
77
Ia Screw No.10-32 WPL-M1D370
...
78
Univ Cap Brkt WPL-M20D52
...
79
Screw WPL-M1D867
...
80
Fuse 2 Amp 250v WPL-M4D98

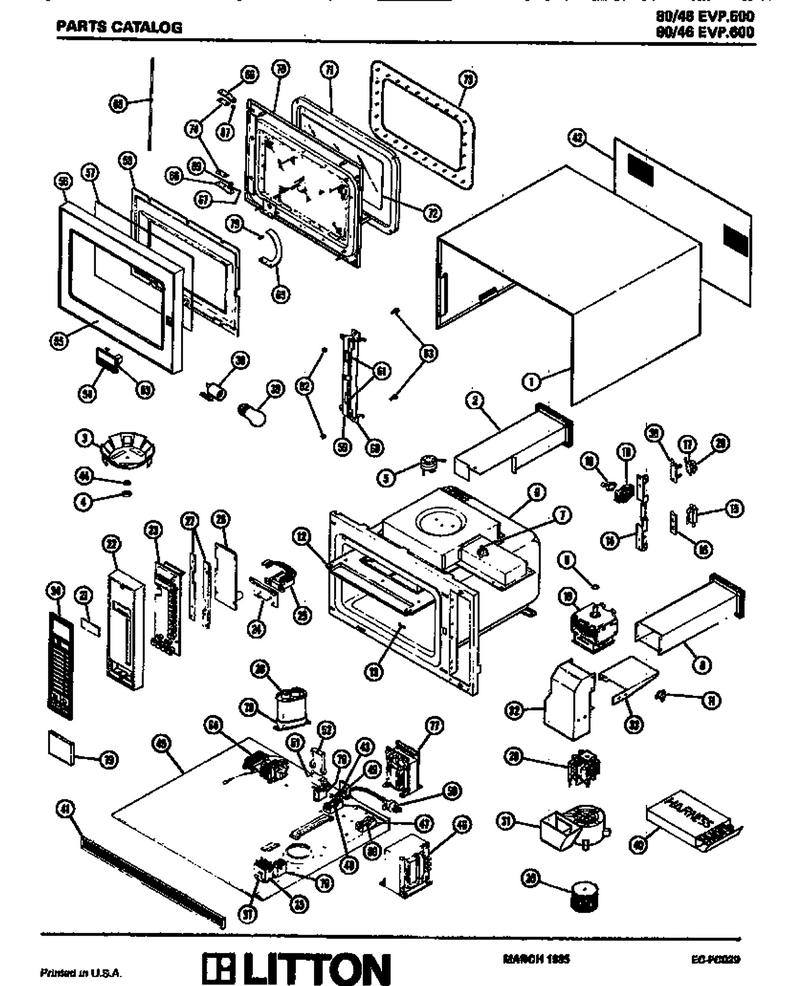

Schematic Image Zoomed
