Amana 80/46.600

Model: 80/46.600

Save Part Not Listed?
product name

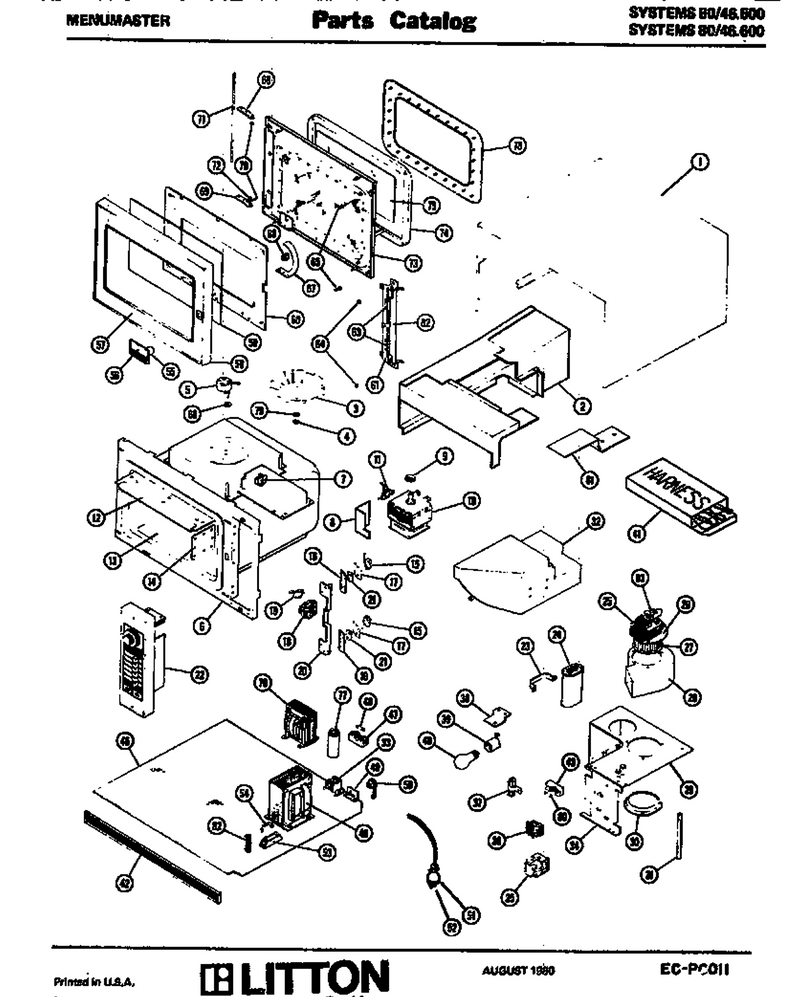

01 - Page 1

...
...
NI
Bowl, Power Test Kit WPL-M95D5
...
1
Screw, Panel Mtg. WPL-M1D757
...
2
Duct, Air Exhaust WPL-M65D178
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Screw (25) WPL-M1D5
...
6
Insulator, Transformer WPL-M5D299
...
7
Screw, Tf WPL-M0231704
...
8
Baffle Asm WPL-M65D211
...
9
Gasket-Rf WPL-M2D305
...
10
Net Use 39143p02 WPL-39143P01
...
11
Protector, Thermal WPL-M4D82
...
12
Stirrer Cover WPL-M45D19
...
13
Shelf Kit WPL-M50D33
...
14
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
15
Not Available WPL-M5D193
...
16
Strike, Latch WPL-M8D191
...
17
Insulator, Switch WPL-M5D268
...
18
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
19
Sw-Monitor M14d212 WPL-M14D212
...
20
Bracket, Switch WPL-M8D192
...
21
Spacer, Switch WPL-M8D190
...
22
Knob Large C,def WPL-M6D154
...
23
Bracket, Capacitor WPL-74001039
...
24
Dual Cap 1.4x2mf WPL-M10D75
...
25
Not Available WPL-M1D529
...
26
Screw WPL-M1D574
...
27
Wheel, Blower WPL-34487P01
...
28
Housing WPL-M65D210
...
29
Screw (25) WPL-M1D5
...
30
Flange, Blower Housing WPL-M8D197
...
31
Stand Off WPL-M2D382
...
32
No.8 T X 1/4`` Screw WPL-M1D486
...
33
Termnl Block WPL-M4D55
...
34
Screw (25) WPL-M1D5
...
35
Relay WPL-M16D71
...
36
Screw, Tf WPL-M0231704
...
37
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
38
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
39
Lamp Holder WPL-M5D267
...
40
Lamp, Cavity WPL-M9D54
...
41
Harness, Wire WPL-M27D253
...
42
Air Filter Kit WPL-M48D13
...
43
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
44
Fuse- 3 Am WPL-Y0078733
...
45
.187 Dia Pop Rivet Steel WPL-M1D349
...
46
Ia Screw No.10-32 WPL-M1D370
...
47
Fuse Holder WPL-M5D123
...
48
Ia Fuse WPL-M4D51
...
49
Screw WPL-M1D764
...
50
Strain Relf WPL-26632P01
...
51
Power Cord WPL-M26D40
...
52
Power Cord WPL-M26D41
...
53
Screw WPL-M1D764
...
54
Bleeder Resistor WPL-M3D62
...
55
No.10 X 3/8`` Set Screw WPL-M1D667
...
56
Inlay, Door Handle WPL-M7D416
...
57
Dr Inlay Gold Kit WPL-M7D368
...
58
Casting, Outer Door WPL-M70D59
...
59
Window, Outer WPL-M51D33
...
60
Nut WPL-M1D760
...
61
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
62
Bushing M2d46 WPL-25788P01
...
63
Spring Latch Kit WPL-M2D198
...
64
Nut, Locking WPL-M1D414
...
65
Screw Adjust M1d744 (10) WPL-M1D744
...
66
R F Gasket Kit WPL-M2D152
...
67
Screw Bkt Mtg WPL-M1D336
...
68
Cushion WPL-M2D452
...
69
Nut WPL-M0282009
...
70
Bearing Flng (10) WPL-M1D112
...
71
Set Screw Kit (1) WPL-M1D461
...
72
Flat Washer WPL-M1D117
...
73
Door, Inner WPL-M70D61
...
74
Choke Filler WPL-33775P01
...
75
Window, Inner WPL-M51D34
...
76
Plate, Seal WPL-M54D10
...
77
Lock Washer WPL-M0272803
...
78
Filament Transformer WPL-M60D92
...
79
Wshr-Rubber WPL-32383P01
...
80
Sealer Assy WPL-33487A01
...
81
Res Asy Service M3d60 WPL-M3D60
...
82
Fan Blade, Motor Cooling WPL-M35D31
