product name

Amana 80/46.301EU

Model: 80/46.301EU

Save Part Not Listed?
product name

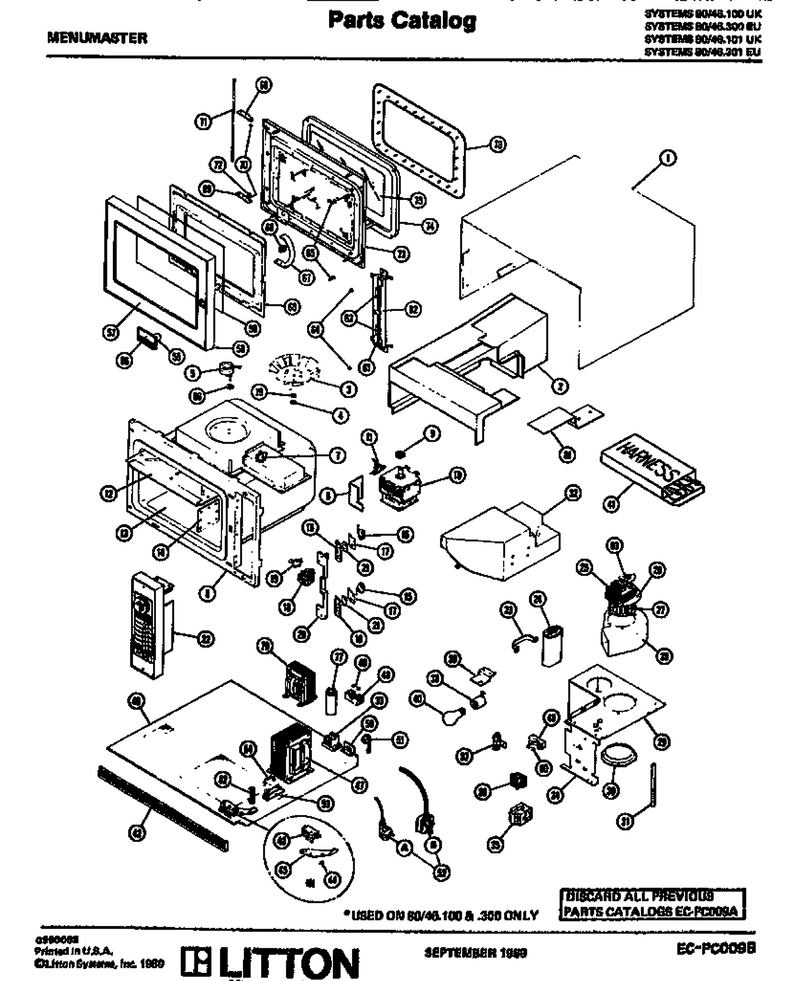

01 - Page 1

...
...
NI
Not Available WPL-M1D297
...
1
Not Available WPL-M80D80
...
2
Duct, Air Exhaust WPL-M65D178
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Motor, Stirrer (M12d88) WPL-M12D64
...
6
Cavity Assembly WPL-M77D85
...
7
Screw, Tf WPL-M0231704
...
8
Baffle Asm WPL-M65D211
...
9
Gasket-Rf WPL-M2D305
...
10
Net Use 39143p02 WPL-39143P01
...
11
Screw Thrm WPL-M1D666
...
12
Stirrer Cover WPL-M45D19
...
13
Shelf Kit WPL-M50D33
...
14
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
15
Not Available WPL-M5D193
...
16
Strike, Latch WPL-M8D191
...
17
Insulator, Switch WPL-M5D268
...
18
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
19
Sw-Monitor M14d212 WPL-M14D212
...
20
Bracket, Switch WPL-M8D192
...
21
Spacer, Switch WPL-M8D190
...
22
Dec Panel 80/46 WPL-M7D420
...
23
Nut K WPL-M0282005
...
24
Dual Cap 1.4x2mf WPL-M10D75
...
25
Nut K WPL-M0282005
...
26
Plate, Blower WPL-M8D196
...
27
Wheel, Side Blower WPL-M36D30
...
28
Screw (25) WPL-M1D5
...
29
Wire Clip WPL-B5667304
...
30
Flange, Blower Housing WPL-M8D197
...
31
Nut (25) WPL-M1D451
...
32
No.8 T X 1/4`` Screw WPL-M1D486
...
33
Termnl Block WPL-M4D55
...
34
Screw (25) WPL-M1D5
...
35
Relay WPL-M16D71
...
36
Screw, Tf WPL-M0231704
...
37
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
38
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
39
Lamp Holder WPL-M5D267
...
40
Lamp, Cavity WPL-M9D54
...
41
Nla (See D-Pb17) WPL-M27D257
...
42
Air Filter Kit WPL-M48D13
...
43
Insulator Switch WPL-M5D191
...
44
Stand Off Arm Mtg WPL-M2D380
...
45
Screw WPL-M1D764
...
46
.187 Dia Pop Rivet Steel WPL-M1D349
...
47
Transformer (M60d125) WPL-38437P01
...
48
Screw (25) WPL-M1D5
...
49
Fuse 20 A WPL-WPM0805101
...
50
Screw WPL-M1D764
...
51
Strain Relf WPL-26632P01
...
52
See Note Fuse, Model Uk Power Cord Type Bs1362, 13 Amp -- (Purchaselocally) WPL-Y00000000
...
53
Screw WPL-M1D764
...
54
Resistor, Bleeder WPL-M3D59
...
55
Not Available WPL-M2D453
...
56
Inlay, Door Handle WPL-M7D416
...
57
Dr Inlay Gold Kit WPL-M7D368
...
58
Casting, Outer Door WPL-M70D59
...
59
Window, Outer WPL-M51D33
...
60
Nut WPL-M1D760
...
61
Bracket, Latch Bar Mtg. WPL-M20D128
...
62
Nut WPL-WP488130
...
63
Spring Latch Kit WPL-M2D198
...
64
Nut, Locking WPL-M1D414
...
65
Screw Adjust M1d744 (10) WPL-M1D744
...
66
R F Gasket Kit WPL-M2D152
...
67
Nut WPL-WP488130
...
68
Cushion WPL-M2D452
...
69
Nut WPL-M0282009
...
70
Bearing Flng (10) WPL-M1D112
...
71
Set Screw Kit (1) WPL-M1D461
...
72
Flat Washer WPL-M1D117
...
73
Door, Inner WPL-M70D61
...
74
Choke Filler WPL-33775P01
...
75
Window, Inner WPL-M51D34
...
76
Nut K WPL-M0282005
...
77
Lock Washer WPL-M0272803
...
78
Transformer, Filament WPL-M60D82
...
79
Wshr-Rubber WPL-32383P01
...
80
Fuse- 3 Am WPL-Y0078733
...
81
Sealer Assy WPL-33487A01
...
82
Res Asy Service M3d60 WPL-M3D60
...
83
Fan Blade, Motor Cooling WPL-M35D31
