Amana 80/45.100UK

Model: 80/45.100UK

Save Part Not Listed?
product name

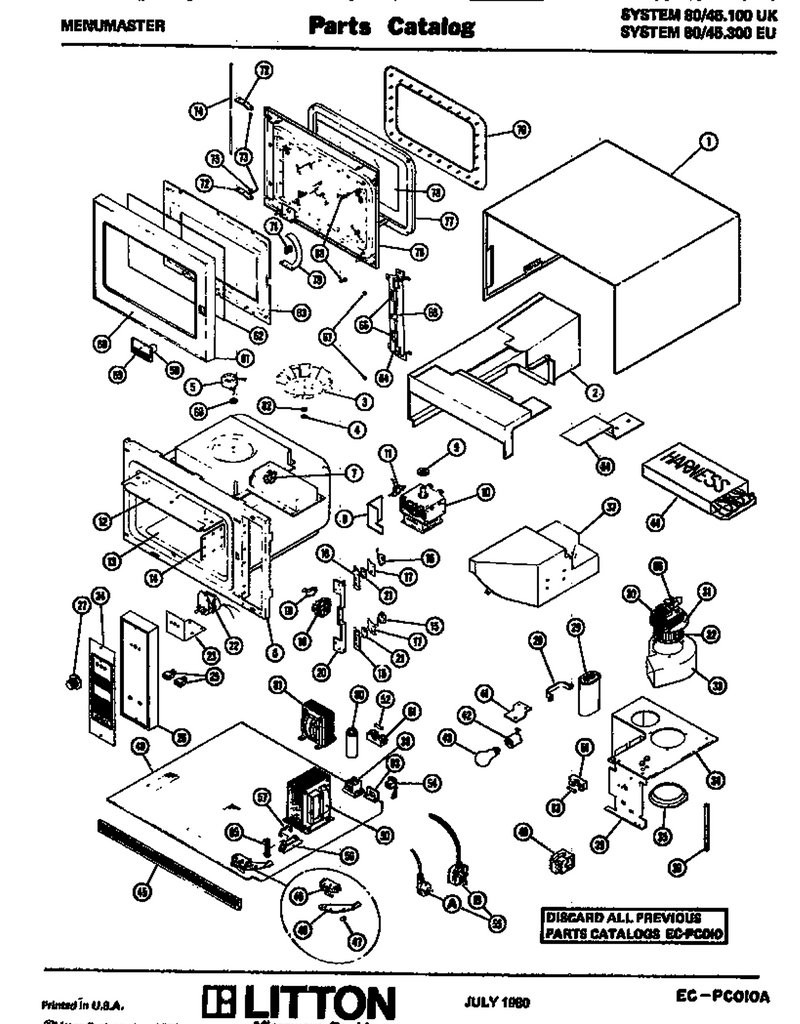

01 - Page 1

...
...
NI
Not Available WPL-M1D288
...
1
Not Available WPL-M80D80
...
2
Duct, Air Exhaust WPL-M65D178
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
6
Cavity Assembly WPL-M77D85
...
7
Screw, Tf WPL-M0231704
...
8
Baffle Asm WPL-M65D211
...
9
Gasket-Rf WPL-M2D305
...
10
Net Use 39143p02 WPL-39143P01
...
11
Screw Thrm WPL-M1D666
...
12
Stirrer Cover WPL-M45D19
...
13
Shelf Kit WPL-M50D33
...
14
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
15
Nut K WPL-M0282005
...
16
Strike, Latch WPL-M8D191
...
17
Insulator, Switch WPL-M5D268
...
18
Screw WPL-WP489474
...
19
Sw-Monitor M14d212 WPL-M14D212
...
20
Nut WPL-WP488130
...
21
Spacer, Switch WPL-M8D190
...
22
Screw (25) WPL-M1D330
...
23
Not Available WPL-M8D193
...
24
Dec Panel 80/45 WPL-M7D423
...
25
Indicator Light WPL-M9D93
...
26
Timer Casting WPL-M7D421
...
27
Ia Knob WPL-M6D250
...
28
No.6 Hex Hd Machine Screw(25) WPL-M1D655
...
29
Dual Cap 1.4x2mf WPL-M10D75
...
30
Motor, Blower WPL-M12D66
...
31
Plate, Blower WPL-M8D196
...
32
Wheel, Blower WPL-34487P01
...
33
Housing WPL-M65D210
...
34
Screw (25) WPL-M1D5
...
35
Flange, Blower Housing WPL-M8D197
...
36
Nut (25) WPL-M1D451
...
37
No.8 T X 1/4`` Screw WPL-M1D486
...
38
Not Available WPL-M1D284
...
39
Screw (25) WPL-M1D5
...
40
Relay WPL-M16D71
...
41
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
42
Lamp Holder WPL-M5D267
...
43
Lamp, Cavity WPL-M9D54
...
44
Nla (See D-Pb17) WPL-M27D231
...
45
Air Filter Kit WPL-M48D13
...
46
Insulator Switch WPL-M5D191
...
47
Stand Off Arm Mtg WPL-M2D380
...
48
Screw WPL-M1D764
...
49
Tape 8-Ft/pkg Kit WPL-M2D451
...
50
Transformer (M60d125) WPL-38437P01
...
51
Holder, Fuse WPL-M4D68
...
52
Fuse 20 A WPL-WPM0805101
...
53
Screw WPL-M1D764
...
54
Strain Relf WPL-26632P01
...
55
See Note Fuse, Model Uk Power Cord Type Bs1362, 13 Amp -- (Purchaselocally) WPL-Y00000000
...
56
Screw WPL-M1D764
...
57
Resistor, Bleeder WPL-M3D59
...
58
Not Available WPL-M2D453
...
59
Inlay, Handle 80/45 WPL-M7D418
...
60
Dr Inlay Gold Kit WPL-M7D368
...
61
Clip, Casting Mtg. WPL-M1D759
...
62
Window, Outer WPL-M51D33
...
63
M70d60 Mask WPL-34429P01
...
64
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
65
Latch Plated WPL-M8D200
...
66
Spring Latch Kit WPL-M2D198
...
67
Nut, Locking WPL-M1D414
...
68
Screw Adjust M1d744 (10) WPL-M1D744
...
69
R F Gasket Kit WPL-M2D152
...
70
Screw Bkt Mtg WPL-M1D336
...
71
Cushion WPL-M2D452
...
72
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
73
Bearing Flng (10) WPL-M1D112
...
74
Set Screw Kit (1) WPL-M1D461
...
75
Flat Washer WPL-M1D117
...
76
Door, Inner WPL-M70D61
...
77
Choke Filler WPL-33775P01
...
78
Window, Inner WPL-M51D34
...
79
Plate, Seal WPL-M54D10
...
80
Line Filter Kit WPL-M10D35
...
81
Transformer, Filament WPL-M60D82
...
82
Wshr-Rubber WPL-32383P01
...
83
Fuse- 3 Am WPL-Y0078733
...
84
Sealer Assy WPL-33487A01
...
85
Res Asy Service M3d60 WPL-M3D60
...
86
Fan Blade, Motor Cooling WPL-M35D31
