Amana 80/42.003

Model: 80/42.003

Save Part Not Listed?
product name

Popular Parts

Popular Parts

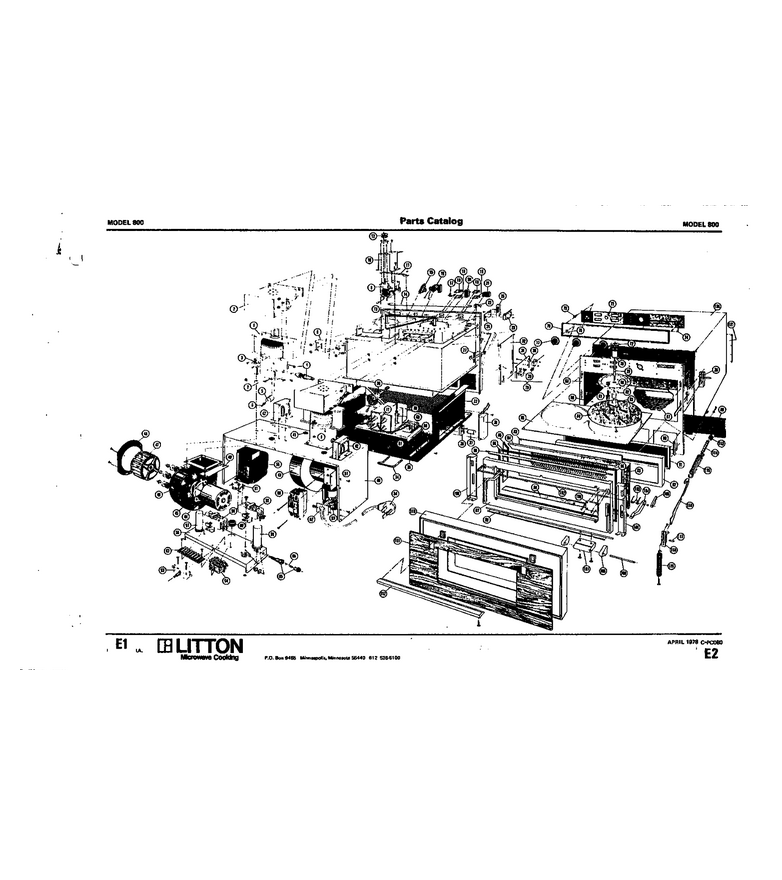

01 - Page 2

...
...
1
Wrap WPL-M80D90
...
2
Rivet (25) WPL-M1D623
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Screw (25) WPL-M1D5
...
6
Cavity Assy Kit WPL-M77D96
...
7
Antenna Pin Kit WPL-M2D563
...
8
Baffle, Air WPL-M65D175
...
9
Gasket-Rf WPL-M2D305
...
10
Net Use 39143p02 WPL-39143P01
...
11
Protector-X WPL-M4D77
...
12
Stirrer Cover WPL-M45D19
...
13
Adhesive WPL-W10841140
...
14
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
15
Switch, Interlock WPL-32162P01
...
16
Strike WPL-M8D157
...
17
Bracketx WPL-M8D158
...
18
Bracket, Monitor Switch Mtg. WPL-M8D65
...
19
Switch, Monitor WPL-35370P01
...
20
Nut WPL-WP488130
...
21
Spacer WPL-M8D160
...
22
Palnut (25) WPL-M1D505
...
23
Lens/filter WPL-31820P01
...
24
Dec Panel WPL-M7D372
...
25
Timer Casting WPL-M7D362
...
26
Nut K WPL-M0282005
...
27
Hvcap1.05mfd 2500v80deg C WPL-1241524333
...
28
Baffle- WPL-M65D176
...
29
Bridge WPL-M52D158
...
30
Stand Off WPL-M2D382
...
31
Duct Asy M65d174 WPL-40173P01
...
32
Air Baffle Foam Kit WPL-M65D177
...
33
Panel, Power WPL-M52D160
...
34
Screw, Tf WPL-M0231704
...
35
Screw, Tf WPL-M0231704
...
36
Load Resistor WPL-M3D51
...
37
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
38
Socket WPL-M5D100
...
39
Light Bulb WPL-8009
...
40
Nla (see D-Pb17) WPL-M27D207
...
41
Clip WPL-M2D499
...
42
Switch WPL-M14D47
...
43
Stand Off Arm Mtg WPL-M2D380
...
44
Screw WPL-M1D764
...
45
Not Available WPL-M79D80
...
46
Ia Screw No.10-32 WPL-M1D370
...
47
Nut K WPL-M0282005
...
48
Fuse WPL-M4D88
...
49
Screw WPL-M1D764
...
50
Power Cord WPL-M26D2
...
51
Screw WPL-M1D764
...
52
Bleeder Resistor WPL-M3D42
...
53
No.10 X 3/8`` Set Screw WPL-M1D667
...
54
Handle Inlay WPL-M7D371
...
55
Dr Inlay Gold Kit WPL-M7D368
...
56
Clip, Casting Mtg. WPL-M1D759
...
57
Window, Outer WPL-M51D33
...
58
M70d60 Mask WPL-34429P01
...
59
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
60
Pivot WPL-23681P01
...
61
Spring Latch Kit WPL-M2D198
...
62
Nut, Locking WPL-M1D859
...
63
Screw Adjust M1d744 (10) WPL-M1D744
...
64
Ball Stud (1) WPL-M1D594
...
65
Screw Bkt Mtg WPL-M1D336
...
66
Hinge M8d212 (2per) WPL-94115P01
...
67
Bearing Flng (10) WPL-M1D112
...
68
Rod Hinge M52d157 WPL-31618P01
...
69
Bushing WPL-M2D117
...
70
Door, Inner WPL-M70D61
...
71
Choke Filler WPL-33775P01
...
72
Window, Inner WPL-M51D34
...
73
Nut K WPL-M0282005
...
74
Knob, Vari-Power WPL-M6D212
...
75
Knob Dial WPL-31818P01
...
76
Knob, Minutes WPL-M6D214
...
77
Xfmr- M60d75 WPL-M60D75
...
78
Wshr-Rubber WPL-32383P01
...
79
Shield WPL-40172P01
...
80
Sealer Assy WPL-33487A01
...
81
Cushion WPL-M2D452
...
82
Nut WPL-WP488130
...
83
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
84
Not Available WPL-M1D295
