product name

Amana 80/40.001

Model: 80/40.001

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Ia Screw 10ab WPL-M1D369
...
2
Air Duct Exhaust Kit WPL-M65D232
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
Washer (25) WPL-M1D152
...
6
Cavity Assy Kit WPL-M77D96
...
7
Screw, Tf WPL-M0231704
...
8
Baffle, Air WPL-M65D175
...
9
Gasket-Rf WPL-M2D305
...
10
Net Use 39143p02 WPL-39143P01
...
11
Protector-X WPL-M4D77
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Shelf Kit WPL-M50D33
...
14
Lamp Cover WPL-M7D367
...
15
Switch, Interlock WPL-32162P01
...
16
Strike WPL-M8D157
...
17
Nut WPL-WP488130
...
18
Bracket, Monitor Switch Mtg. WPL-M8D65
...
19
Switch, Monitor WPL-35370P01
...
20
Nut WPL-WP488130
...
21
Spacer WPL-M8D160
...
22
Insulator WPL-33409P01
...
23
Lens/filter WPL-31820P01
...
24
Panel, Decorative WPL-M7D364
...
25
Timer Casting WPL-M7D362
...
26
Nut K WPL-M0282005
...
27
Hvcap1.05mfd 2500v80deg C WPL-1241524333
...
28
1 In. Wood Screw (25) WPL-M1D736
...
29
Bridge WPL-M52D158
...
30
Nut (25) WPL-M1D451
...
31
No.8 T X 1/4`` Screw WPL-M1D486
...
32
Air Baffle Foam Kit WPL-M65D177
...
33
Pnl Pwr Distrib WPL-M52D159
...
34
Screw, Tf WPL-M0231704
...
35
Screw, Tf WPL-M0231704
...
36
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
37
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
38
Socket WPL-M5D100
...
39
Light Bulb WPL-8009
...
40
Nla (see D-Pb17) WPL-M27D206
...
41
Clip WPL-M2D499
...
42
No.6 Pan Hd Machine Screw WPL-M1D836
...
43
Not Available WPL-M2D450
...
44
Pivot Arm WPL-M8D156
...
45
.187 Dia Pop Rivet Steel WPL-M1D349
...
46
Ia Screw No.10-32 WPL-M1D370
...
47
No.6 Pan Hd Machine Screw WPL-M1D69
...
48
Fuse-25 1=10 WPL-M4D75
...
49
Screw WPL-M1D764
...
50
Screw-8-32x WPL-M1D765
...
51
Screw WPL-M1D764
...
52
Bleeder Resistor WPL-M3D42
...
53
Handle Kit WPL-M8D153
...
54
Handle Inlay WPL-M7D366
...
55
Dr Inlay Gold Kit WPL-M7D368
...
56
Casting, Outer Door WPL-M70D59
...
57
Window, Outer WPL-M51D33
...
58
M70d60 Mask WPL-34429P01
...
59
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
60
Bushing M2d46 WPL-25788P01
...
61
Spring Latch Kit WPL-M2D198
...
62
Nut, Locking WPL-M1D859
...
63
Screw Adjust M1d744 (10) WPL-M1D744
...
64
Ball Stud (1) WPL-M1D594
...
65
Nut WPL-WP488130
...
66
Hinge M8d212 (2per) WPL-94115P01
...
67
Bearing Flng (10) WPL-M1D112
...
68
Set Screw Kit (1) WPL-M1D461
...
69
Flat Washer WPL-M1D117
...
70
Door, Inner WPL-M70D61
...
71
Choke Filler WPL-33775P01
...
72
Window, Inner WPL-M51D34
...
73
Nut K WPL-M0282005
...
74
Wshr-Rubber WPL-32383P01
...
75
Shield WPL-40172P01
...
76
Sealer Assy WPL-33487A01
...
77
Cushion WPL-M2D452
...
78
Not Available WPL-M2D449
...
79
Screw (25) WPL-M1D860
...
80
Screw WPL-WP489474
...
81
H.v. Lead Kit WPL-M5D222

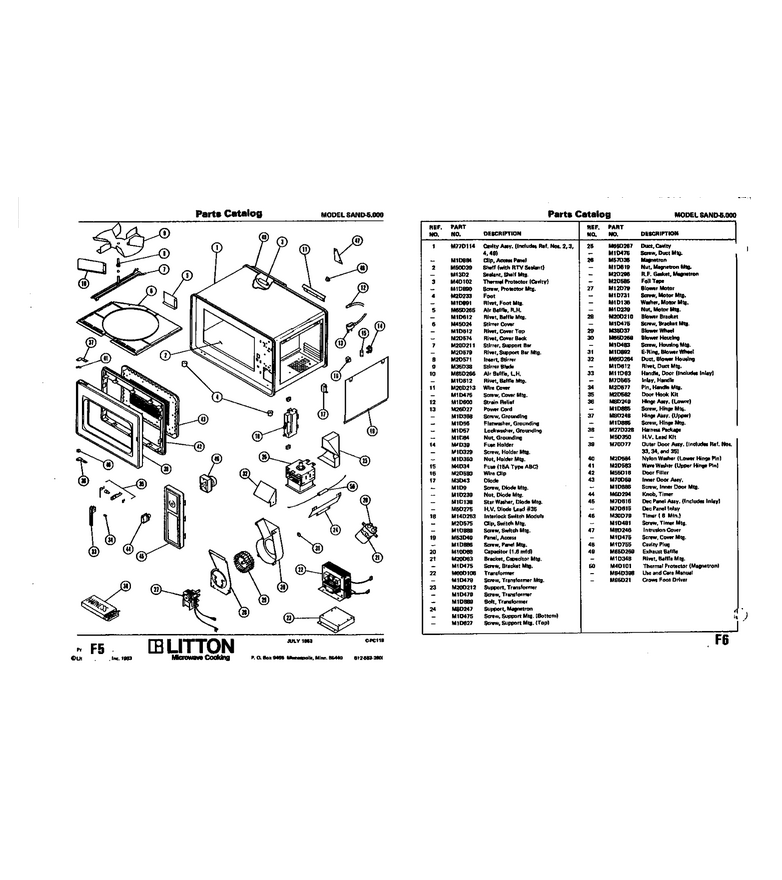

Schematic Image Zoomed
