Amana 80/31.002

Model: 80/31.002

Save Part Not Listed?
product name

Popular Parts

Popular Parts

01 - Page 1

...
...
1
Not Available WPL-M80D107
...
2
Duct Exhaust WPL-M65D275
...
3
Stirrer Blade Kit WPL-M44D15
...
4
Nut, Push WPL-Y04100035
...
5
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
6
Cavity Assy WPL-M77D116
...
7
No.8 Hex Wshr Hd Mach Scr WPL-M1D611
...
8
Not Available WPL-M65D274
...
9
Gasket-Rf WPL-M2D305
...
10
Net Use 39143p02 WPL-39143P01
...
11
Protector-X WPL-M4D77
...
12
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
13
Adhesive WPL-W10841140
...
14
Bracket, Switch WPL-M8D208
...
15
Switch, Interlock WPL-32162P01
...
16
Strike WPL-M8D157
...
17
Switch, Timer Interlock WPL-M14D255
...
18
Screw WPL-WP489474
...
19
Switch, Monitor WPL-35370P01
...
20
Brkt L.v. Xfmr WPL-M20D215
...
21
Shield M5d349 WPL-38453P01
...
22
Screw (25) WPL-M1D462
...
23
Lens/filter WPL-31820P01
...
24
Panel WPL-M7D582
...
25
Timer Casting Kit WPL-M7D477
...
26
Screw WPL-WPW10068250
...
27
High Voltage Capacitor WPL-M10D91
...
28
Screw WPL-M1D764
...
29
Wheel, Blower M35d39 WPL-36300P01
...
30
Housing Blower, Kit WPL-M65D277
...
31
Duct Mag Intake Kit WPL-M65D273
...
32
Clip (10) WPL-M1D680
...
33
No.8 T X 1/4`` Screw WPL-M1D486
...
34
Relay Prim WPL-38843P01
...
35
Screw, No.6-32 X 1/4 Inch WPL-212951
...
36
Speed Clip WPL-M8D123
...
37
Brkt WPL-M8D230
...
38
Socket Lamp WPL-M5D308
...
39
Lamp WPL-M9D10
...
40
Harness Pkg WPL-M27D314
...
41
Clip WPL-M2D499
...
42
Access Pnl Back WPL-M82D169
...
43
Cushion WPL-M2D452
...
44
Wshr-Rubber WPL-32383P01
...
45
Base Assy WPL-M79D87
...
46
Ia Screw No.10-32 WPL-M1D370
...
47
No.6 Pan Hd Machine Screw WPL-M1D69
...
48
Fuse WPL-M4D88
...
49
Screw WPL-M1D764
...
50
Screw-8-32x WPL-M1D765
...
51
Hv Rect 12kv 750max WPL-1330000301
...
52
Bleeder Resistor WPL-M3D42
...
53
Handle Kit WPL-M8D240
...
54
Handle Inlay WPL-M7D659
...
55
Dr Inlay Gold Kit WPL-M7D368
...
56
Casting, Outer Door WPL-M70D59
...
57
Window, Outer WPL-M51D33
...
58
Nut WPL-M1D760
...
59
Bracket, Latch Bar Mtg. WPL-M20D128
...
60
Latch Plated WPL-M8D200
...
61
Spring Latch Kit WPL-M2D198
...
62
Nut, Locking WPL-M1D859
...
63
Screw Adjust M1d744 (10) WPL-M1D744
...
64
Not Available WPL-M5D363
...
65
Arm,door Stop Kit WPL-M8D198
...
66
Hinge M8d212 (2per) WPL-94115P01
...
67
Bearing Flng (10) WPL-M1D112
...
68
Set Screw Kit (1) WPL-M1D461
...
69
Flat Washer WPL-M1D117
...
70
Net Use 10897701 Dr Pnl K WPL-M70D66
...
71
Choke Filler WPL-33775P01
...
72
Window, Inner WPL-M51D34
...
73
Plate, Seal WPL-M54D10
...
74
Gasket, Hinge Mtg. WPL-M25D65
...
75
Switch- WPL-36365P01
...
76
Res Asy Service M3d60 WPL-M3D60
...
77
Wrench WPL-37600P01

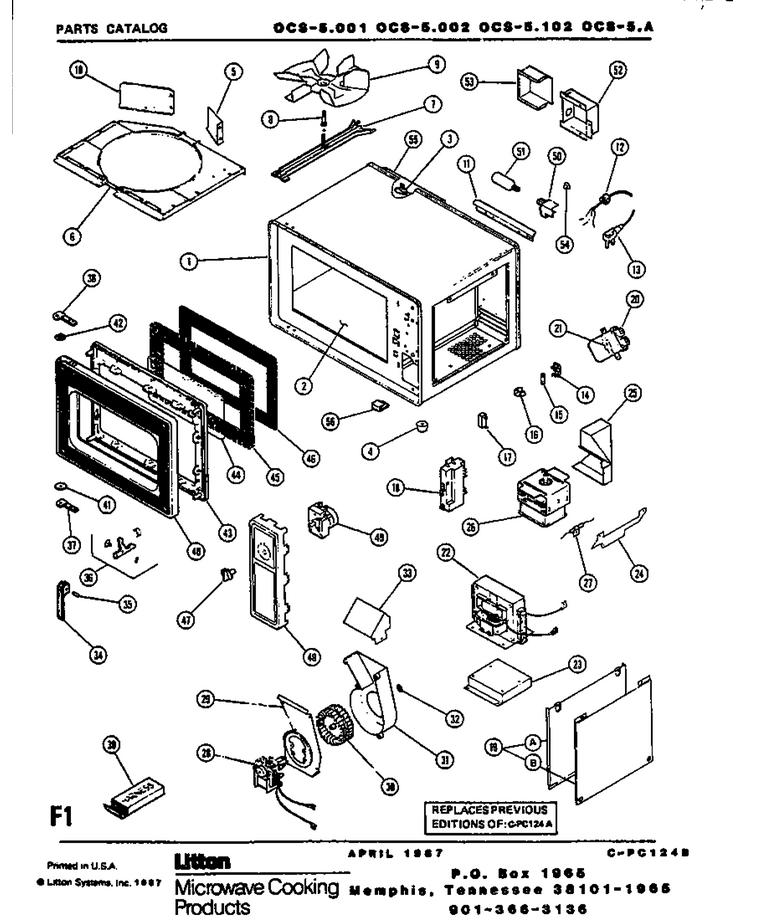

Schematic Image Zoomed
