Amana 80/08.501

Model: 80/08.501

Save Part Not Listed?
product name

01 - Page 1

...
...
1
Not Available WPL-M80D58
...
2
Screw (25) WPL-M1D107
...
3
Screw (25) WPL-M1D107
...
4
Not Available WPL-M79D46
...
5
Baffle Asy WPL-33449A01
...
6
Transformer WPL-M60D79
...
7
Capacitor-.69 WPL-59001160
...
8
Bracket WPL-10825501
...
9
Feet 4/pkg WPL-M2D462
...
10
Power Cord WPL-1731300202
...
11
No.8 T X 1/4`` Screw WPL-M1D486
...
12
Strain Relf WPL-26632P01
...
13
Screw WPL-WP489474
...
14
Screw WPL-WP90767
...
15
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
16
Fuse 20 A WPL-WPM0805101
...
17
Nut WPL-WP488130
...
18
Resistor, Bleeder WPL-M3D59
...
19
Not Available WPL-M65D56
...
20
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
21
Not Available WPL-M65D57
...
22
Switch WPL-M14D104
...
23
Ia Switch WPL-M14D57
...
24
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
25
Switch, Monitor WPL-35370P01
...
26
Switch, Interlick (m14d106) WPL-M14D106
...
27
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
28
Not Available WPL-M20D105
...
29
Knob Asy. WPL-M6D274
...
30
Knob Vari-Power WPL-M6D179
...
31
Dec Panel Assy WPL-M7D474
...
32
Backplate Assy WPL-M7D473
...
33
Dial Lite WPL-M9D95
...
34
Speed Clip WPL-M8D123
...
35
Screw (25) WPL-M1D523
...
36
Screw Thrm WPL-M1D666
...
37
Lens WPL-M6D173
...
38
Bushing-Snap WPL-A3293501
...
39
Not Available WPL-M65D125
...
40
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
41
Cutout-Thermal-Control WPL-31866P01
...
42
Gasket-Rf WPL-M2D296
...
43
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
44
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
45
Light Bulb WPL-8009
...
46
Exhaust Guard WPL-M2D339
...
47
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
48
R F Gasket Kit WPL-M2D152
...
49
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
50
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
51
Str Blade Kit WPL-M35D2
...
52
Spcr-Stir WPL-M2D491
...
53
.156 Dia Push On Clip WPL-M1D78
...
54
Hinge WPL-M52D62
...
55
Choke WPL-25989P01
...
56
Clip-Push WPL-M0118905
...
57
M11d59 Latch Assy WPL-38621P01
...
58
Spring M2d218 WPL-25951P01
...
59
Net Outer Door Assy WPL-M70D65
...
60
Button Door Han WPL-M6D252
...
61
Screw, Handle Mtg. WPL-M1D724
...
62
Adhesive WPL-W10841140
...
63
Not Available WPL-M65D127
...
64
Intrusion WPL-M7D284
...
65
Not Available WPL-M65D121
...
66
No.6 Hex Wshr Hd Mach Scr (25) WPL-M1D481
...
67
Buzzer Timer WPL-M16D58
...
68
Screw WPL-WP90767
...
69
Screw, Tf WPL-M0231704
...
70
Screw Thrm WPL-M1D666
...
71
Main Harness WPL-M27D302
...
72
Not Available WPL-M1D295

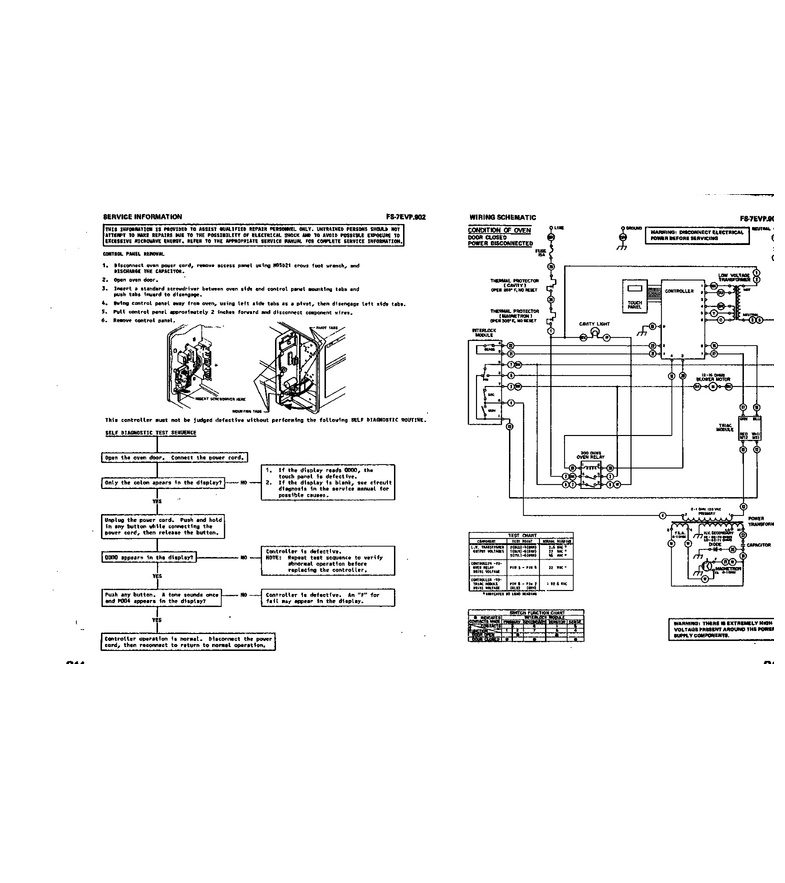

Schematic Image Zoomed
