product name

Amana 776.000

Model: 776.000

Save Part Not Listed?
product name

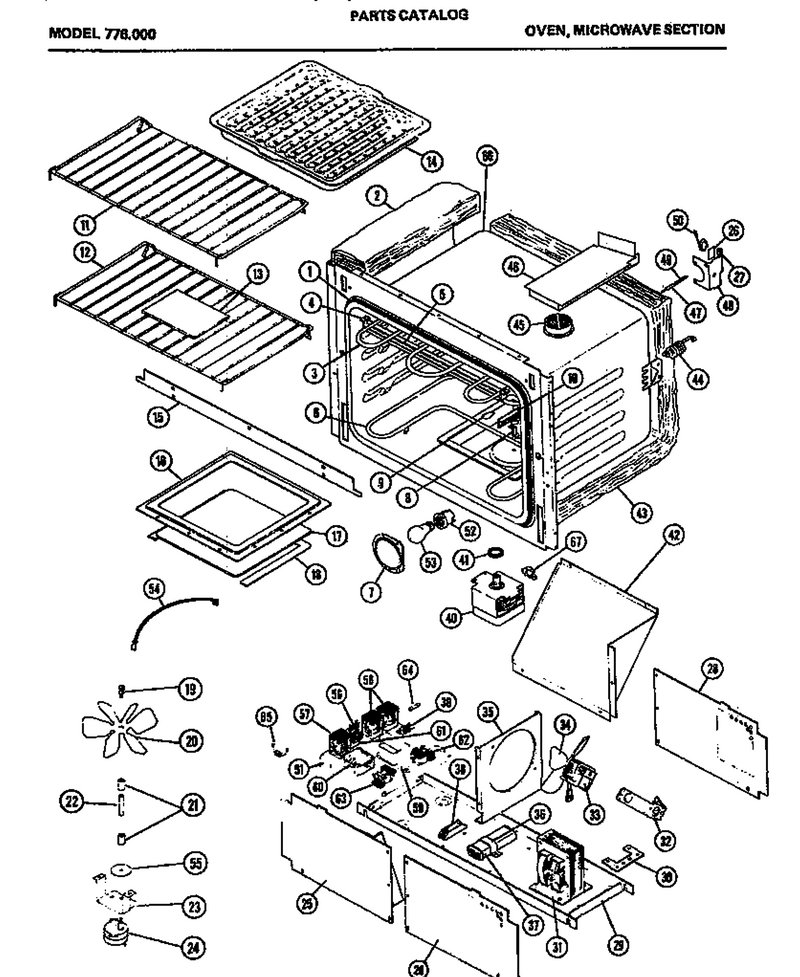

04 - Page 1

...
...
1
Gasket, Oven Cavity WPL-M25D40
...
2
Not Available WPL-M63D21
...
3
Screw, Frame Mounting WPL-M1D802
...
4
Screw, Frame Mounting WPL-M1D802
...
5
Insulator Elemt WPL-M8D182
...
6
Screw, Frame Mounting WPL-M1D802
...
7
Screw, Frame Mounting WPL-M1D802
...
8
Screw, Frame Mounting WPL-M1D802
...
9
Hole Cover, Capillary Tube WPL-M2D420
...
10
Screw, Frame Mounting WPL-M1D802
...
11
Range Rack WPL-M67D14
...
12
Wire Rack WPL-M67D10
...
13
Shelf WPL-M50D22
...
14
Procelain Broiler (Pan And Grid) WPL-4396923
...
15
Not Available WPL-M1D592
...
16
Not Available WPL-M20D169
...
17
Not Available WPL-M50D34
...
18
Gasket Assy WPL-M25D61
...
19
Screw, Stirrer Mtg WPL-M2D459
...
20
Stirrer Blade WPL-54719P01
...
21
Cup, Stir Clutch WPL-M2D460
...
22
Shaft, Stirrer WPL-M2D461
...
23
Screw (25) WPL-M1D590
...
24
Screw (25) WPL-M1D462
...
25
Screw (25) WPL-M1D107
...
26
Insulator WPL-M5D163
...
27
Clip (10) WPL-M1D839
...
28
Screw (25) WPL-M1D107
...
29
Not Available WPL-M52D175
...
30
Screw (25) WPL-M1D544
...
31
Transformer WPL-M60D79
...
32
Screw WPL-WP90767
...
33
Nut K WPL-M0282005
...
34
Fan Blade WPL-M35D15
...
35
Plenum, Blwr WPL-M20D143
...
36
Capacitor Brkt WPL-M20D60
...
37
Capacitor 1.15 WPL-D8547913
...
38
Wire Lead, Diode H.v. WPL-M5D253
...
39
Ia Screw WPL-M1D329
...
40
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
41
Gasket-Rf WPL-M2D296
...
42
Screw WPL-WP90767
...
43
Not Available WPL-M63D23
...
44
Oven Spring WPL-M5D114
...
45
Eliminator WPL-54326P01
...
46
Vent-Horiz WPL-M65D188
...
47
Pin Interlock WPL-M2D413
...
48
Screw (25) WPL-M1D533
...
49
53571p01 WPL-M2D414
...
50
Switch Ol Intlk WPL-M14D203
...
51
Screw WPL-WP90767
...
52
Socket Oven WPL-M5D113
...
53
Light Bulb WPL-8009
...
54
H.v. Lead WPL-M5D250
...
55
Heat Sink Disc WPL-M2D467
...
56
Screw (25) WPL-M1D590
...
57
Power Up Relay WPL-M16D83
...
58
Nut K WPL-M0282005
...
59
Screw WPL-WP90767
...
60
Screw (25) WPL-M1D590
...
61
Screw (25) WPL-M1D590
...
62
Relay-Oven WPL-M16D68
...
63
Screw, No.6-32 X 1/4 Inch WPL-212951
...
64
Fuse WPL-WP22001555
...
65
Snubber WPL-M3D65
...
66
Net Oven Cavity Assy WPL-M77D106
...
67
Use And Care Manual WPL-M94D302

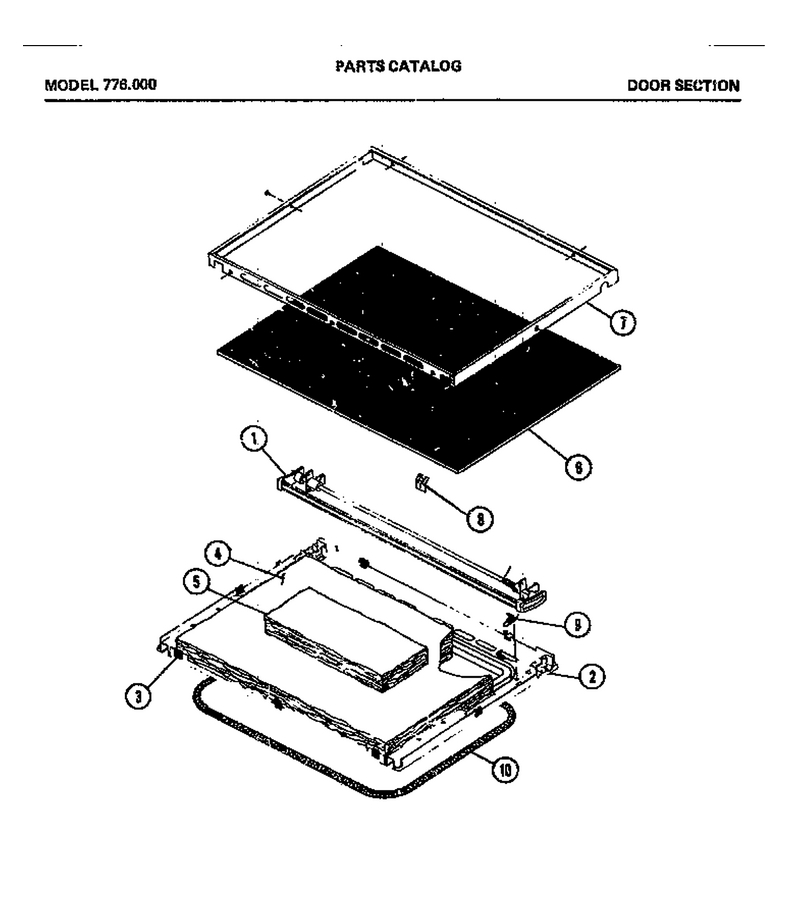

01 - Door Section

...
...
1
Door Handle Assembly WPL-M49D13
...
2
Inner Door Assy Kit WPL-M72D67
...
3
U-Nut (25) WPL-M1D516
...
4
Not Available WPL-M63D10
...
5
Not Available WPL-M63D14
...
6
Door Glass Asm WPL-M51D38
...
7
Screw (25) WPL-M1D540
...
8
Clip (1) WPL-M1D512
...
9
Clip 10/pkg WPL-M2D458
...
10
Gasket, Oven Door WPL-M25D60

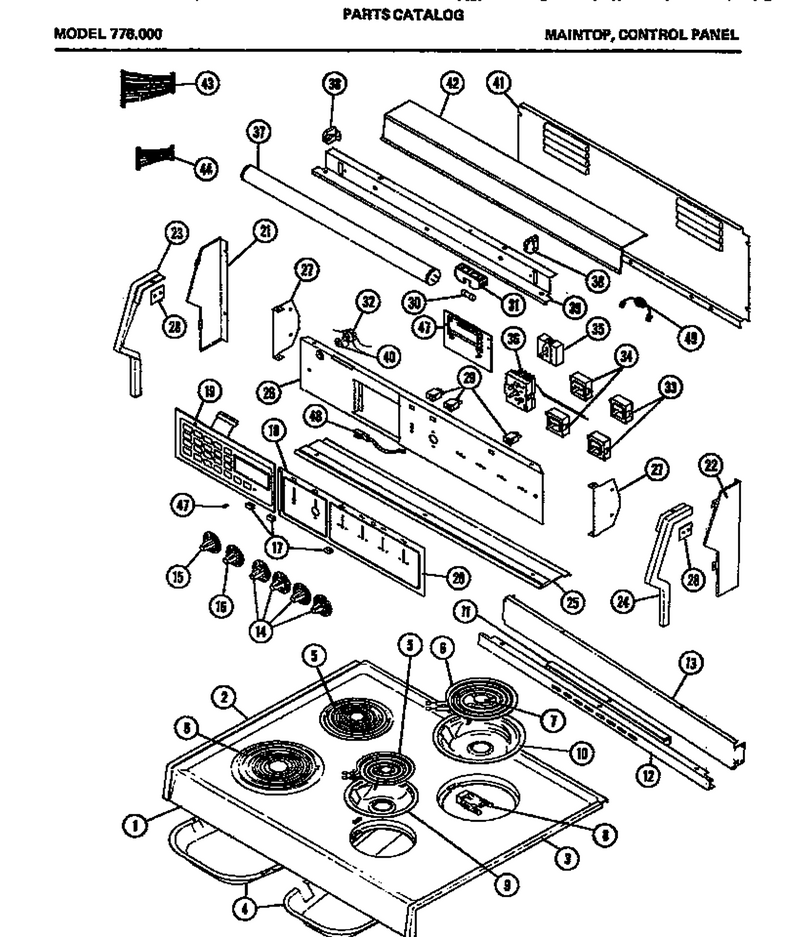

02 - Maintop

...
...
1
Not Available WPL-M82D129
...
2
Screw WPL-WPW10348409
...
3
Screw WPL-WPW10348409
...
4
Not Available WPL-M44D16
...
5
Surface Elem. 6`` 240 V. 1250 W WPL-Y0051573
...
6
Elmnt-Surf WPL-WP3191454
...
7
Medallion S.s. WPL-M2D422
...
8
Receptacle WPL-330031
...
9
Burner Bow WPL-51294P01
...
10
Bowl-Drip WPL-WPW10196405
...
11
Screw (25) WPL-M1D526
...
12
Vent Extrusion WPL-M52D129
...
13
Backsplash, Avoc WPL-M82D146
...
14
Knob, Surface WPL-M6D254
...
15
Control Knob Kit WPL-M6D253
...
16
Thermostat Knob Assy WPL-M6D255
...
17
Lens-Ind Lgt WPL-M2D470
...
18
Panel Divider WPL-M2D468
...
19
Touch Pnl Assy Kit WPL-M7D439
...
20
Dec. Panel R.h. WPL-M7D438
...
21
Side Cover Lt Avoc WPL-M53D28
...
22
Screw WPL-WP90767
...
23
Screw (25) WPL-M1D654
...
24
Screw (25) WPL-M1D654
...
25
Extrusion,c.p. WPL-M52D184
...
26
Screw (25) WPL-M1D526
...
27
Screw (25) WPL-M1D526
...
28
Bracket, Trim WPL-M2D323
...
29
Indicator Light WPL-M9D86
...
30
Fuse-15amp WPL-A3410402
...
31
No.6 Pan Hd Machine Screw WPL-M1D69
...
32
Switch Light WPL-M14D218
...
33
Switch- In WPL-R0702564
...
34
Screw 8-32 (25) WPL-M1D536
...
35
Screw 8-32 (25) WPL-M1D536
...
36
Screw 8-32 (25) WPL-M1D536
...
37
Flourescent Lamp WPL-M9D45
...
38
Lamp Holder WPL-52064P01
...
39
Panel WPL-M52D161
...
40
Spacer WPL-M2D312
...
41
Not Available WPL-M82D143
...
42
Top Cap Cont Pnl WPL-M65D196
...
43
Wire Harness WPL-M27D246
...
44
Nla (See D-Pb17) WPL-M27D247
...
45
Ballast WPL-74003033
...
46
Indicator Light Lens WPL-M2D464
...
47
Module WPL-M32R27
...
48
Ind Light WPL-M9D89
...
49
Varistor Asy WPL-M3D33

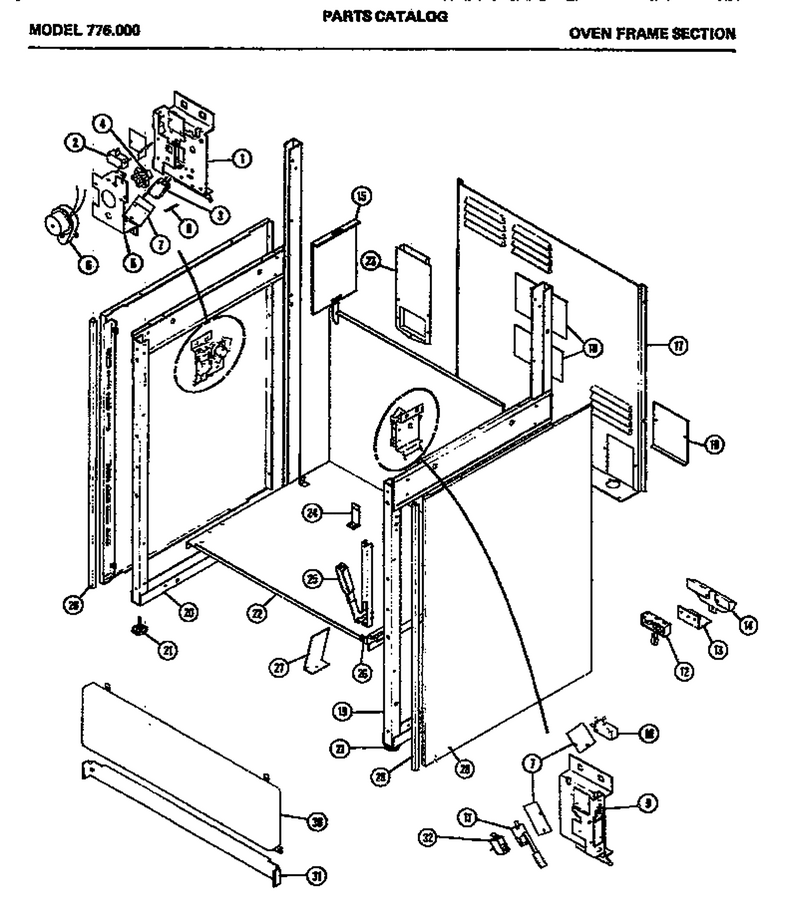

03 - Oven Frame Section

...
...
1
Screw WPL-WP90767
...
2
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
3
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
4
Lock Cam WPL-M2D337
...
5
Brkt-Mtg WPL-52920P01
...
6
Lock Motor Assembly WPL-M12D34
...
7
Insulator WPL-M5D163
...
8
Spring WPL-M2D276
...
9
Screw WPL-WP90767
...
10
Nut Twin Spd WPL-52735P01
...
11
Nut Twin Spd WPL-52735P01
...
12
Terminal WPL-M4D45
...
13
Screw WPL-WP90767
...
14
Not Available WPL-M5D155
...
15
Screw (25) WPL-M1D638
...
16
Not Available WPL-M20D73
...
17
Screw WPL-WP90767
...
18
Insulator Bake WPL-M5D221
...
19
Screw WPL-WP90767
...
20
Screw WPL-WP90767
...
21
Leveling Foot WPL-M8D117
...
22
Not Available WPL-M82D139
...
23
Screw WPL-WP90767
...
24
Screw WPL-WP90767
...
25
Washer Cup WPL-M1D531
...
26
No.10 T X 3/8`` Screw WPL-M1D539
...
27
Bracket Retainer WPL-M2D315
...
28
Not Available WPL-M82D103
...
29
Screw (25) WPL-M1D533
...
30
Not Available WPL-M72D46
...
31
Screw WPL-WP90767
...
32
M14d98 Switch WPL-M14D98
