Amana 7465.100

Model: 7465.100

Save Part Not Listed?
product name

Popular Parts

Popular Parts

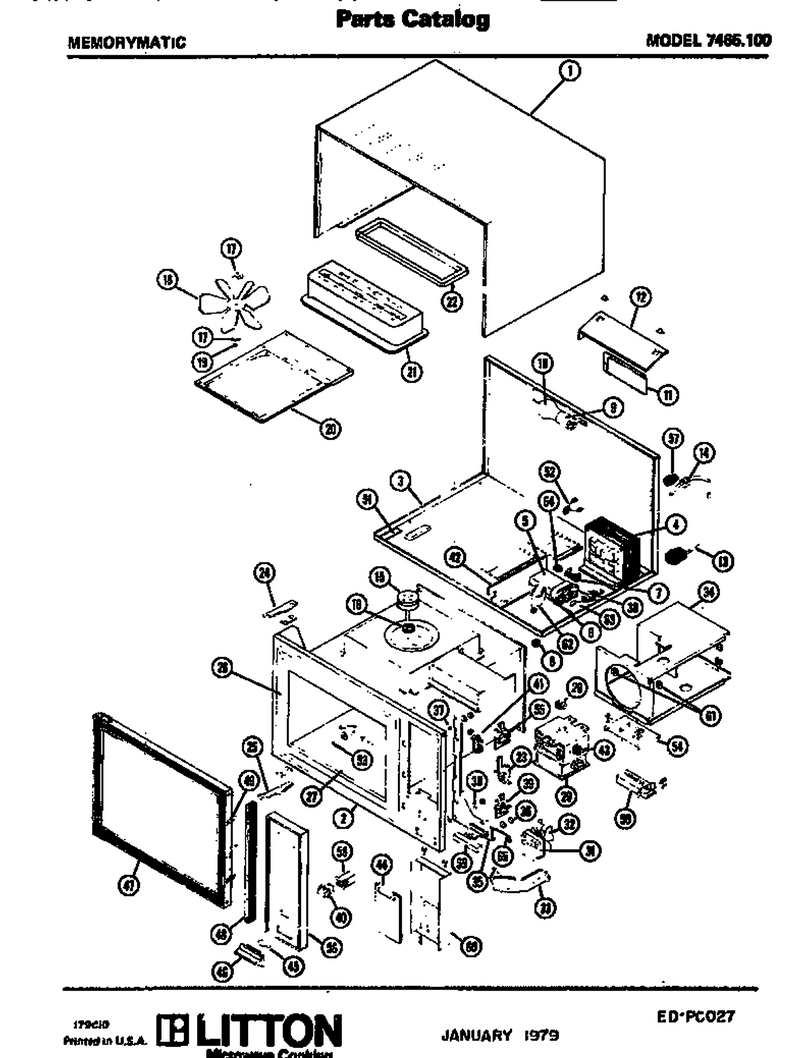

01 - Page 1

...
...
1
No.8 Ab X 1/2`` Screw WPL-M1D358
...
2
No.8 Ab X 1/2`` Screw WPL-M1D358
...
3
Not Available WPL-M79D66
...
4
Power Transformer WPL-M60D74
...
5
Capacitor WPL-M10D68
...
6
Bracket WPL-10825501
...
7
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
8
Foot WPL-M2D179
...
9
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
10
Lamp, Cavity WPL-M9D54
...
11
Lamp Cover WPL-M7D253
...
12
U-Clip WPL-M1D90
...
13
Screw (25) WPL-M1D413
...
14
Bushing, Strain Relief WPL-M1D671
...
15
Stirrer Motor WPL-M12D53
...
16
R F Gasket Kit WPL-M2D152
...
17
Spcr-Stir WPL-M2D26
...
18
Stirrer Blade Kit WPL-M35D19
...
19
.156 Dia Push On Clip WPL-M1D78
...
20
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
21
Exhaust Duct, Cavity WPL-M65D105
...
22
Not Available WPL-M25D31
...
23
Screw (25) WPL-M1D107
...
24
Hinge Assy WPL-M8D48
...
25
Not Available WPL-M2D170
...
26
Fillerx WPL-M55D6
...
27
Shelf W/rtv Kit WPL-M50D14
...
28
Gasket-Rf WPL-M2D296
...
29
Magnetron 2m172jd Kit WPL-M57D18
...
30
Screw WPL-WPW10068250
...
31
Nut K WPL-M0282005
...
32
Fan, Blower Motor Mtg. WPL-M32D16
...
33
Blower Brkt.kit WPL-M20D89
...
34
Nut-Speed WPL-M0287001
...
35
Screw (25) WPL-M1D212
...
36
Washer (25) WPL-M1D361
...
37
Oval Bearing WPL-M2D175
...
38
Bearing WPL-M2D176
...
39
Ia Screw No.10-32 WPL-M1D370
...
40
Button Power M6d208 WPL-M6D208
...
41
Probe Jack WPL-M5D197
...
42
Screw (25) WPL-M1D137
...
43
Cutout-Thermal-Control WPL-31866P01
...
44
Screw WPL-WP90767
...
45
Ia Spring WPL-M2D168
...
46
Bar WPL-M11D37
...
47
Door Assembly WPL-M68D97
...
48
Ia Screw 8b M1d618 WPL-M1D618
...
49
Hook, Door WPL-M8D52
...
50
H.v. Lead Kit WPL-M5D217
...
51
Not Available WPL-M2D172
...
52
Varistor Asm WPL-M3D49
...
53
Ia Probete WPL-34005P01
...
54
Triac WPL-M16D60
...
55
Interlock Switch Upper WPL-M14D139
...
56
Assy, Dec Panel M7d353 WPL-M7D358
...
57
Foot, Outer Case WPL-C8960601
...
58
M14d165 Sw WPL-31684P01
...
59
Foam Block (1) WPL-M1D741
...
60
Clip (10) WPL-M1D742
...
61
Washer (25) WPL-M1D733
...
62
Screw (25) WPL-M1D413
...
63
Insulator Cap WPL-M5D161
...
64
Screw, No.6x18x1/4 (3) WPL-487010
...
65
Ground Lead WPL-M5D62
