Amana 7425.100

Model: 7425.100

Save Part Not Listed?
product name

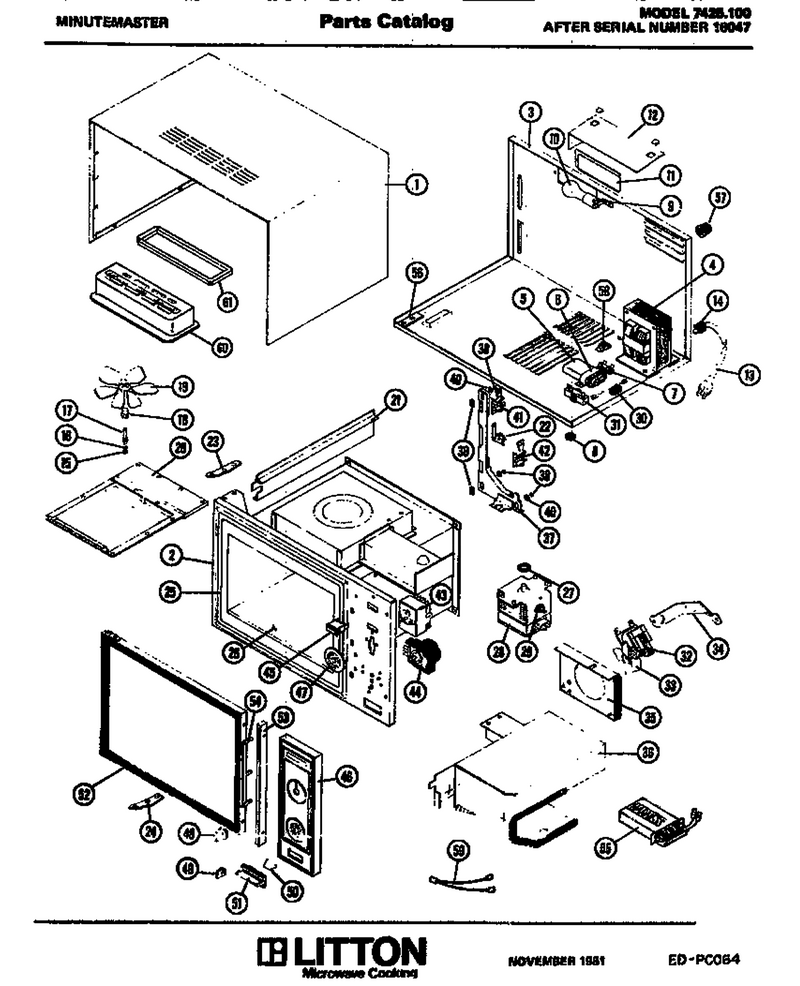

01 - Page 1

...
...
1
No.8 Ab X 1/2`` Screw WPL-M1D358
...
2
No.8 Ab X 1/2`` Screw WPL-M1D358
...
3
Not Available WPL-M94D36
...
4
H.v. Transformer WPL-M60D87
...
5
Capacitor WPL-M10D68
...
6
Bracket WPL-10825501
...
7
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
8
Foot WPL-M2D179
...
9
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
10
Lamp, Cavity WPL-M9D54
...
11
Lamp Cover WPL-M7D253
...
12
U-Clip WPL-M1D90
...
13
Flat Washer (1) WPL-M1D56
...
14
Bushing, Strain Relief WPL-M1D671
...
15
Nut, Pin Mtg. WPL-M1D76
...
16
Lockwasher (25) WPL-M1D577
...
17
Stud Pin WPL-M2D333
...
18
Insert, Stirrer WPL-M2D332
...
19
Stirrer Blade Kit WPL-M35D19
...
20
Cover WPL-M45D9
...
21
Baffle Left WPL-M65D124
...
22
Switch Assembly, Interlock Mon WPL-M14D138
...
23
Not Available WPL-M2D170
...
24
Not Available WPL-M2D170
...
25
Fillerx WPL-M55D6
...
26
Shelf W/rtv Kit WPL-M50D14
...
27
Gasket-Rf WPL-M2D296
...
28
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
29
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
30
Nut WPL-WP488130
...
31
Nut WPL-WP488130
...
32
Nut K WPL-M0282005
...
33
Ia Fan WPL-M35D3
...
34
Bracket Blower Mtg. WPL-M8D106
...
35
Inlet Brkt Plate WPL-M8D128
...
36
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
37
Slide Latch WPL-M20D59
...
38
Washer (25) WPL-M1D361
...
39
Oval Bearing WPL-M2D175
...
40
Bearing WPL-M2D176
...
41
Interlock Switch Upper WPL-M14D139
...
42
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
43
Timer WPL-M30D59
...
44
Screw (25) WPL-M1D523
...
45
Indicator Light WPL-M9D75
...
46
Dec Panel Asm WPL-M7D319
...
47
Dial Timer WPL-M6D177
...
48
Knob, Timer WPL-29977P01
...
49
Knob Control WPL-29976P01
...
50
Ia Spring WPL-M2D168
...
51
Bar WPL-M11D40
...
52
Door Assembly WPL-M68D82
...
53
Ia Screw 8b M1d618 WPL-M1D618
...
54
Screw (25) WPL-M1D473
...
55
H.v.leadno.32 WPL-M5D304
...
56
Not Available WPL-M2D172
...
57
Screw WPL-WP489474
...
58
Screw, No.6x18x1/4 (3) WPL-487010
...
59
Ground Lead Kit WPL-M5D201
...
60
Exhaust Duct, Cavity WPL-M65D105
...
61
Power Cord WPL-M26D31
