Amana 7190.000

Model: 7190.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

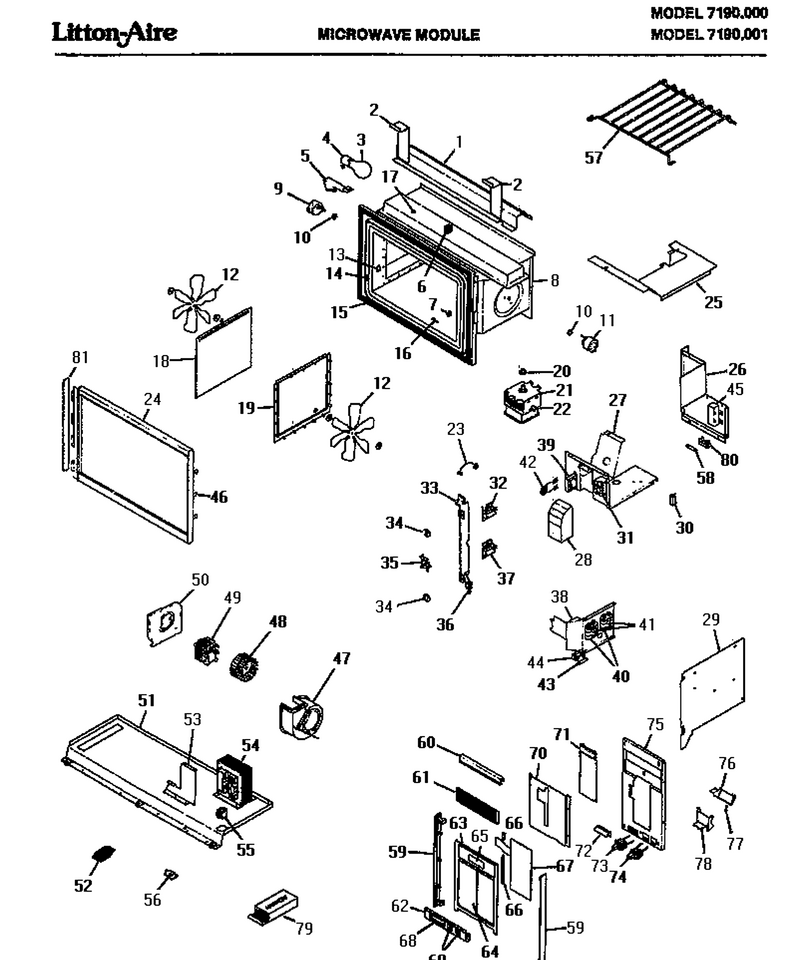

01 - Page 1

...
...
1
Duct Cavity WPL-M65D244
...
2
Screw WPL-WP90767
...
3
Light Bulb WPL-8009
...
4
Socket Light WPL-M5D312
...
5
Brkt Lamp Socket WPL-M8D223
...
6
Foam Block Top WPL-M2D520
...
7
Cavity Plug (10) WPL-M1D755
...
8
Cavity Kit WPL-M77D103
...
9
Lh Stirrer WPL-M12D69
...
10
R.f. Gasket WPL-M2D492
...
11
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
12
.156 Dia Push On Clip WPL-M1D78
...
13
Support Rack WPL-B8371001
...
14
Choke Filler WPL-M55D13
...
15
Gasket WPL-M25D64
...
16
Shelf, Kit WPL-M50D37
...
17
Tuning Stud WPL-M2D537
...
18
Stir Cover Kit (l & R) WPL-M45D21
...
19
Stirrer Cover - Right WPL-M45D22
...
20
Gasket-Rf WPL-M2D296
...
21
Kit, Magnetron WPL-M57D25
...
22
Cutout-Thermal-Control WPL-31866P01
...
23
Ld Grn 16 Ga WPL-M5D120
...
24
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
25
Air Duct Top WPL-M65D245
...
26
Cover Component WPL-M20D187
...
27
Horizontal Vent WPL-M65D246
...
28
Transition Duct WPL-M8D224
...
29
Not Available WPL-M65D247
...
30
Kit, Diode WPL-M3D71
...
31
No.6 Trimmed Hex Hd Screw WPL-5000632401
...
32
Switch Asy WPL-M14D232
...
33
Lamp Slide M20d188 WPL-M20D188
...
34
Bearing Latch WPL-M2D327
...
35
Screw (25) WPL-M1D107
...
36
Block M2d522 WPL-M2D522
...
37
Not Available WPL-M1D868
...
38
Bushing WPL-M2D521
...
39
Not Available WPL-M1D411
...
40
High Voltage Capacitor WPL-M10D87
...
41
No.8-Screw WPL-M1D636
...
42
Varistor A WPL-37564P01
...
43
Fuse 20 A WPL-WPM0805101
...
44
Ia Screw WPL-M1D329
...
45
Screw WPL-WPW10001160
...
46
Kit, Door Hook WPL-M8D239
...
47
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
48
Clip Stirrer WPL-M1D854
...
49
Blower Motor WPL-M12D73
...
50
Brkt Blwr WPL-M20D190
...
51
Speed Nut WPL-M2D523
...
52
Foam Block Btm WPL-M2D524
...
53
No.8-Screw WPL-M1D636
...
54
Xfmr H.v. WPL-40221P01
...
55
Receptical- WPL-37251P01
...
56
Clip Rail WPL-M8D226
...
57
Rack WPL-M67D30
...
58
Fuse WPL-WP22001555
...
59
No.8 T X 1/4`` Screw WPL-M1D486
...
60
Cont Pnl Top WPL-M7D488
...
61
Grill Cont Pnl WPL-M7D489
...
62
Retainer Clip WPL-M2D525
...
63
Gasket WPL-A3030302
...
64
Auto Cook Guide WPL-M7D536
...
65
Window WPL-M7D493
...
66
Spacer WPL-M2D440
...
67
Membrane Tch Pnl Kit WPL-M7D538
...
68
Bezel WPL-M7D495
...
69
Bezel Button M2d286 WPL-M2D286
...
70
No.8 T X 1/4`` Screw WPL-M1D486
...
71
Screw (25) WPL-M1D871
...
72
M11d55 Rel WPL-36980P01
...
73
Switch, Fan WPL-M14D238
...
74
Light Switch WPL-M14D239
...
75
Control Pnl Back WPL-M7D557
...
76
Bracket WPL-M8D228
...
77
Spring WPL-M2D531
...
78
Actuator Pivot WPL-M8D229
...
79
H.v.lead No.31 WPL-M5D339
...
80
Ia Screw WPL-M1D329
...
81
Insertion Tool WPL-M95D22

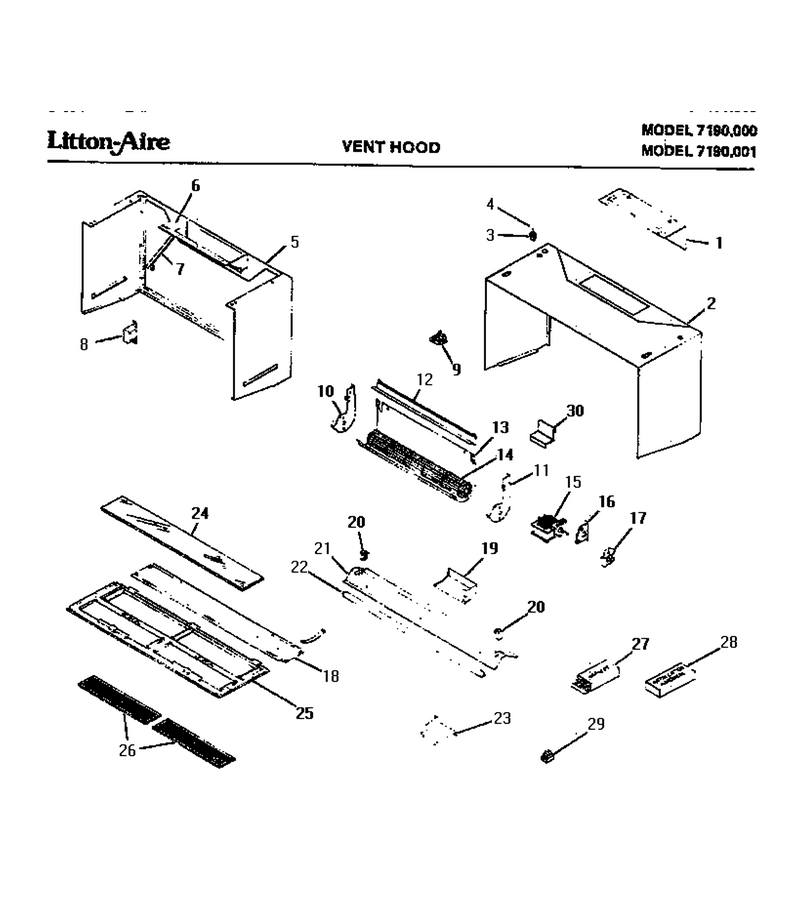

02 - Vent Hood

...
...
1
Damper Asy WPL-37722P01
...
2
No.8-Screw WPL-M1D636
...
3
Strain Relief WPL-8536977
...
4
Power Cord WPL-M26D45
...
5
Clip Inner Frame WPL-M2D562
...
6
No.8-Screw WPL-M1D636
...
7
No.8-Screw WPL-M1D636
...
8
No.8-Screw WPL-M1D636
...
9
No.8-Screw WPL-M1D636
...
10
No.8-Screw WPL-M1D636
...
11
No.8-Screw WPL-M1D636
...
12
Screw WPL-WP90767
...
13
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
14
Blower Wheel WPL-M35D33
...
15
Grommet WPL-M2D515
...
16
Not Available WPL-M8D219
...
17
Fan Blade WPL-M35D34
...
18
Access Pnl Rear WPL-M82D155
...
19
No.8-Screw WPL-M1D636
...
20
Screw (25) WPL-M1D129
...
21
Cover Light WPL-M65D243
...
22
Lamp- Flou WPL-WPY0067945
...
23
Plug Cover WPL-M8D221
...
24
Clip Light Lens WPL-M2D516
...
25
Screw (25) WPL-M1D876
...
26
Filter WPL-37229P01
...
27
Nla (see D-Pb17) WPL-M27D283
...
28
Not Available WPL-M85D70
...
29
Insertion Tool WPL-M95D22
...
30
Air Baffle WPL-M8D232
