Amana 7121.000

Model: 7121.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

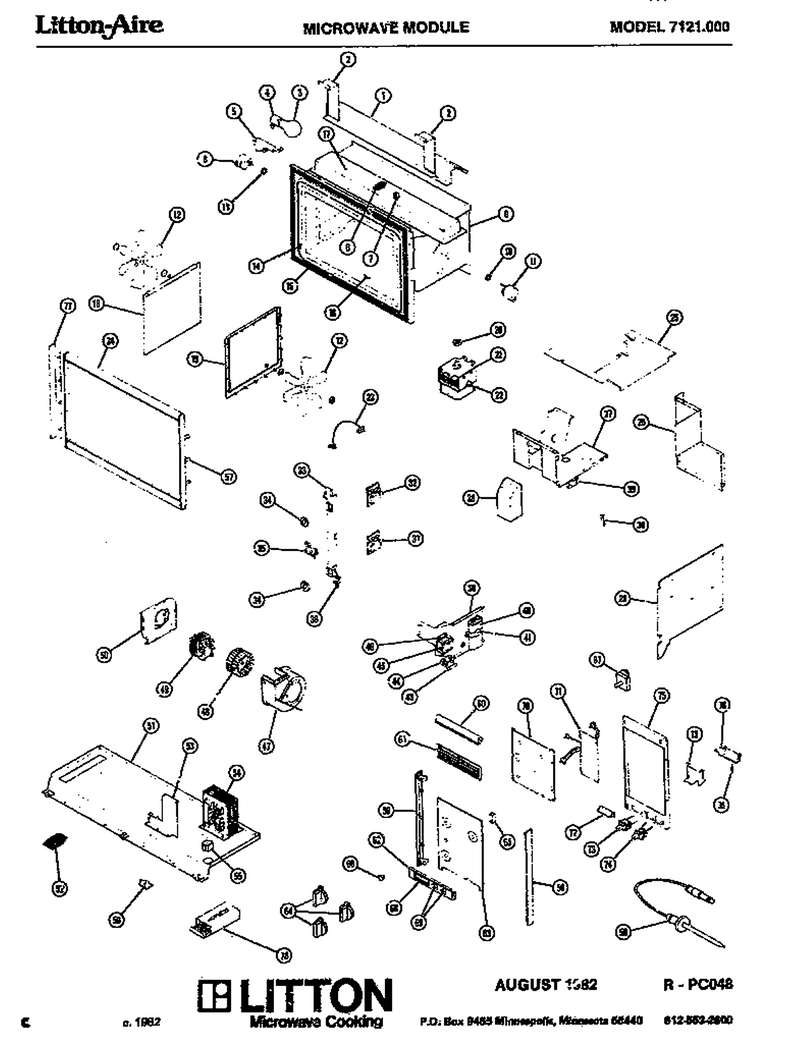

01 - Page 1

...
...
NI
Jumper Cord WPL-M95D16
...
1
S-Clip WPL-M2D519
...
2
Stop Cavity WPL-M8D222
...
3
Light Bulb WPL-8009
...
4
Socket Light WPL-M5D312
...
5
Screw WPL-WP90767
...
6
Foam Block Top WPL-M2D520
...
7
Probe Jack WPL-M14D247
...
8
Cavity Kit WPL-M77D103
...
9
Lh Stirrer WPL-M12D69
...
10
R.f. Gasket WPL-M2D492
...
11
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
12
Stirrer Blade Kit WPL-M35D18
...
13
Actuator Pivot WPL-M8D229
...
14
Choke Filler WPL-M55D13
...
15
Gasket WPL-M25D64
...
16
Shelf, Kit WPL-M50D37
...
17
Tuning Stud WPL-M2D537
...
18
Stir Cover Kit (l & R) WPL-M45D21
...
19
Stirrer Cover - Right WPL-M45D22
...
20
Gasket-Rf WPL-M2D296
...
21
Kit, Magnetron WPL-M57D25
...
22
Screw Thrm WPL-M1D666
...
23
Ld Grn 16 Ga WPL-M5D120
...
24
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
25
Air Duct Top WPL-M65D245
...
26
Cover Component WPL-M20D187
...
27
Bushing WPL-M2D521
...
28
Transition Duct WPL-M8D224
...
29
Not Available WPL-M65D247
...
30
Screw WPL-WPW10068250
...
31
Spring WPL-M2D531
...
32
Ia Screw No.10-32 WPL-M1D370
...
33
Lamp Slide M20d188 WPL-M20D188
...
34
Bearing Latch WPL-M2D327
...
35
Screw (25) WPL-M1D107
...
36
Block M2d522 WPL-M2D522
...
37
Not Available WPL-M1D868
...
38
No.8-Screw WPL-M1D636
...
39
No.8-Screw WPL-M1D636
...
40
H V Cap .91 +-6% WPL-M10D52
...
41
No.8-Screw WPL-M1D636
...
43
Fuse 20 A WPL-WPM0805101
...
44
No.4-40 Twin Whiz-Lock Nut WPL-M1D360
...
45
Screw (25) WPL-M1D590
...
46
Screw (25) WPL-M1D590
...
47
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
48
Clip Stirrer WPL-M1D854
...
49
Nut WPL-WP488130
...
50
Brkt Blwr WPL-M20D190
...
51
Speed Nut WPL-M2D523
...
52
Foam Block Btm WPL-M2D524
...
53
Air Baffle Lower WPL-M20D191
...
54
Transformer WPL-M60D79
...
55
Receptical- WPL-37251P01
...
56
Screw WPL-WPW10001160
...
57
Tri-Wing Screw WPL-M1D882
...
58
Ia Probete WPL-34005P01
...
59
Control Pnl WPL-M7D487
...
60
Cont Pnl Top WPL-M7D488
...
61
Grill Cont Pnl WPL-M7D489
...
62
Not Available WPL-M2D526
...
63
Gasket WPL-A3030302
...
64
Knob Controller WPL-M6D291
...
65
Retainer Ind/lgt WPL-M2D561
...
66
Lens Ind Light WPL-M2D560
...
67
Timer WPL-M30D76
...
68
Bezel WPL-M7D495
...
69
Bezel Button M2d286 WPL-M2D286
...
70
Mtg Plate Front WPL-M7D544
...
71
Not Available WPL-M2D489
...
72
Bar Clip WPL-M2D399
...
73
Switch, Fan WPL-M14D238
...
74
Light Switch WPL-M14D239
...
75
Mtg Plate Back WPL-M7D542
...
76
Bracket WPL-M8D228
...
77
Hinge Cover WPL-M7D506
...
78
H.v. Lead WPL-M5D317

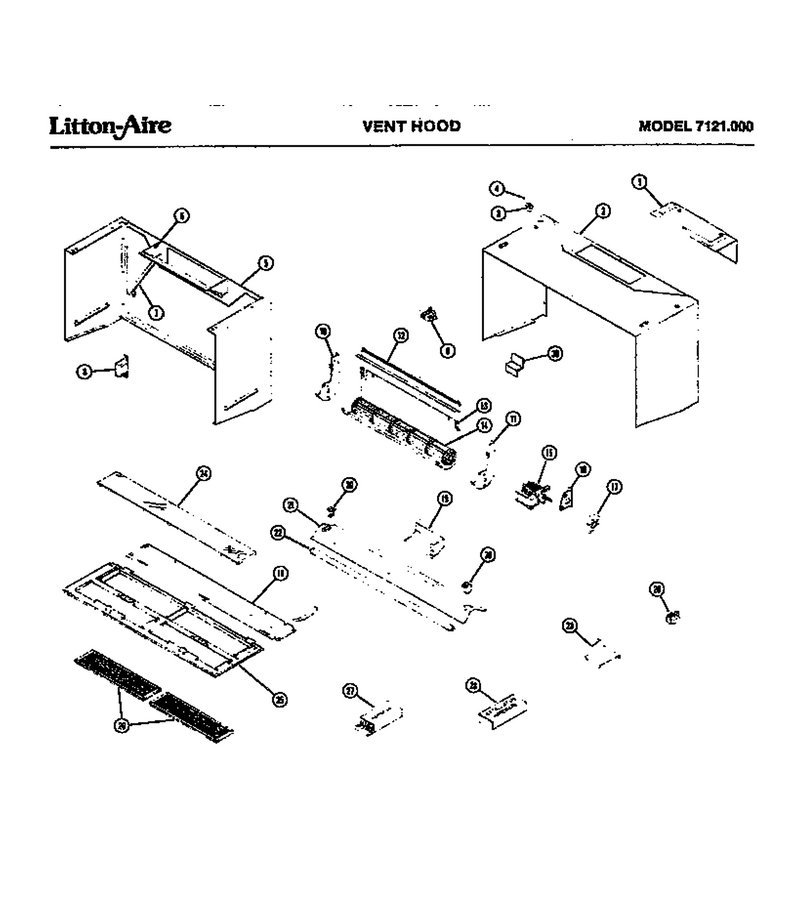

02 - Vent Hood

...
...
1
Damper Asy WPL-37722P01
...
2
Outer Wrap WPL-M80D91
...
3
Strain Relief WPL-8536977
...
4
Power Cord WPL-M26D45
...
5
Not Available WPL-M80D92
...
6
Duct Vent WPL-M20D183
...
7
No.8-Screw WPL-M1D636
...
8
No.8-Screw WPL-M1D636
...
9
No.8-Screw WPL-M1D636
...
10
No.8-Screw WPL-M1D636
...
11
No.8-Screw WPL-M1D636
...
12
Screw WPL-WP90767
...
13
Not Available WPL-M65D242
...
14
Blower Wheel WPL-M35D33
...
15
Nut WPL-WP488130
...
16
Not Available WPL-M8D219
...
17
Fan Blade WPL-M35D34
...
18
Access Pnl Rear WPL-M82D155
...
19
Wire Cover WPL-M20D186
...
20
Fluorescent Lamp Holder WPL-M5D311
...
21
No.8-Screw WPL-M1D636
...
22
Lamp- Flou WPL-WPY0067945
...
23
No.8-Screw WPL-M1D636
...
24
Clip Light Lens WPL-M2D516
...
25
Speed Nut WPL-M2D523
...
26
Clip Filter WPL-M2D518
...
27
Nla (see D-Pb17) WPL-M27D283
...
28
Not Available WPL-M85D70
...
29
Insulator Smk El WPL-M5D388
...
30
Air Baffle WPL-M8D232
