Amana 70/80.04

Model: 70/80.04

Save Part Not Listed?
product name

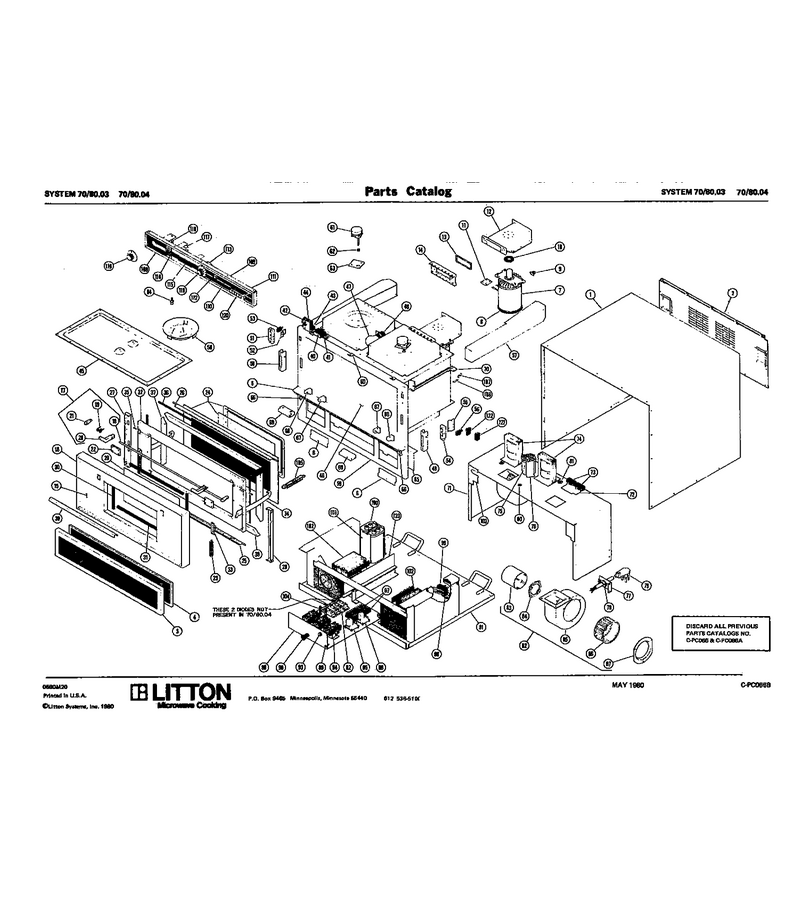

01 - Page 1

...
...
NI
Bowl, Power Test Kit WPL-M95D5
...
1
Tinnerman (4) WPL-M1D303
...
2
Screw(25) WPL-M1D302
...
3
Filter Frame WPL-M48D7
...
4
Filter WPL-20098P01
...
5
No.10 Hex Wshr Hd Mach Scr(25)m1 WPL-M1D146
...
6
Guard WPL-M2D147
...
7
Ia Washer No.10 WPL-M1D326
...
8
Not Available WPL-M25D24
...
9
Thermal Protector WPL-M4D3
...
10
R F Gasket WPL-M2D15
...
11
Jw Insul Spacer WPL-M2D221
...
12
Wave Guide WPL-M65D17
...
13
Gasket M2d36 WPL-M2D36
...
14
Not Available WPL-M2D42
...
15
Ia Door WPL-36707P01
...
16
Outer Door Cast WPL-M70D34
...
17
Not Available WPL-M52D32
...
18
Shaft WPL-21516P01
...
19
Latch Spring WPL-M2D98
...
20
Arm WPL-M2D148
...
21
Washer (25) WPL-19934P01
...
22
Screw (25) WPL-M1D199
...
23
Door Spring Kit WPL-M2D120
...
24
Rivet (25) WPL-M1D306
...
25
Retainer WPL-M7D66
...
26
Retainer WPL-19920P01
...
27
Retainer M7d68 WPL-19922P01
...
28
Retainer WPL-M7D69
...
29
Outer Glass WPL-M51D3
...
30
Spacer WPL-M25D25
...
31
Spacer WPL-M25D26
...
32
M70d49 Painted Door. WPL-M70D49
...
33
No.8 Flat Hd Machine Screw WPL-M1D196
...
34
Cam Roller Rt & Lft WPL-M2D100
...
35
Catch WPL-19933P01
...
36
Ferrite Stop WPL-M25D15
...
37
Filler WPL-23230P01
...
38
Filler WPL-23230P02
...
39
Handle Kit WPL-M11D9
...
40
Bracket WPL-M2D149
...
41
Screw, Switch Mtg. WPL-M1D37
...
42
Brkt Sw WPL-M8D231
...
43
Nut K WPL-M0282005
...
44
No.3/8-24 Palnut (25) WPL-M1D308
...
45
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
46
Switch Adjust Pad WPL-6140612001
...
47
Lamp WPL-M9D10
...
48
Receptacle WPL-18336P01
...
49
Cam Roller M2d87 WPL-23248A01
...
50
No.8 Flat Hd Machine Screw WPL-M1D196
...
51
L.h. Door Latch Asy WPL-M8D46
...
52
Retainer, Button WPL-M2D314
...
53
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
54
Latch & Pin WPL-24593A01
...
55
Brkt, Latch Monitor WPL-M2D223
...
56
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
57
Screw(25) WPL-M1D302
...
58
Stirrer & Hub WPL-M44D13
...
59
Thermal Protector WPL-M4D3
...
60
Guide WPL-M2D155
...
61
Stirrer Motor Kit WPL-M12D5
...
62
R.f. Gasket WPL-94072P01
...
63
Spacer WPL-M2D156
...
64
Nut, Antenna Pin Mtg WPL-M1D104
...
65
Hinge Support WPL-M52D33
...
66
Screw (25) WPL-M1D197
...
67
Hinge WPL-24216P01
...
68
Allen Screw WPL-M1D210
...
69
Hinge WPL-19917P01
...
70
No.6 Pan Hd Machine Screw WPL-M1D321
...
71
Not Available WPL-M79D11
...
72
Switch Brkt WPL-M20D6
...
73
Screw, Switch Mtg. WPL-M1D37
...
74
Nut WPL-M0282009
...
75
Capacitor 4.00mf Kit WPL-M10D21
...
76
Univ Cap Brkt WPL-M20D52
...
77
Nut K WPL-M0282005
...
78
Strain Rel WPL-14138P01
...
79
Power Cord WPL-M26D17
...
80
Snap Bushing WPL-M2D114
...
81
Snap Bushing WPL-M2D115
...
82
Not Available WPL-M41D7
...
83
Motor M40d4 WPL-94065P01
...
84
Gasket WPL-M25D8
...
85
Housing, Blower Motor WPL-M65D22
...
86
Blower Wheel WPL-M35D4
...
87
Not Available WPL-M20D4
...
88
Screw WPL-M0202325
...
89
Screw (25) WPL-M1D322
...
90
Pull Knob WPL-M6D26
...
91
Not Available WPL-M79D12
...
92
Bleeder Resistor Assembly WPL-M3D30
...
93
Fuse 1 Amp WPL-M4D21
...
94
Kit, Cook Relay WPL-M16D97
...
95
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
96
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
97
Terminal Block WPL-M4D33
...
98
Not Available WPL-M2D162
...
99
Switch WPL-M14D33
...
100
Dual Cap .88x2mf WPL-M10D7
...
101
Screw (25) WPL-M1D197
...
102
Not Available WPL-M60D34
...
103
Baffle WPL-M2D164
...
104
Screw (25) WPL-M1D50
...
105
Balance Spring WPL-M2D104
...
106
Linkage Strap WPL-M2D165
...
107
M2d103 Hook WPL-20159P01
...
108
Trim, Corner WPL-M2D32
...
109
Control Box WPL-M52D35
...
110
Decorative Panel WPL-M70D36
...
111
Net-Timer,push Button WPL-M31D14
...
112
Sq Gray Button WPL-M6D33
...
113
Screw (25) WPL-M1D330
...
114
Indicator Light WPL-M9D38
...
115
Not Available WPL-M1D52
...
116
Nla (See D-Pb17) WPL-M27D87
...
117
Nut K WPL-M0282005
...
118
Nut WPL-WP488130
...
119
Knob WPL-M6D39
...
120
M6d89 Push Button WPL-M6D85
...
121
Ia Switch WPL-M14D60
...
122
Ia Switch WPL-M14D61
...
123
Air Baffle WPL-M25D43
