product name

Amana 70/80.02

Model: 70/80.02

Save Part Not Listed?
product name

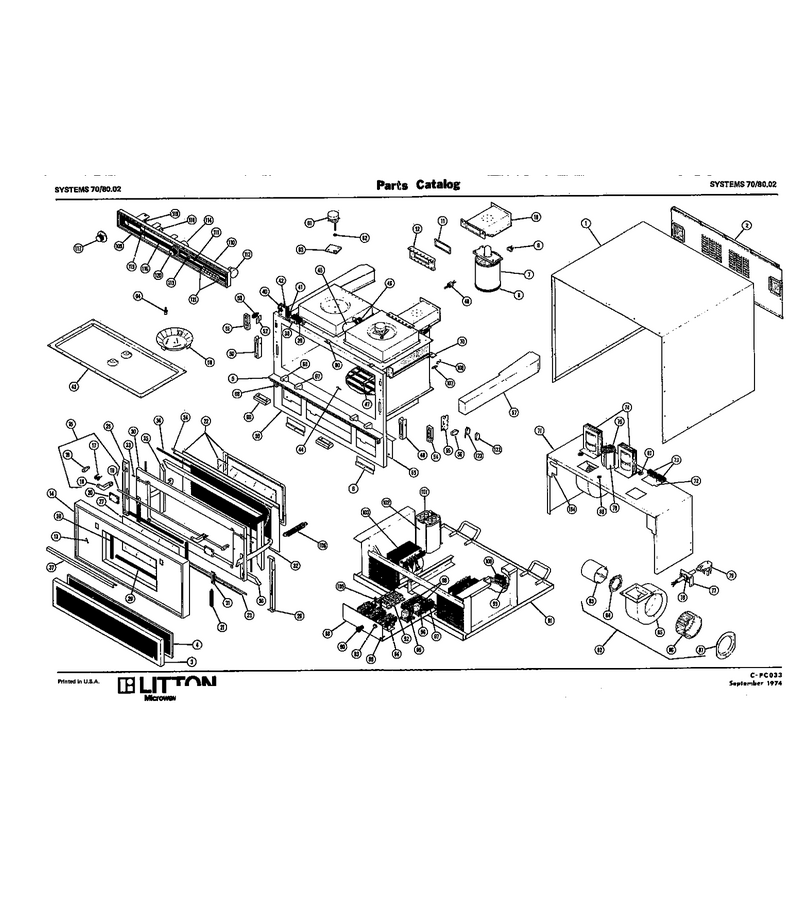

01 - Page 1

...
...
1
Tinnerman (4) WPL-M1D303
...
2
Tinnerman (4) WPL-M1D303
...
3
Filter Frame WPL-M48D7
...
4
Filter WPL-20098P01
...
5
Drip Shield WPL-M65D21
...
6
Guard WPL-M2D147
...
7
Nut, Pin Mtg. WPL-M1D76
...
8
Not Available WPL-M25D24
...
9
Nut 1/4-20 Serrated Fl Ssdelta WPL-70001791
...
10
Nut, Mag. Mtg. WPL-M1D95
...
11
Gasket M2d36 WPL-M2D36
...
12
Waveguide Socket WPL-M20D1
...
13
Ia Door WPL-36707P01
...
14
Outer Door Cast WPL-M70D34
...
15
Not Available WPL-M52D32
...
16
Shaft WPL-21516P01
...
17
Latch Spring WPL-M2D98
...
18
Pin- WPL-21513P01
...
19
Washer (25) WPL-19934P01
...
20
Screw (25) WPL-M1D199
...
21
Door Spring Kit WPL-M2D120
...
22
No.6 Trimmed Hex Hd Screw WPL-5000632401
...
23
Retainer WPL-M7D66
...
24
Retainer WPL-19920P01
...
25
Retainer M7d68 WPL-19922P01
...
26
Retainer WPL-M7D69
...
27
Outer Glass WPL-M51D3
...
28
Spacer WPL-M25D25
...
29
Spacer WPL-M25D26
...
30
Inner Door Casting WPL-M70D35
...
31
Pin WPL-19915P01
...
32
Cam Roller Rt & Lft WPL-M2D100
...
33
Catch WPL-19933P01
...
34
Ferrite Stop WPL-M25D15
...
35
Filler WPL-23230P01
...
36
Filler WPL-23230P02
...
37
Handle Kit WPL-M11D9
...
38
Nut K WPL-M0282005
...
39
Nut K WPL-M0282005
...
40
Nut K WPL-M0282005
...
41
Screw, Switch Mtg. WPL-M1D37
...
42
No.3/8-24 Palnut (25) WPL-M1D308
...
43
.187 Dia Push Rivet/bag-25pcs WPL-M1D281
...
44
Switch Adjust Pad WPL-6140612001
...
45
Lamp WPL-M9D10
...
46
Receptacle WPL-18336P01
...
47
Nut (25) WPL-M1D310
...
48
Sensor Asm WPL-M20D27
...
49
Cam Roller M2d87 WPL-23248A01
...
50
Cam Roller Assembly-Left WPL-M2D124
...
51
Nut (25) WPL-M1D313
...
52
Bracket WPL-M2D153
...
53
No.4-40 Pan Hd Mach Scr WPL-M1D1
...
54
No.8 Flat Hd Machine Screw WPL-M1D33
...
55
Brkt, Latch Monitor WPL-M2D223
...
56
Switch WPL-M14D32
...
57
Screw (25) WPL-M1D185
...
58
Set Screw Kit (1) WPL-M1D461
...
59
Screw (25) WPL-M1D201
...
60
Guide WPL-M2D155
...
61
Stirrer Motor Kit WPL-M12D5
...
62
R.f. Gasket WPL-94072P01
...
63
Spacer WPL-M2D156
...
64
3/8 Int Tooth Lockwasher WPL-M1D118
...
65
Hinge Support WPL-M52D33
...
66
Spacer (10) WPL-M1D315
...
67
Hinge WPL-24216P01
...
68
Washer (25) WPL-M1D320
...
69
Hinge WPL-19917P01
...
70
No.6 Pan Hd Machine Screw WPL-M1D321
...
71
Not Available WPL-M79D11
...
72
5/16 Flat Washer WPL-M1D105
...
73
Nut K WPL-M0282005
...
74
Nut WPL-M0282009
...
75
Capacitor 4.00mf Kit WPL-M10D21
...
76
Not Available WPL-M1D125
...
77
Brkt-Pwr Cord WPL-M2D105
...
78
Strain Rel WPL-14138P01
...
79
See Note Power Cord -- (Purchase Locally) WPL-Y00000000
...
80
Snap Bushing WPL-M2D114
...
81
Snap Bushing WPL-M2D115
...
82
Nut WPL-M0282009
...
83
Motor M40d4 WPL-94065P01
...
84
Gasket WPL-M25D8
...
85
Housing, Blower Motor WPL-M65D22
...
86
Blower Wheel WPL-M35D4
...
87
Not Available WPL-M20D4
...
88
Screw WPL-M0202325
...
89
Not Available WPL-M1D323
...
90
Screw WPL-WPW10068250
...
91
Not Available WPL-M79D12
...
92
Nut K WPL-M0282005
...
93
Fuse 1 Amp WPL-M4D21
...
94
Kit, Cook Relay WPL-M16D97
...
95
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
96
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
97
Nut K WPL-M0282005
...
98
Terminal Block WPL-M4D33
...
99
Not Available WPL-M2D162
...
100
Switch WPL-M14D33
...
101
Dual Cap .88x2mf WPL-M10D7
...
102
Screw (25) WPL-M1D197
...
103
Not Available ) WPL-M1D150
...
104
Baffle WPL-M2D164
...
105
Screw (25) WPL-M1D50
...
106
Balance Spring WPL-M2D104
...
107
Linkage Strap WPL-M2D165
...
108
M2d103 Hook WPL-20159P01
...
109
Trim, Corner WPL-M2D32
...
110
Control Box WPL-M52D35
...
111
Trim WPL-M7D45
...
112
Net-Timer,push Button WPL-M59D21
...
113
Sq Gray Button WPL-M6D33
...
114
Timer M30d13 WPL-M30D13
...
115
Indicator Light WPL-M9D38
...
116
Not Available WPL-M1D52
...
117
Nla (See D-Pb17) WPL-M27D87
...
118
Prog Relay 70/50 Kit WPL-M16D9
...
119
Relay WPL-M16D25
...
120
Ia Knob WPL-M6D69
...
121
Button WPL-23085P08
...
122
Ia Switch WPL-M14D60
...
123
Ia Switch WPL-M14D61
